Product Description

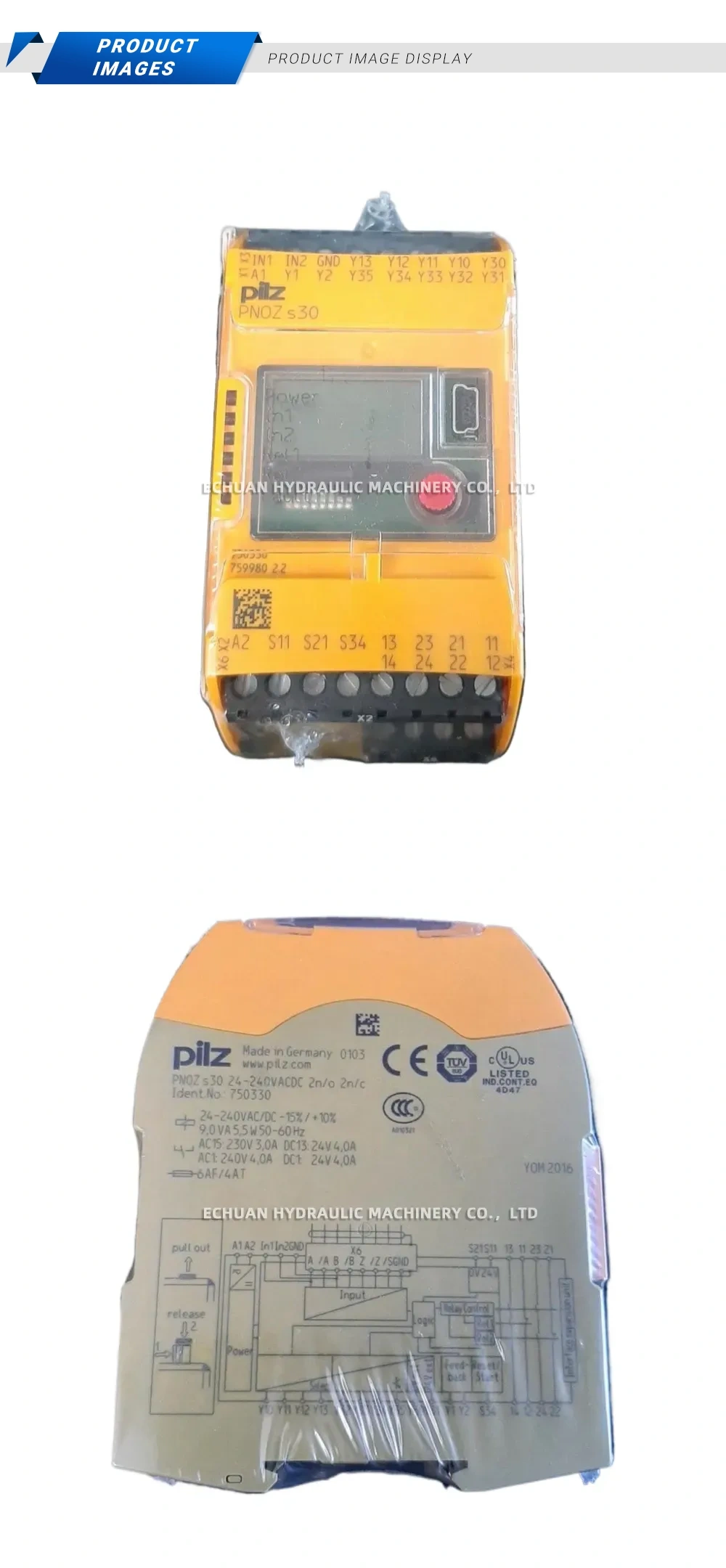

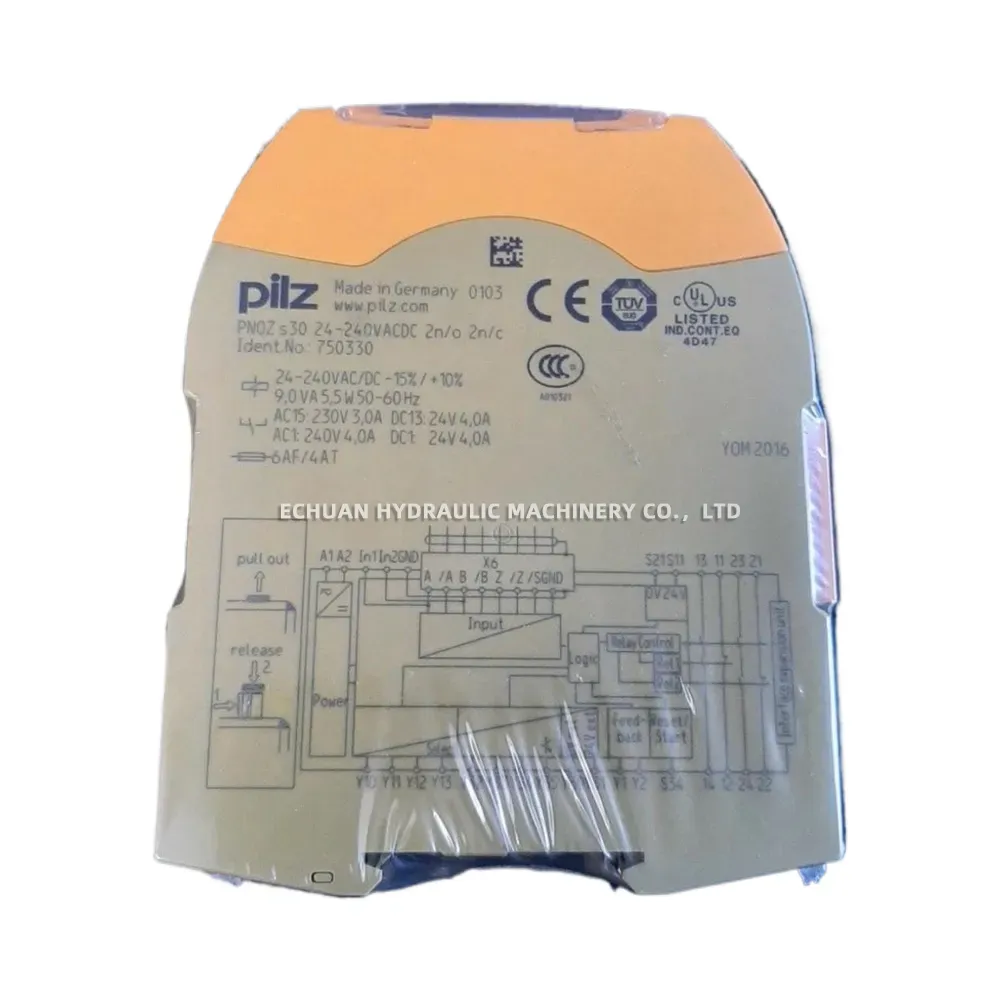

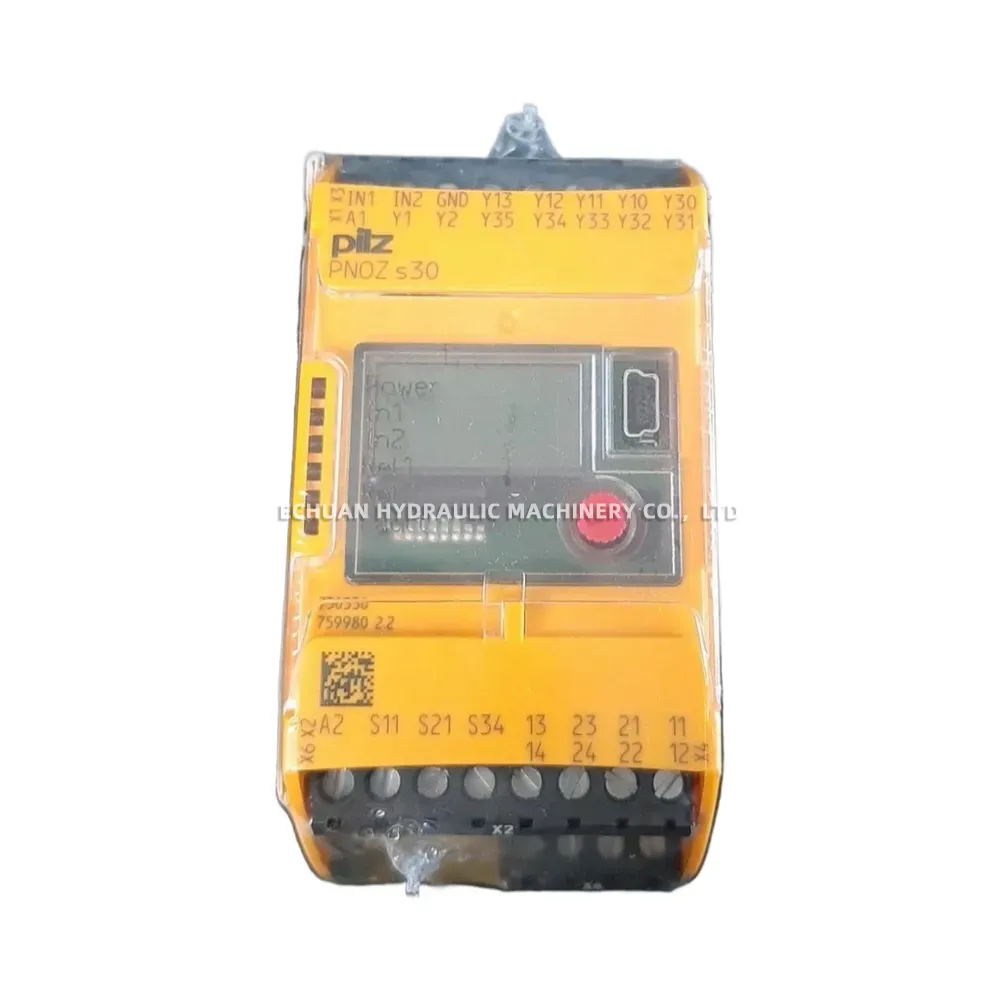

Pilz PNOZ s30 Safety Relay
The Pilz PNOZ s30 is a versatile and configurable safety relay designed to monitor a variety of safety functions in industrial applications. It is ideal for monitoring E-STOP pushbuttons, safety gates, and light curtains. With its wide supply voltage range of 24-240V AC/DC, the PNOZ s30 offers exceptional flexibility for integration into diverse control systems. The unit features a clear diagnostic display for rapid troubleshooting and status indication, minimizing downtime. Its configurable nature allows for precise adaptation to specific safety requirements, making it a reliable and efficient solution for machine safety engineering.
Technical Specifications:
- Model: PNOZ s30
- Part Number (Ident.No.): 750330
- Supply Voltage: 24-240V AC/DC (-15% / +10%)
- Power Consumption: 9.0 VA / 5.5 W (50-60 Hz)
- Output Contacts: 2 Normally Open (N/O), 2 Normally Closed (N/C)
- Rated Operational Current (AC-15): 3.0A at 230V
- Rated Operational Current (DC-13): 4.0A at 24V
- Fuse Protection: 6A (fast-acting) / 4A (time-lag)
