Product Description

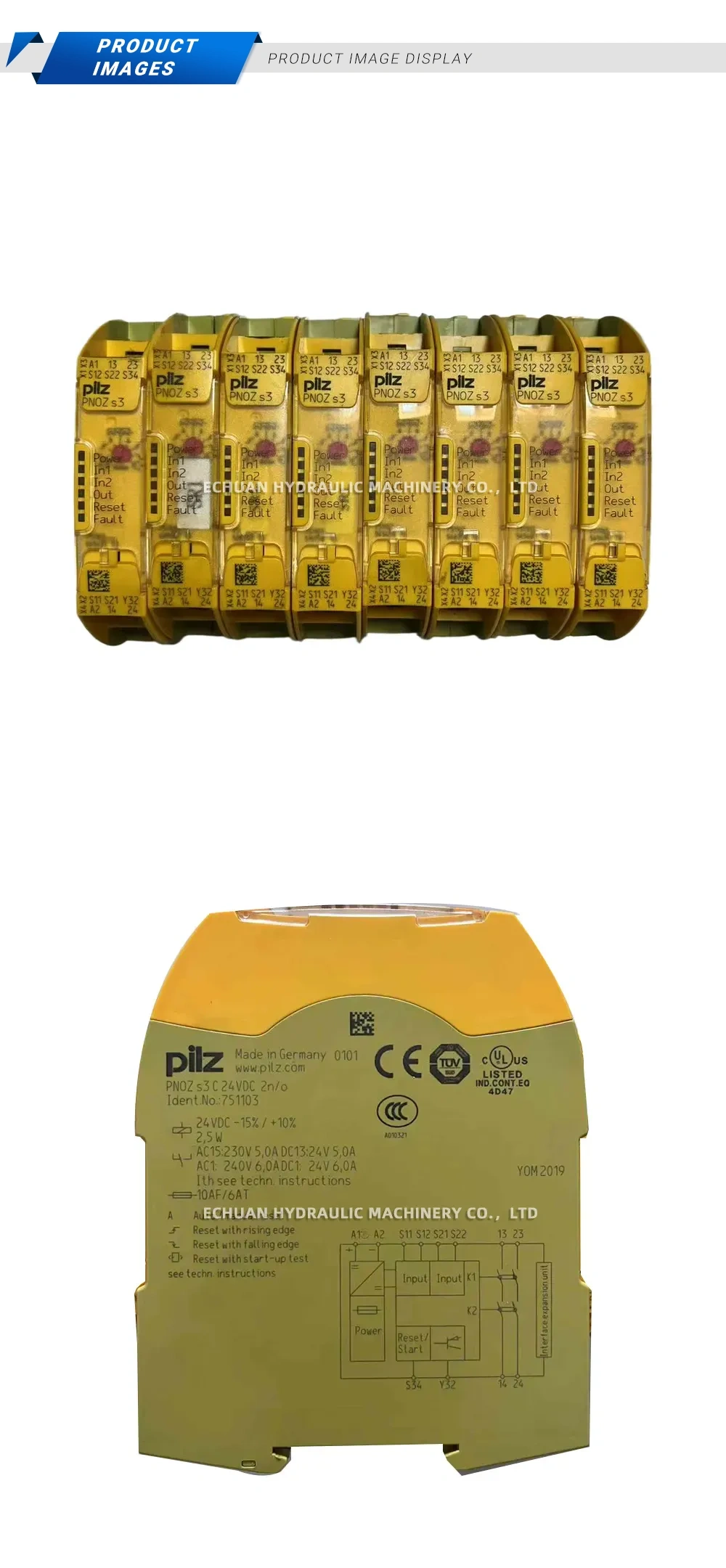

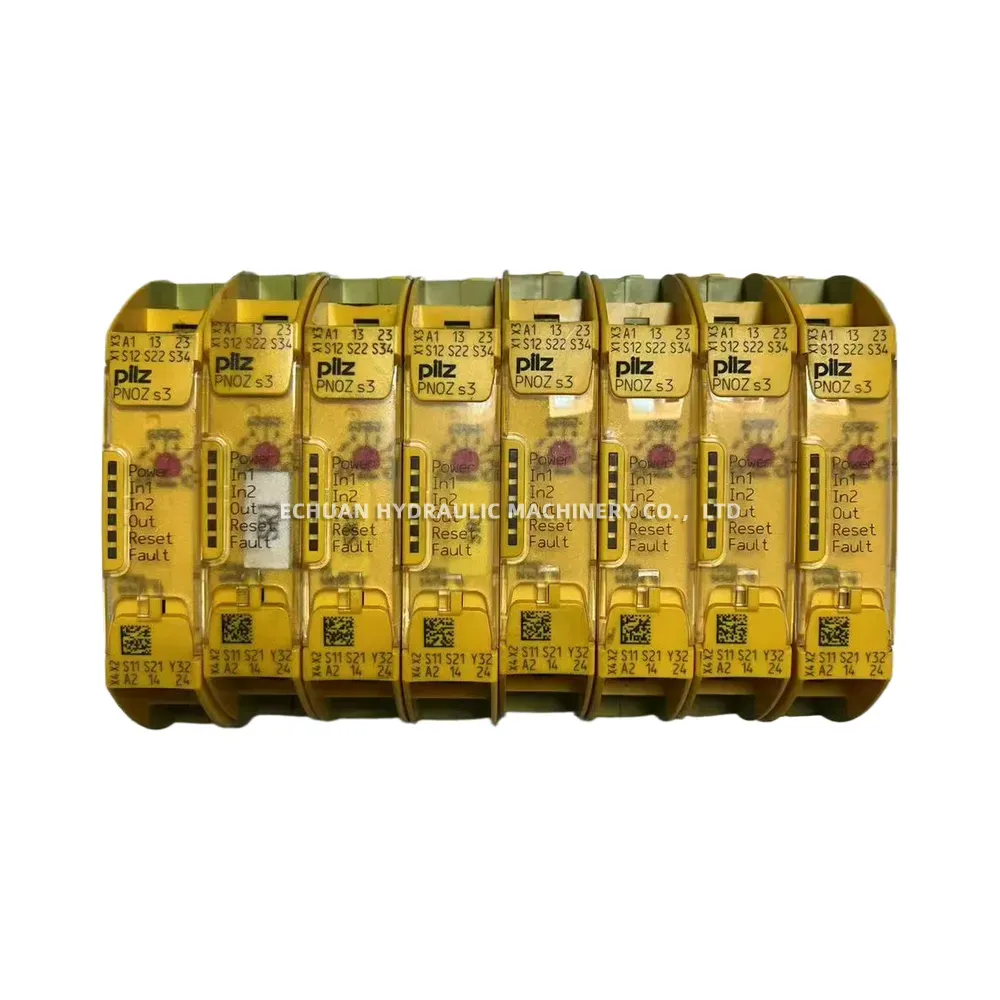

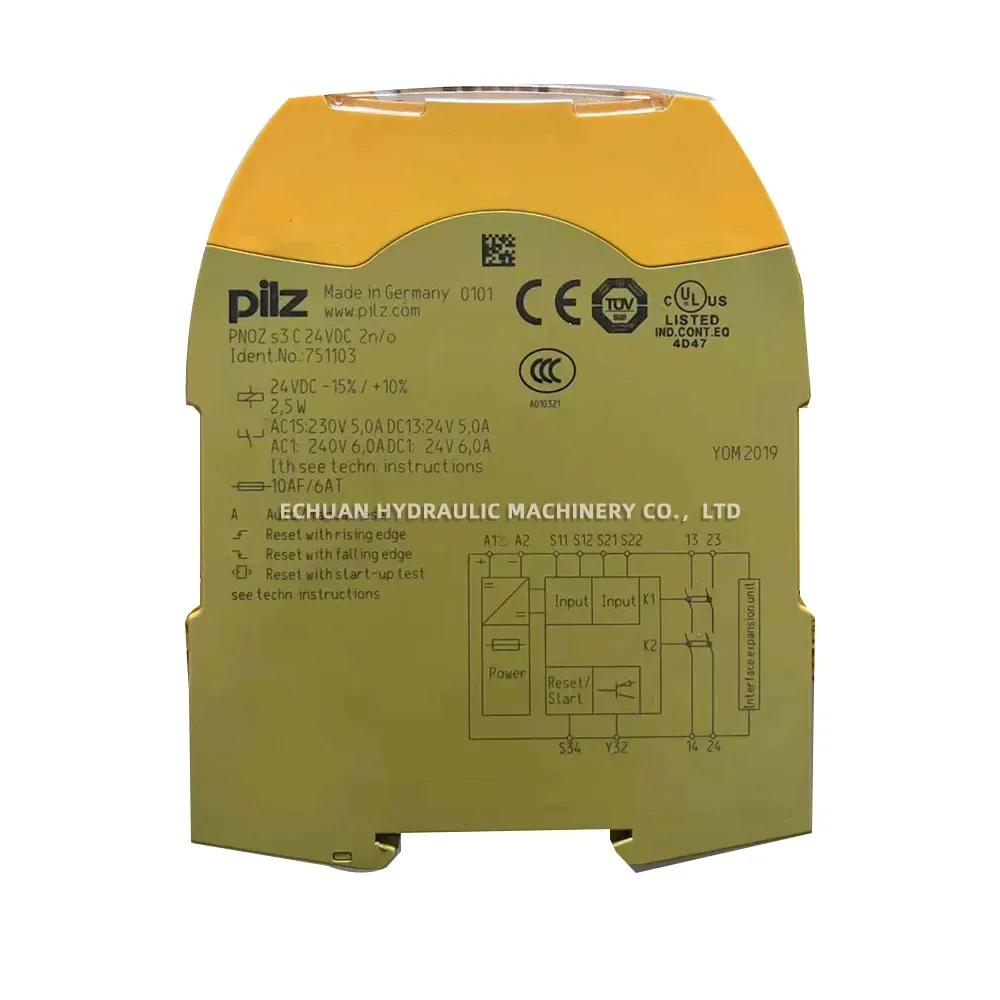

Pilz PNOZ s3 C 24VDC 2n/o (Ident.No.: 751103) Safety Relay
The Pilz PNOZ s3 C (Ident.No. 751103) is a reliable and compact safety relay designed for monitoring essential safety functions like E-STOP pushbuttons, safety gates, and light barriers. Operating on a 24VDC supply, this unit provides two normally open (N/O) safety contacts to ensure the safe shutdown of machine operations. It offers exceptional flexibility with configurable reset options, including automatic or manual reset, which can be triggered on a rising or falling edge. A start-up test feature enhances system integrity. This module also includes an interface for connecting expansion units, making it a versatile and scalable solution for a wide range of industrial safety applications.
Technical Specifications:
- Brand: Pilz
- Model: PNOZ s3 C 24VDC 2n/o
- Identification Number: 751103
- Supply Voltage: 24VDC (-15% / +10%)
- Power Consumption: 2.5 W
- Safety Contacts: 2 N/O (Normally Open)
- Contact Ratings: AC15: 230V 5.0A | DC13: 24V 5.0A | AC1: 240V 6.0A | DC1: 24V 6.0A
- Reset Functions: Automatic / Manual, Reset with Rising/Falling Edge, Start-up Test
- Expansion: Integrated interface for expansion unit
Pilz PNOZ s3 C 24VDC 2n/o (Ident.No.: 751103) Safety Relay
Buy the Pilz PNOZ s3 C 24VDC 2n/o safety relay (751103). A compact safety module for E-STOP and safety gate applications, featuring 2 normally open contacts, 24VDC operation, and flexible auto/manual reset functions.
| Brand | Pilz |
|---|---|
| Model | PNOZ s3 C 24VDC 2n/o (Ident.No.: 751103) |
| Part No. | 724128979154 |
| Category | Electrical |
