Product Description

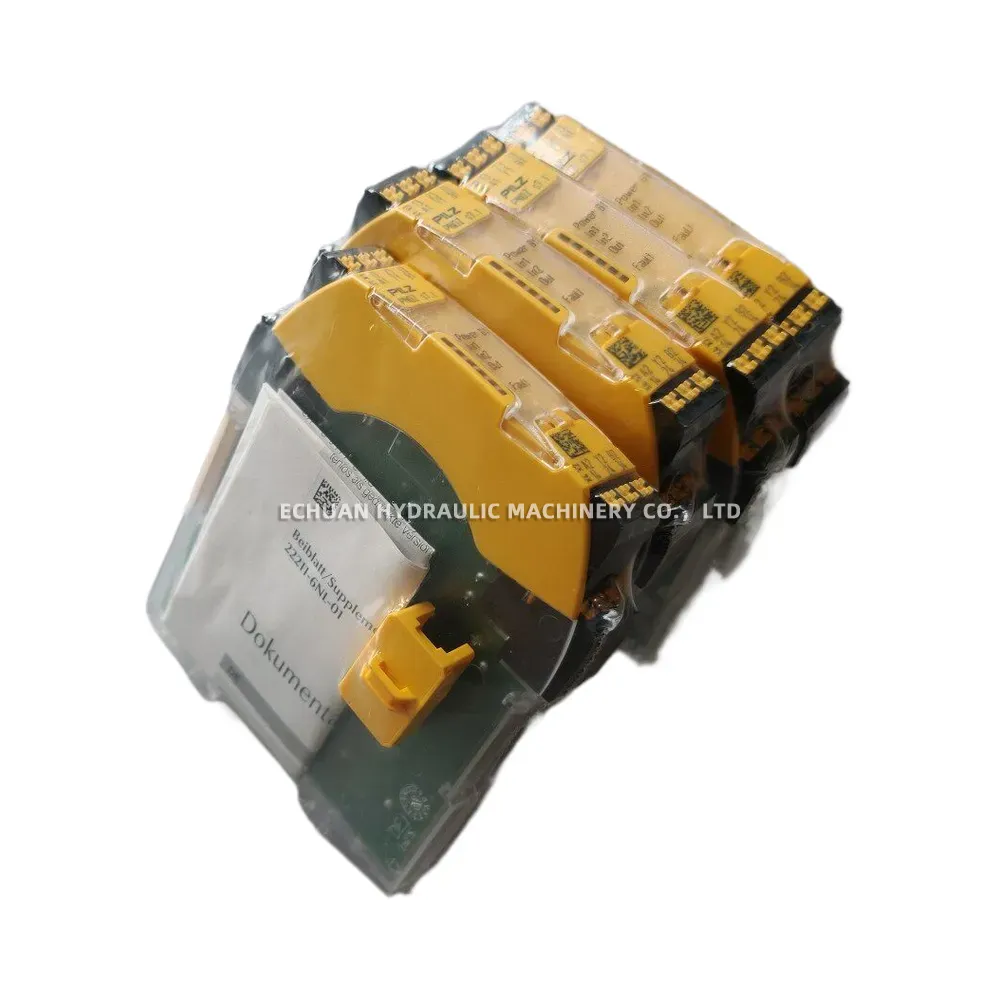

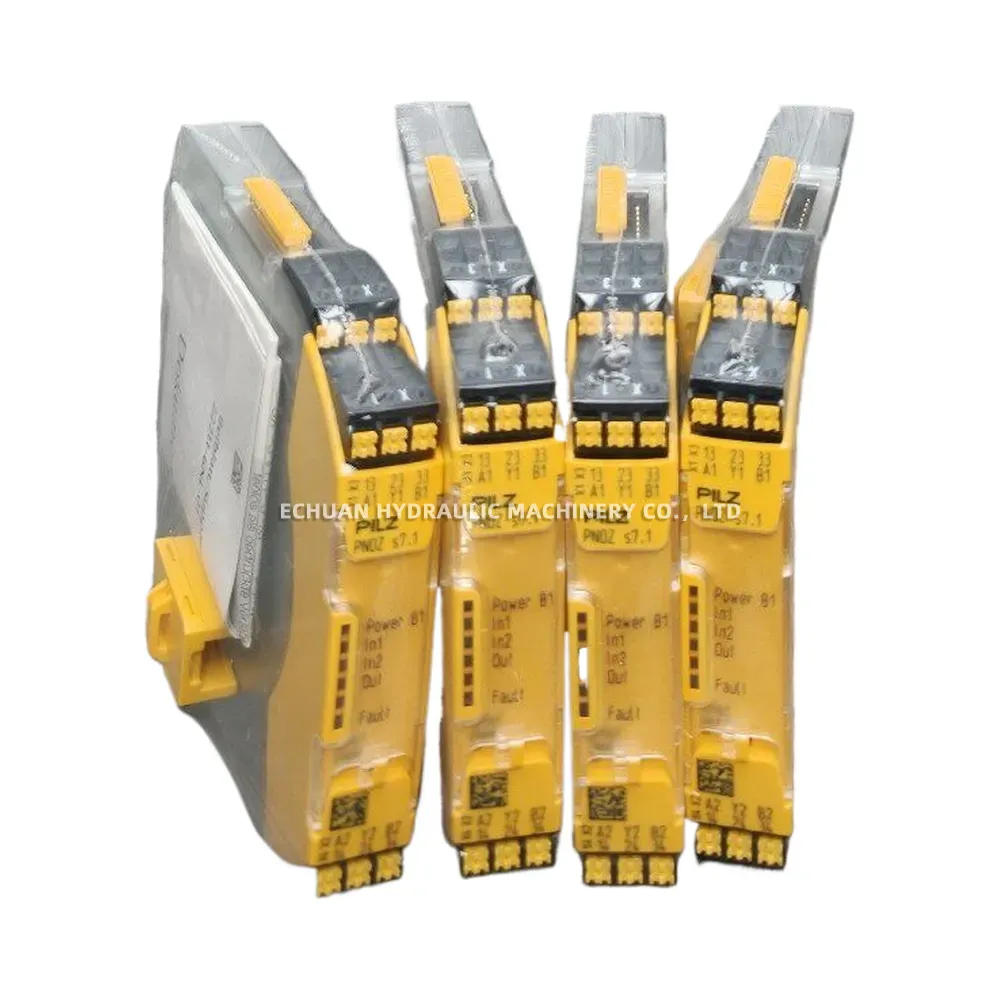

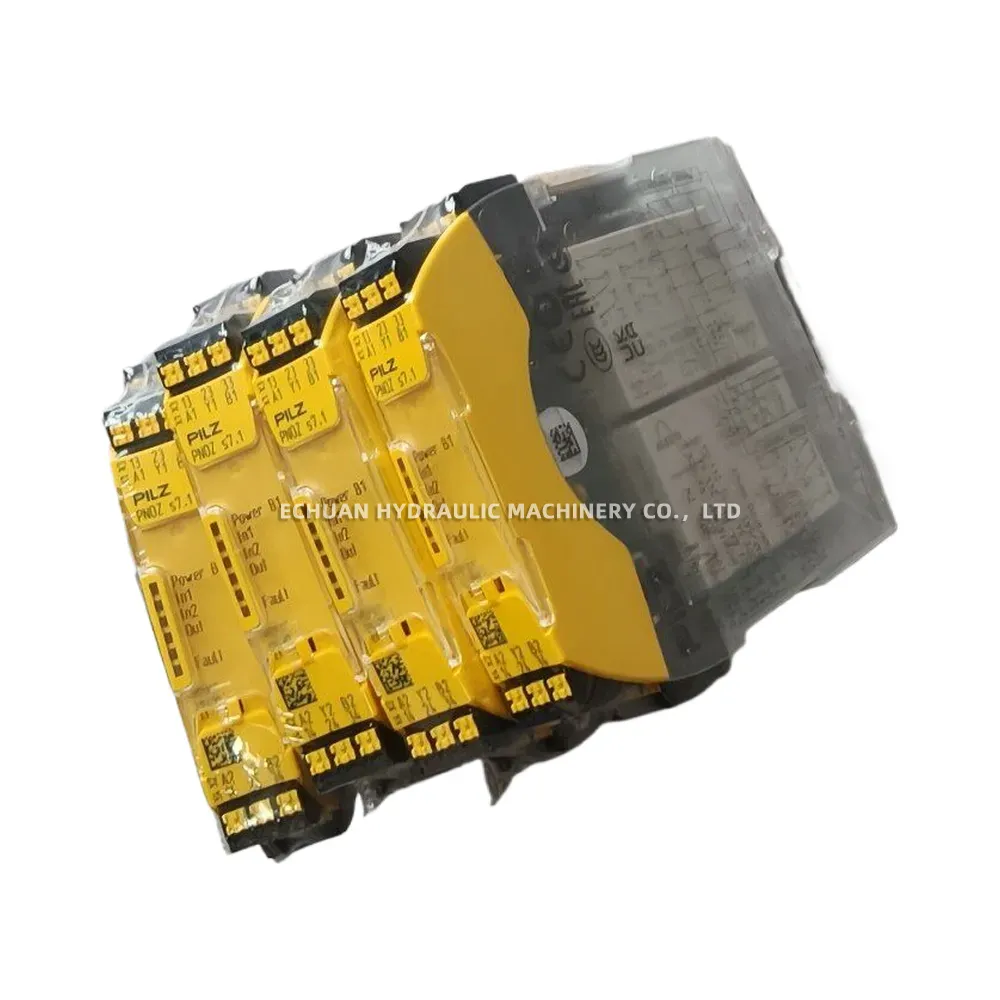

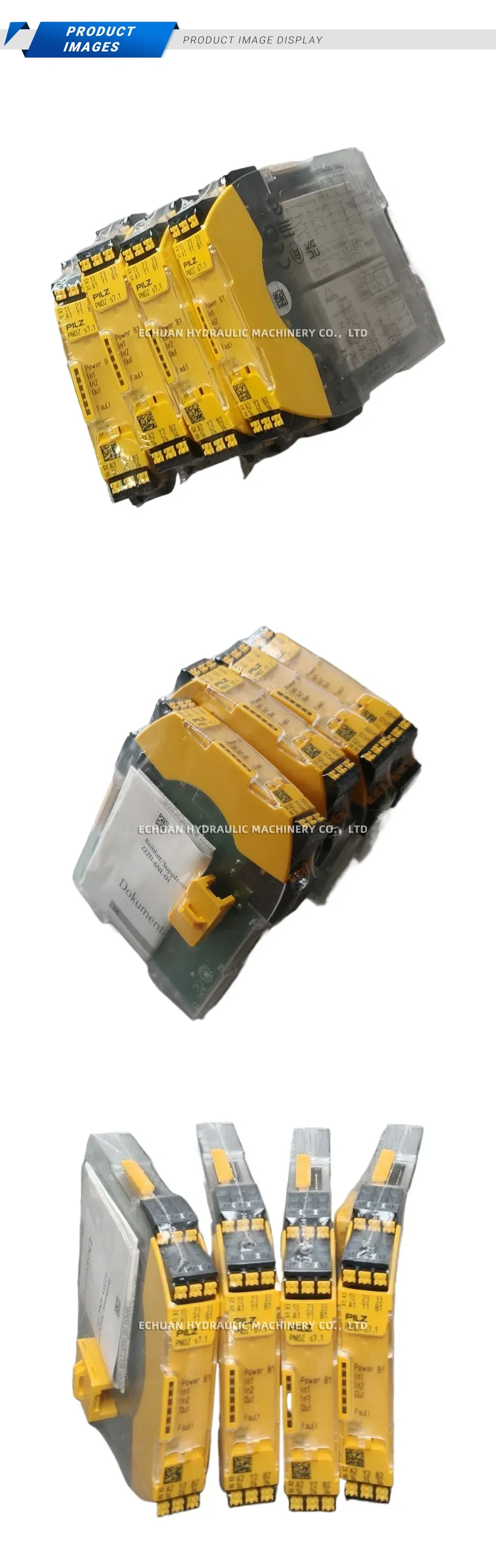

PILZ PNOZ s7.1 Safety Relay
The PILZ PNOZ s7.1 (Ident. No. 751167) is a highly reliable safety relay module engineered to ensure maximum protection in industrial safety circuit applications. Manufactured in Germany, this compact and robust device operates on a 24VDC power supply and is equipped with dedicated safety and auxiliary contacts. To facilitate quick troubleshooting and system monitoring, the front panel features intuitive LED indicators displaying the status of Power, Inputs (In1, In2), Output (Out), and Faults. With standardized terminal connections—including A1/A2 for power, Y1/Y2 for outputs, and B1/B2 for feedback/inputs—the PNOZ s7.1 offers seamless integration and dependable performance for your automated machinery safety systems.
Technical Specifications:
- Brand: PILZ
- Model: PNOZ s7.1 C (Ident. No. 751167)
- Power Supply: 24VDC -20%/+20%, 2W
- Safety Contact Max Ratings (AC): AC1: 250V 6A | AC15: 230V 5A
- Safety Contact Max Ratings (DC): DC1: 24V 6A | DC13: 24V 5A
- Fuse Rating: 10AF / 6AT
- LED Indicators: Power, In1, In2, Out, Fault
- Terminals: A1/A2, Y1/Y2, B1/B2, 13-14, 23-24, 33-34
- Country of Origin: Made in Germany
PILZ PNOZ s7.1 Safety Relay
Shop the PILZ PNOZ s7.1 (751167) Safety Relay for reliable industrial machinery protection. This 24VDC safety module features robust safety contacts, clear LED diagnostics, and premium German engineering to ensure optimal performance in your automated safety circuits.
