Product Description

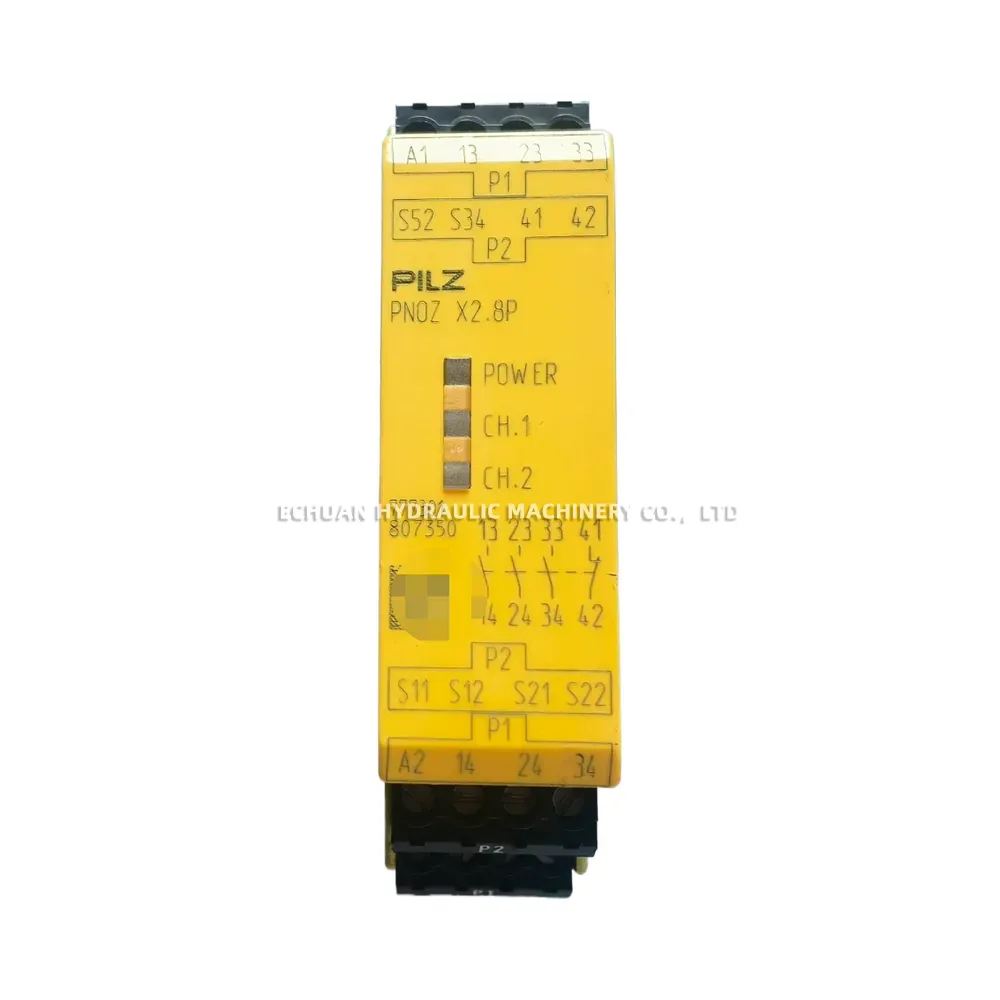

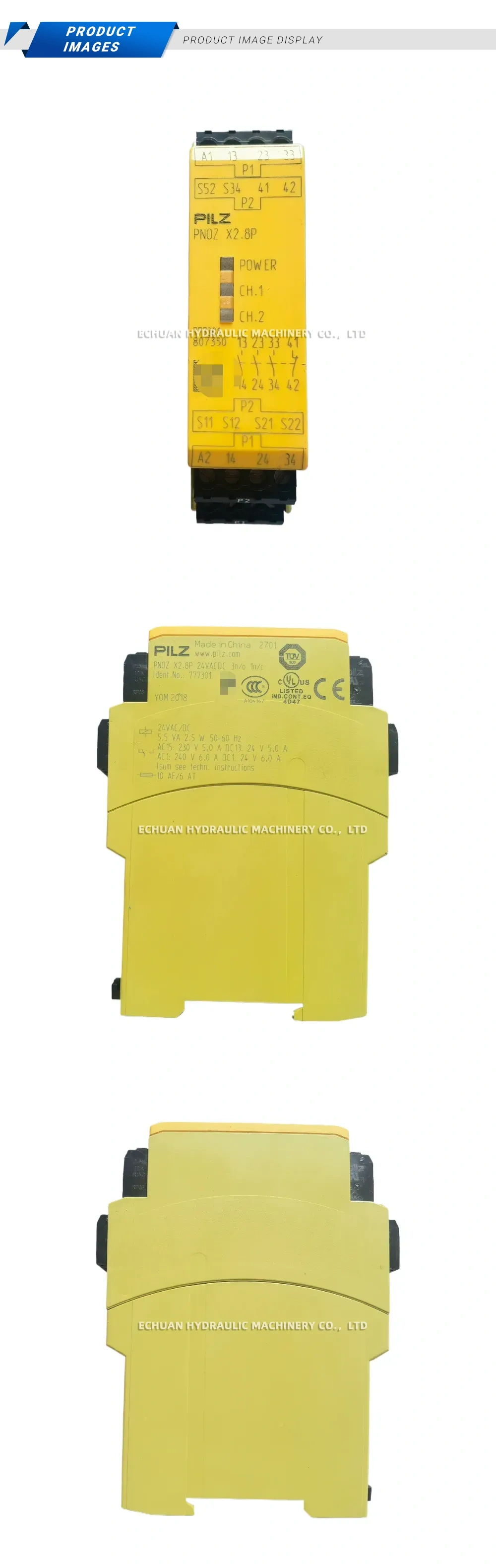

PILZ PNOZ X2.8P Safety Relay
The PILZ PNOZ X2.8P (Ident. No. 777301) is a highly reliable, industry-standard safety relay module designed for the continuous monitoring of emergency stop buttons, safety gates, and light barriers. Operating on a 24VAC/DC power supply, this robust safety device features a versatile contact configuration consisting of 3 normally open (N/O) safety contacts and 1 normally closed (N/C) auxiliary contact. Built to ensure maximum safety and operational efficiency in industrial automation environments, the unit includes clear front-facing LED indicators for Power, Channel 1, and Channel 2 status, allowing for quick visual diagnostics and troubleshooting. Certified by TUV, CCC, cULus, and CE, the PNOZ X2.8P guarantees strict compliance with international machine safety standards.
Technical Specifications:

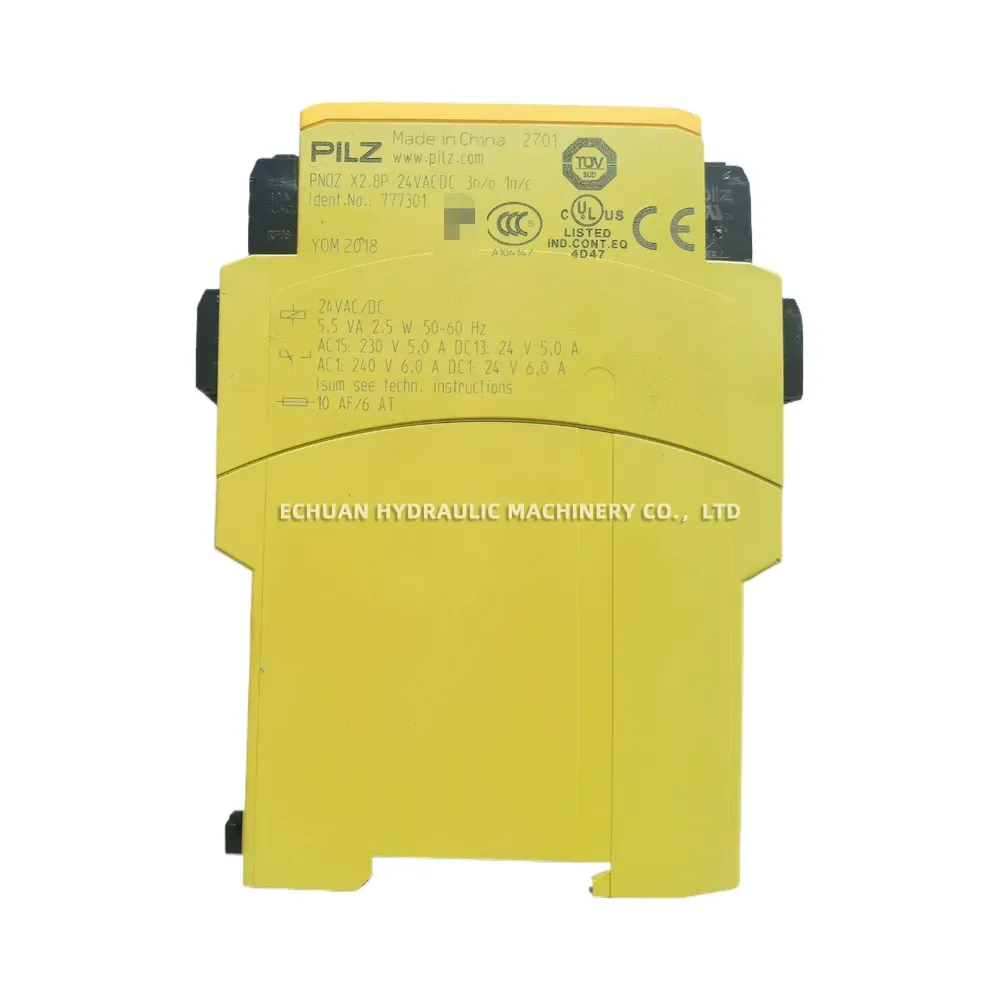

- Brand: PILZ
- Model: PNOZ X2.8P (Ident.No.: 777301)
- Operating Voltage: 24 VAC/DC
- Contact Configuration: 3 Normally Open (n/o), 1 Normally Closed (n/c)
- Power Consumption: 5.5 VA, 2.5 W at 50-60 Hz
- Output Ratings: AC15: 230 V 5.0 A | DC13: 24 V 5.0 A | AC1: 240 V 6.0 A | DC1: 24 V 6.0 A
- Fuse Rating: 10 AF / 6 AT
- Status Indicators: LED (POWER, CH.1, CH.2)
- Certifications: TUV, CCC, cULus LISTED IND.CONT.EQ, CE
PILZ PNOZ X2.8P Safety Relay
Upgrade your machine safety with the PILZ PNOZ X2.8P (777301) Safety Relay. This 24VAC/DC module features 3 N/O and 1 N/C contacts, ideal for reliable emergency stop and safety gate monitoring. Fully certified (TUV, cULus, CE) for industrial automation.
