Product Description

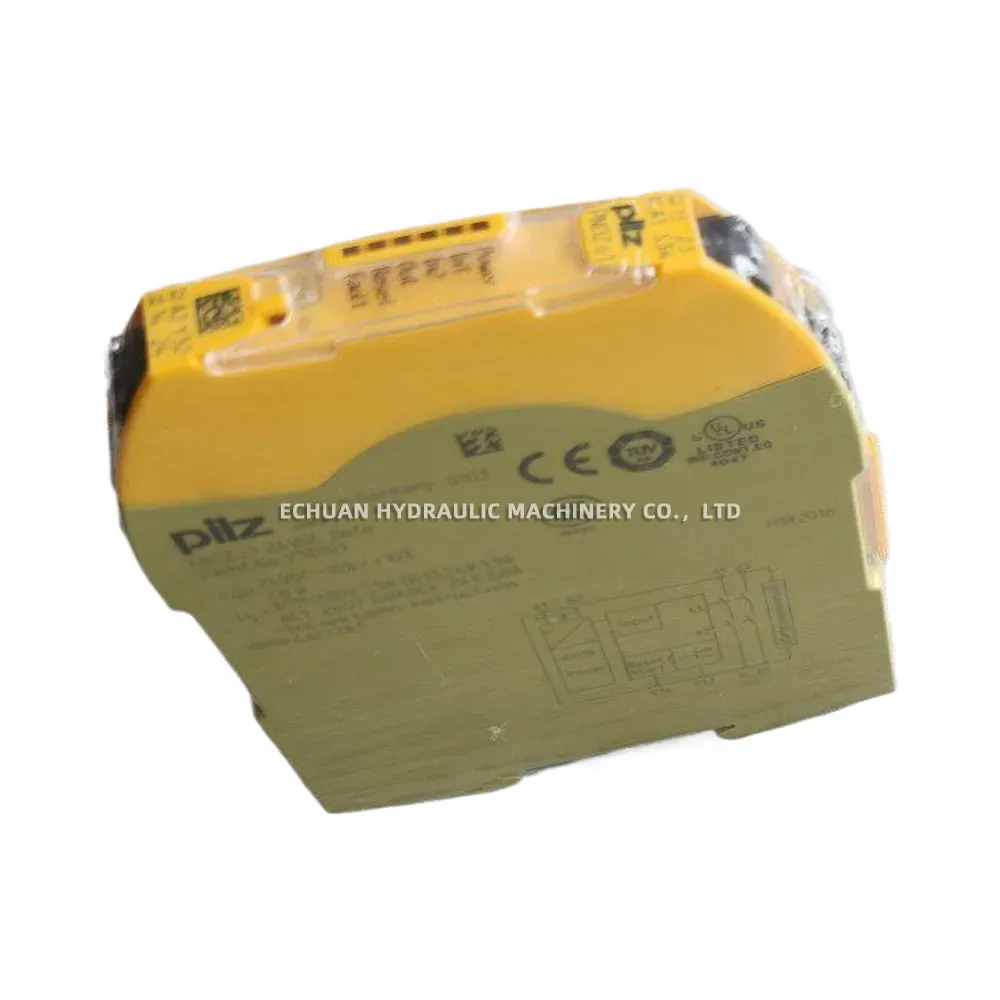

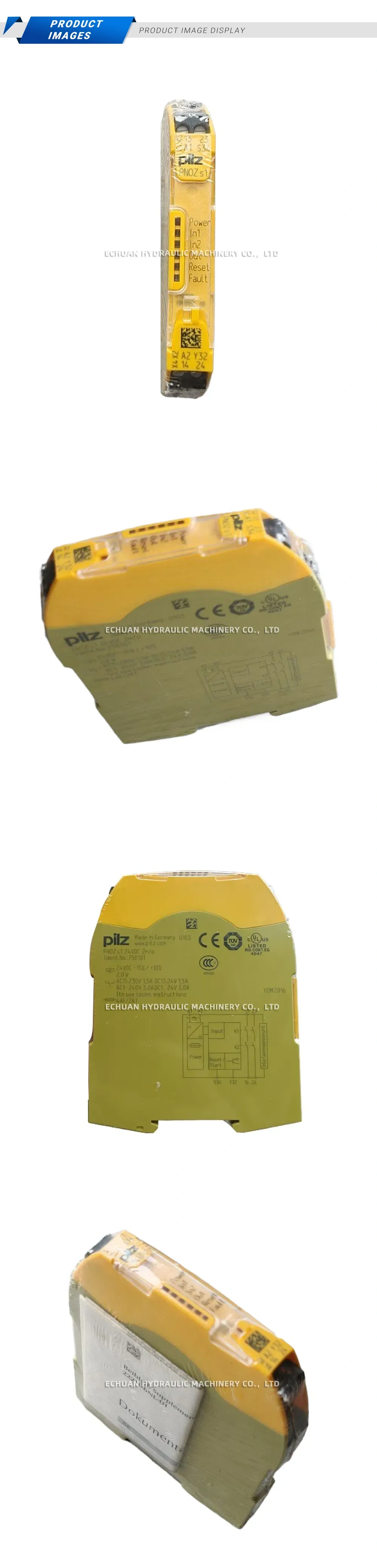

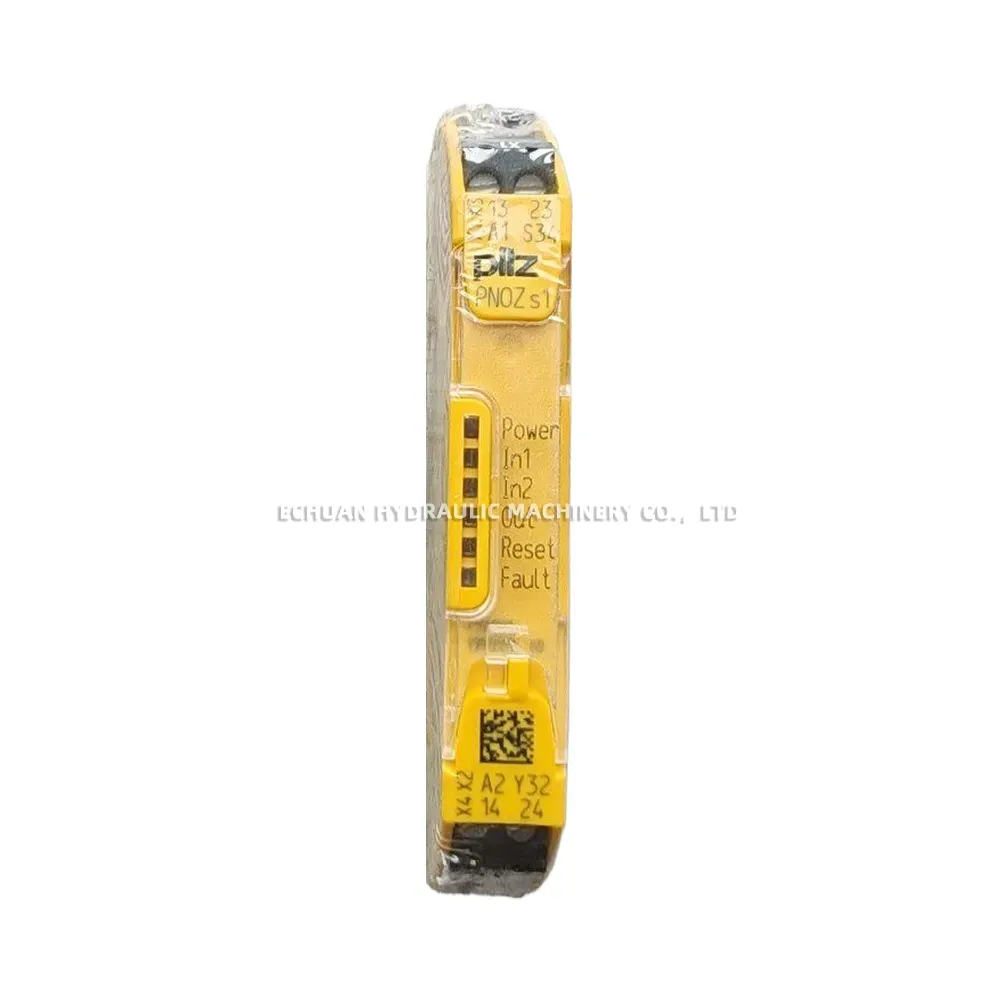

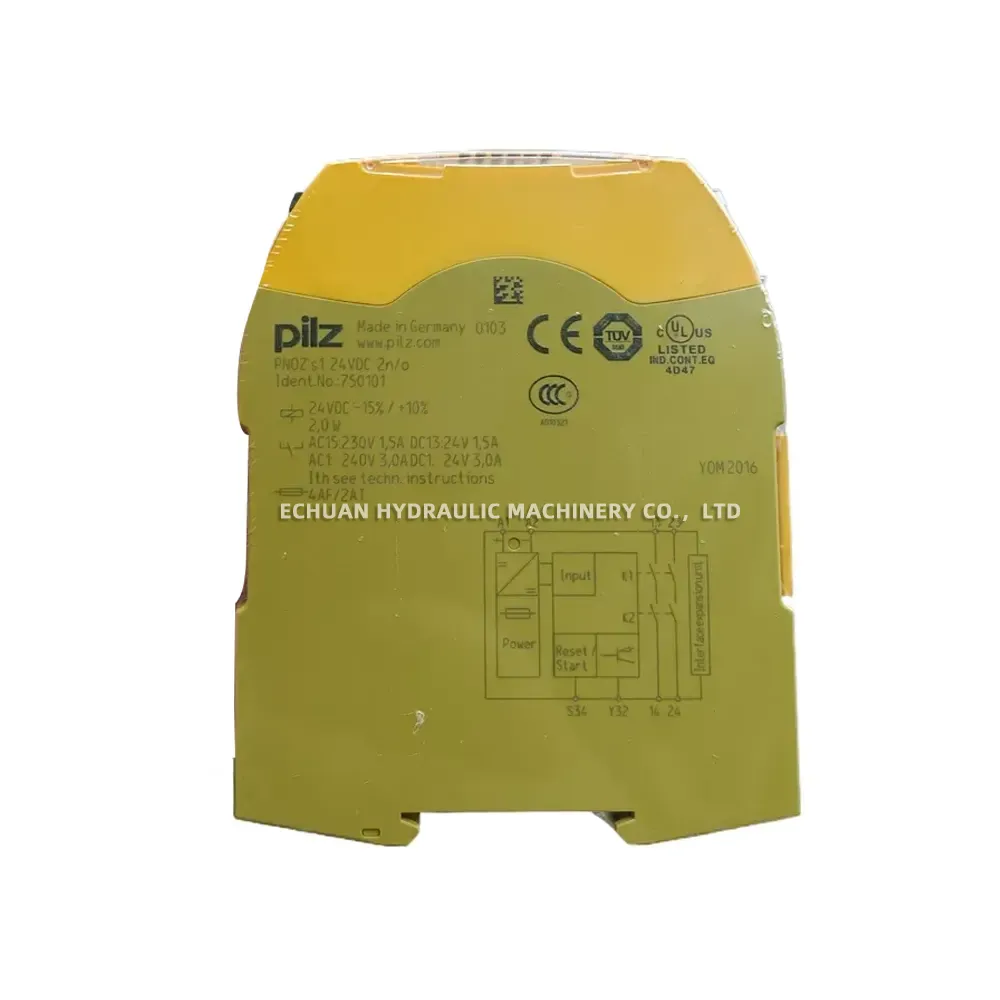

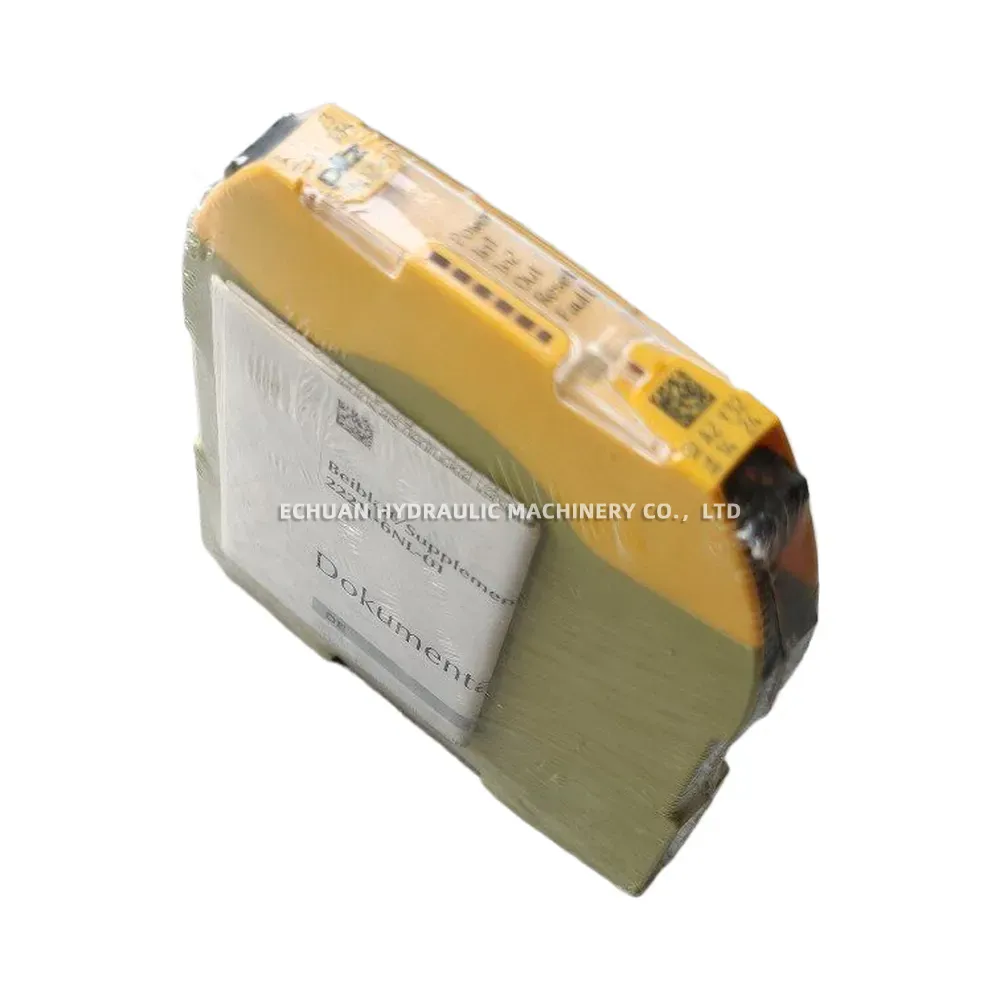

Pilz PNOZ s1 24VDC 2n/o Safety Relay
The Pilz PNOZ s1 24VDC 2n/o (Ident. No. 750101) is a highly reliable, compact safety relay designed for the monitoring of E-STOP pushbuttons, safety gates, and light beam devices. Manufactured in Germany, this module ensures maximum operational safety in industrial automation environments. It operates on a 24VDC supply voltage and features 2 normally open (n/o) safety contacts. Equipped with comprehensive LED diagnostics for Power, Input (In1, In2), Output, Reset, and Fault status, the PNOZ s1 allows for quick troubleshooting and seamless integration into existing safety circuits. It is fully certified by CE, TUV, cULus, and CCC, guaranteeing compliance with stringent international safety standards.
Technical Specifications:
- Brand: Pilz
- Model / Ident. No.: PNOZ s1 24VDC 2n/o / 750101
- Supply Voltage: 24 VDC (-15% / +10%)
- Power Consumption: 2.0 W
- Safety Contacts: 2 Normally Open (n/o)
- Contact Ratings (AC): AC15 230V 1.5A | AC1 240V 3.0A
- Contact Ratings (DC): DC13 24V 1.5A | DC1 24V 3.0A
- Diagnostic LEDs: Power, In1, In2, Out, Reset, Fault
- Approvals & Certifications: CE, TUV, cULus LISTED (IND.CONT.EQ 4D47), CCC
Pilz PNOZ s1 24VDC 2n/o Safety Relay
Shop the Pilz PNOZ s1 24VDC 2n/o (750101) safety relay. This compact module features 2 n/o contacts, 24VDC operation, and LED diagnostics. Certified by CE, TUV, and cULus for reliable emergency stop and safety gate monitoring in industrial automation systems.
| Brand | Pilz |
|---|---|
| Model | PNOZ s1 24VDC 2n/o |
| Part No. | 1029344748165 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/pilz-pnoz-s1-24vdc-2n-o-safety-relay |
