Product Description

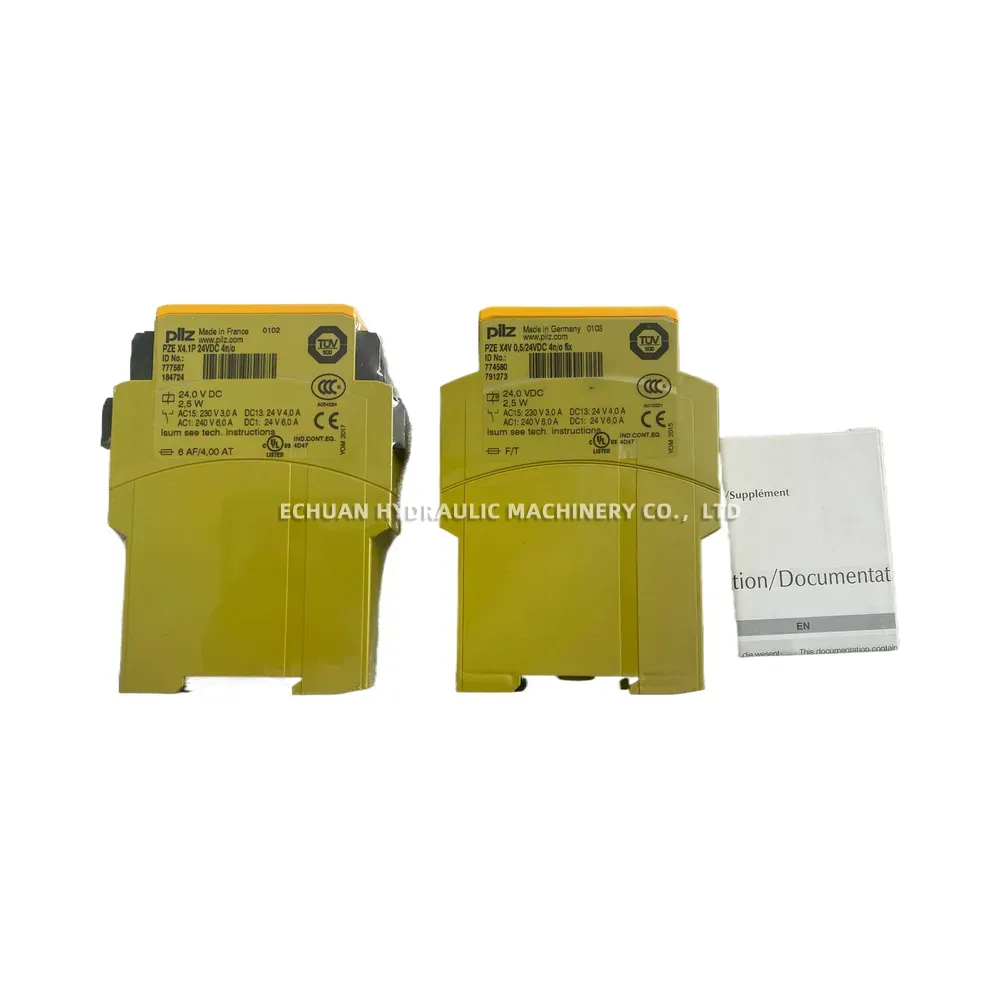

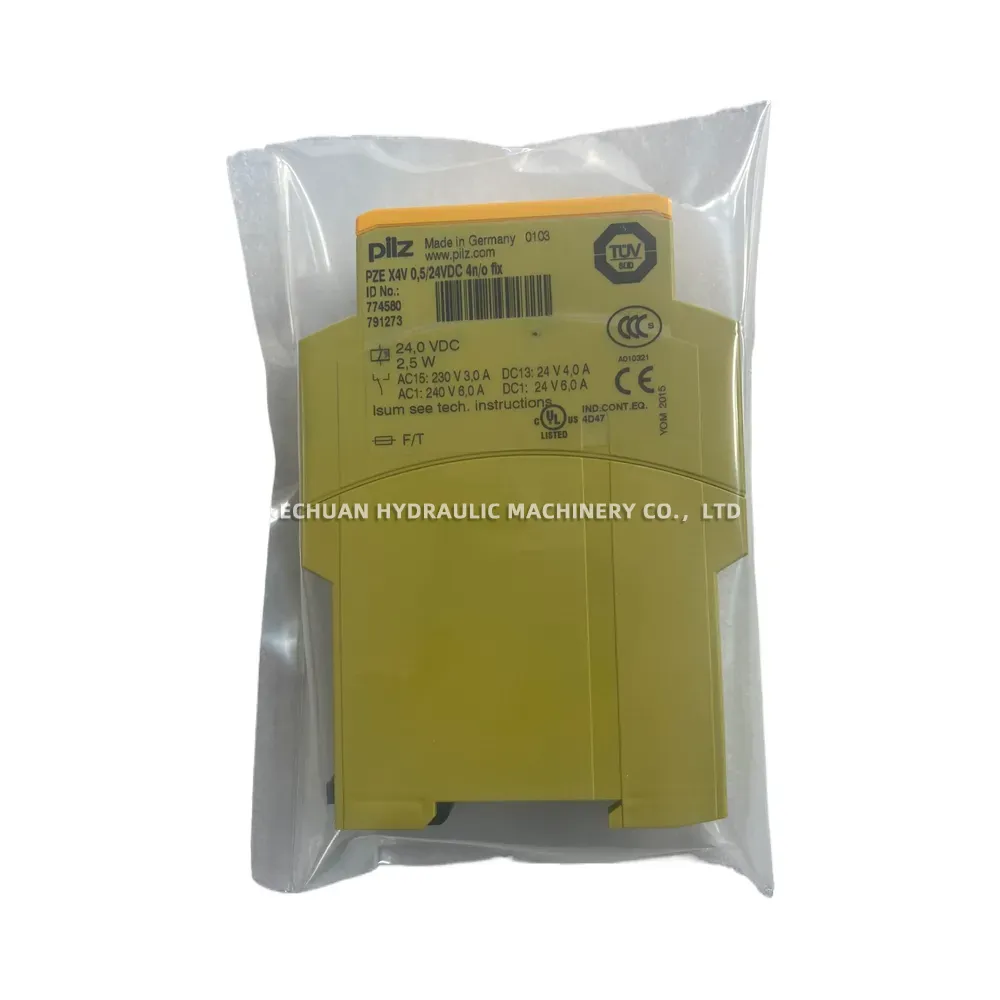

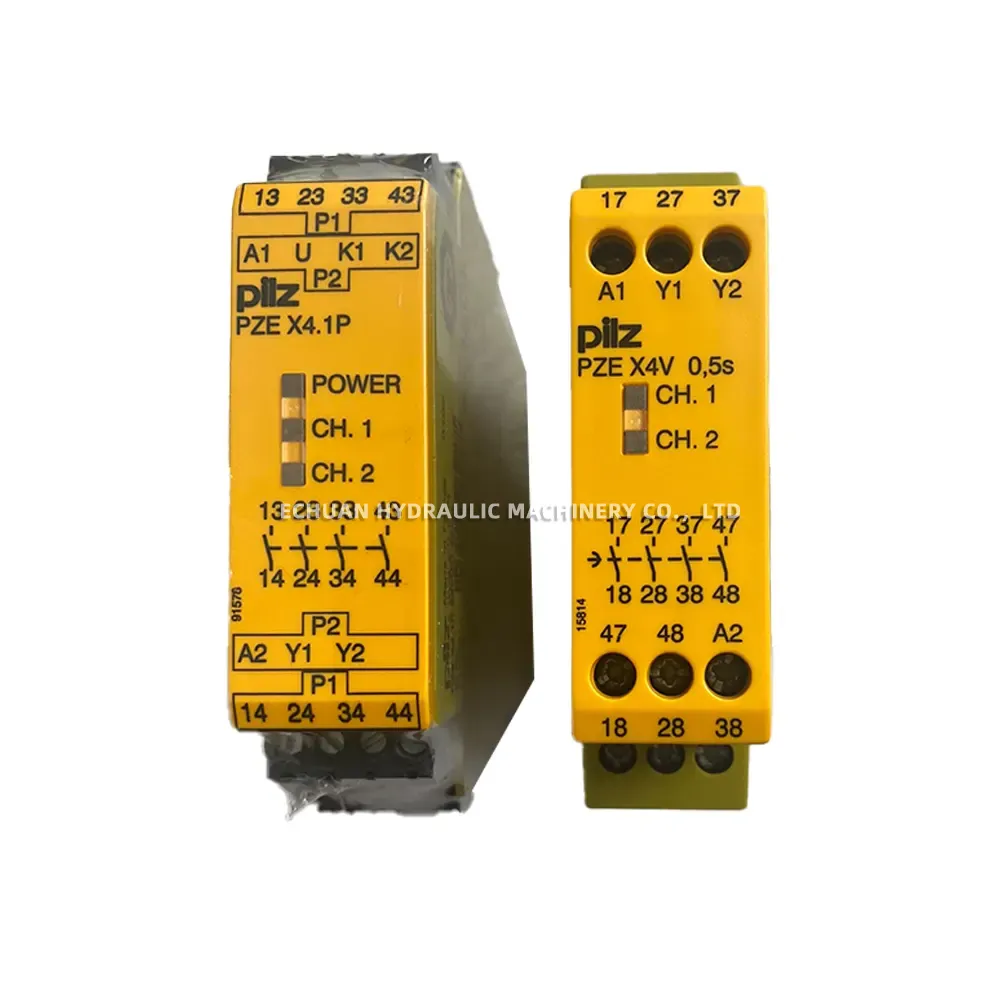

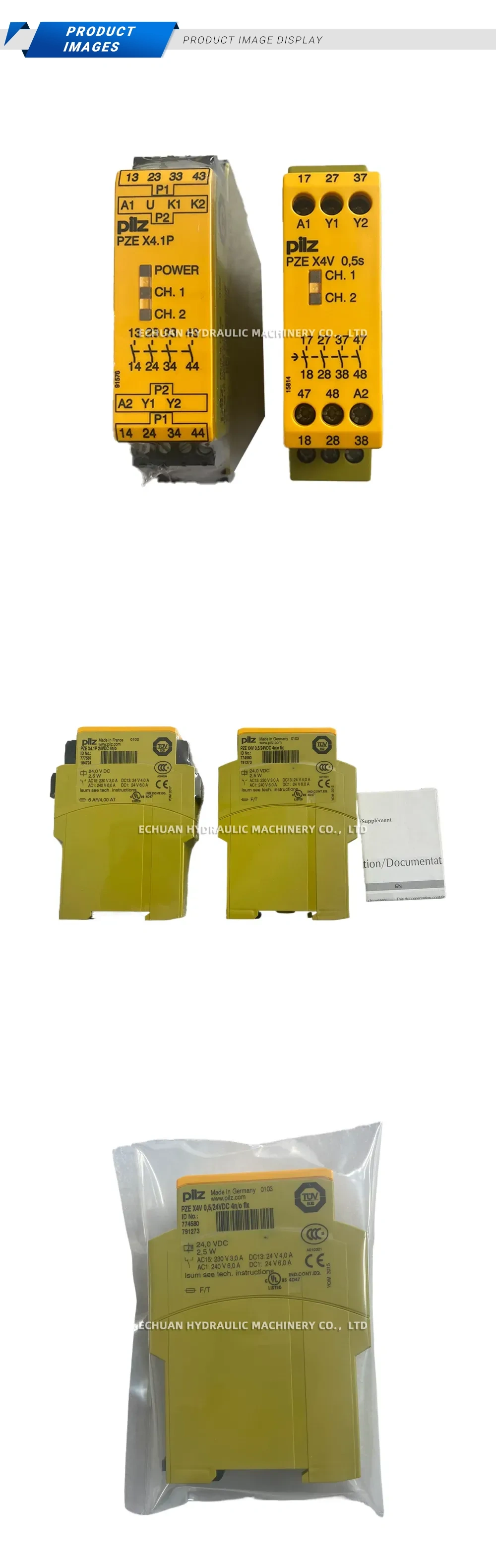

Pilz PZE X4.1P / PZE X4V 0,5s Safety Relay Module
The Pilz PZE X4.1P and PZE X4V 0,5s are highly reliable industrial safety relay modules designed for the safe contact expansion of existing safety circuits. Operating on a 24 VDC supply voltage with a low power consumption of 2.5 W, these modules feature 4 normally open (n/o) safety contacts to ensure robust machine protection. Both models are equipped with clear LED indicators for Power and Channel status (CH.1, CH.2) to allow for quick visual diagnostics. The PZE X4V variant specifically includes a fixed 0.5-second delay-on de-energization for applications requiring a timed safe shutdown. Certified by UL, CCC, CE, and TUV SUD, these Pilz relays guarantee international compliance and dependable performance in demanding industrial automation environments.
Technical Specifications:
- Brand: Pilz
- Model Numbers: PZE X4.1P / PZE X4V 0,5s
- Part / ID Numbers: 777587 (PZE X4.1P) / 774580 (PZE X4V)
- Supply Voltage: 24.0 V DC
- Power Consumption: 2.5 W
- Safety Contacts: 4 normally open (n/o)
- Contact Ratings (AC): AC15: 230 V 3.0 A / AC1: 240 V 6.0 A
- Contact Ratings (DC): DC13: 24 V 4.0 A / DC1: 24 V 6.0 A
- Time Delay: 0.5s fixed delay (PZE X4V model only)
- Certifications: UL LISTED (IND.CONT.EQ.), CCC, CE, TUV SUD
Pilz PZE X4.1P / PZE X4V 0,5s Safety Relay Module
Upgrade your industrial automation safety with the Pilz PZE X4.1P and PZE X4V 0,5s Safety Relay Modules. Operating on 24VDC, these reliable expansion modules feature 4 n/o safety contacts, LED status indicators, and a 0.5s delay option (X4V model). Globally certified (UL, CE, TUV, CCC) for dependable machine protection.
