Product Description

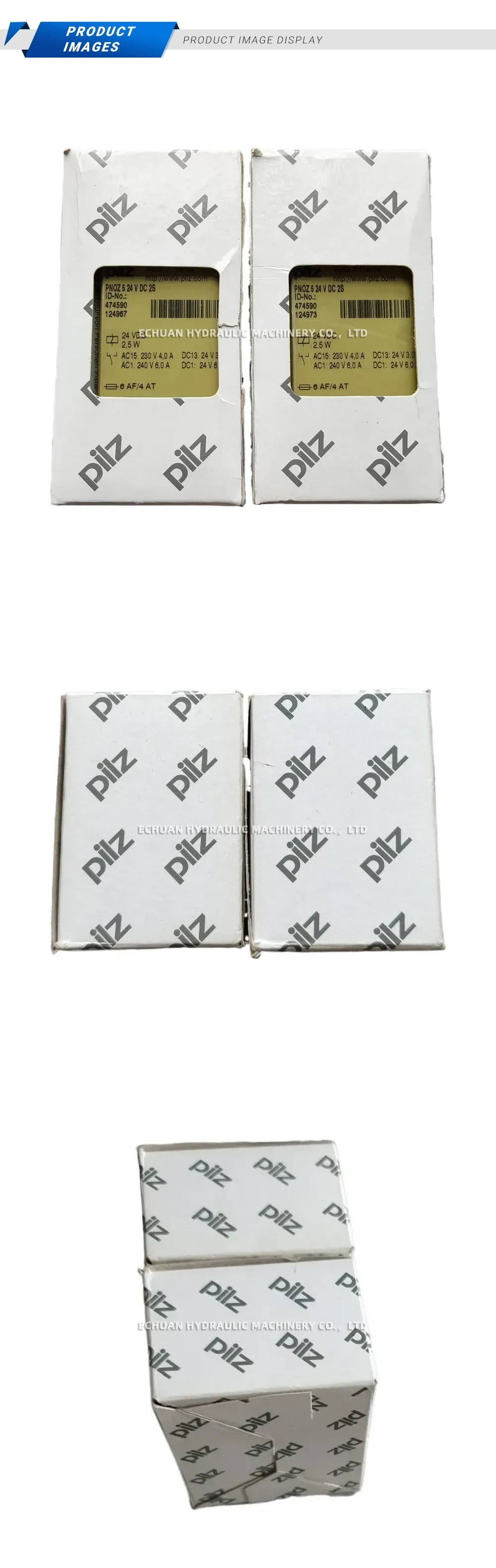

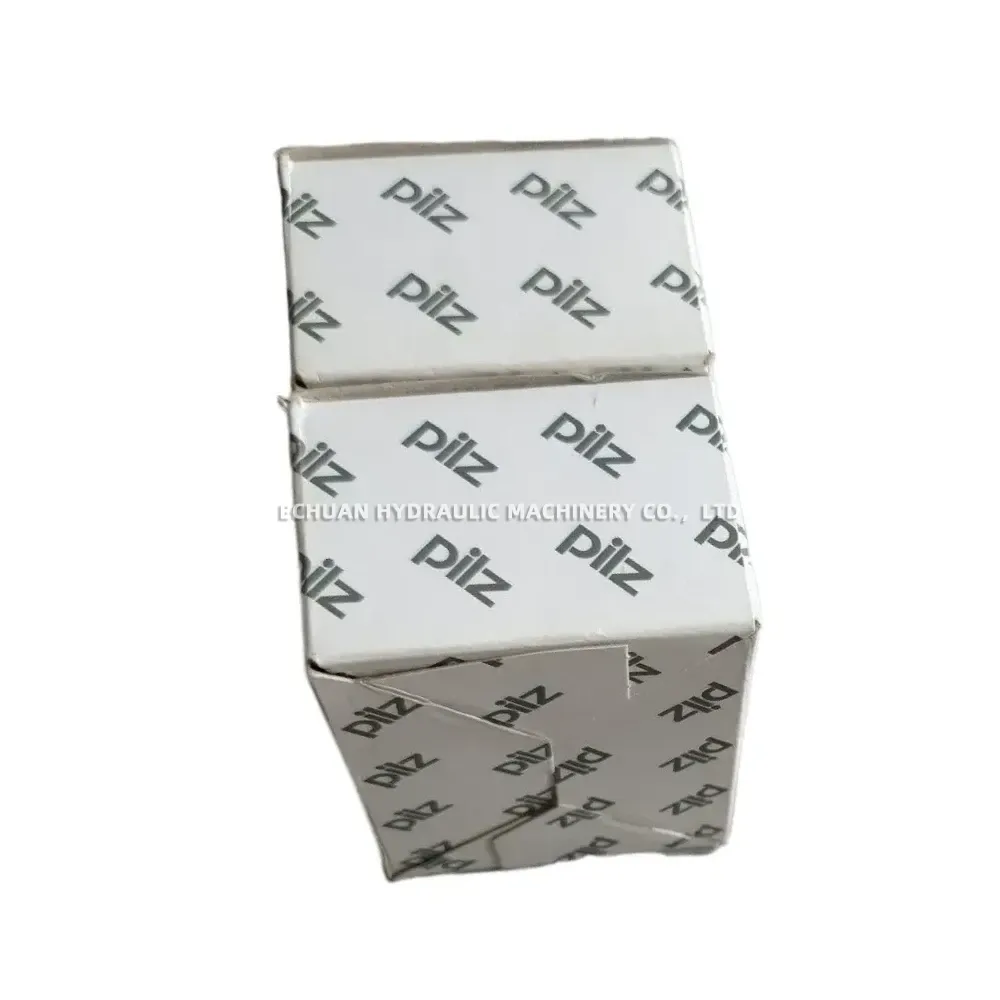

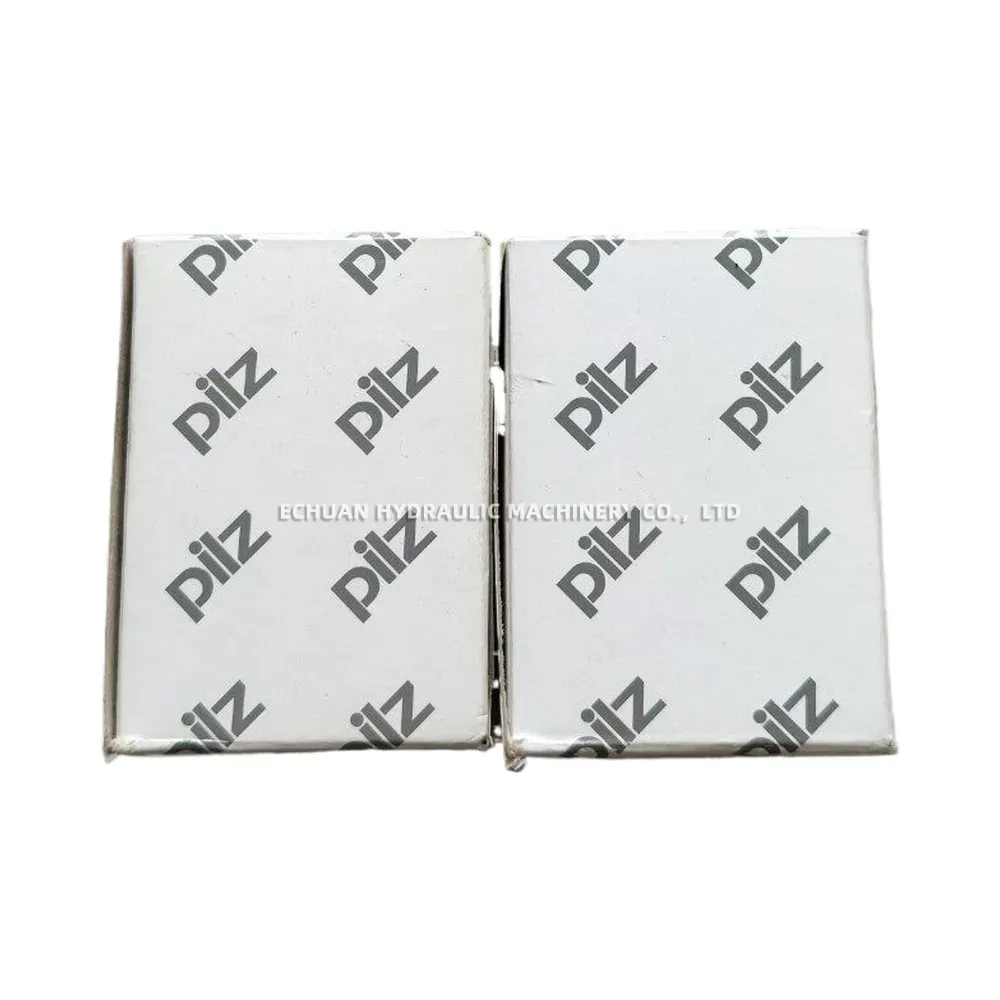

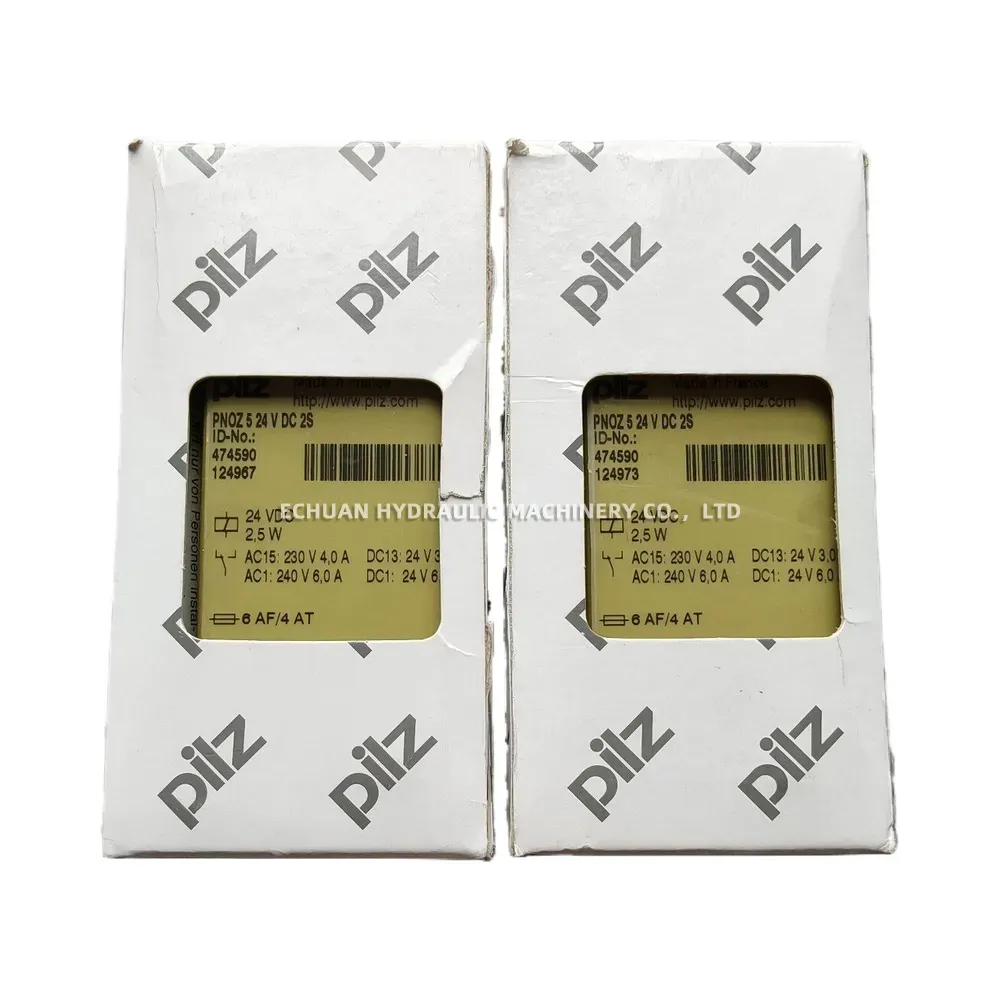

Pilz PNOZ 5 24 V DC 2S Safety Relay
The Pilz PNOZ 5 24 V DC 2S (ID-No: 474590) is a high-performance safety relay designed to ensure maximum protection for personnel and machinery in industrial automation systems. Operating on a 24 VDC supply voltage with an efficient power consumption of just 2.5 W, this module is engineered to reliably monitor emergency stop circuits, safety gates, and light barriers. Built to Pilz’s rigorous safety standards, the PNOZ 5 features versatile contact ratings and integrated 6 AF/4 AT fuse protection, delivering dependable and consistent switching performance in demanding industrial environments.
Technical Specifications:
- Brand: Pilz
- Model: PNOZ 5 24 V DC 2S
- ID-No.: 474590
- Operating Voltage: 24 VDC
- Power Consumption: 2.5 W
- Contact Ratings (AC): AC15: 230V 4.0A / AC1: 240V 6.0A
- Contact Ratings (DC): DC13: 24V 3.0A / DC1: 24V 6.0A
- Fuse Rating: 6 AF / 4 AT
Pilz PNOZ 5 24 V DC 2S Safety Relay
Buy the Pilz PNOZ 5 24 V DC 2S (474590) Safety Relay for reliable industrial safety monitoring. Features 24VDC operation, 2.5W power consumption, and robust contact ratings for E-stop and safety gate applications.
| Brand | Pilz |
|---|---|
| Model | PNOZ 5 24 V DC 2S |
| Part No. | 1029364856801 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/pilz-pnoz-5-24-v-dc-2s-safety-relay |
