Product Description

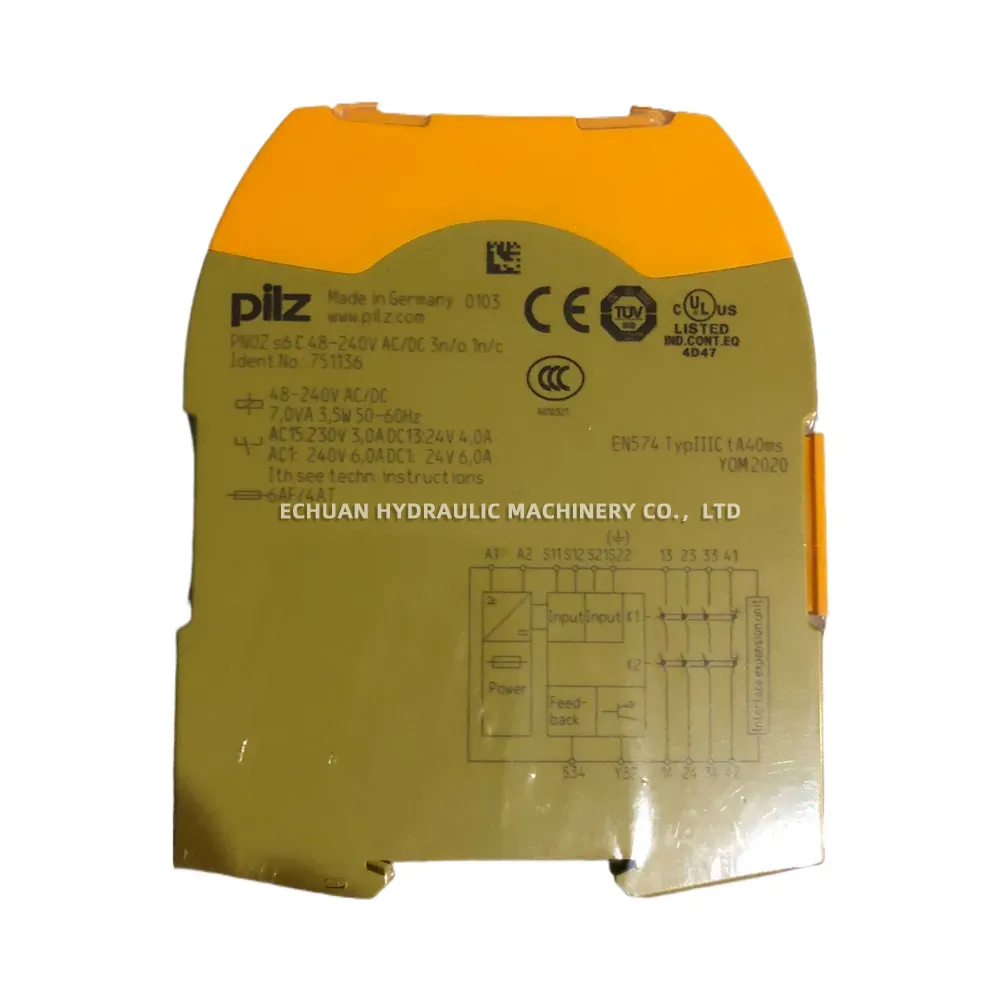

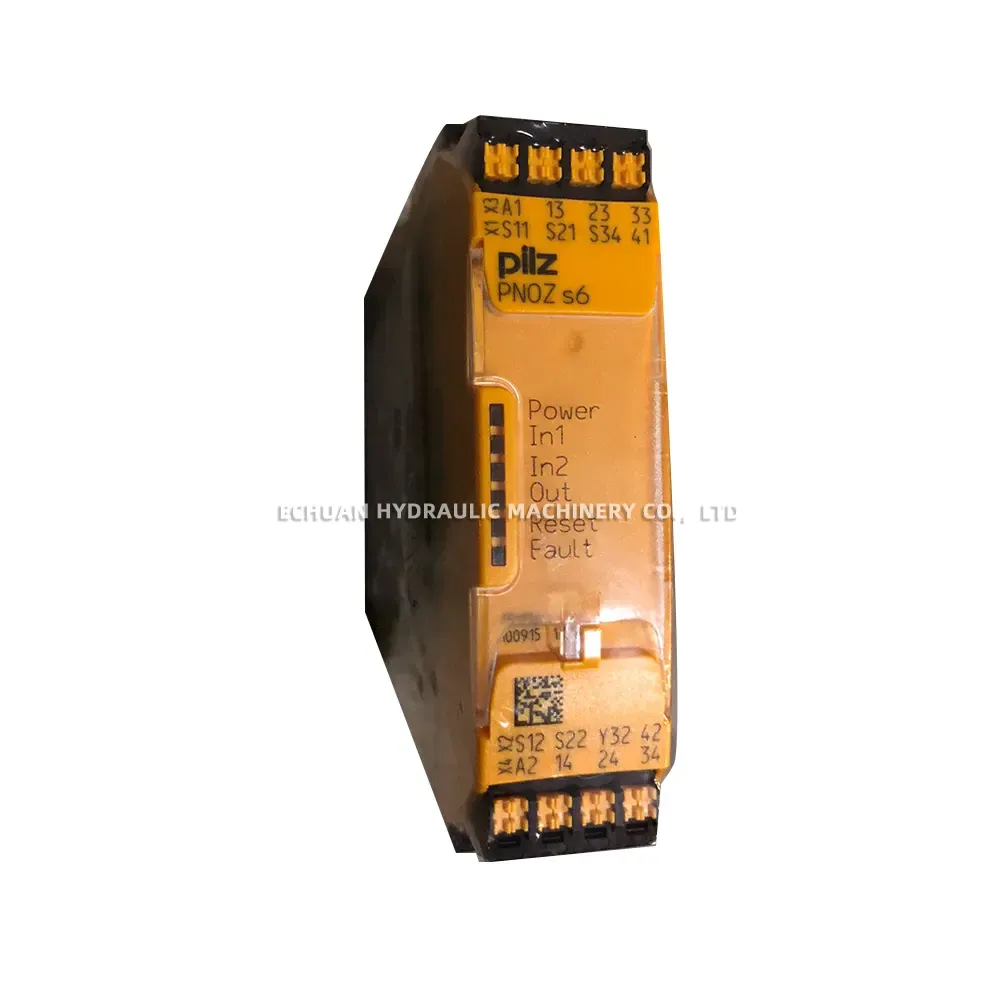

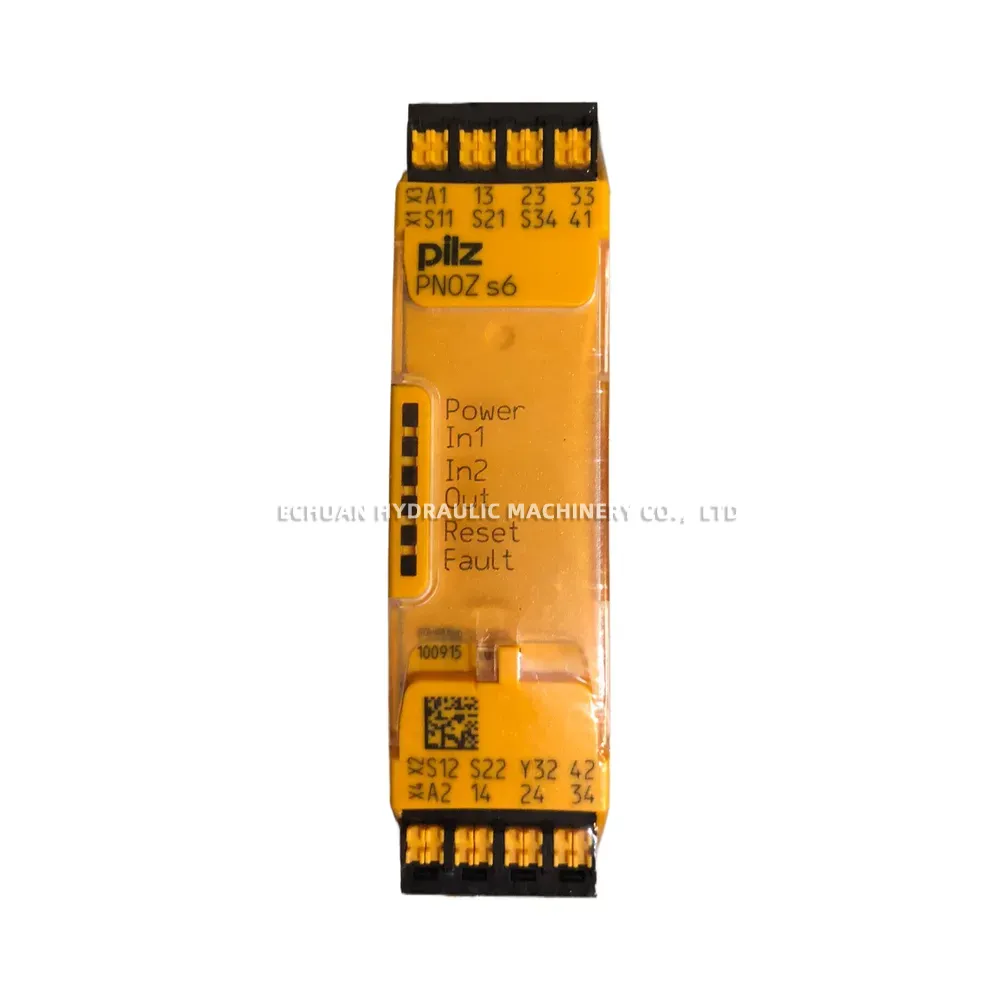

Pilz PNOZ s6 C Safety Relay
The Pilz PNOZ s6 C (Ident. No. 751136) is a highly reliable, configurable safety relay module engineered for demanding industrial safety applications, including two-hand control monitoring. Manufactured in Germany, this versatile unit operates on a wide input voltage range of 48-240V AC/DC. It features 3 normally open (n/o) and 1 normally closed (n/c) safety contacts, ensuring robust machine safety and compliance with stringent international standards such as EN574 Type IIIC. With integrated LED indicators for Power, Inputs (In1, In2), Reset, Output, and Fault status, the PNOZ s6 C provides clear diagnostics and dependable performance for automated control systems.
Technical Specifications:
- Brand: Pilz
- Model: PNOZ s6 C
- Identification Number: 751136
- Input Voltage: 48-240V AC/DC (50-60Hz)
- Power Consumption: 7.0VA / 3.5W
- Contact Configuration: 3 Normally Open (n/o), 1 Normally Closed (n/c)
- AC15 Rating: 230V, 3.0A
- DC13 Rating: 24V, 4.0A
- AC1 / DC1 Rating: 240V 6.0A / 24V 6.0A
- Safety Standard Compliance: EN574 Type IIIC (tA40ms)
- Certifications: CE, TÜV, cULus Listed (IND.CONT.EQ 4D47), CCC
- Country of Origin: Germany

Pilz PNOZ s6 C Safety Relay
Shop the Pilz PNOZ s6 C (751136) Safety Relay online. This premium German-made relay features a versatile 48-240V AC/DC input, 3 n/o and 1 n/c safety contacts, and complies with EN574 Type IIIC standards. Ideal for reliable two-hand control and industrial machine safety monitoring.
