Product Description

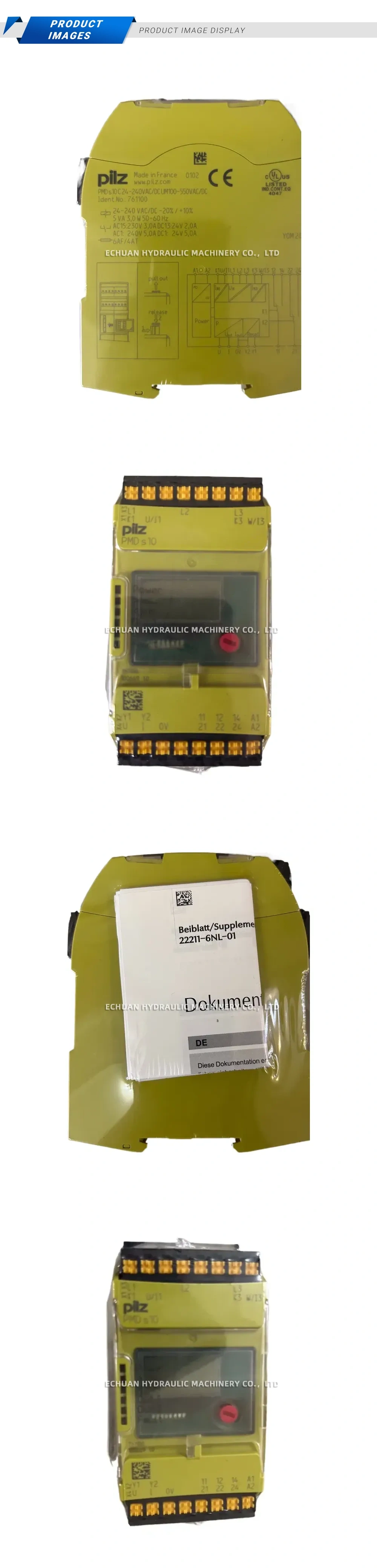

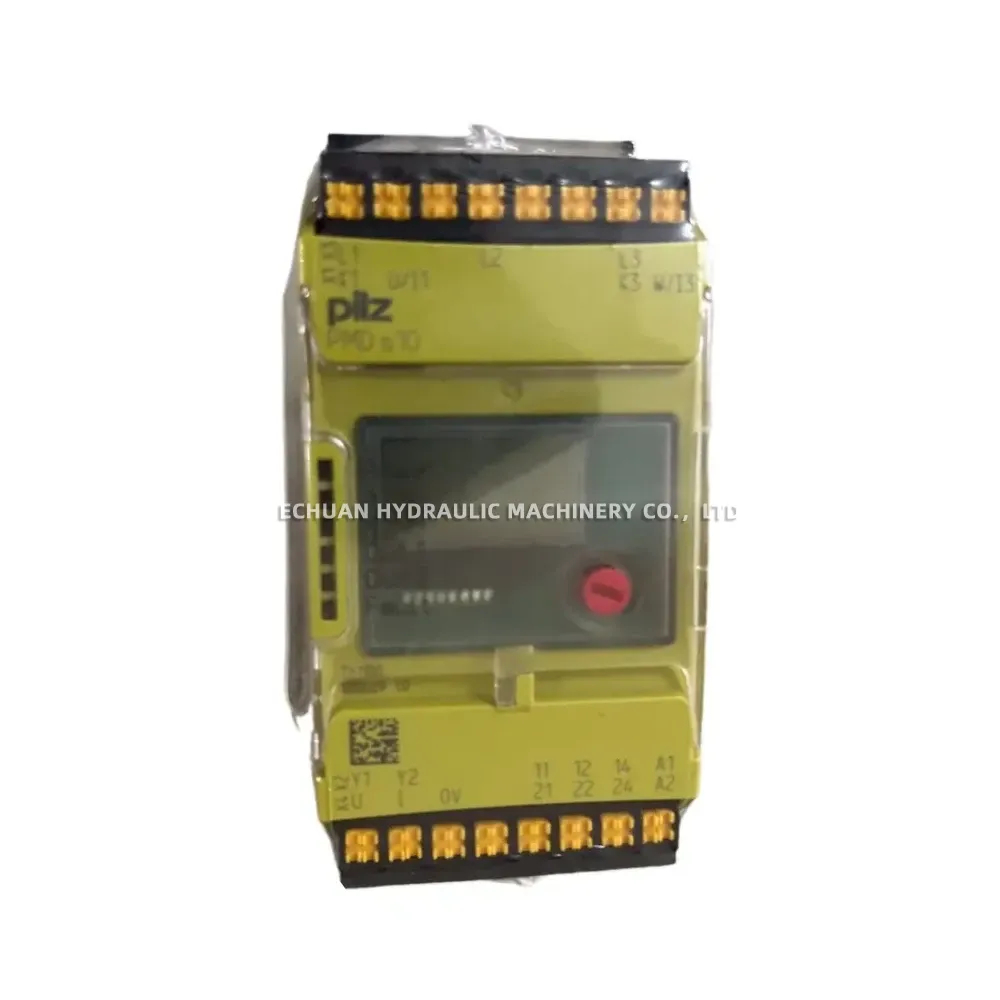

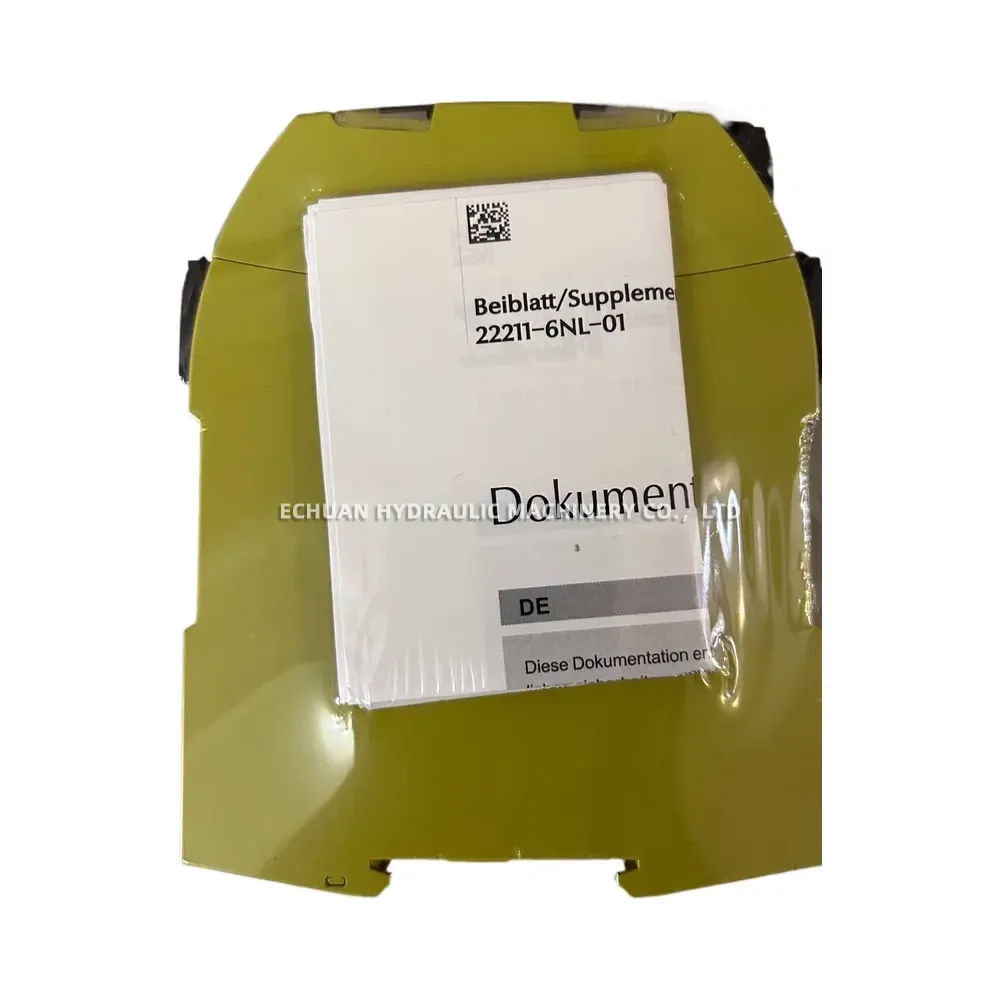

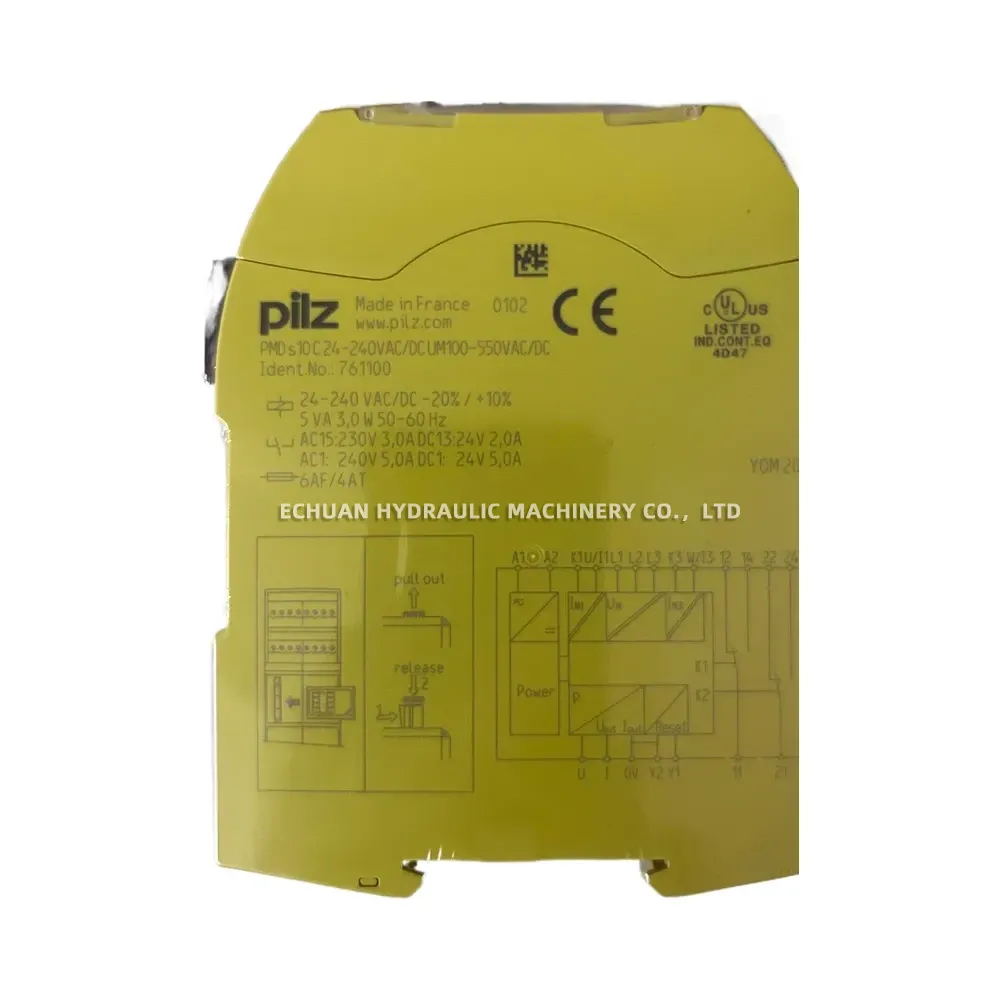

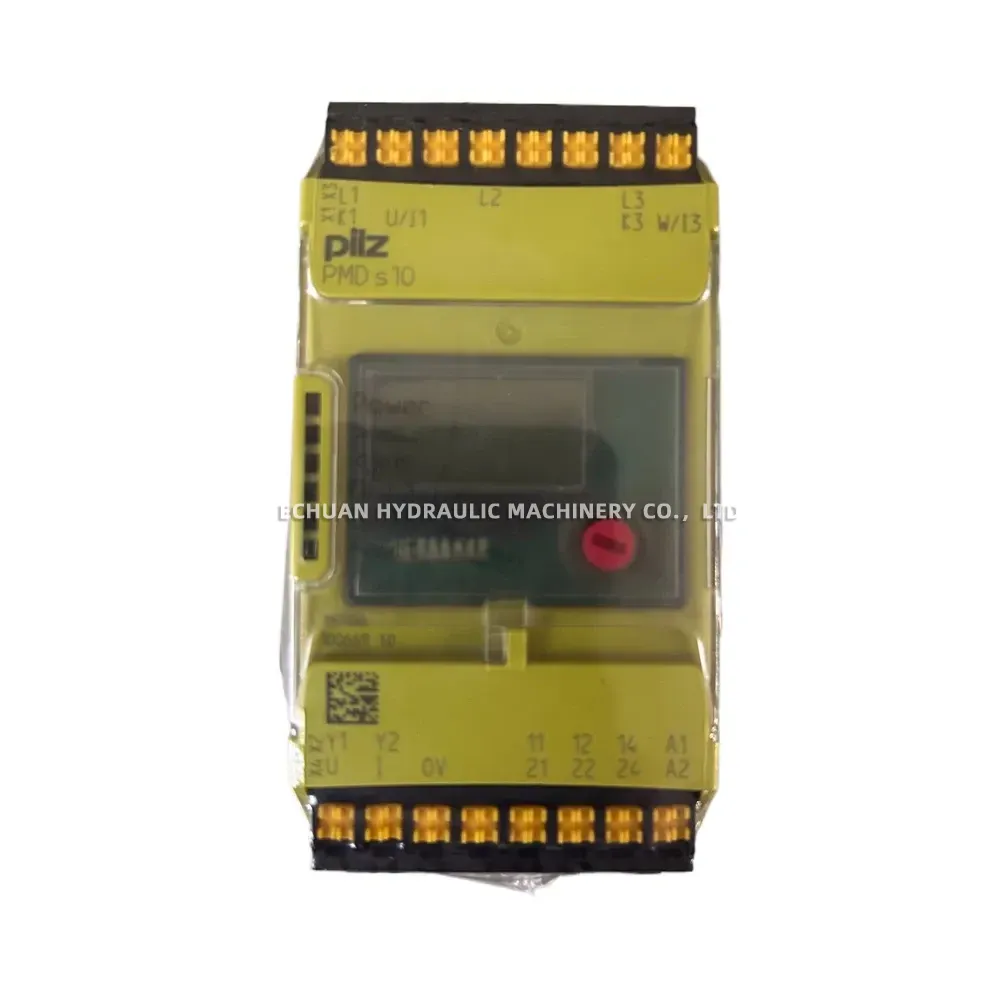

Pilz PMD s10 Safety Monitoring Relay
The Pilz PMD s10 (Identification Number: 761100) is a highly reliable safety monitoring relay module designed to ensure maximum protection in industrial automation and control systems. Manufactured in France, this versatile relay operates on a wide supply voltage range of 24-240 VAC/DC, making it adaptable to various industrial environments. It features multiple input terminals for comprehensive monitoring and robust relay outputs, including AC15 and DC13 ratings, to deliver precise and secure switching for safety-critical applications. Fully compliant with stringent international safety standards, the PMD s10 carries both CE and cULus certifications, guaranteeing dependable performance and peace of mind.
Technical Specifications:
- Brand: Pilz
- Model: PMD s10
- Identification Number: 761100
- Operating Voltage: 24-240 VAC/DC (-20% / +10%)
- Measuring Voltage (UM): 100-550 VAC/DC
- Power Consumption: 5 VA / 3.0 W at 50-60 Hz
- Output Ratings: AC15 250V 5.0A, DC13 24V 2.0A, AC1 240V 5.0A, DC1 24V 5.0A
- Fuse Rating: 6A F / 4A T
- Certifications: CE, cULus Listed (IND. CONT. EQ 4847)
- Country of Origin: France
Pilz PMD s10 Safety Monitoring Relay
Shop the Pilz PMD s10 (761100) Safety Monitoring Relay for reliable industrial safety control. Features a versatile 24-240 VAC/DC operating voltage, robust relay outputs, and CE/cULus certifications. Ideal for secure automation monitoring.
