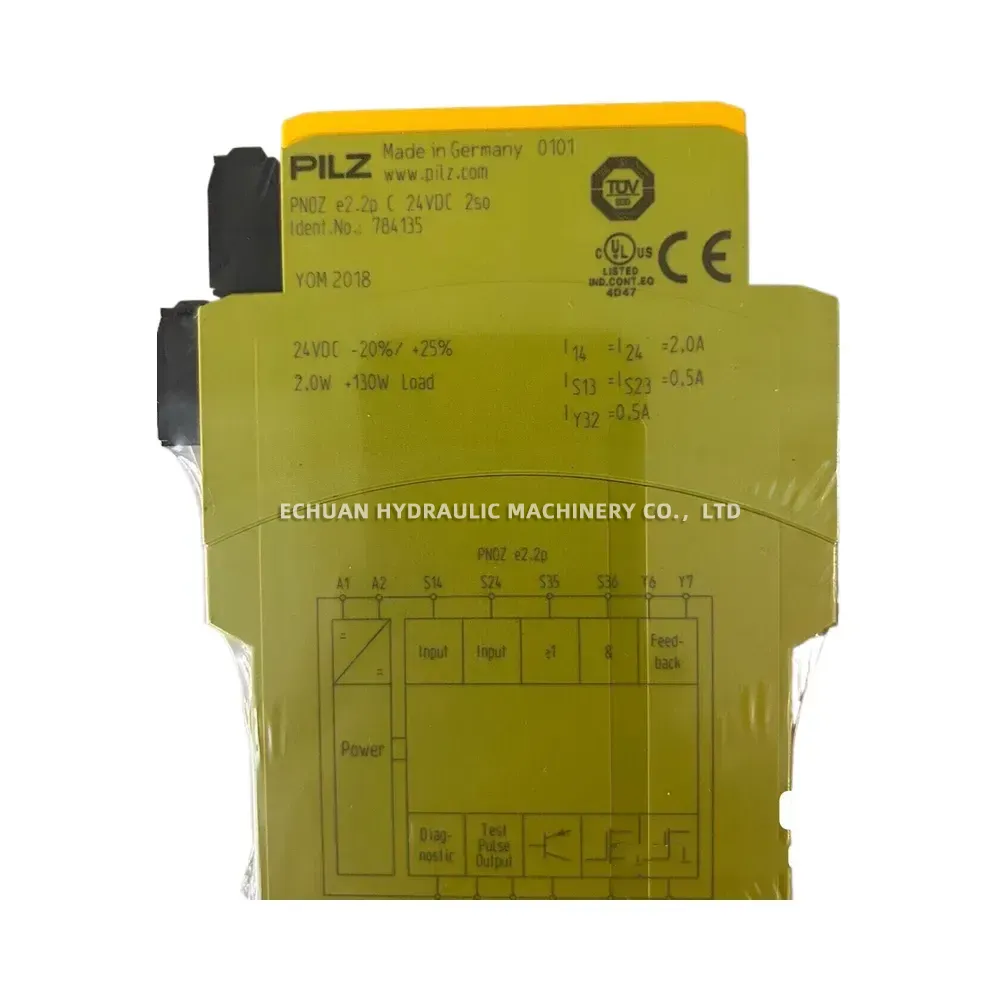

PILZ PNOZ e2.2p Safety Relay
The PILZ PNOZ e2.2p (Ident. No. 784135) is a premium, high-performance safety relay module manufactured in Germany, designed to ensure maximum safety in industrial automation environments. Operating on a 24VDC input voltage, this module features 2 reliable safety outputs (2so) and is engineered for optimal efficiency with a low power consumption of just 2.0W and a load capacity of up to +130W. It comes equipped with integrated diagnostic and test pulse output functions, allowing for continuous system monitoring and rapid fault detection. Fully certified by CE, TUV, and cULus, the PNOZ e2.2p meets strict international safety standards, making it an essential component for protecting personnel and machinery in complex control systems.
Technical Specifications:
- Brand: PILZ
- Model: PNOZ e2.2p
- Ident. No.: 784135
- Input Voltage: 24VDC (-20% / +25%)
- Power Consumption: 2.0W
- Load Capacity: +130W
- Safety Outputs: 2 (2so)
- Output Currents: I14 = I24 = 2.0A, IS13 = IS23 = 0.5A, IY32 = 0.5A
- Terminals: A1, A2, S14, S24, S35, S36, Y6, Y7
- Special Features: Diagnostic capabilities and test pulse output functions
- Certifications: CE, TUV, cULus LISTED (IND.CONT.EQ 4047)
- Country of Origin: Made in Germany

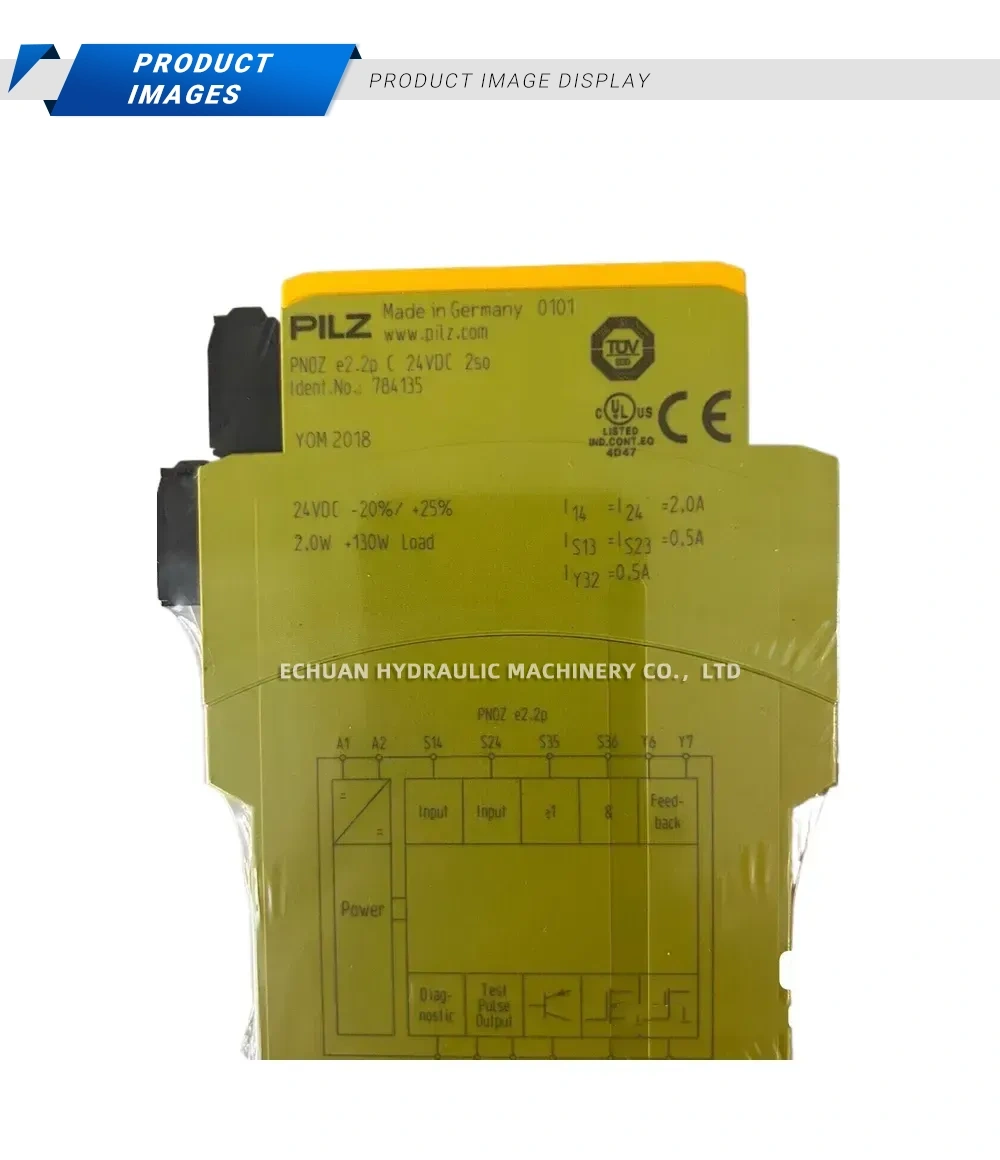

PILZ PNOZ e2.2p Safety Relay
Shop the PILZ PNOZ e2.2p (784135) Safety Relay. This German-made 24VDC safety module features 2 safety outputs, advanced diagnostic functions, and global safety certifications (CE, TUV, cULus) for reliable industrial machinery protection.
| Brand | Pilz |
|---|---|
| Model | PNOZ e2.2p |
| Part No. | 1042348380578 |
