Product Description
Pilz PNOZ X8P Safety Relay

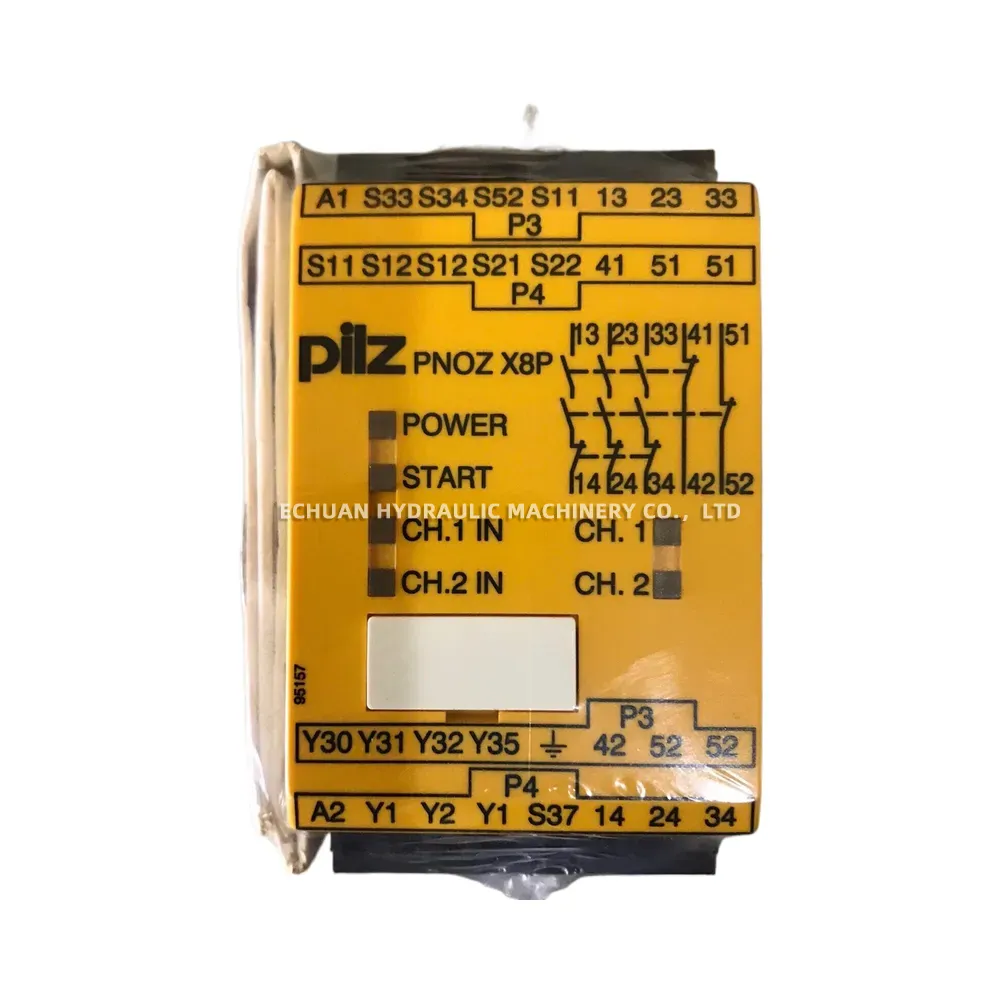

The Pilz PNOZ X8P (Part Number: 777768) is a premium, highly reliable safety relay designed for the stringent monitoring of safety functions within industrial automation and machinery environments. Manufactured in Germany, this safety module operates on a 230 VAC supply voltage and provides a versatile contact configuration consisting of 3 normally open (N/O) safety contacts, 2 normally closed (N/C) auxiliary contacts, and 2 semiconductor outputs. Built to protect both personnel and machine operations, it features clear front-panel LED indicators for Power, Start, and Channel 1/Channel 2 inputs. Backed by global safety approvals including CE, TÜV SÜD, CCC, and UL listings, the PNOZ X8P is an industry-standard solution for emergency stop, safety gate, and light barrier monitoring applications.
Technical Specifications:

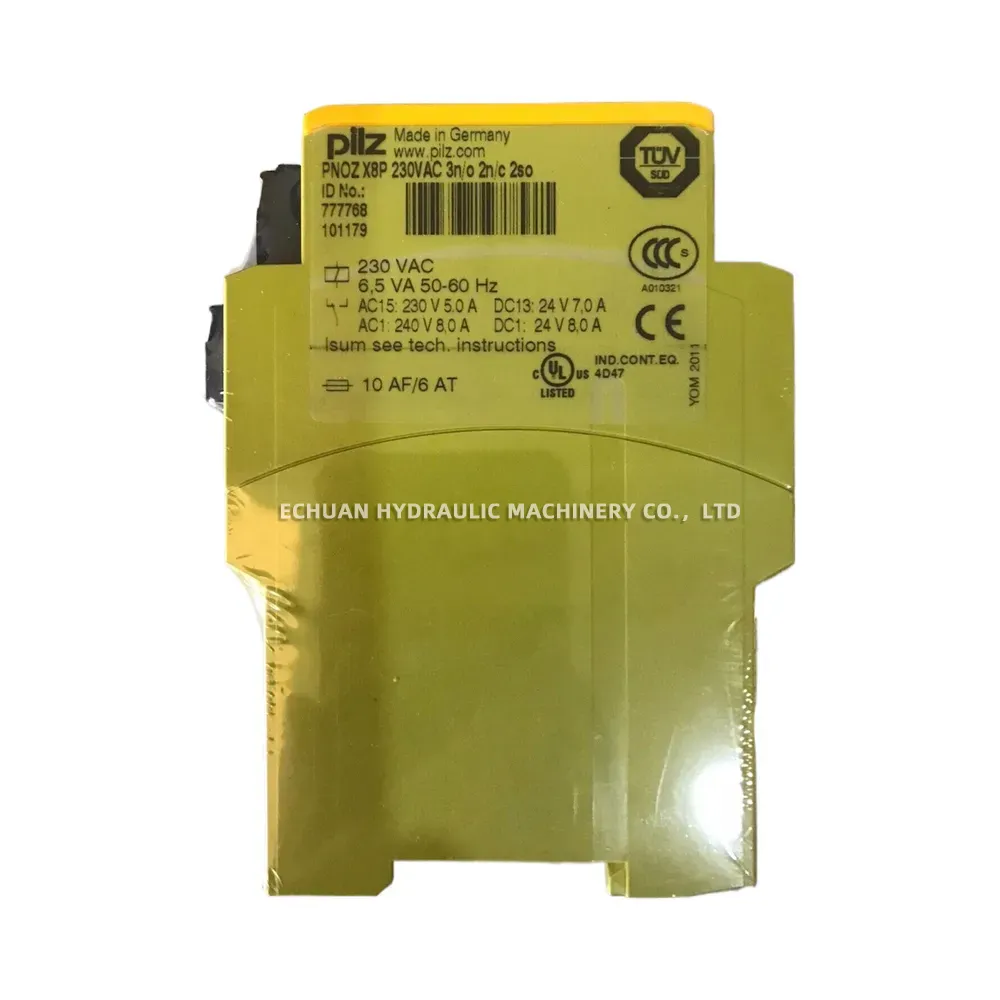

- Brand and Model: Pilz PNOZ X8P (ID No.: 777768)
- Supply Voltage: 230 VAC, 50-60 Hz
- Power Consumption: 6.5 VA
- Contact Configuration: 3 Normally Open (n/o), 2 Normally Closed (n/c), 2 Semiconductor Outputs (so)
- Output Ratings (AC): AC15: 230 V 5.0 A | AC1: 240 V 8.0 A
- Output Ratings (DC): DC13: 24 V 7.0 A | DC1: 24 V 8.0 A
- Fuse Rating: 10 AF / 6 AT
- Approvals & Certifications: CE, TÜV SÜD, CCC, UL US LISTED (IND.CONT.EQ. 4D47)
- Country of Origin: Made in Germany
