Product Description

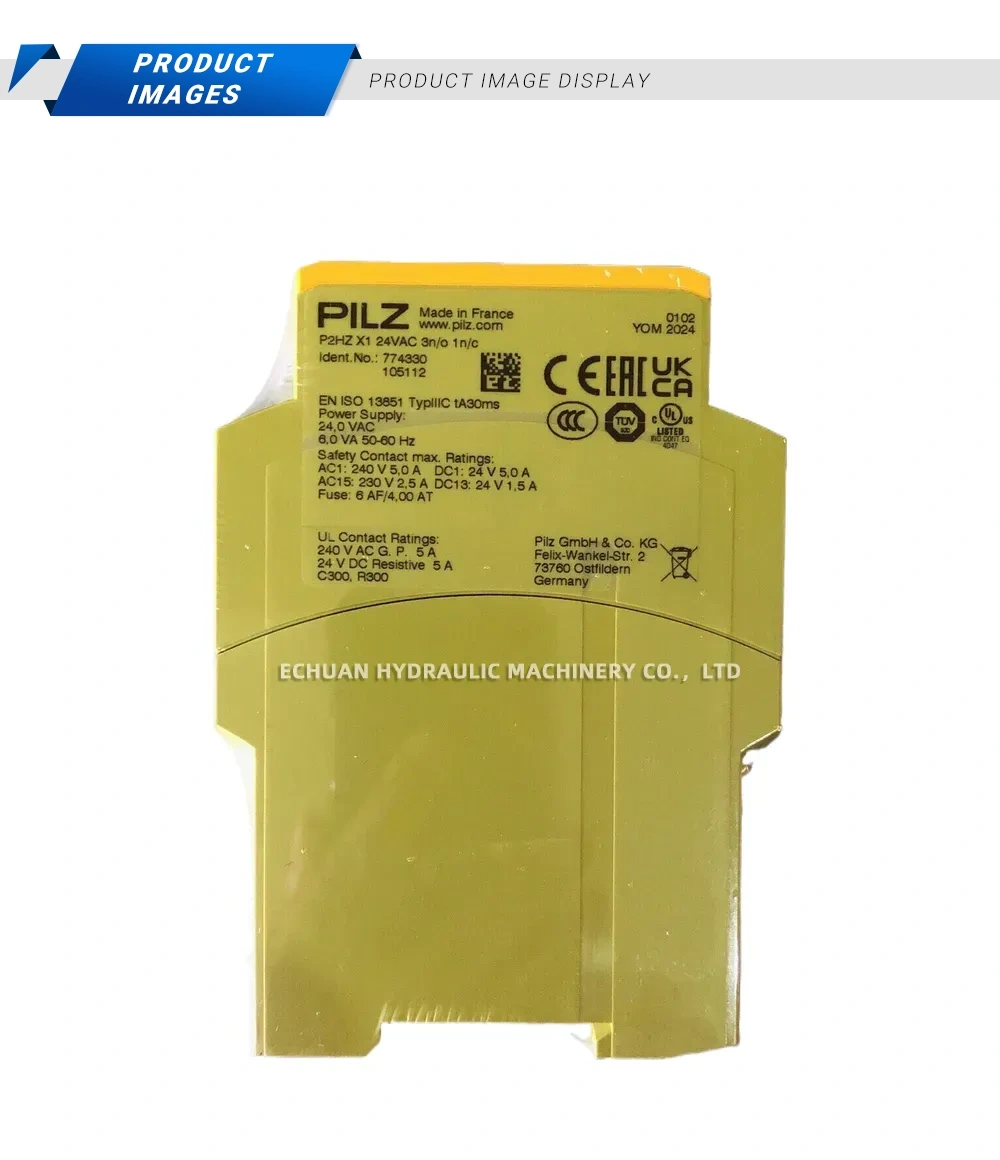

PILZ P2HZ X1 24VAC 3n/o 1n/c Safety Relay
The PILZ P2HZ X1 24VAC (Ident. No. 774330) is a highly reliable fixed safety relay engineered for the secure monitoring of emergency stop buttons, safety gates, and two-hand control systems. Operating on a 24.0 VAC power supply, this robust safety device features 3 normally open (n/o) safety contacts and 1 normally closed (n/c) auxiliary contact. Compliant with EN ISO 13851 TypIII C standards (tA30ms), it delivers rapid response times to ensure maximum operator protection in industrial automation environments. Manufactured to exact standards with CE, EAC, and UKCA certifications, the P2HZ X1 is an essential component for maintaining dependable safety circuits in machinery and plant engineering.
Technical Specifications:
- Brand / Model: PILZ P2HZ X1 24VAC 3n/o 1n/c (Ident. No. 774330)
- Power Supply: 24.0 VAC, 6.0 VA, 50-60 Hz
- Contact Configuration: 3 n/o (Safety Contacts), 1 n/c (Auxiliary Contact)
- Safety Contact Max. Ratings: AC1: 240 V 5.0 A | DC1: 24 V 5.0 A | AC15: 230 V 2.5 A | DC13: 24 V 1.5 A
- UL Contact Ratings: 240 V AC G.P. 5 A | 24 V DC Resistive 5 A | C300, R300
- Fuse Protection: 6 AF / 4.00 AT
- Safety Standards & Certifications: EN ISO 13851 TypIII C tA30ms, CE, EAC, UKCA

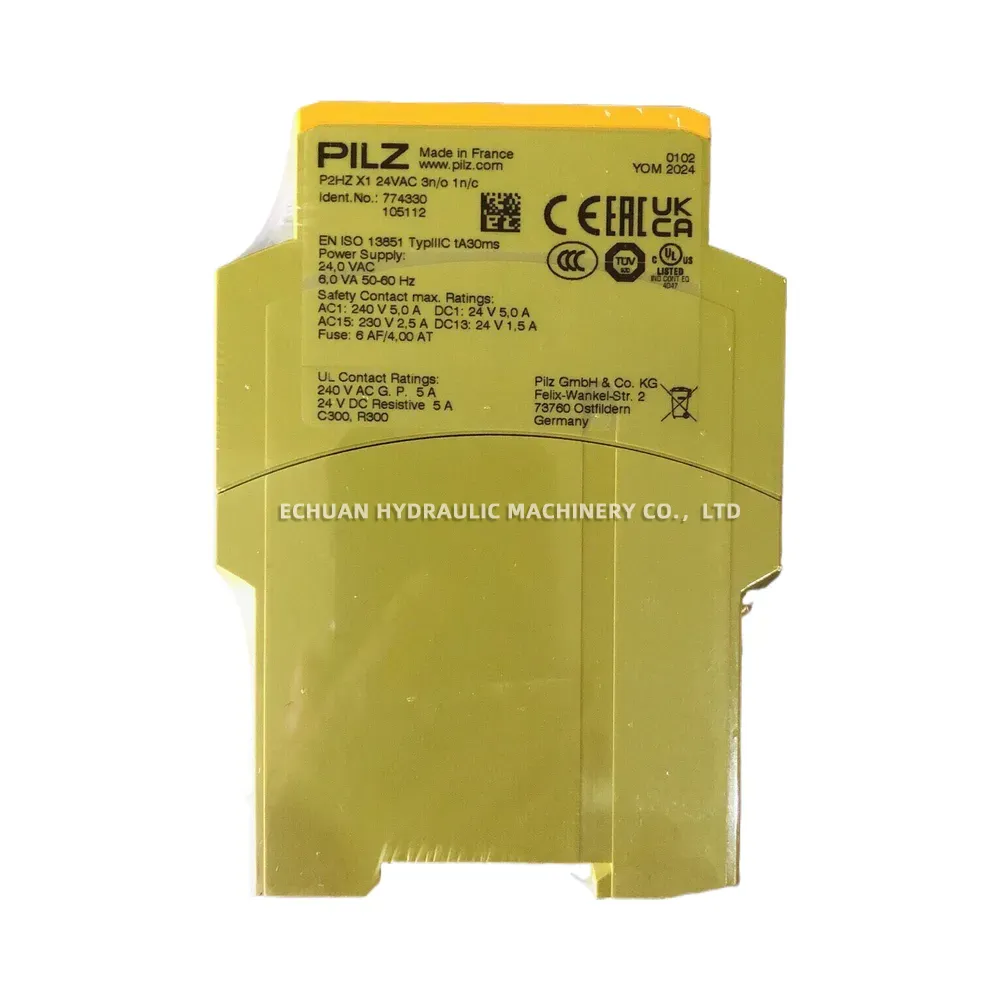

PILZ P2HZ X1 24VAC 3n/o 1n/c Safety Relay
Upgrade your industrial safety systems with the genuine PILZ P2HZ X1 24VAC Safety Relay (Ident. No. 774330). Designed for emergency stop and safety gate monitoring, this 24V AC relay features 3n/o and 1n/c contacts, meeting strict EN ISO 13851 TypIII C standards. Reliable, durable, and globally certified (CE, UKCA, EAC) for seamless automation integration.
