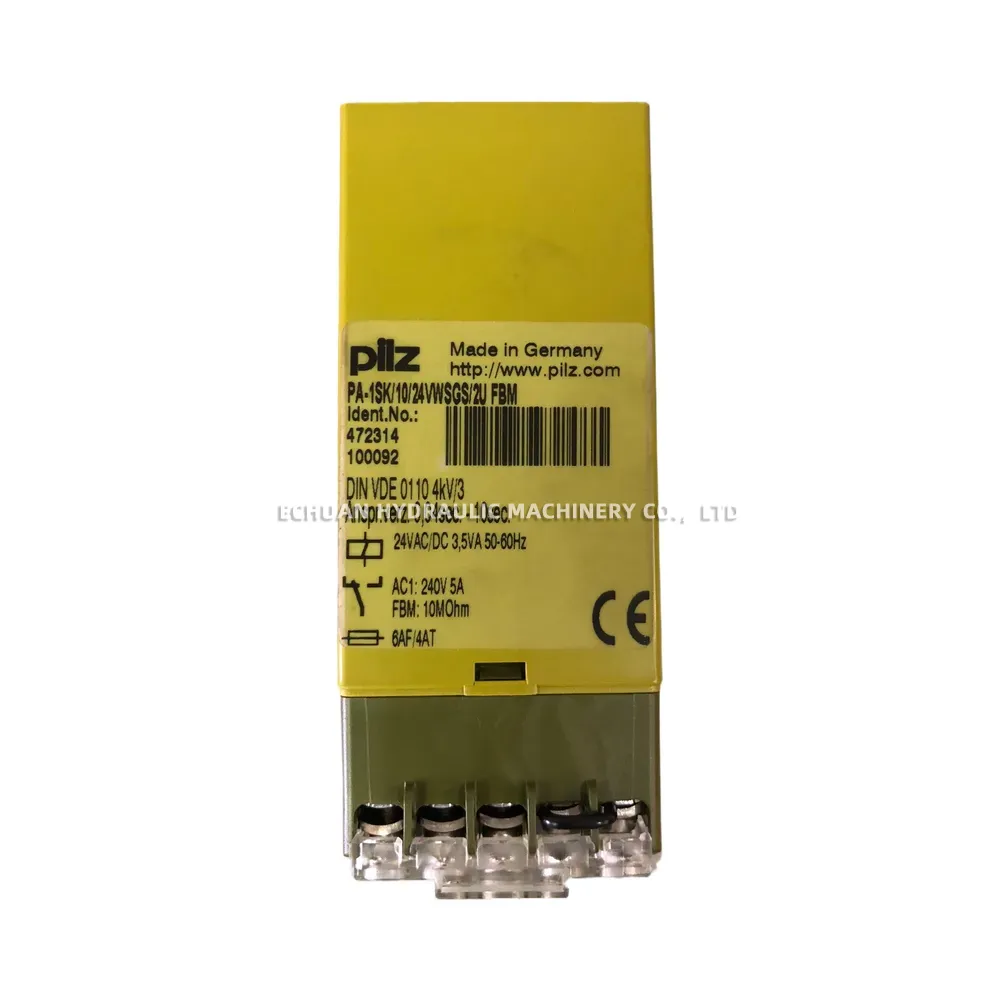

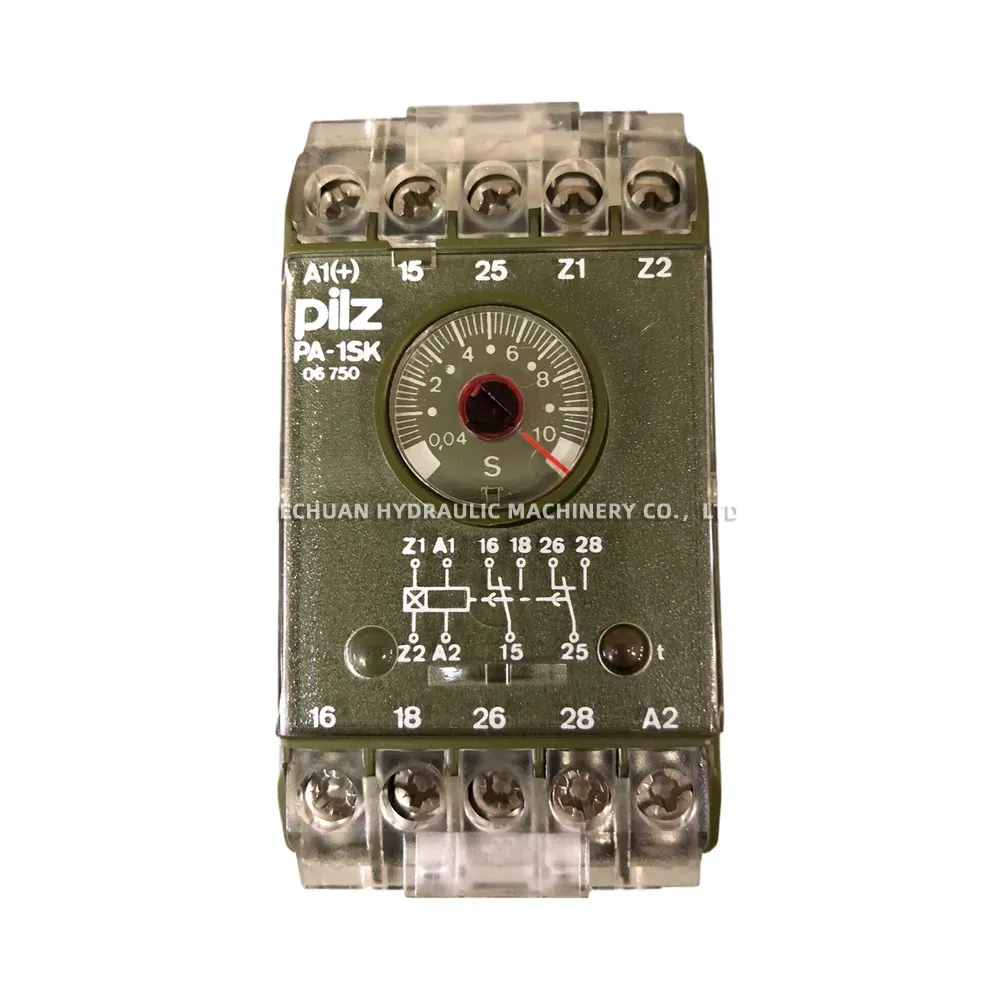

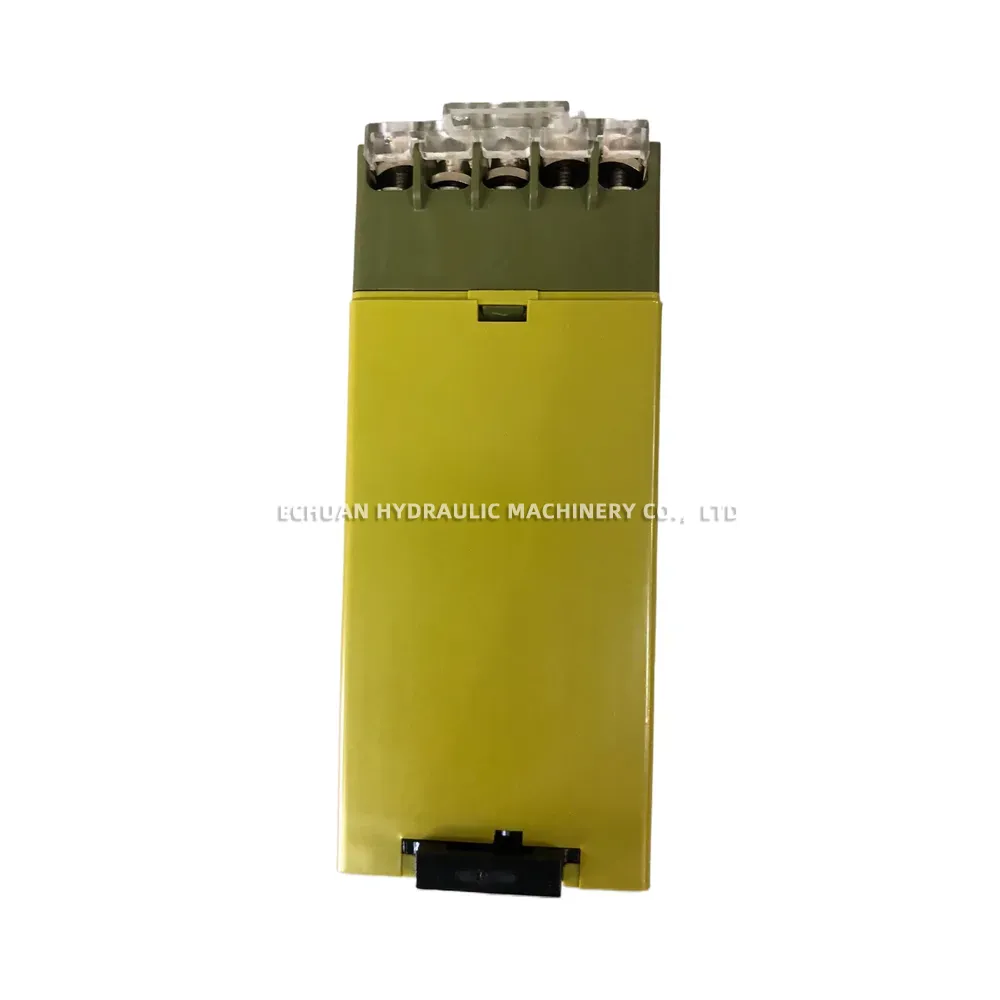

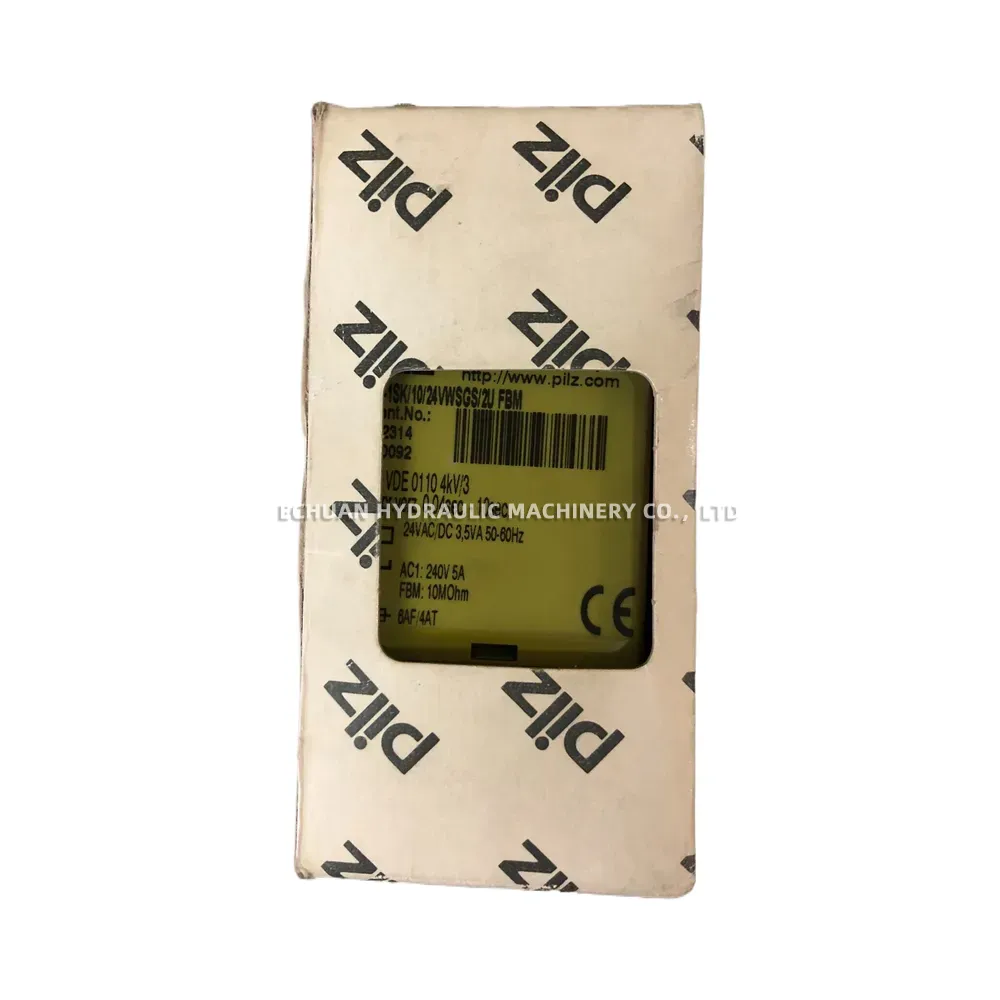

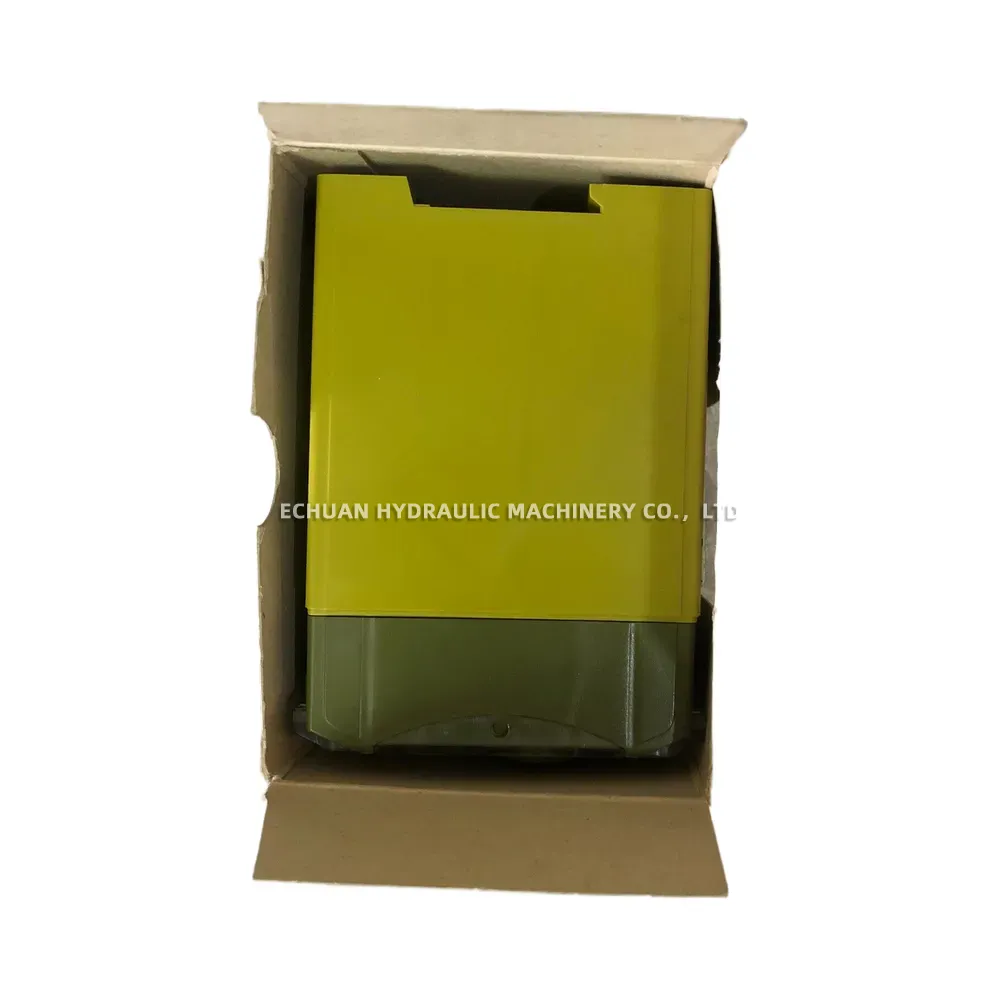

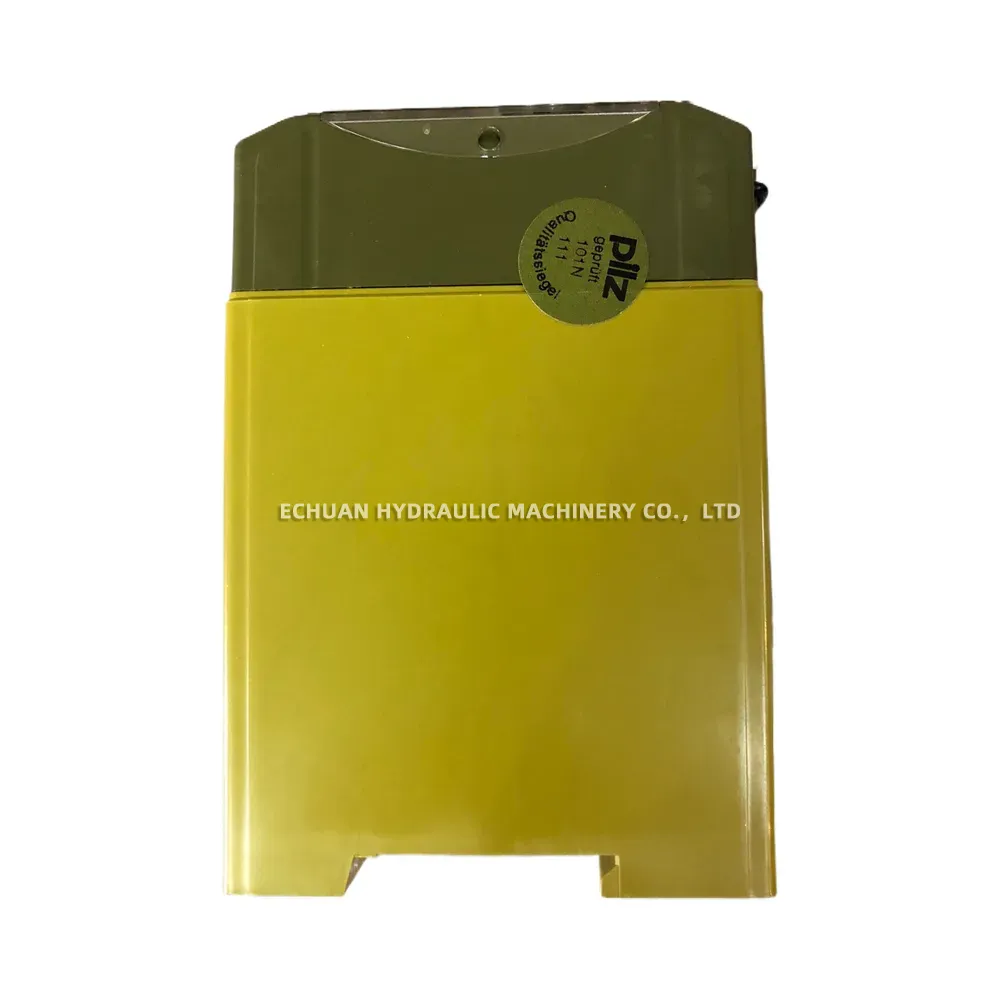

Pilz PA-1SK/10/24VWSGS/2U FBM Time Delay Relay
The Pilz PA-1SK/10/24VWSGS/2U FBM is a highly reliable industrial plug-in time delay relay module designed for precise timing control in automation systems. Manufactured in Germany, this relay features an adjustable response delay range from 0.04 to 10 seconds, making it ideal for a variety of industrial applications requiring accurate time-delayed switching. It operates on a versatile 24V AC/DC power supply (3.5VA, 50-60Hz) and offers robust switching capabilities with a contact rating of AC1: 240V 5A. Built to strict safety and quality standards, it complies with DIN VDE 0110 4kV/3 and carries the CE mark, ensuring safe and dependable performance in demanding industrial environments.
Technical Specifications:
- Brand: Pilz
- Model: PA-1SK/10/24VWSGS/2U FBM
- Identification Numbers: 472314 / 100092
- Response Delay Range: 0.04 seconds to 10 seconds
- Power Supply: 24V AC/DC, 3.5VA, 50-60Hz
- Contact Rating: AC1: 240V 5A
- FBM Resistance: 10 MOhm
- Fusing: 6AF / 4AT
- Standards & Certifications: DIN VDE 0110 4kV/3, CE
- Country of Origin: Made in Germany
Pilz PA-1SK/10/24VWSGS/2U FBM Time Delay Relay
Shop the Pilz PA-1SK/10/24VWSGS/2U FBM (Ident. No. 472314) Time Delay Relay. This authentic German-made industrial plug-in relay features a 0.04-10s adjustable delay, 24V AC/DC power supply, and 240V 5A contact rating for reliable automation control.
