Product Description

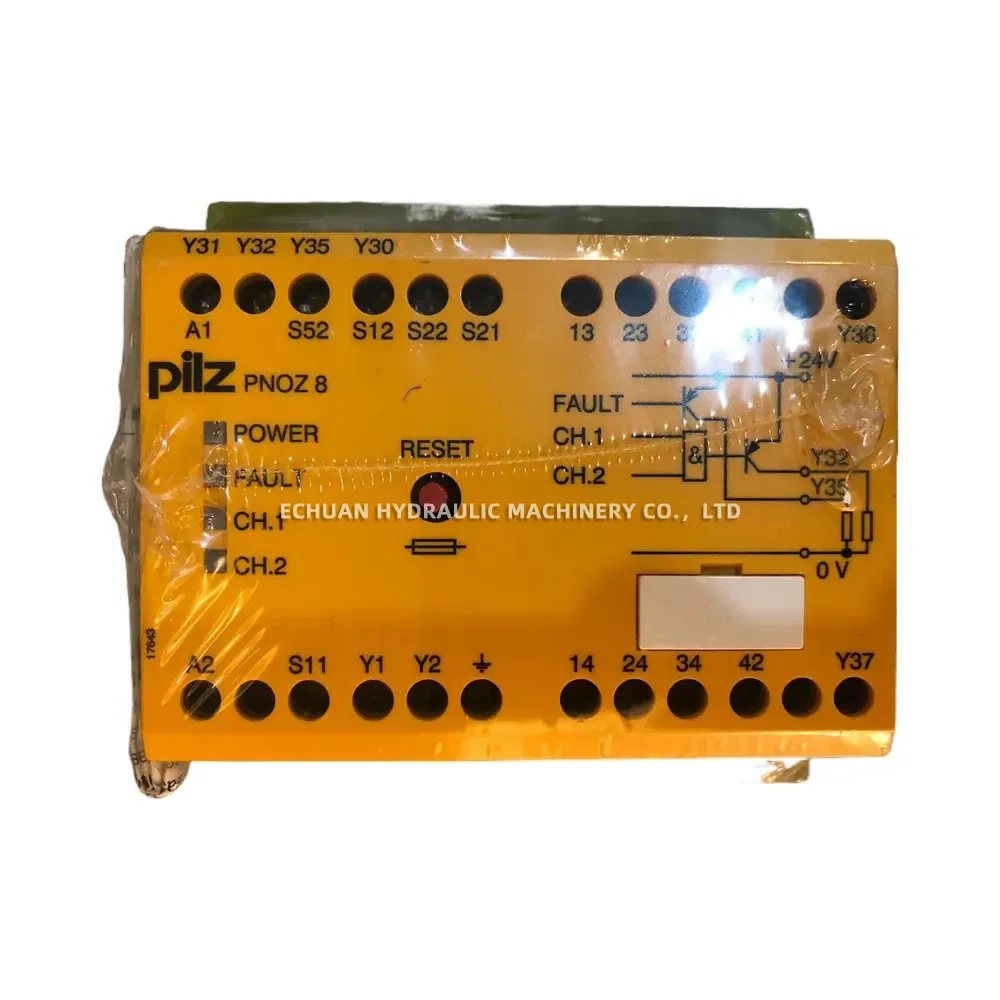

Pilz PNOZ 8 Safety Relay
Ensure maximum safety and reliability in your industrial automation systems with the Pilz PNOZ 8 Safety Relay (Article ID: 774768). Designed for monitoring safety circuits, this highly reliable module operates on a 230VAC supply voltage and features 3 normally open (n/o) safety contacts, 1 normally closed (n/c) auxiliary contact, and 2 semiconductor outputs. It is equipped with a manual reset button and comprehensive diagnostic LEDs for Power, Fault, and Channels 1 and 2, allowing for quick status checks and streamlined troubleshooting. Manufactured in France, the PNOZ 8 guarantees high performance with robust switching capabilities (AC1: 240V 8.0A, DC13: 24V 7.0A) to meet stringent industrial safety regulations.
Technical Specifications:
- Brand: Pilz
- Model: PNOZ 8
- Article ID: 774768
- Supply Voltage: 230 VAC (50-60 Hz)
- Contact Configuration: 3 Normally Open (n/o), 1 Normally Closed (n/c)
- Semiconductor Outputs: 2 (so)
- Switching Capacity (AC1): 240V 8.0A
- Switching Capacity (DC1 / DC13): 24V 8.0A / 24V 7.0A
- Diagnostics: LED indicators for Power, Fault, Channel 1, and Channel 2
- Country of Origin: France
Pilz PNOZ 8 Safety Relay
Shop the Pilz PNOZ 8 Safety Relay (Article No. 774768) for reliable industrial safety monitoring. Features a 230VAC supply, 3 n/o and 1 n/c contacts, 2 semiconductor outputs, and built-in diagnostic LEDs.
| Brand | Pilz |
|---|---|
| Model | PNOZ 8 |
| Part No. | 807823998987 |
| Category | Electrical |
| Link | https://www.echuan-hydraulic.com/product/pilz-pnoz-8-safety-relay |
