Product Description
PR electronics 3103 Isolated Repeater
The PR electronics 3103 is a high-performance isolated repeater and signal conditioner designed for the safe and reliable transmission of mA signals in demanding industrial environments. This slimline, DIN-rail mountable module features a convenient power rail connection that simplifies installation and reduces wiring time. Engineered for versatility and safety, the 3103 boasts a wide operating temperature range of -20°C to +70°C and carries extensive global approvals, including ATEX, IECEx, FM, and UL. It is ideally suited for open-type process control equipment and hazardous location applications (Zone 2 / Div 2).
Technical Specifications:
- Brand: PR electronics
- Model: 3103
- Product Type: Isolated Repeater / Signal Conditioner
- Input / Output: mA+ / mA- In, mA Out
- Power Supply: 24 VDC ±30%, Max 0.9 W (Power Rail compatible)
- Ambient Temperature: -20°C to +70°C
- Mounting: DIN-rail mountable
- Hazardous Area Approvals: IECEx Ex nA IIC T4 Gc, ATEX II 3 G Ex nA IIC T4 Gc, FM CL I DIV2 GP A-D T4, UL Listed Ex nA II T4
- Certifications: CE, EAC, GL, PESO/CCE (P337347/1)

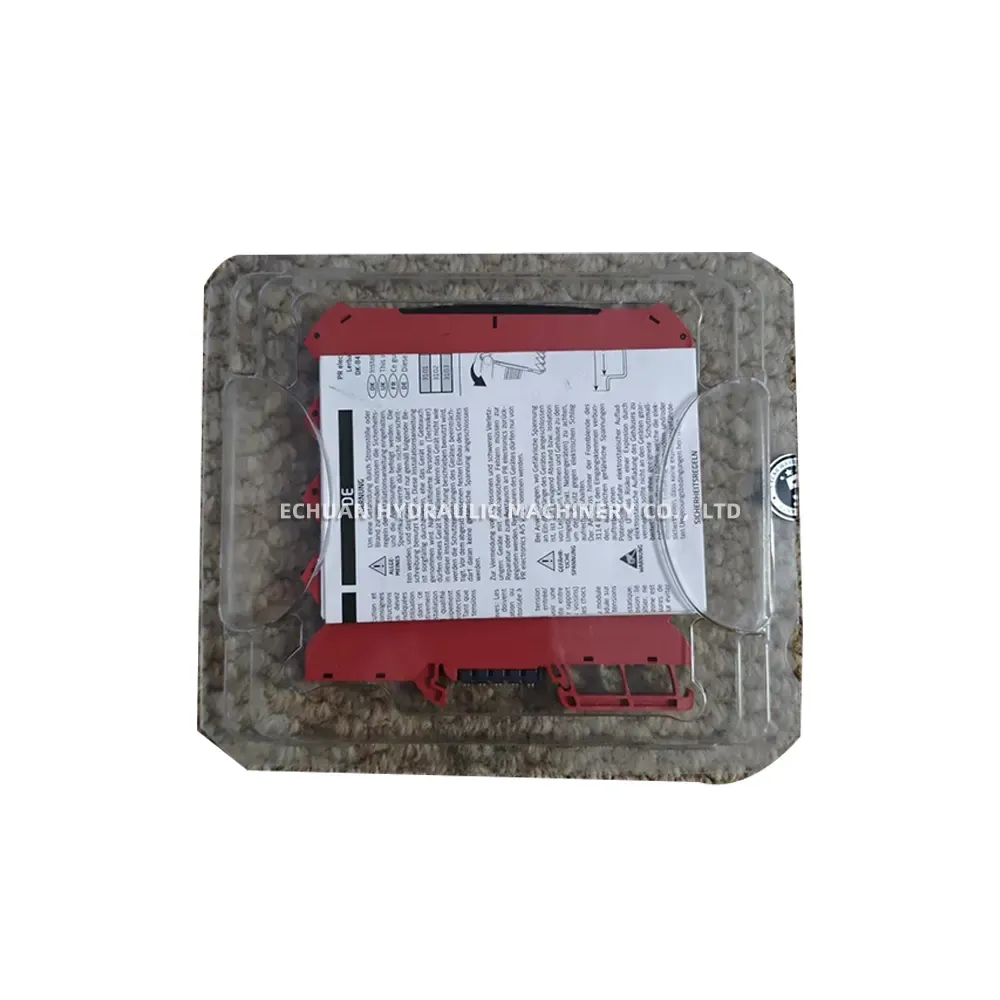

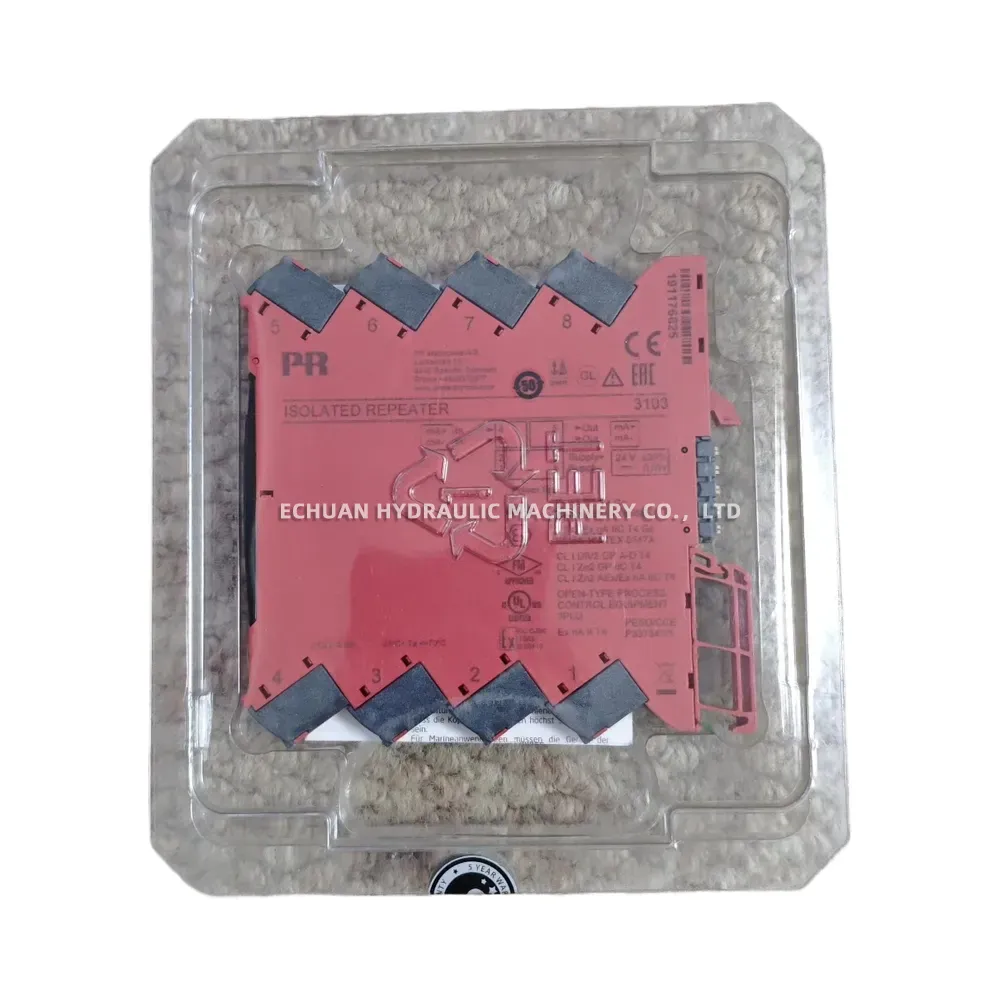

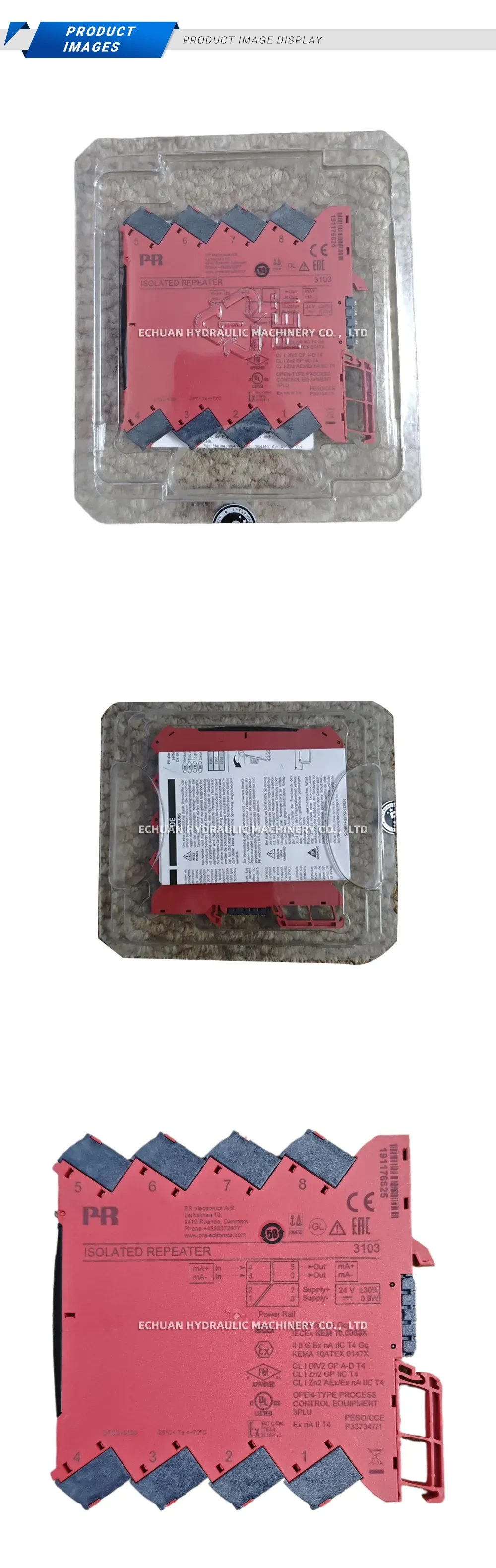

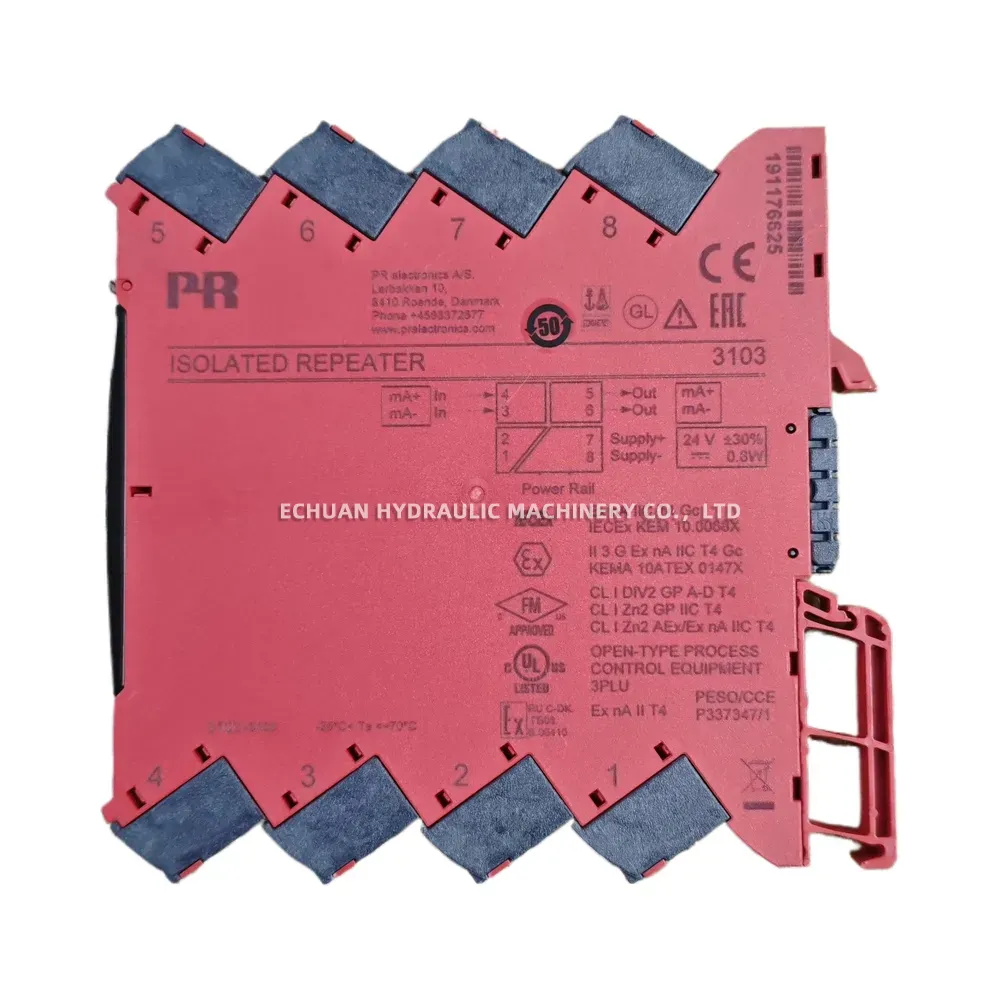

PR electronics 3103 Isolated Repeater (Signal Isolator/Conditioner)
Shop the PR electronics 3103 Isolated Repeater for reliable mA signal conditioning. This DIN-rail mountable module features 24VDC power rail connectivity, ATEX/IECEx/FM hazardous area approvals, and a -20°C to +70°C operating range. Ideal for industrial process control and Zone 2 applications.
| Brand | PR Electronics |
|---|---|
| Model | 3103 |
| Part No. | 973409361979 |
