Product Description

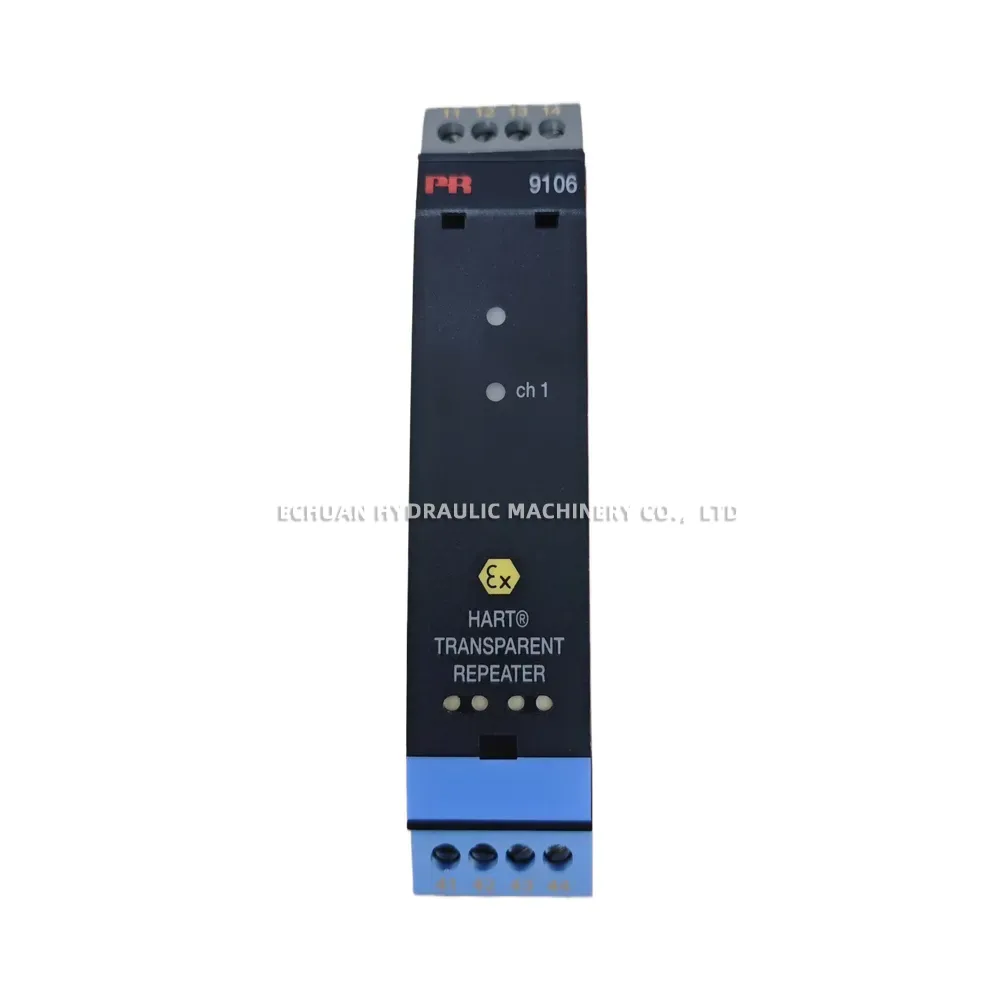

PR electronics 9106 (9106BxA-103) HART-Transparent Repeater
The PR electronics 9106 (9106BxA-103) is a highly reliable, single-channel HART-transparent repeater and galvanically isolated signal barrier designed for 4-20 mA HART loops. Engineered for critical industrial and process control applications, this device ensures safe, accurate, and transparent signal transmission between hazardous and safe areas. Housed in a slim, DIN-rail mountable enclosure, it features a built-in relay status output and operates efficiently on a 19.2 to 31.2 VDC power supply.
This isolated repeater is heavily certified for global use, boasting comprehensive explosion protection approvals including ATEX, IECEx, FM, INMETRO, EAC, and CCC. Assessed for SIL 3 functional safety and backed by marine approvals (DNV and ClassNK), the PR 9106BxA-103 provides unmatched protection and reliability in harsh, demanding, and potentially explosive environments.
Technical Specifications:
- Brand: PR electronics
- Model: 9106 (Variant: 9106BxA-103)
- Device Type: Single-channel HART-transparent repeater / isolated signal barrier

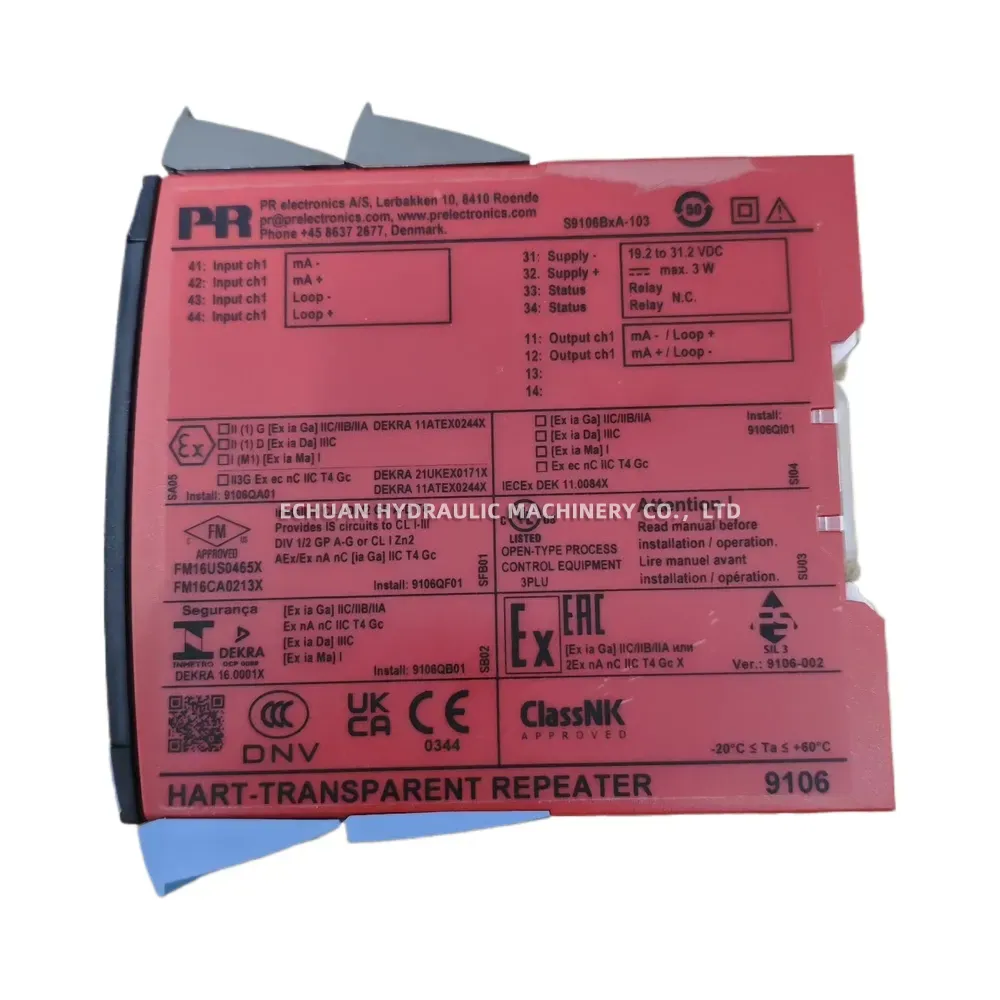

- Input (Channel 1): 4-20 mA HART loops (Terminals 41, 42, 43, 44)
- Output (Channel 1): 4-20 mA / Loop (Terminals 11, 12)
- Supply Voltage: 19.2 to 31.2 VDC (Terminals 31, 32)
- Power Consumption: Max. 3 W
- Status Output: Relay N.C. (Terminals 33, 34)
- Ambient Temperature Range: -20°C ≤ Ta ≤ +60°C
- Functional Safety: SIL 3 assessed
- Explosion Protection (Ex) Approvals: II (1) G [Ex ia Ga] IIC/IIB/IIIA, II (1) D [Ex ia Da] IIIC, I (M1) [Ex ia Ma] I, II3G Ex ec nC IIC T4 Gc
- Certifications: IECEx (DEK 11.0084X), ATEX (DEKRA 11ATEX0244X), FM (FM16US0465X / FM16CA0213X), cULus, INMETRO, EAC, CCC
- Marine & Global Approvals: CE, UKCA, DNV, ClassNK
- Mounting: DIN-rail mounted slim housing
PR electronics 9106 (9106BxA-103) HART-Transparent Repeater (Isolated Signal Repeater / Barrier)
Shop the PR electronics 9106 (9106BxA-103) single-channel HART-transparent repeater. This SIL 3 rated, galvanically isolated signal barrier supports 4-20 mA HART loops and features comprehensive global Ex, ATEX, and FM approvals for safe, reliable process control in hazardous areas.
| Brand | PR Electronics |
|---|---|
| Model | 9106 (9106BxA-103) |
| Part No. | 978599566608 |
| Category | Electrical |
