Product Description

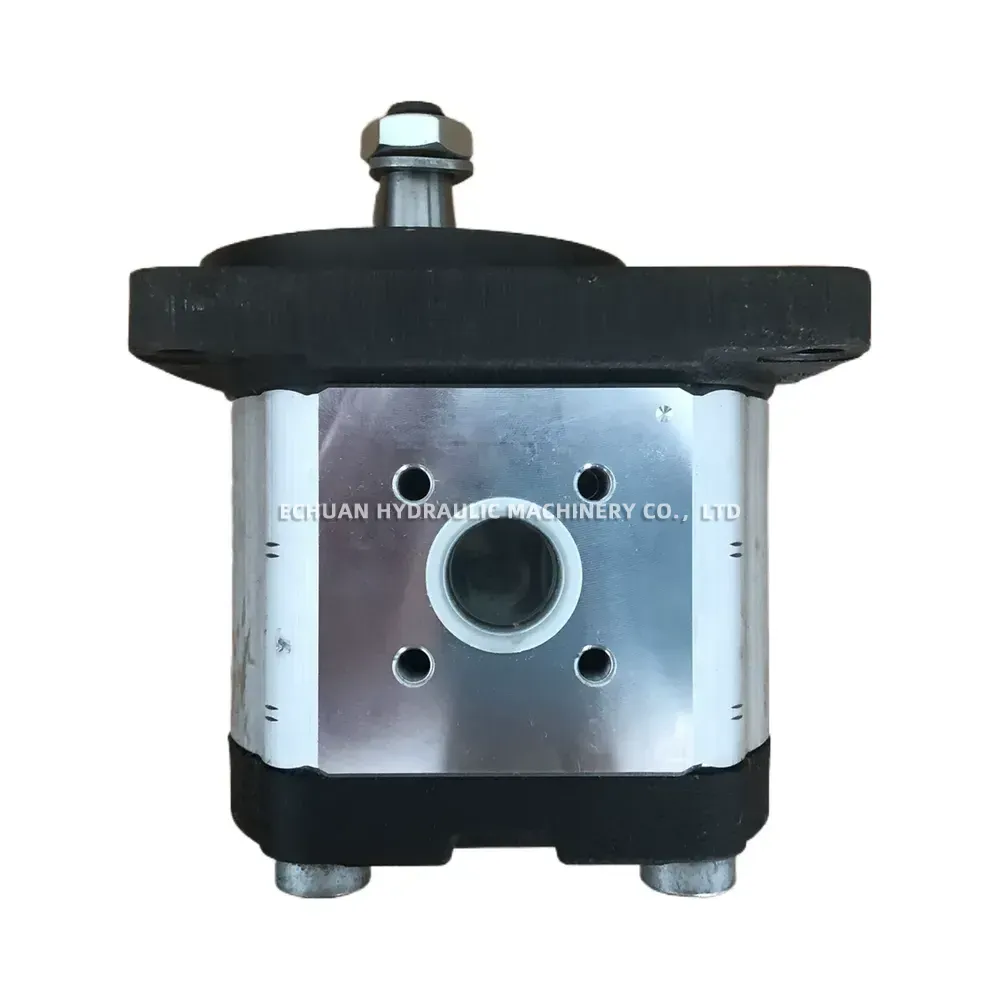

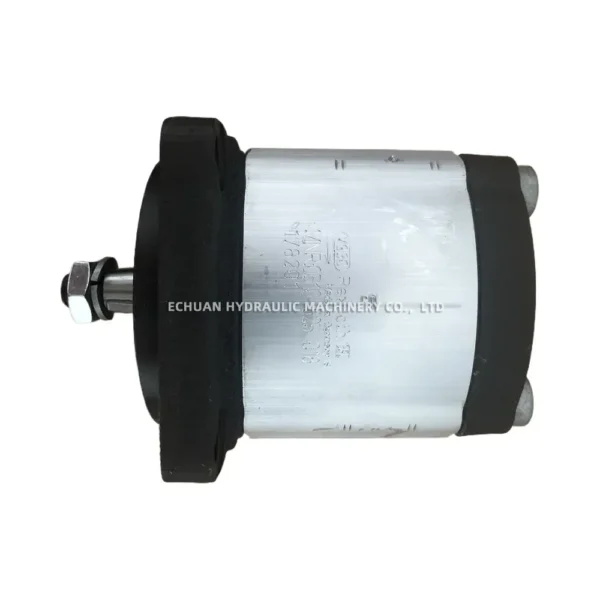

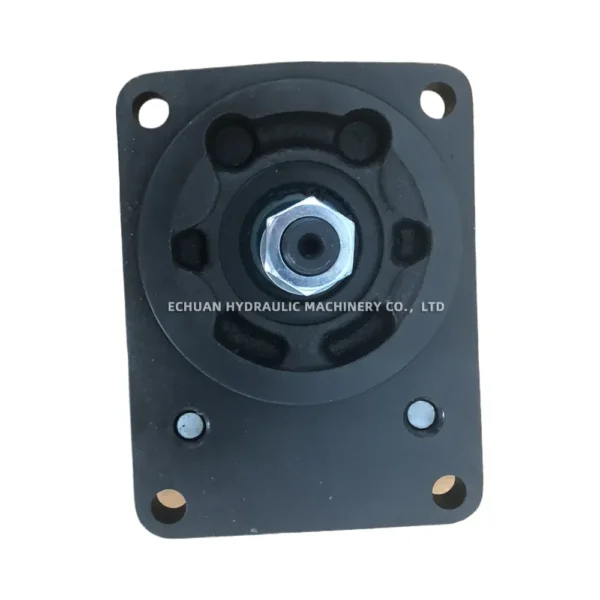

Rexroth 0510525018 AZPF-1X-014RCB20MB
The Rexroth 0510525018 AZPF-1X-014RCB20MB is a high-performance external gear pump designed for demanding hydraulic applications. Part of the reliable AZPF series, this fixed displacement pump offers high efficiency, long service life, and consistent performance. It features an aluminum housing for reduced weight and is suitable for use with mineral oil-based hydraulic fluids. Its robust construction makes it ideal for mobile and industrial hydraulic systems requiring a compact and dependable hydraulic power source.
Technical Specifications:
- Part Number: 0510525018
- Pump Type: External Gear Pump (Fixed Displacement)
- Series: AZPF-1X
- Geometric Displacement: 14 cm³/rev
- Direction of Rotation: Clockwise (Right)
- Mounting Flange: SAE A 2-bolt
- Shaft End: Tapered 1:5
- Line Connections (Code 20): SAE Flange Pressure Port / SAE Thread Suction Port (Specific sizes may vary, verify datasheet)
- Seal Material: NBR (for mineral oil HLP)
- Maximum Continuous Pressure: Up to 250 bar (Refer to specific datasheet for exact limits)
- Maximum Speed: Up to 3000 rpm (Refer to specific datasheet for exact limits)
Rexroth 0510525018 AZPF-1X-014RCB20MB
Model:Rexroth 0510525018 AZPF-1X-014RCB20MB
| Brand | Rexroth |
|---|---|
| Model | 0510525018 AZPF-1X-014RCB20MB |
| Part No. | Rexroth 0510525018 AZPF-1X-014RCB20MB |
| Category | Hydraulic pumps |
