Product Description

Rexroth 0510625022 AZPF-1X-016RCB20MB

The Rexroth AZPF-1X-016RCB20MB is a high-performance external gear pump designed for demanding hydraulic applications in both mobile and industrial environments. Part of the reliable AZPF platform 1 series, this fixed displacement pump offers consistent flow and high volumetric efficiency. It features a robust construction suitable for continuous operation, a clockwise rotation, a tapered shaft, and standard SAE flange and port connections for easy integration into various hydraulic systems. Known for its durability and compact design, it provides a cost-effective solution for fluid power generation.

Technical Specifications:

  • Manufacturer: Bosch Rexroth
  • Pump Type: External Gear Pump
  • Series: AZPF Platform 1 (1X)
  • Part Number: 0510625022
  • Geometric Displacement: 16 cm³/rev
  • Direction of Rotation: Clockwise (R)
  • Drive Shaft: Tapered 1:5 (C)
  • Mounting Flange: SAE J518 specification, 2-bolt flange type A (B20)
  • Line Connections: SAE J518 Flange Ports (M)
  • Sealing Material: NBR (B)
  • Nominal Pressure (approx): Up to 250 bar (3625 psi)
  • Peak Pressure (approx): Up to 280 bar (4061 psi)

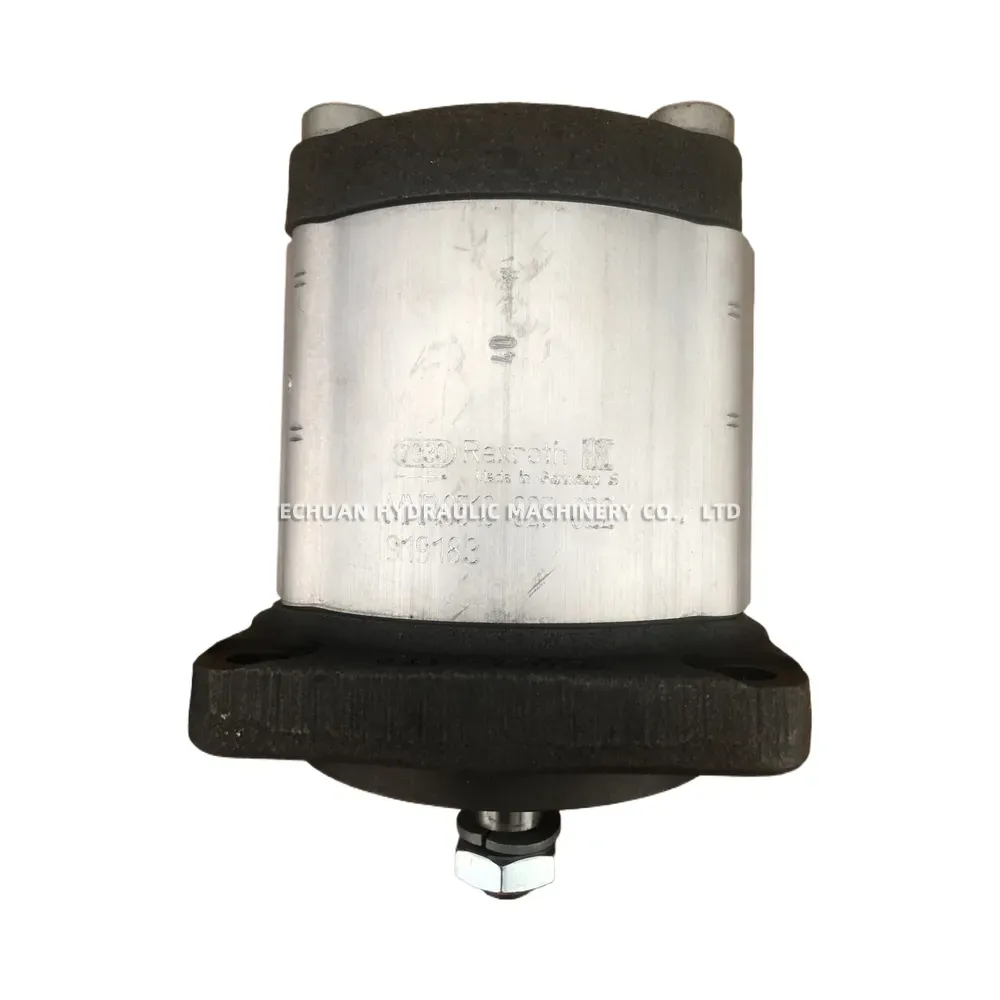

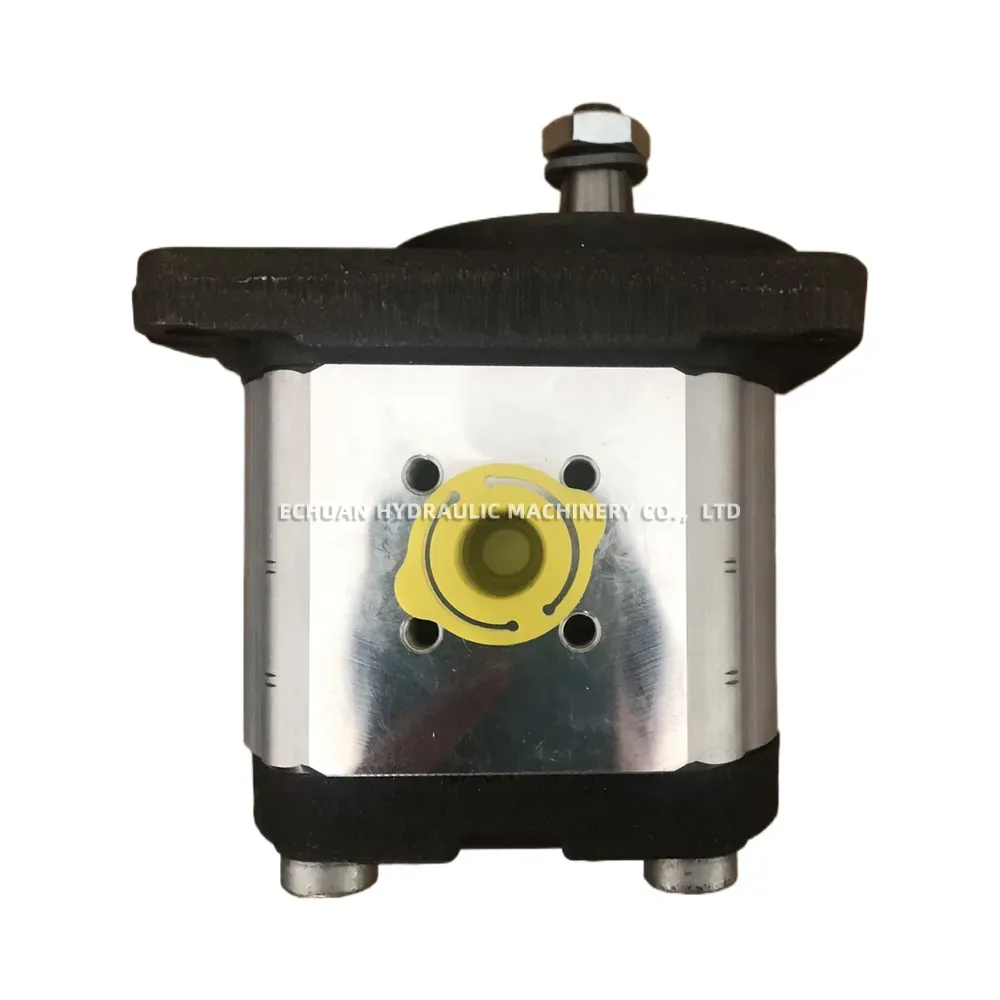

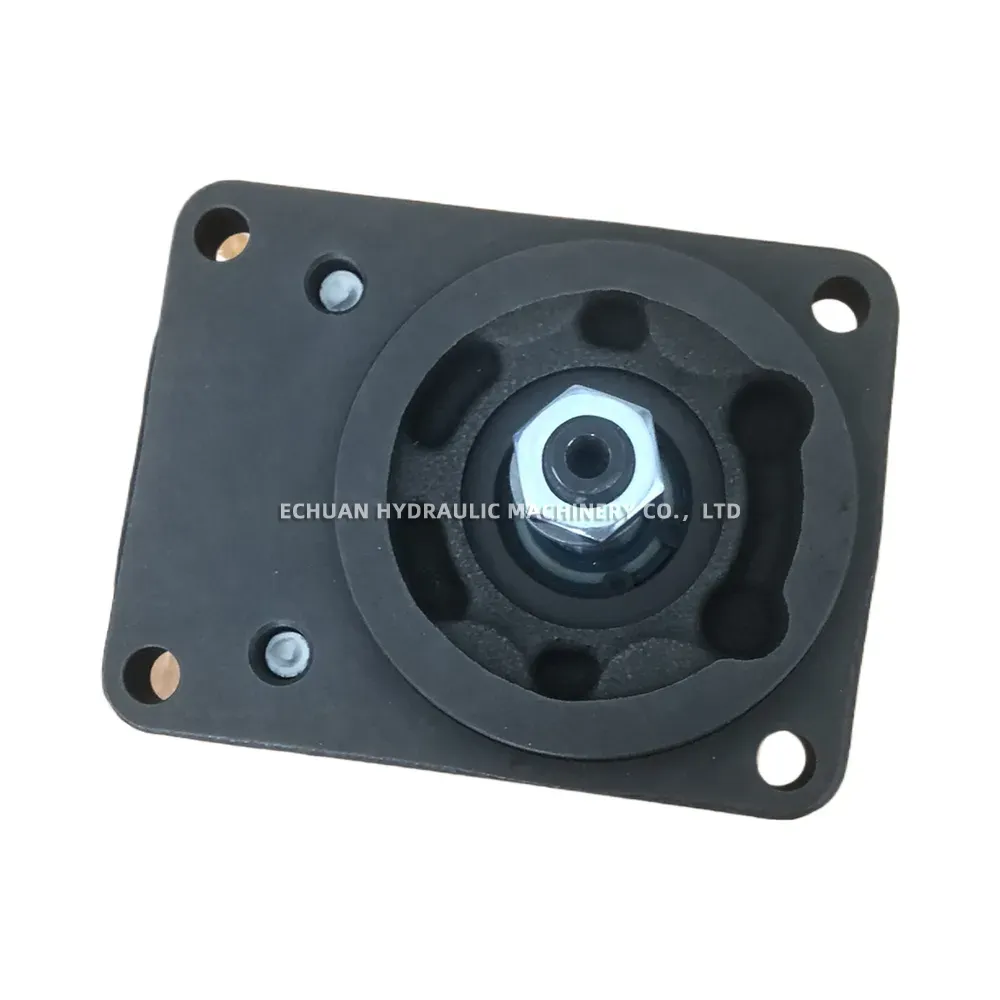

Rexroth 0510625022 AZPF-1X-016RCB20MB - Image 1

Rexroth 0510625022 AZPF-1X-016RCB20MB - Image 2

Rexroth 0510625022 AZPF-1X-016RCB20MB - Image 3

Rexroth 0510625022 AZPF-1X-016RCB20MB - Image 4

Rexroth 0510625022 AZPF-1X-016RCB20MB

Model:Rexroth 0510625022 AZPF-1X-016RCB20MB

BrandRexroth
Model0510625022 AZPF-1X-016RCB20MB
Part No.Rexroth 0510625022 AZPF-1X-016RCB20MB
CategoryHydraulic pumps
Linkhttps://www.echuan-hydraulic.com/product/rexroth-0510625022-azpf-1x-016rcb20mb
