Product Description

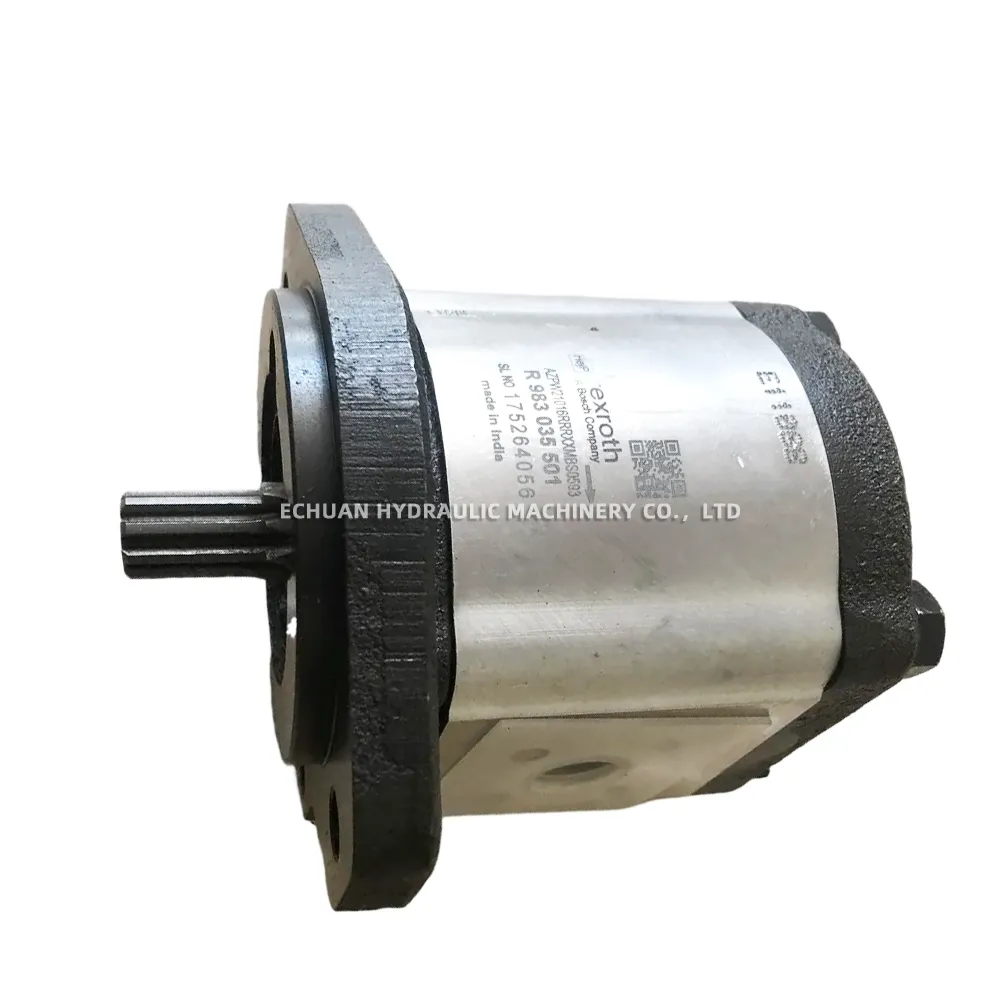

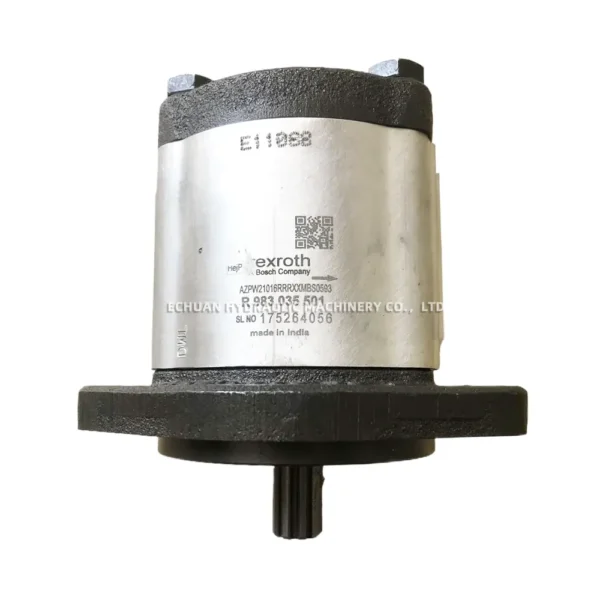

Rexroth R983035501 AZPW-21-016RRRXXMBS0593

The Rexroth AZPW-21-016RRRXXMBS0593, material number R983035501, is a robust external gear pump from Bosch Rexroth’s AZPW series. It features a durable cast iron housing designed for reliable performance in demanding hydraulic applications. With a nominal displacement of 16 cm³/rev, this pump is engineered for high efficiency and a long service life. It is well-suited for a wide range of mobile and industrial hydraulic systems requiring consistent fluid power. The “S0593” designation in the model code indicates a special version tailored to particular application needs, while retaining the core benefits and standard features of the AZPW pump family.

Technical Specifications:

  • Product Type: External Gear Pump
  • Series: AZPW
  • Full Model Code: AZPW-21-016RRRXXMBS0593
  • Material Number: R983035501
  • Housing Material: Cast Iron
  • Frame Size: 2
  • Construction Type: 1 (Standard)
  • Nominal Displacement: 16 cm³/rev
  • Direction of Rotation: Clockwise (viewed from shaft end)
  • Drive Shaft: Tapered shaft 1:5 with key
  • Mounting Flange: SAE A 2-bolt
  • Line Connections: SAE flange connections, side ports
  • Integrated Valves: None
  • Sealing Material: NBR (Nitrile Butadiene Rubber)
  • Version: Standard with special modification S0593

Rexroth R983035501 AZPW-21-016RRRXXMBS0593

Model:Rexroth R983035501 AZPW-21-016RRRXXMBS0593
