Product Description

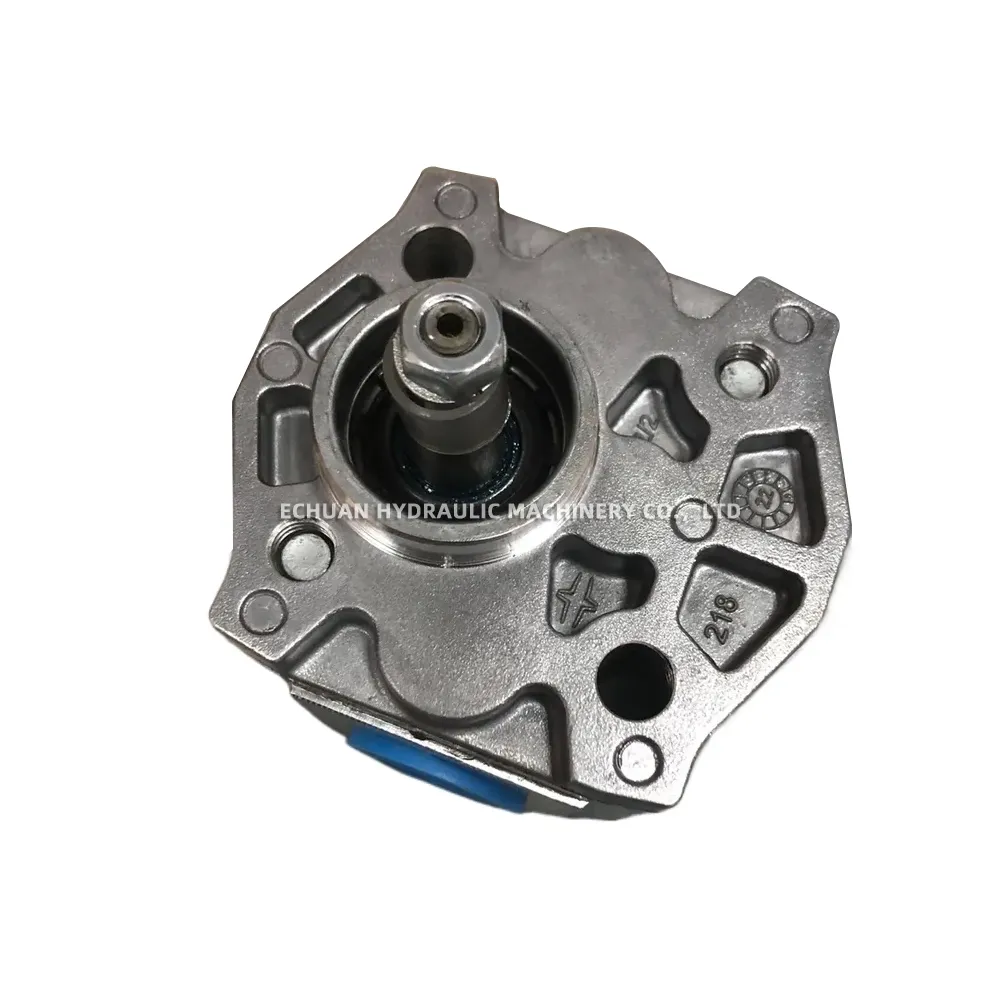

Rexroth 0510112014 AZPB-32-3.1RCP02MB

The Rexroth 0510112014, model AZPB-32-3.1RCP02MB, is a robust external gear pump designed for demanding hydraulic applications. As a fixed displacement pump from the renowned AZPB series, it offers high volumetric efficiency, reliable operation, and low noise levels. This pump is well-suited for integration into a variety of mobile and industrial hydraulic systems, providing consistent and dependable fluid power. Its construction ensures durability and a long service life under recommended operating conditions.

Technical Specifications:

Manufacturer: Bosch Rexroth
Product Type: External Gear Pump
Part Number: 0510112014
Model Code: AZPB-32-3.1RCP02MB
Series: AZPB
Nominal Displacement (V_g): 3.1 cm³/rev
Direction of Rotation (Viewed from shaft end): Clockwise (Right)
Drive Shaft: Tapered shaft 1:5 with key (acc. to DIN 6885)
Mounting Flange: SAE A 2-Bolt (Ø82.55 mm pilot)
Port Connections (Suction & Pressure): SAE Flange connections (Code 02)
Sealing Material: NBR (Nitrile Butadiene Rubber)
Maximum Continuous Operating Pressure (p_cont): 250 bar (3625 psi)
Maximum Intermittent Pressure (p_int): 280 bar (4060 psi)
Minimum Speed: 500 rpm
Maximum Speed: 4000 rpm (actual max. speed may vary based on application specifics)
Hydraulic Fluid Temperature Range (NBR Seals): -15°C to +80°C (+5°F to +176°F)
