Product Description

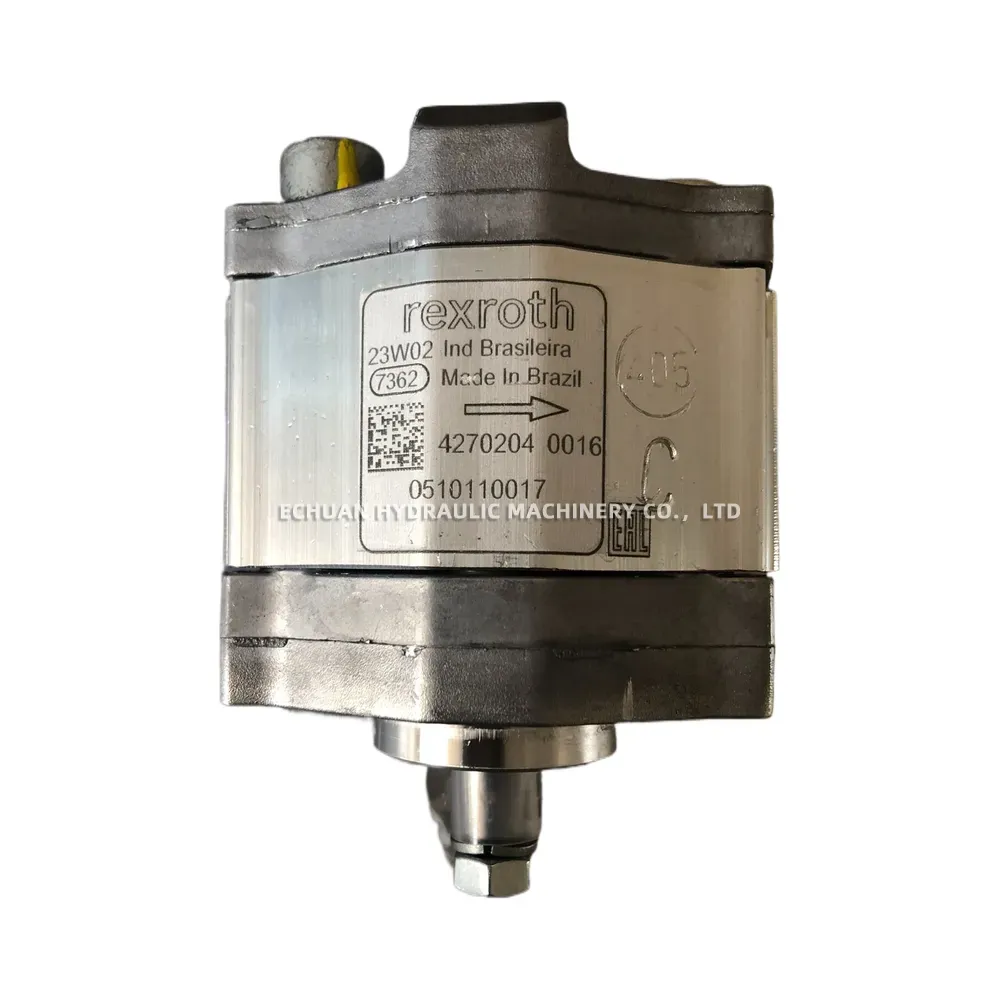

Rexroth 0510110017 AZPB-32-2.0RCP02MB

The Bosch Rexroth 0510110017, model AZPB-32-2.0RCP02MB, is a high-performance external gear pump designed for robust and reliable operation in various hydraulic systems. This fixed displacement pump offers a geometric displacement of 2.0 cm³ per revolution, ensuring consistent fluid delivery. It is engineered for high efficiency, a long service life, and can operate at high pressures. The AZPB series is known for its compact design and suitability for a wide range of industrial and mobile applications. This specific model features clockwise rotation, a tapered drive shaft (1:5), and SAE flange connections for secure porting.

Technical Specifications:

Manufacturer: Bosch Rexroth
Part Number: 0510110017
Model Code: AZPB-32-2.0RCP02MB
Pump Type: External Gear Pump, Fixed Displacement
Frame Size: AZPB Group 1 (based on the ’32’ typically referring to a size class within the series)
Geometric Displacement (Vg): 2.0 cm³/rev
Direction of Rotation: Clockwise (Right-hand rotation)
Nominal Continuous Pressure (pnom): Up to 250 bar (3625 psi)
Maximum Peak Pressure (pmax): Up to 280 bar (4061 psi)
Speed Range: Approximately 500 to 4000 rpm (application dependent)

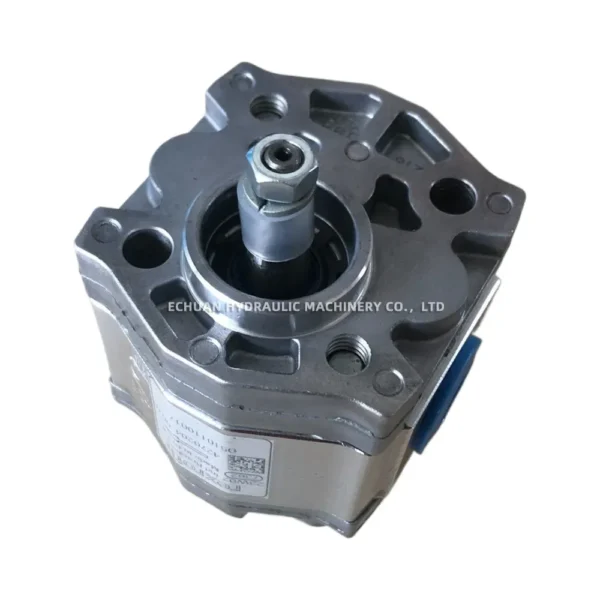

Drive Shaft: Tapered 1:5 (Code C)
Mounting Flange: Typically SAE A 2-bolt (e.g., SAE J744 82-2)
Port Connections (Line Connections): SAE Flange (Code P)
Hydraulic Fluid Compatibility: Mineral oil based hydraulic fluids (HL, HLP) as per DIN 51524. Other fluids on request.
Viscosity Range: 10 to 300 mm²/s (cSt) recommended for optimal performance.
