Product Description
Rexroth 0510725165 AZPG-22-025RCB20MB

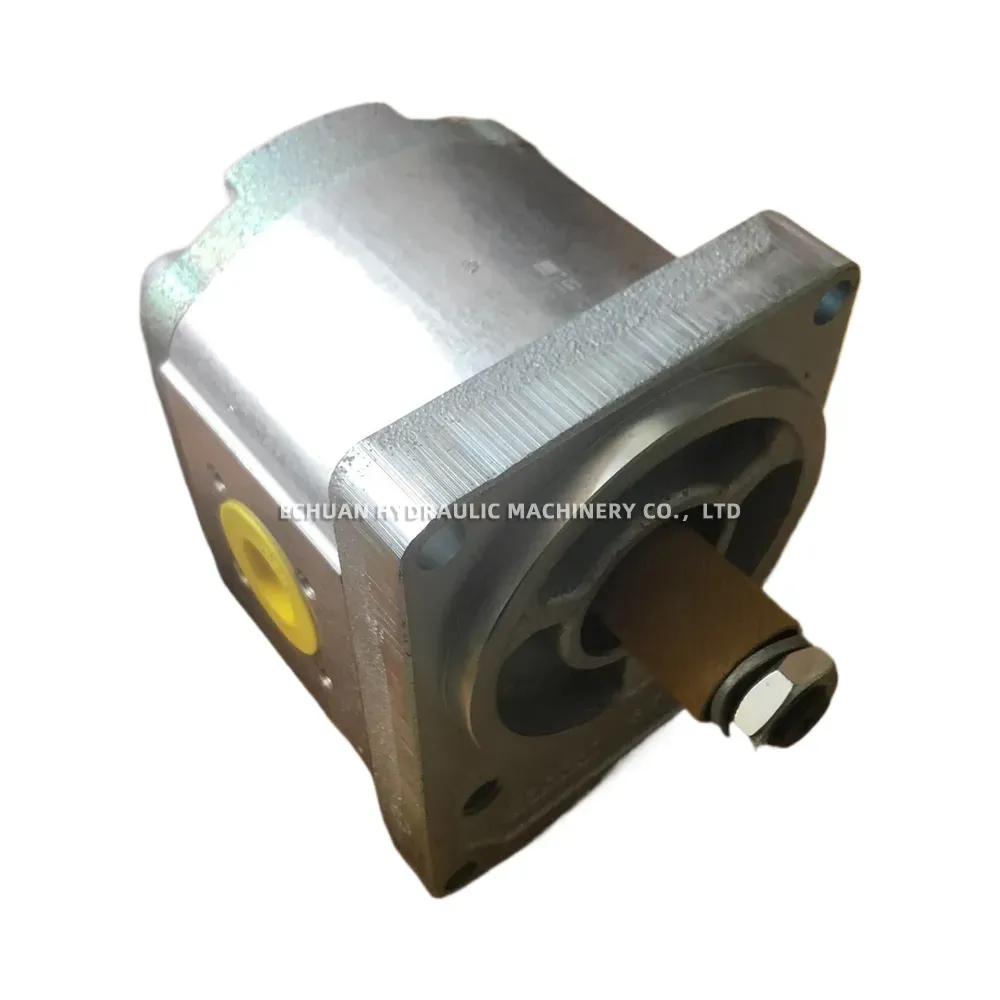

The Rexroth 0510725165 AZPG-22-025RCB20MB is a high-performance external gear pump designed for demanding hydraulic applications. Part of the robust AZPG series, this pump is recognized for its volumetric efficiency, durability, and reliable operation across a wide range of industrial and mobile hydraulic systems. It features a compact design and is engineered for continuous duty, providing consistent fluid power with low noise emission.
Technical Specifications:
- Type: External Gear Pump
- Series: AZPG
- Group: G (as per Rexroth designation)
- Nominal Displacement (Vg): 25 cm³/rev
- Direction of Rotation: Clockwise (Right-hand rotation)
- Drive Shaft: Tapered shaft 1:5, with feather key, nut and washer (Code CB)
- Mounting Flange: SAE 2-bolt flange J518, Type B (Code 20)
- Port Connections: SAE J518, split flange connections (Code M)
- Sealing Material: NBR (Nitrile Butadiene Rubber)
- Nominal Pressure (p_nom): 250 bar (3625 psi)
- Peak Pressure (p_max): 280 bar (4061 psi)
- Speed Range (n): 500 – 3000 rpm
- Fluid Temperature Range (NBR seals): -20°C to +80°C (-4°F to +176°F)
Rexroth 0510725165 AZPG-22-025RCB20MB
Model：Rexroth 0510725165 AZPG-22-025RCB20MB
