Product Description

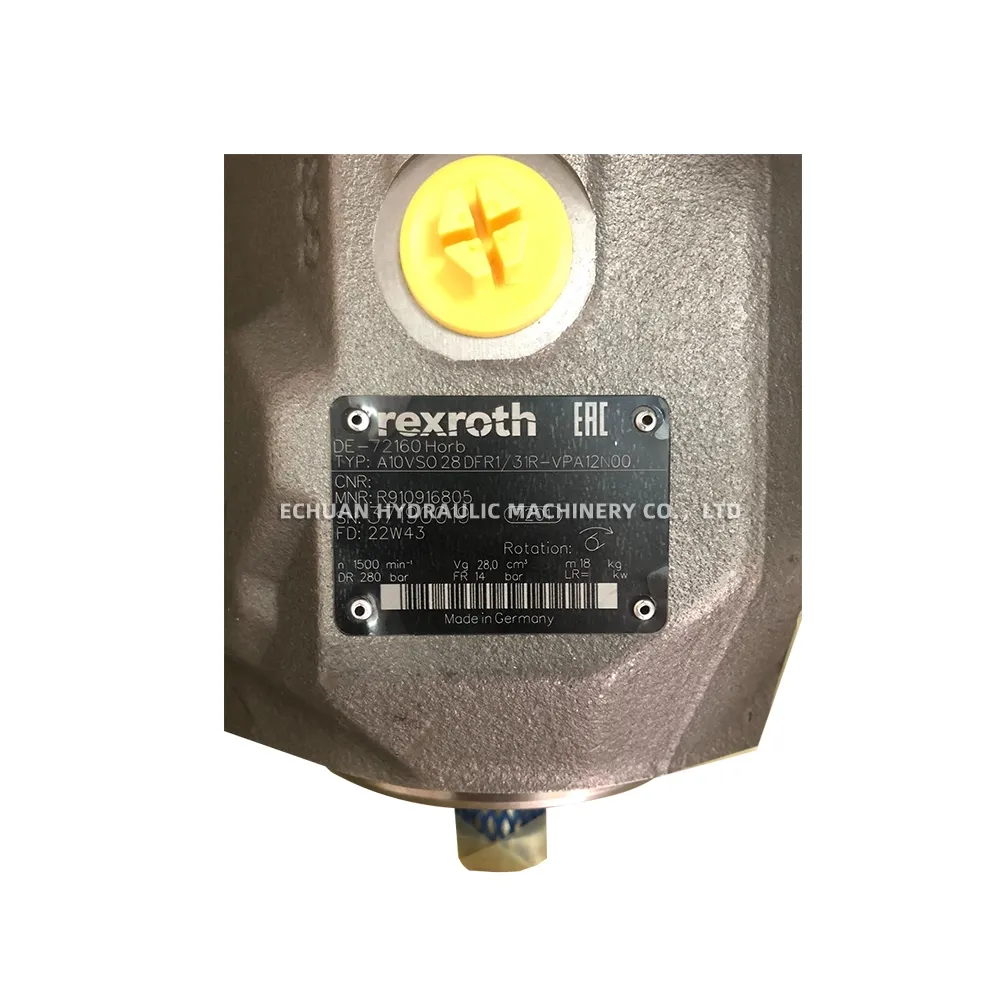

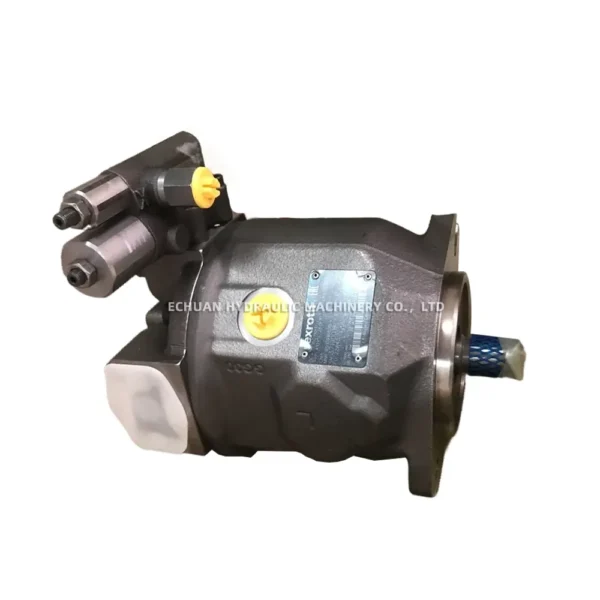

Rexroth A10VSO28DFR1/31R-VPA12N00 R910916805
The Rexroth A10VSO28DFR1/31R-VPA12N00 is a high-performance axial piston variable pump from the A10VSO series, specifically designed for open circuit hydrostatic drives. It employs a swashplate design, enabling variable displacement for precise control of hydraulic flow, which is proportional to the drive speed and the swashplate angle. This pump is renowned for its excellent suction characteristics, low operating noise levels, extended service life, and high power density. The integrated DFR1 control provides both pressure and flow compensation, enhancing overall system efficiency and responsiveness. It is a robust solution suitable for a wide array of demanding industrial and mobile hydraulic applications that require reliable and finely controllable hydraulic power.
Technical Specifications:
- Product Model: A10VSO28DFR1/31R-VPA12N00
- Part Number: R910916805
- Series: A10VSO
- Size (Nominal Displacement): 28 cm³ per revolution
- Control Type: DFR1 (Pressure and flow compensator, hydraulic, with bypass feature)
- Design Series: 31
- Direction of Rotation: R (Clockwise, viewed on shaft end)
- Sealing Material: V (FKM – Fluoroelastomer seals)
- Shaft End: P (Tapered shaft 1:5, key as per DIN 6885)
- Mounting Flange: A (2-hole flange, conforms to ISO 3019-2 / SAE J744 101-2)
- Working Port Connection: 12 (SAE flange ports, located side, opposite, with UNC thread)
- Through Drive: N00 (Without through drive capability)
- Nominal Operating Pressure: 280 bar (approximately 4061 psi)
- Maximum Peak Pressure: 350 bar (approximately 5076 psi)
- Maximum Speed (Continuous at nominal pressure, full displacement): 3000 rpm
- Hydraulic Fluid Compatibility: Suitable for mineral oils (HL, HLP); FKM seals compatible with HF fluids (verify specific fluid compatibility)
Rexroth A10VSO28DFR1/31R-VPA12N00 R910916805
Model：Rexroth A10VSO28DFR1/31R-VPA12N00 R910916805
