Product Description
Rexroth 1517222482 AZPFF-11-005/005LNY2020MB

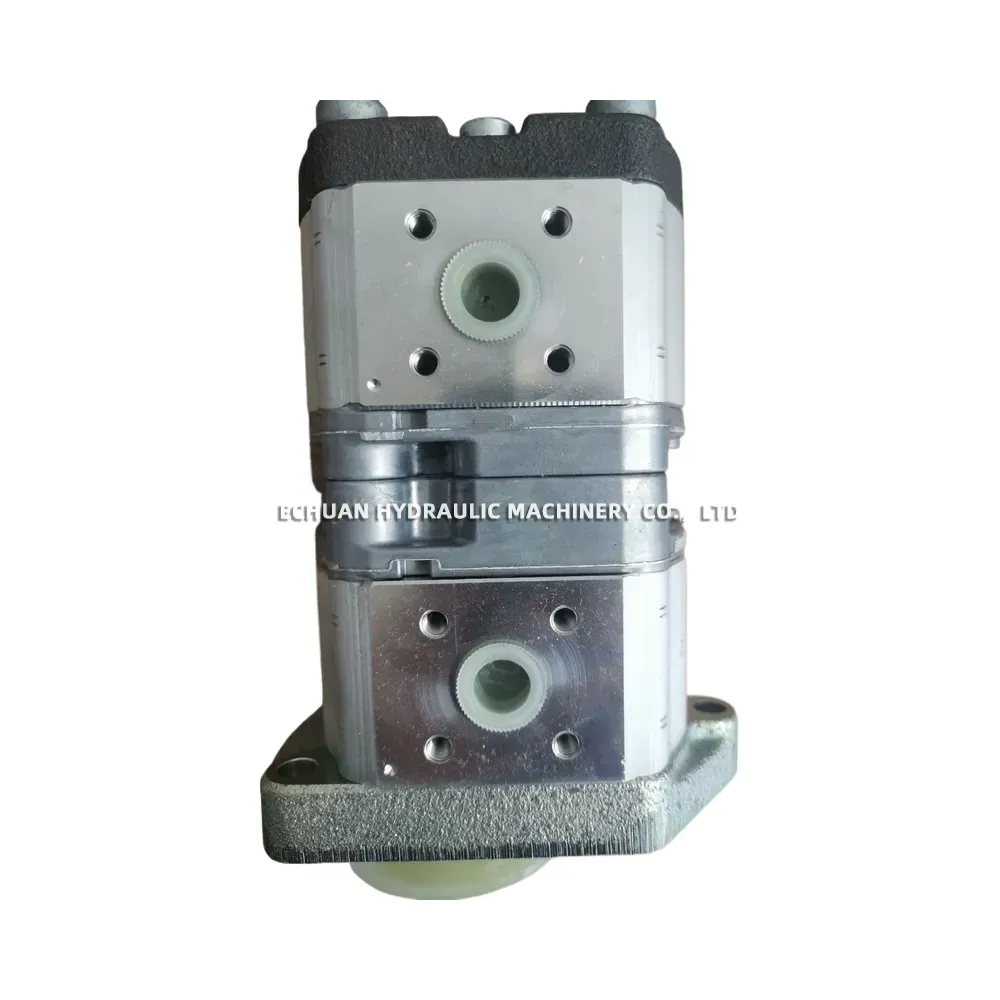

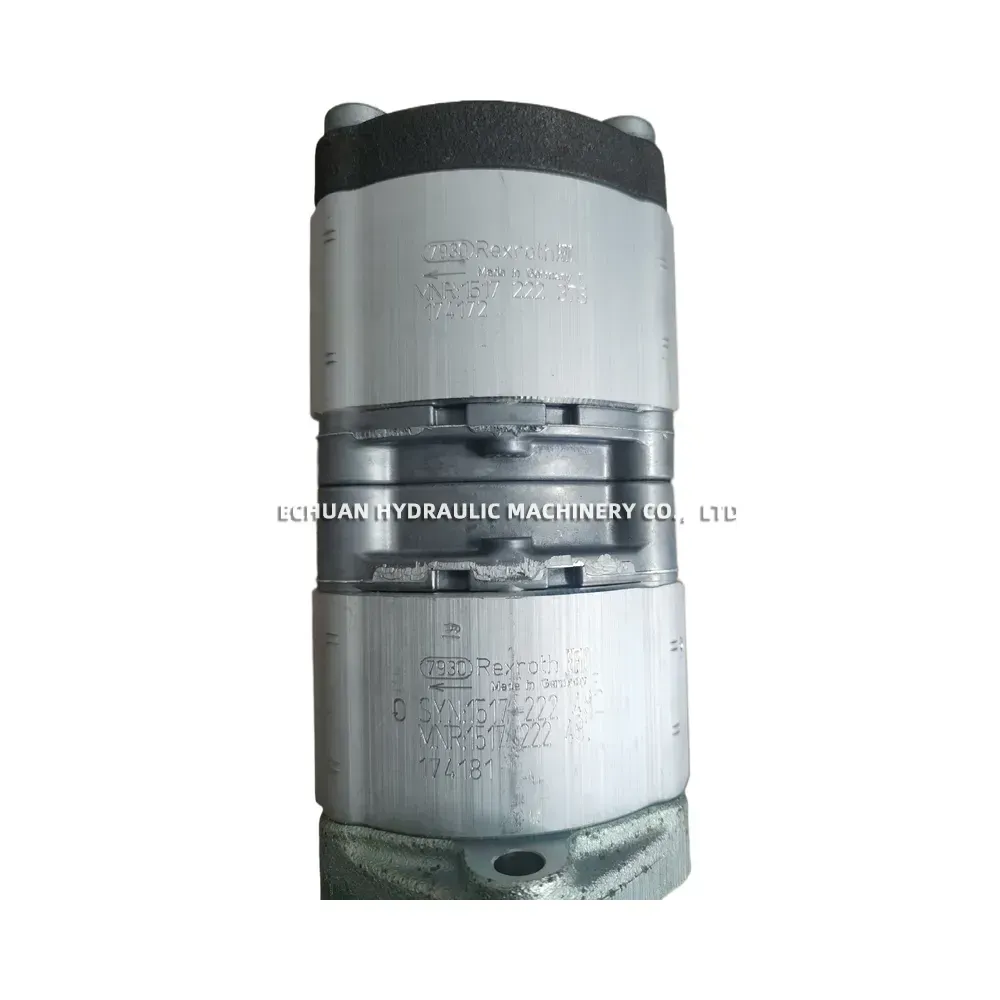

The Bosch Rexroth 1517222482, model AZPFF-11-005/005LNY2020MB, is a high-performance external gear tandem pump designed for demanding hydraulic systems. This robust unit combines two separate pump stages within a single housing, providing a compact and efficient solution for applications requiring multiple hydraulic circuits. Manufactured with high-precision production techniques and featuring slide bearings for high loads, this pump ensures high efficiency, low noise operation, and an exceptionally long service life. It is suitable for a wide range of mobile and industrial applications where reliability and consistent performance are paramount.
Technical Specifications:
- Model Code: AZPFF-11-005/005LNY2020MB
- Part Number: 1517222482
- Type: External Gear Tandem Pump
- Displacement (Stage 1): 5.0 cm³/rev
- Displacement (Stage 2): 5.0 cm³/rev
- Direction of Rotation: Left (Counter-Clockwise)

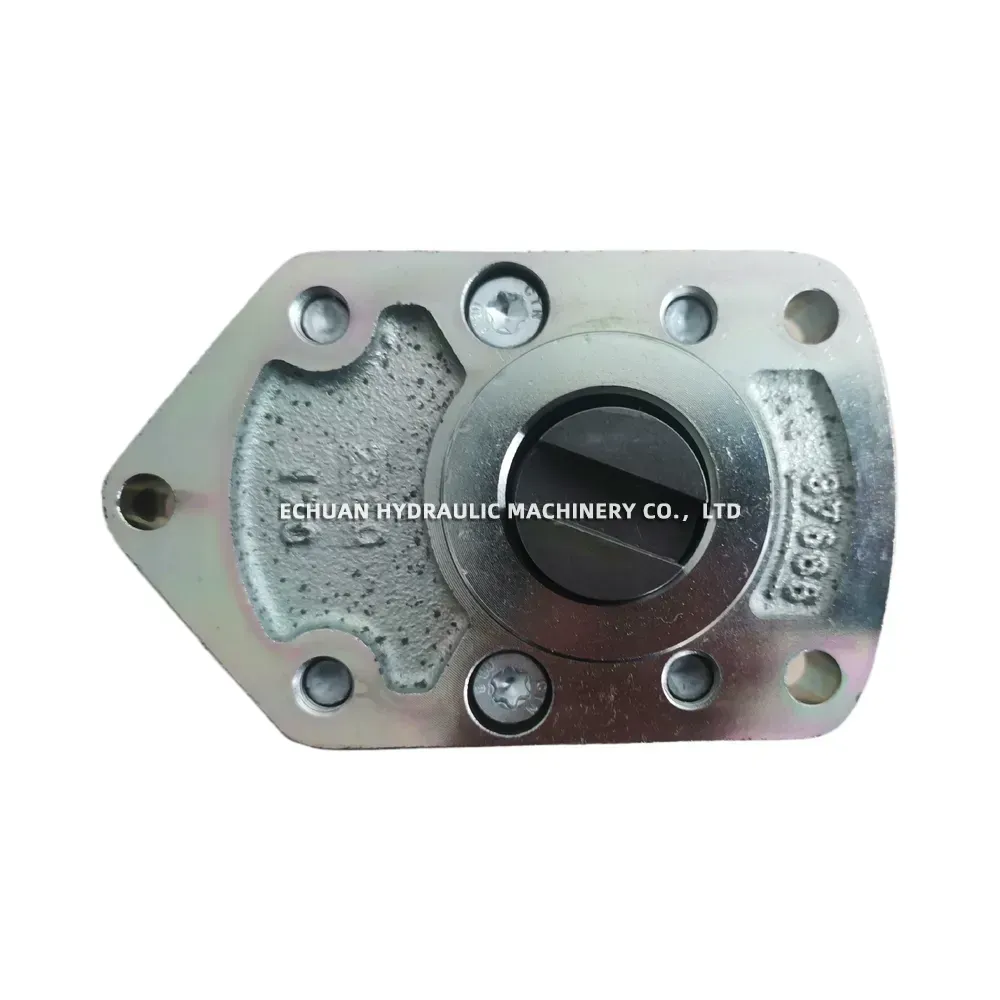

- Mounting Flange: SAE 2-bolt A-flange
- Drive Shaft: Splined shaft SAE J498
- Line Connections: SAE threaded ports
- Seal Material: NBR (Nitrile rubber)
- Maximum Continuous Pressure: 250 bar (3625 psi)
- Maximum Peak Pressure: 280 bar (4061 psi)
Rexroth 1517222482 AZPFF-11-005/005LNY2020MB
Model:Rexroth 1517222482 AZPFF-11-005/005LNY2020MB
