Product Description

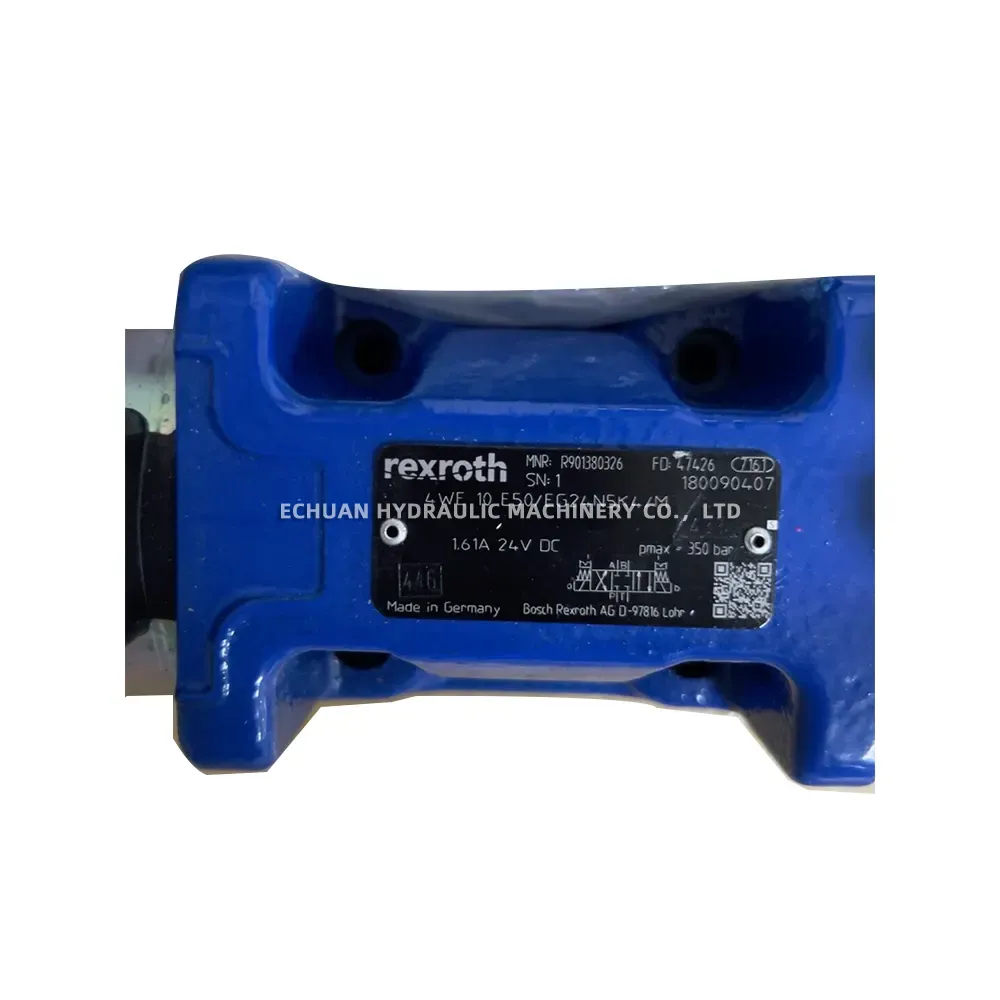

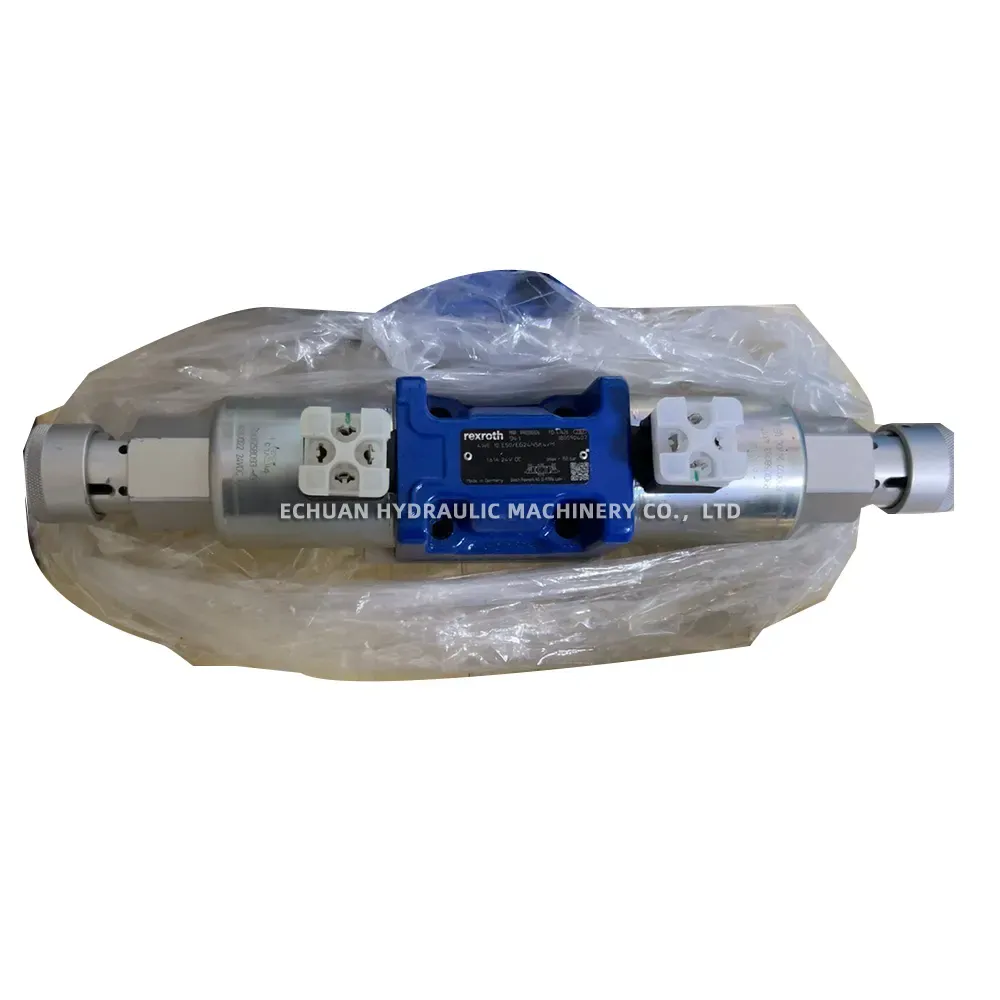

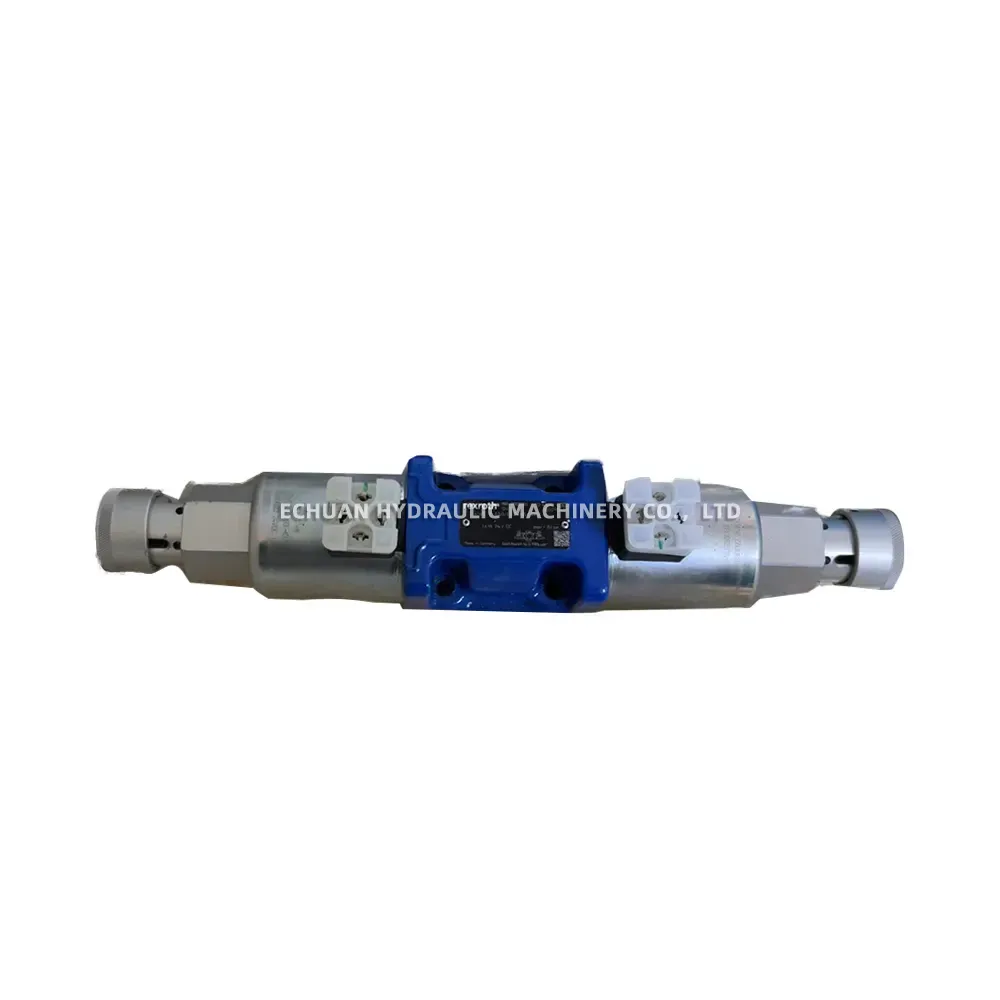

Rexroth 4WE 10 E50/EG24N5K4/M Hydraulic Directional Control Valve

The Bosch Rexroth 4WE 10 E50/EG24N5K4/M is a high-performance, direct-operated directional spool valve designed for reliable control of fluid flow in hydraulic systems. This solenoid-actuated valve, size NG10, is engineered to start, stop, and direct flow with precision. Its robust construction ensures durability and a long service life even under demanding conditions, with a maximum operating pressure of 350 bar. The 4/3-way design with an “E” spool configuration blocks all ports in the neutral, spring-centered position, providing a secure stop function. Manufactured in Germany, this valve is a benchmark for quality and performance in industrial hydraulics.

Technical Specifications:

  • Model: 4WE 10 E50/EG24N5K4/M

  • Type: Solenoid-operated directional spool valve

  • Size: NG10 (CETOP 5 / D05)

  • Spool Symbol: E (All ports blocked in mid-position)

  • Operating Voltage: 24V DC

  • Current: 1.61 A

  • Maximum Operating Pressure: 350 bar (5075 psi)

  • Maximum Flow Rate: 120 l/min (31.7 GPM)

  • Material Number (MNR): R901380326

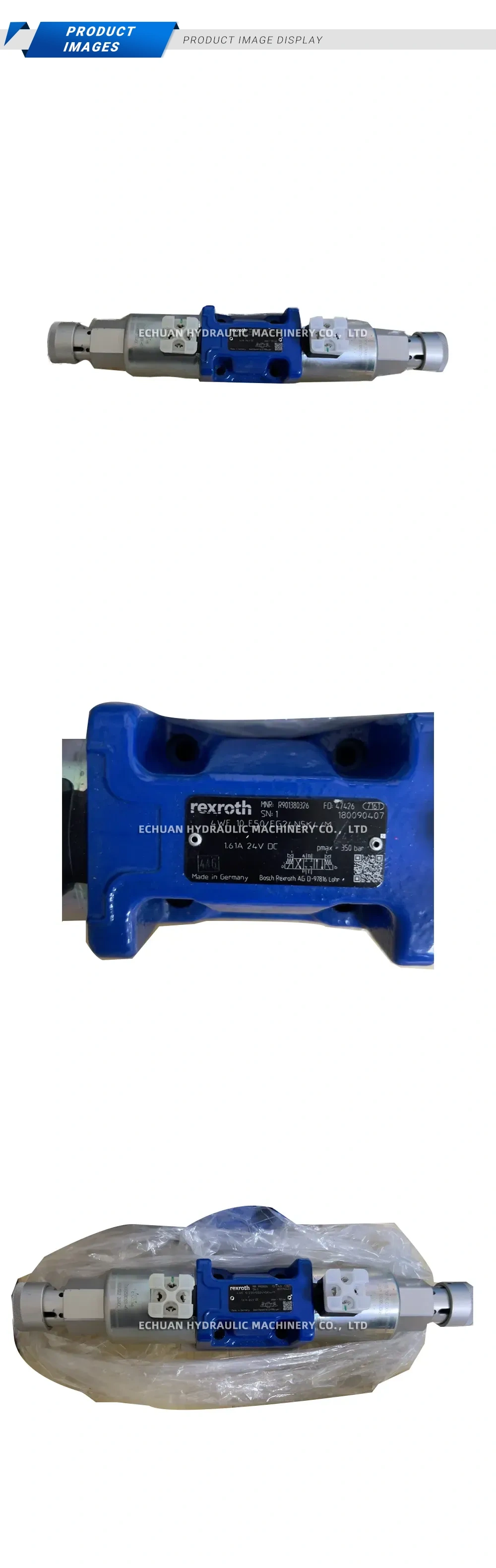

Rexroth 4WE 10 E50/EG24N5K4/M Hydraulic Directional Control Valve Description

Rexroth 4WE 10 E50/EG24N5K4/M Hydraulic Directional Control Valve

Buy the genuine Bosch Rexroth 4WE 10 E50/EG24N5K4/M, a 24V DC solenoid-operated hydraulic directional control valve. This NG10 (D05) valve provides reliable 4/3-way control up to 350 bar. Part number R901380326.

BrandRexroth
Model4WE 10 E50/EG24N5K4/M
CategoryHydraulic valves
Linkhttps://www.echuan-hydraulic.com/product/rexroth-4we-10-e50-eg24n5k4-m-hydraulic-directional-control-valve
