Product Description

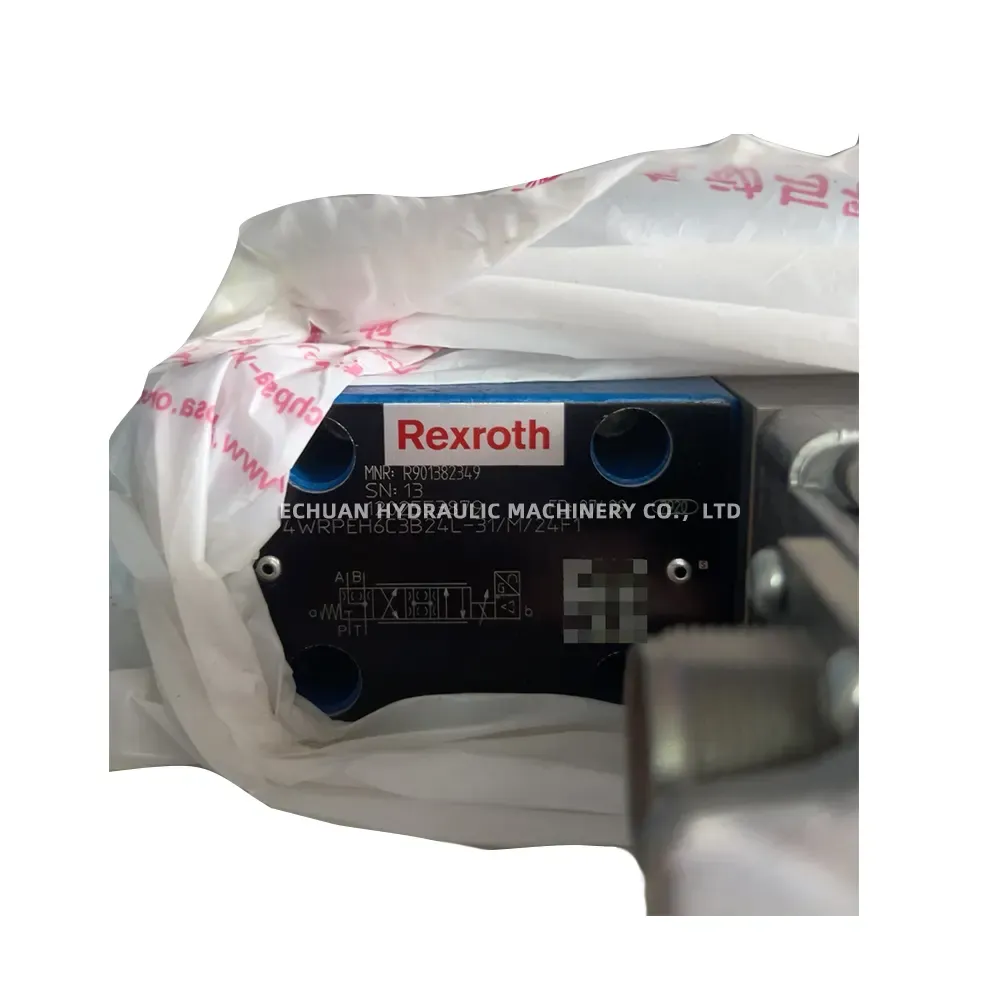

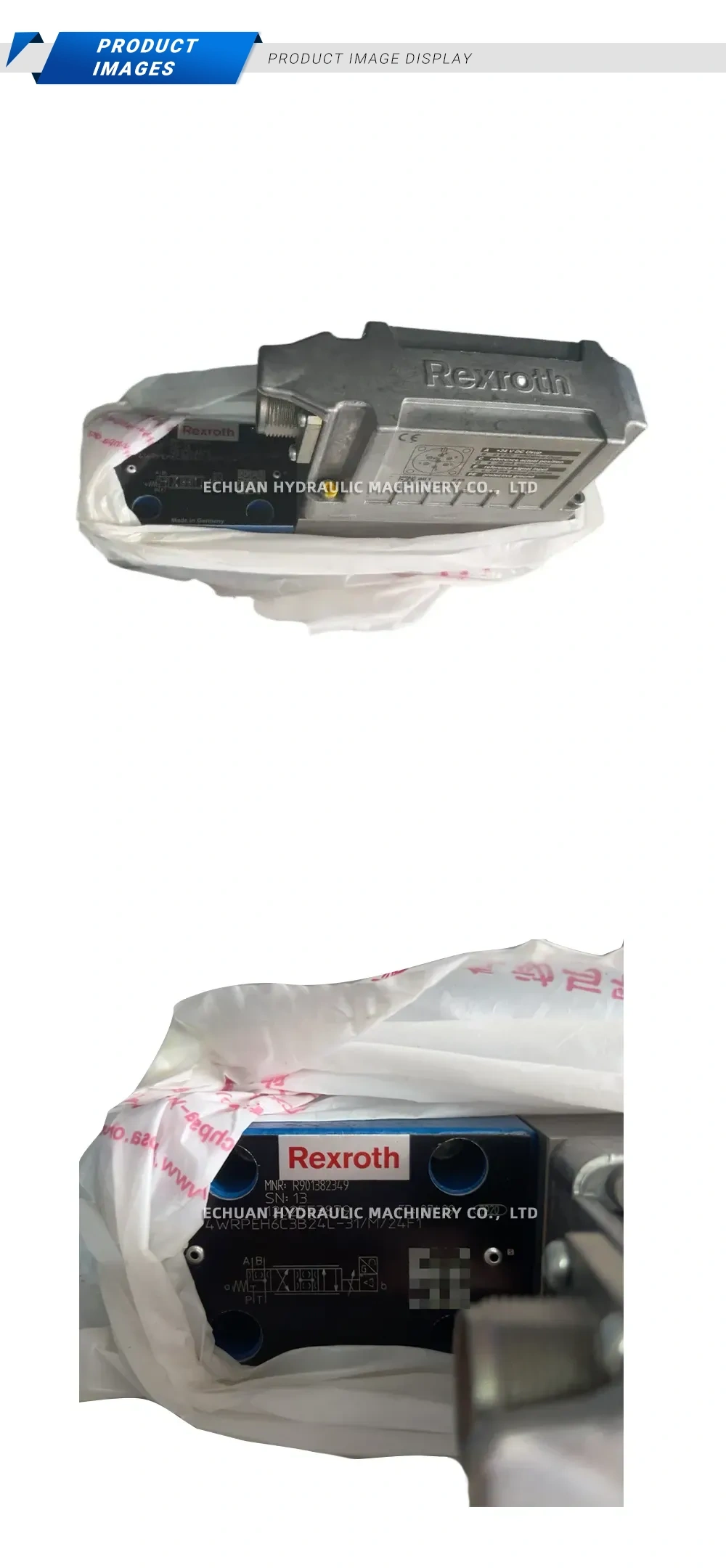

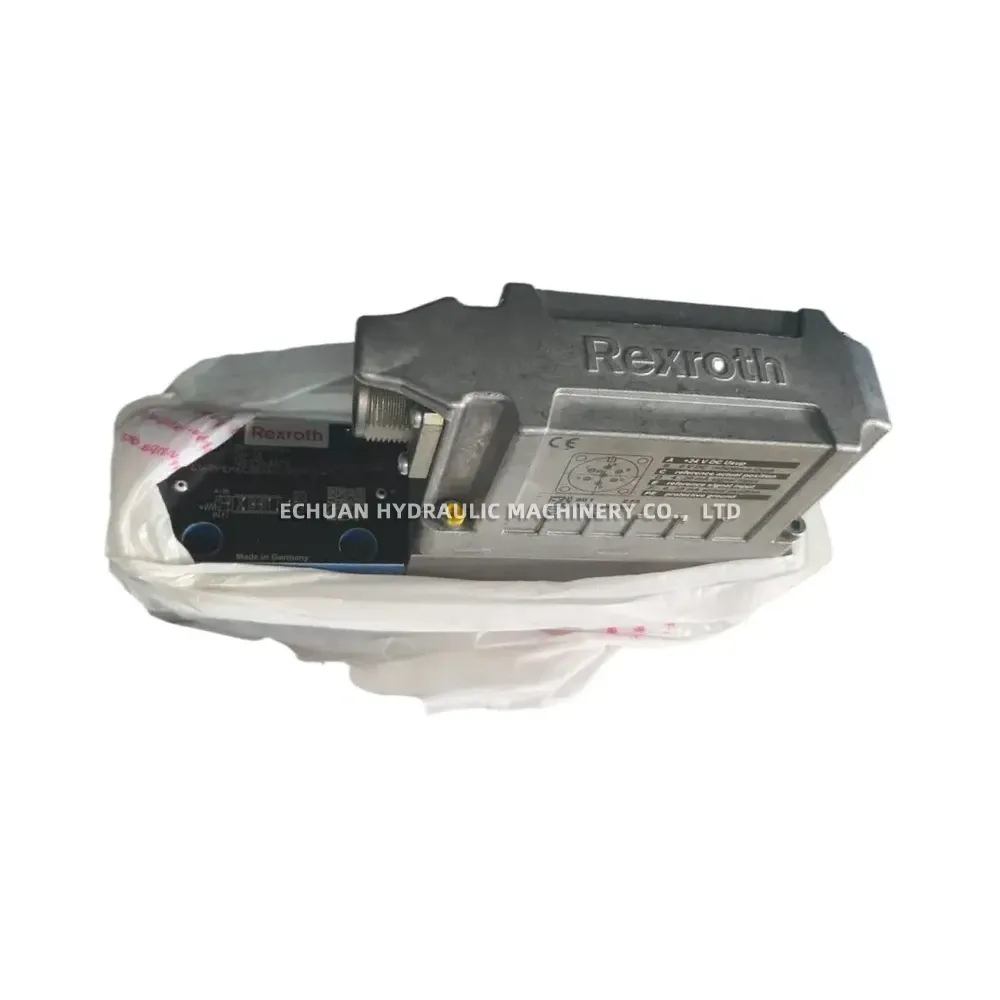

Rexroth 4WRPEH6C3B24L-3X/M/24F1 Proportional Directional Control Valve
The Rexroth 4WRPEH6C3B24L-3X/M/24F1 is a high-response, direct-operated proportional directional control valve designed for demanding hydraulic applications. Featuring integrated electronics (OBE) and electrical position feedback of the control spool, this valve provides precise and dynamic control over the direction and magnitude of fluid flow. Its robust construction and advanced control technology make it ideal for closed-loop systems requiring high accuracy, repeatability, and rapid response times. This NG 6 valve is built for reliability and performance in sophisticated machine control systems.
Technical Specifications:
- Valve Type: Direct-operated proportional directional high-response valve
- Series: 3X
- Nominal Size: NG 6 (CETOP 3)
- Mounting Pattern: ISO 4401-03-02-0-05
- Maximum Operating Pressure: 315 bar (Ports P, A, B), 210 bar (Port T)
- Nominal Flow: 24 L/min at 10 bar pressure differential
- Control Electronics: Integrated Electronics (OBE) with position feedback
- Supply Voltage: 24 VDC
- Command Signal Interface: +/- 10V
- Sealing Material: FKM (Viton)
Rexroth 4WRPEH6C3B24L-3X/M/24F1 Proportional Directional Control Valve
Genuine Rexroth 4WRPEH6C3B24L-3X/M/24F1 (R901382349) high-response proportional directional valve, size 6 (NG6). Features integrated electronics (OBE), 24VDC operation, and +/-10V command signal for precise hydraulic flow control.
| Brand | Rexroth |
|---|---|
| Model | 4WRPEH6C3B24L-3X/M/24F1 |
| Category | Hydraulic valves |
