Product Description

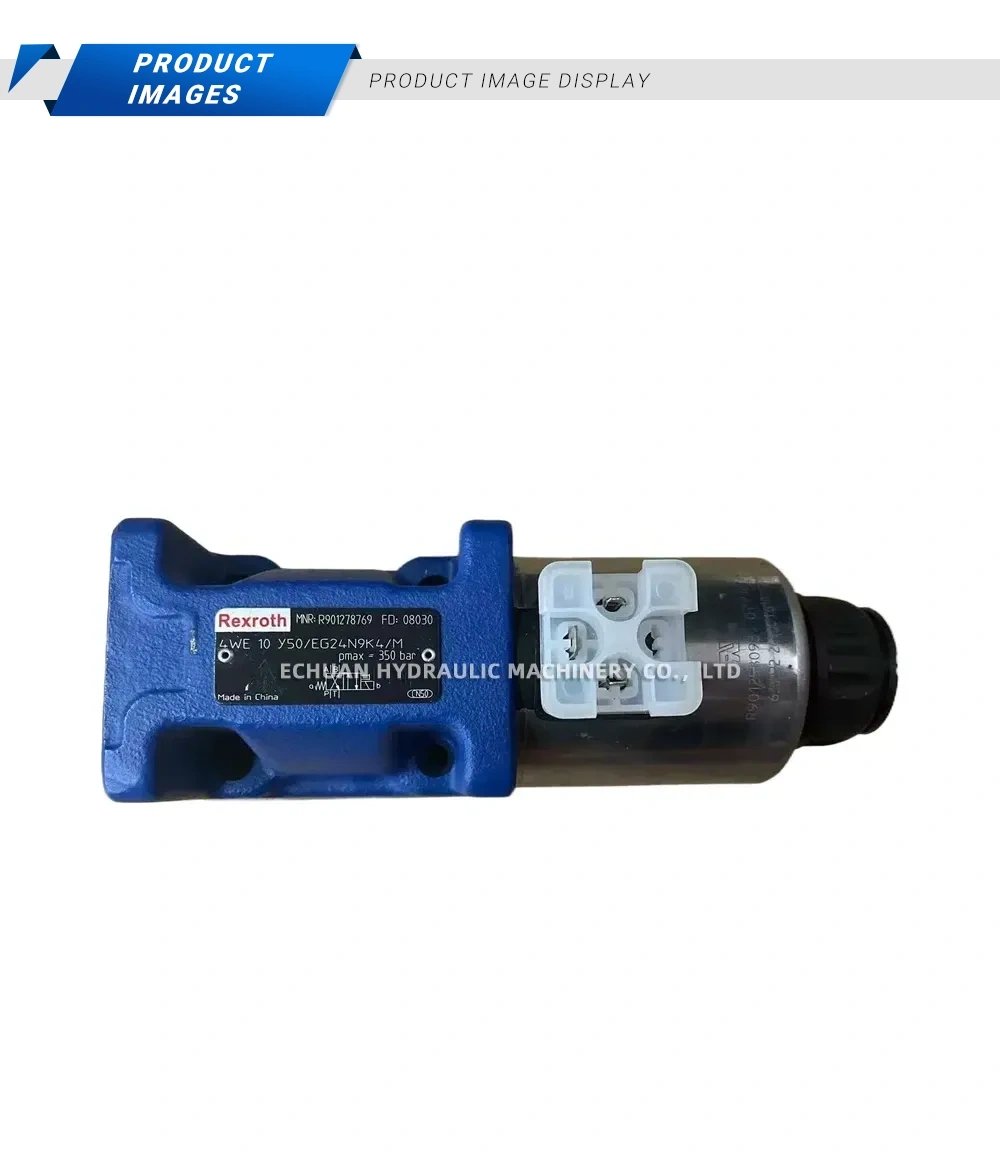

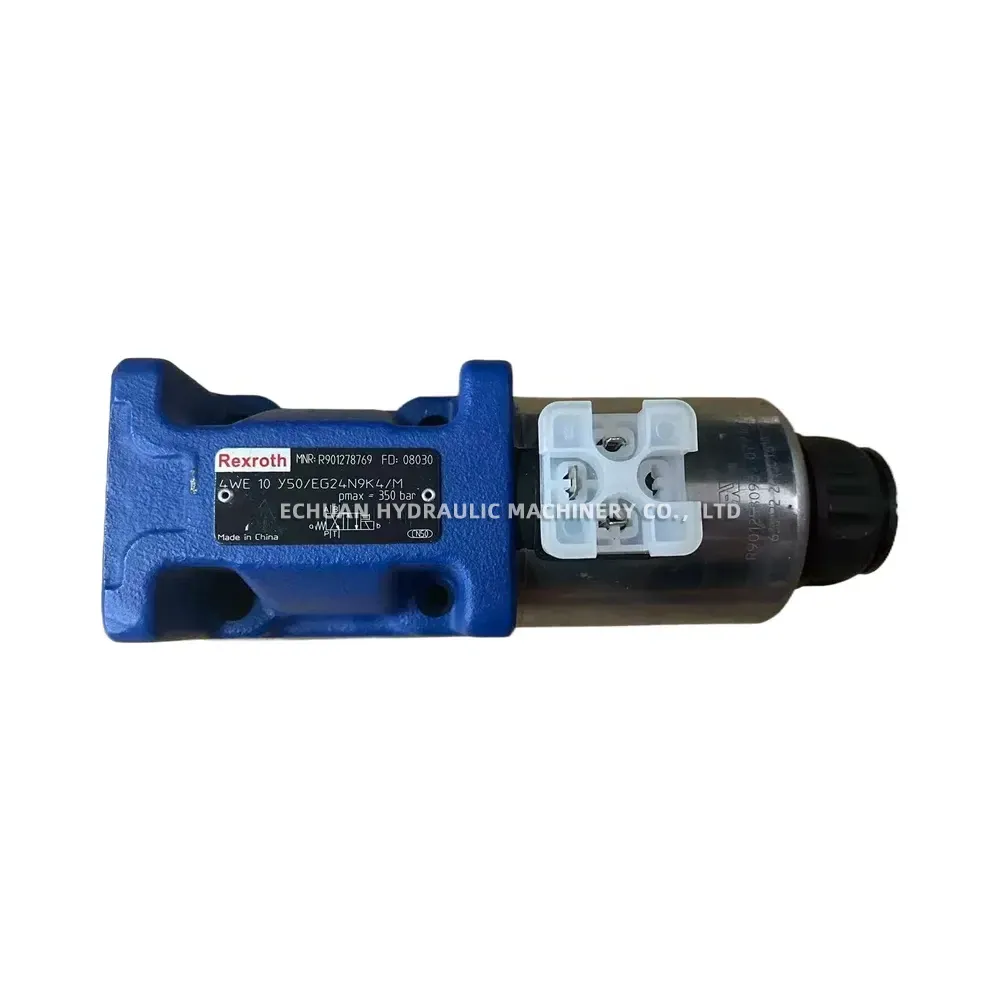

Rexroth 4WE 10 Y50/EG24N9K4/M Solenoid-operated Directional Control Valve
The Bosch Rexroth 4WE 10 Y50/EG24N9K4/M (Material Number: R900728769) is a highly reliable, solenoid-actuated directional spool valve engineered to control the start, stop, and direction of fluid flow in industrial hydraulic systems. This Size 10 (NG10) valve features a ‘Y’ spool configuration and belongs to the proven 5X component series. It is equipped with a heavy-duty 24V DC wet-pin solenoid and includes a concealed manual override (N9) for safe operation and easy troubleshooting during power losses. Designed for demanding, high-pressure environments, it supports a maximum operating pressure of 350 bar. The valve utilizes a standard subplate mounting pattern in accordance with ISO 4401, ensuring seamless installation and compatibility with existing hydraulic manifolds.
Technical Specifications:
- Brand: Bosch Rexroth
- Model: 4WE 10 Y50/EG24N9K4/M
- Material Number (MNR): R900728769
- Valve Size: Size 10 (NG10)
- Spool Symbol: Y
- Component Series: 5X (50)
- Actuation Type: Wet-pin DC Solenoid
- Voltage: 24 V DC
- Maximum Operating Pressure (pmax): 350 bar (5076 psi)
- Manual Override: N9 (Concealed standard)
- Electrical Connection: K4 (Terminal block connector)
- Mounting Pattern: Subplate mounting per ISO 4401
- Country of Origin: Made in China
Rexroth 4WE 10 Y50/EG24N9K4/M Solenoid-operated Directional Control Valve
Shop the genuine Bosch Rexroth 4WE 10 Y50/EG24N9K4/M (R900728769) Solenoid Directional Control Valve. This high-performance NG10 hydraulic valve features a 24V DC solenoid, Y spool, manual override, and a 350 bar maximum pressure rating. Ideal for robust and reliable industrial hydraulic applications.
