Product Description

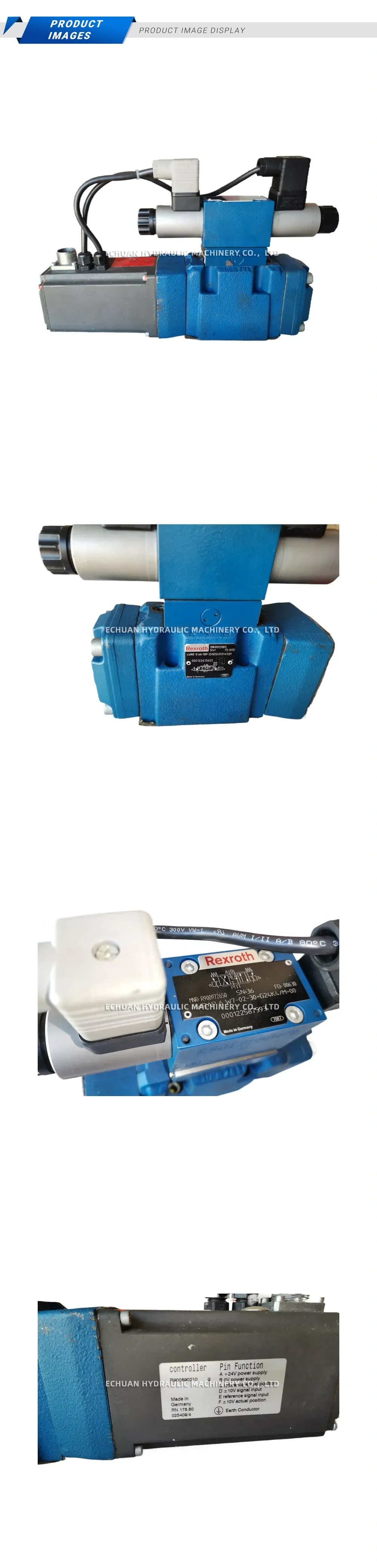

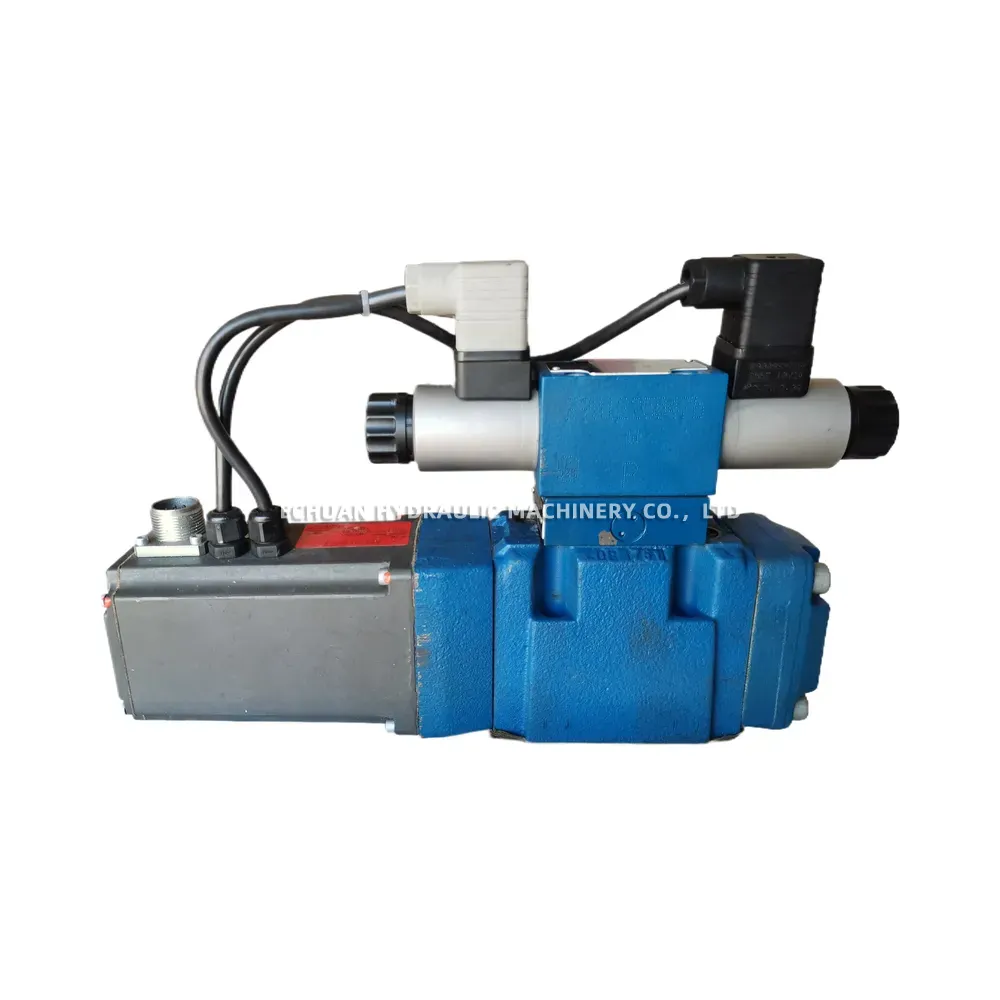

Rexroth 4WRKE 10 W6-100P-23/B6EG24EK31/A1D3M (pilot valve: 4WRAP 6 W7-02-30-G24K4/M-00) Proportional Directional Control Valve with Integrated Controller
The Bosch Rexroth 4WRKE 10 W6-100P-23/B6EG24EK31/A1D3M is a highly precise, two-stage proportional directional control valve engineered for the accurate regulation of flow direction and magnitude in industrial hydraulic systems. This size 10 valve features integrated on-board electronics (OBE) utilizing the robust R900890210 controller, which simplifies machine wiring and ensures optimal signal processing. It is equipped with a highly responsive 4WRAP 6 W7-02-30-G24K4/M-00 pilot valve for exceptional control accuracy and dynamic performance. Designed for seamless integration, it utilizes a standard subplate mounting pattern in accordance with ISO 4401. The unit operates on a 24V DC power supply and processes ±10V command signals for precise reference and actual position monitoring. Manufactured in Germany, this Rexroth valve guarantees superior durability, repeatability, and reliability for demanding automation applications.
Technical Specifications:
- Brand: Bosch Rexroth
- Model: 4WRKE 10 W6-100P-23/B6EG24EK31/A1D3M

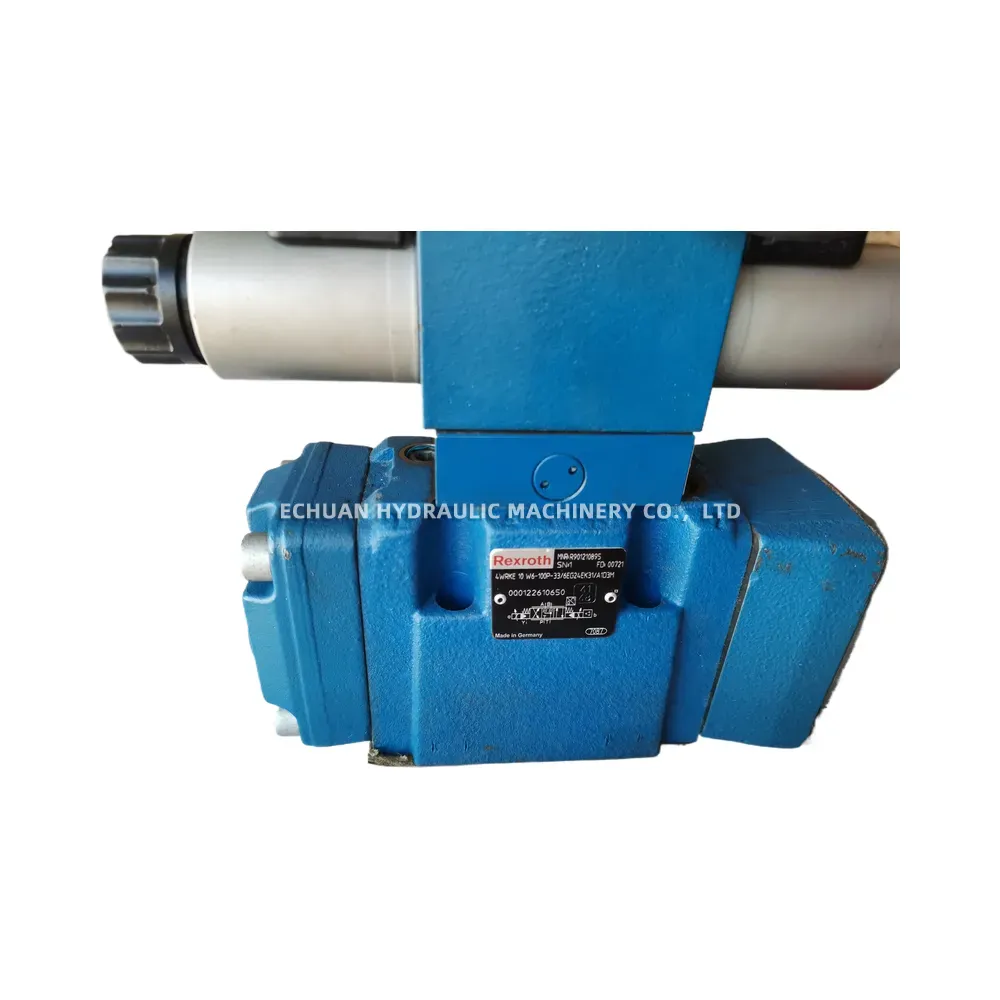

- Material Number (Main Valve): R9009210650

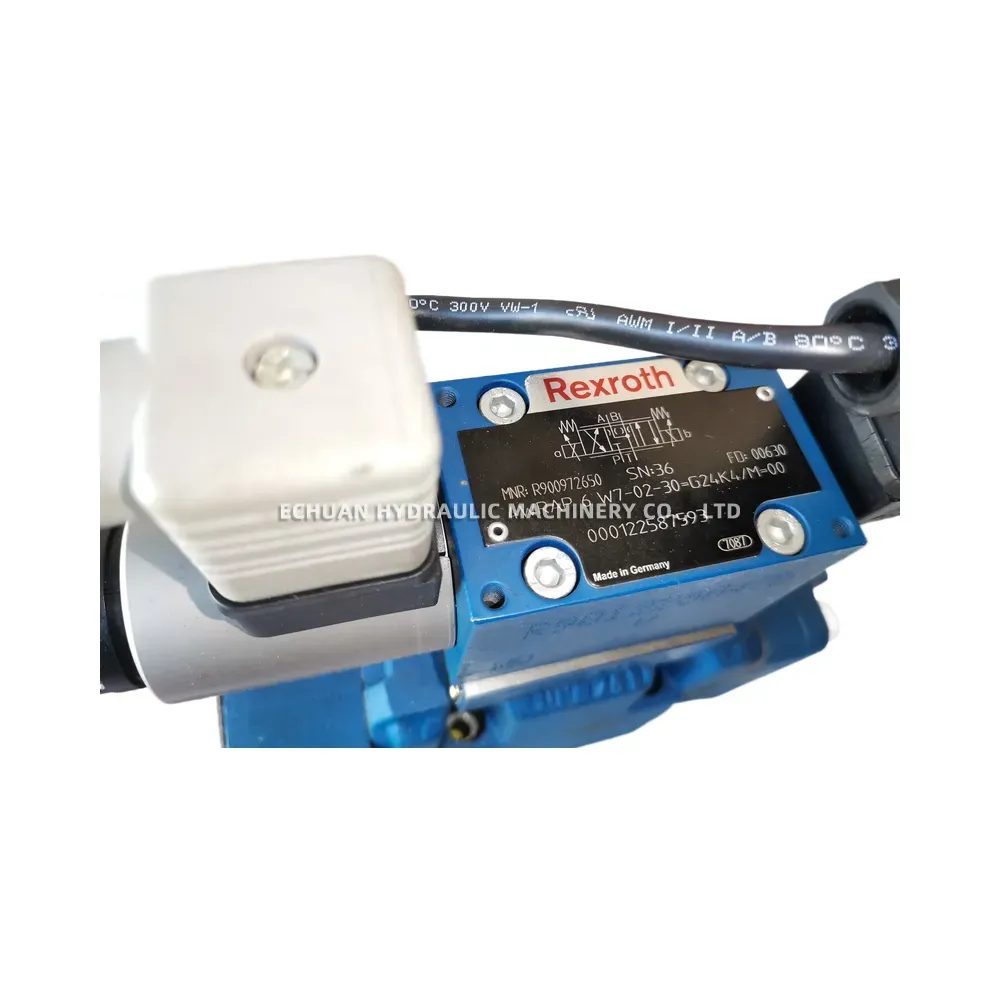

- Pilot Valve Model: 4WRAP 6 W7-02-30-G24K4/M-00 (MNR: R9000972650)
- Integrated Controller: R900890210 (RN 178.80)
- Valve Design: Two-stage proportional directional control valve
- Size & Mounting: Size 10, Subplate mounting porting pattern per ISO 4401
- Power Supply: 24V DC
- Command Value Signal: ±10V reference/actual position signal inputs

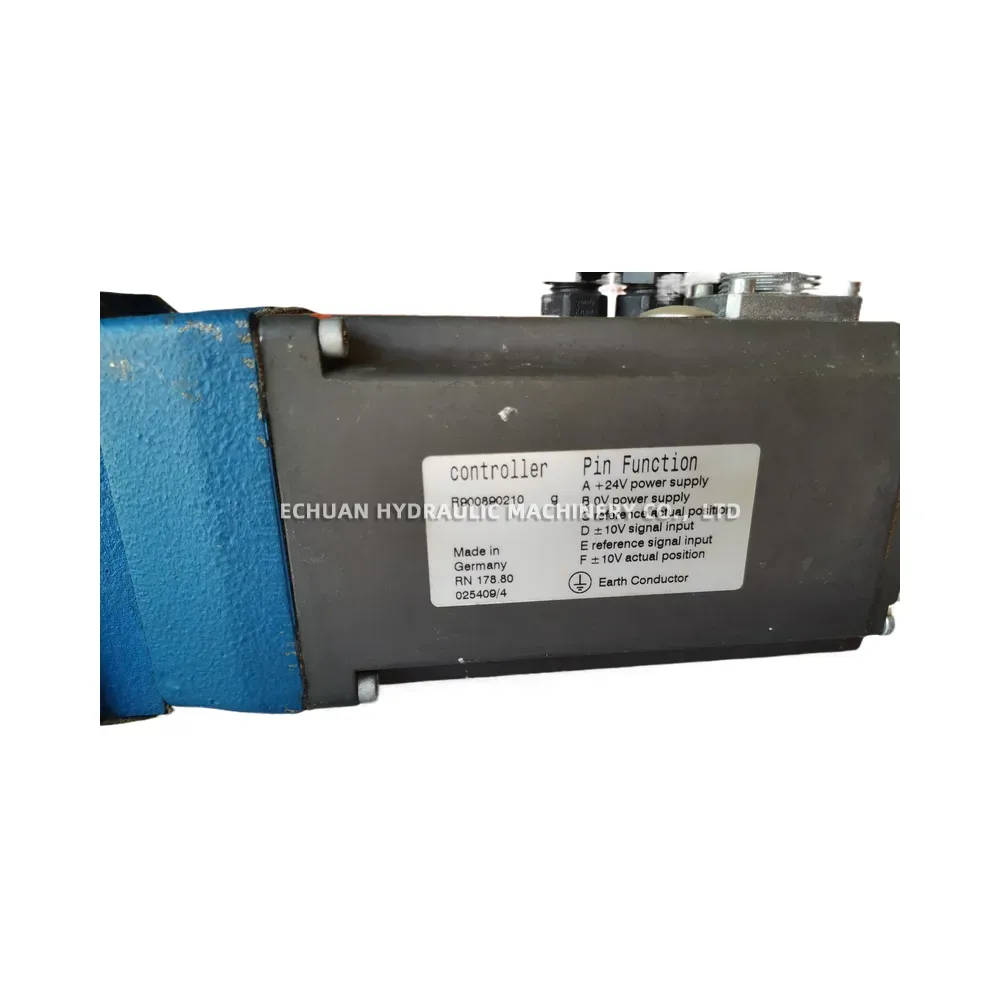

- Pin Configuration: A (+24V power), B (0V power), C (Ref. actual position), D (±10V signal input), E (Ref. signal input), F (±10V actual position), PE (Earth Conductor)
- Country of Origin: Made in Germany
Rexroth 4WRKE 10 W6-100P-23/B6EG24EK31/A1D3M (pilot valve: 4WRAP 6 W7-02-30-G24K4/M-00) Proportional Directional Control Valve with Integrated Controller
Order the original Bosch Rexroth 4WRKE 10 (R9009210650) two-stage proportional directional control valve. Features integrated on-board electronics, a 4WRAP 6 pilot valve, 24V DC power, and ±10V signal input. Designed with an ISO 4401 size 10 mounting pattern and manufactured in Germany for precise, reliable industrial hydraulic control.
