Product Description

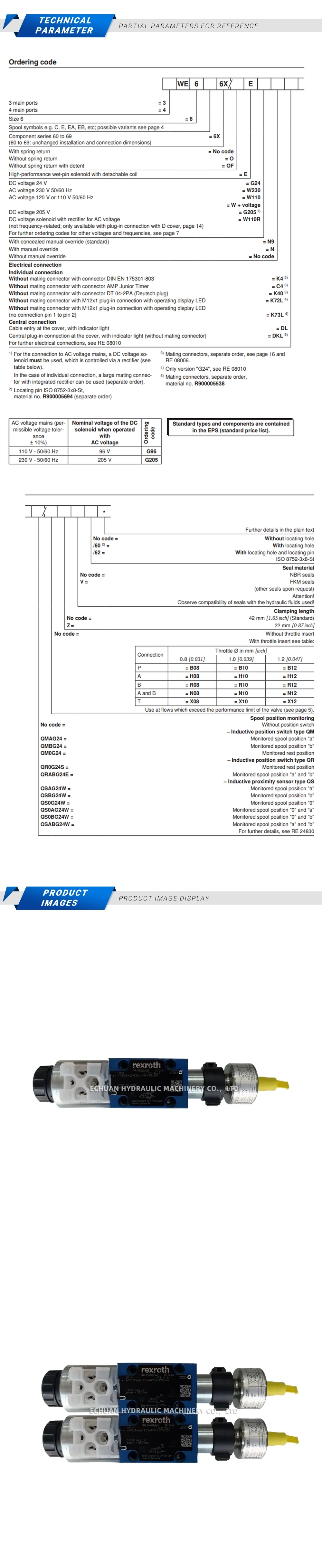

Rexroth 4WE6EA62/EG24N9K4QM0G24
The Rexroth 4WE6EA62/EG24N9K4QM0G24 is a high-performance, direct-operated directional spool valve designed for reliable control in hydraulic systems. This solenoid-actuated valve, part of the proven 4WE6 series, is used to start, stop, and direct fluid flow. It features a standard NG6 (CETOP 3) mounting pattern for easy integration into various industrial applications. The ‘E’ spool configuration provides a tandem center, connecting pressure to the tank while blocking work ports in the neutral position. This specific model is equipped with a 24V DC solenoid, a concealed manual override for emergency operation, and an integrated inductive position switch (QM0G24) for monitoring the spool’s switching position, enhancing system safety and control.
Technical Specifications:
- Valve Type: Direct operated directional spool valve with solenoid actuation
- Size: NG6 (CETOP 3)
- Spool Symbol: E (Tandem center, P→T, A and B blocked in neutral position)
- Actuation Voltage: 24V DC
- Maximum Operating Pressure: 350 bar (5075 psi)
- Maximum Flow Rate: 80 l/min (21 GPM)
- Electrical Connection: Connector according to DIN EN 175301-803
- Special Features: Concealed manual override (N9), Inductive position switch (QM0G24)
Rexroth 4WE6EA62/EG24N9K4QM0G24
Order the Rexroth 4WE6EA62/EG24N9K4QM0G24, a 24V DC solenoid-operated directional valve. This NG6 / CETOP 3 hydraulic valve features a tandem center ‘E’ spool and an integrated inductive position switch for precise flow control and system monitoring.
