Product Description

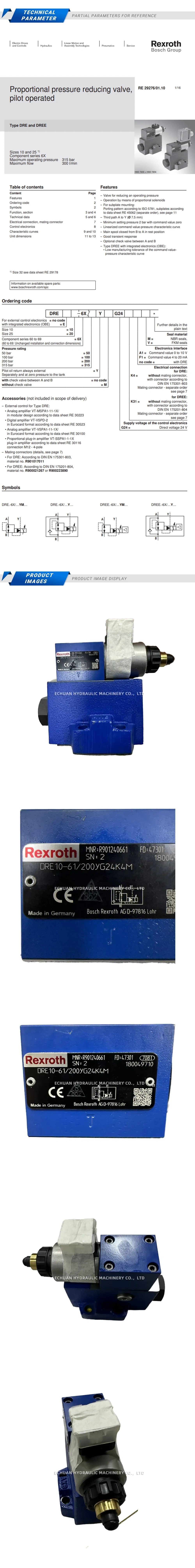

Rexroth DRE10-61/200YG24K4M R901240661
The Rexroth DRE10-61/200YG24K4M is a high-performance, pilot-operated proportional pressure reducing valve. Designed for subplate mounting, it is used to reduce system pressure in hydraulic circuits. This size 10 valve features a proportional solenoid that allows for continuous, step-less adjustment of the reduced pressure based on the electrical input signal. It is ideal for applications requiring precise and dynamic pressure control. This specific model is configured for a maximum pressure setting of 200 bar, operates on a 24V DC supply, and includes a mechanical maximum pressure limitation for added safety and control.
Technical Specifications:
- Type: Pilot-operated proportional pressure reducing valve
- Model Code: DRE10-61/200YG24K4M
- Part Number: R901240661
- Size: 10 (NG10)
- Mounting Pattern: ISO 4401-05-04-0-05
- Maximum Pressure Setting: 200 bar (2900 psi)
- Maximum Operating Pressure (Port P): 315 bar (4568 psi)
- Maximum Flow: 80 L/min (21.1 GPM)
- Solenoid Voltage: 24V DC
- Electrical Connection: Connector according to DIN EN 175301-803 (Type K4)
- Additional Features: With mechanical maximum pressure limitation (M) and pressure gauge connection (Y)
Rexroth DRE10-61/200YG24K4M R901240661
Buy the Rexroth DRE10-61/200YG24K4M (R901240661), a size 10 pilot-operated proportional pressure reducing valve. Features a 200 bar setting, 24V DC solenoid, and mechanical pressure limitation for precise hydraulic control.
