Product Description

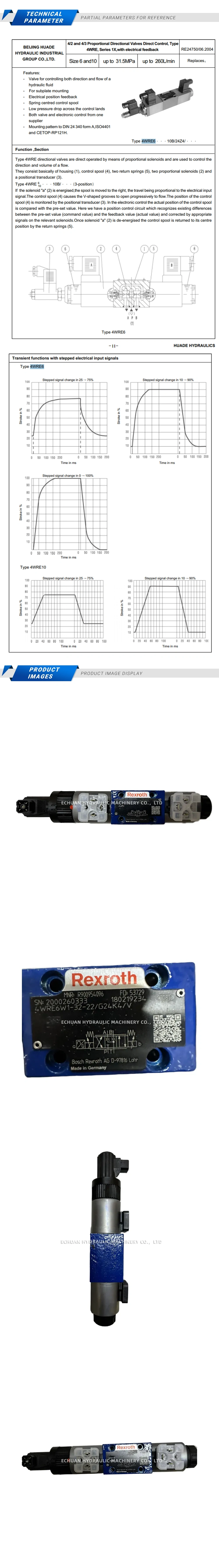

Rexroth 4WRE6W1-32-22/G24K4/V R900954096
The Bosch Rexroth 4WRE6W1-32-22/G24K4/V (part number R900954096) is a high-performance, direct-operated proportional directional valve with integrated electronics (OBE) and electrical position feedback. This size 6 (NG6) valve is engineered for precise and repeatable control over the direction and magnitude of hydraulic fluid flow. It mounts on a standard ISO 4401-03-02-0-05 subplate, ensuring easy integration into various hydraulic systems. The robust design, coupled with FKM seals, makes it suitable for demanding industrial applications requiring superior dynamic response and accuracy, such as in machine tools, presses, and automated manufacturing lines.
Technical Specifications:
- Valve Type: Direct operated proportional directional valve with position feedback
- Size: NG6 (CETOP 3)
- Mounting Pattern: ISO 4401-03-02-0-05
- Maximum Operating Pressure: 315 bar (4568 psi)
- Maximum Flow Rate: 32 L/min
- Solenoid Voltage: 24V DC
- Electrical Connection: Connector according to DIN EN 175301-803
- Seal Material: FKM (Viton)

Rexroth 4WRE6W1-32-22/G24K4/V R900954096
Discover the Rexroth 4WRE6W1-32-22/G24K4/V (R900954096) proportional directional valve. This direct-operated, size NG6 valve features a 24V DC solenoid and integrated electronics for precise hydraulic control up to 315 bar.
