Product Description

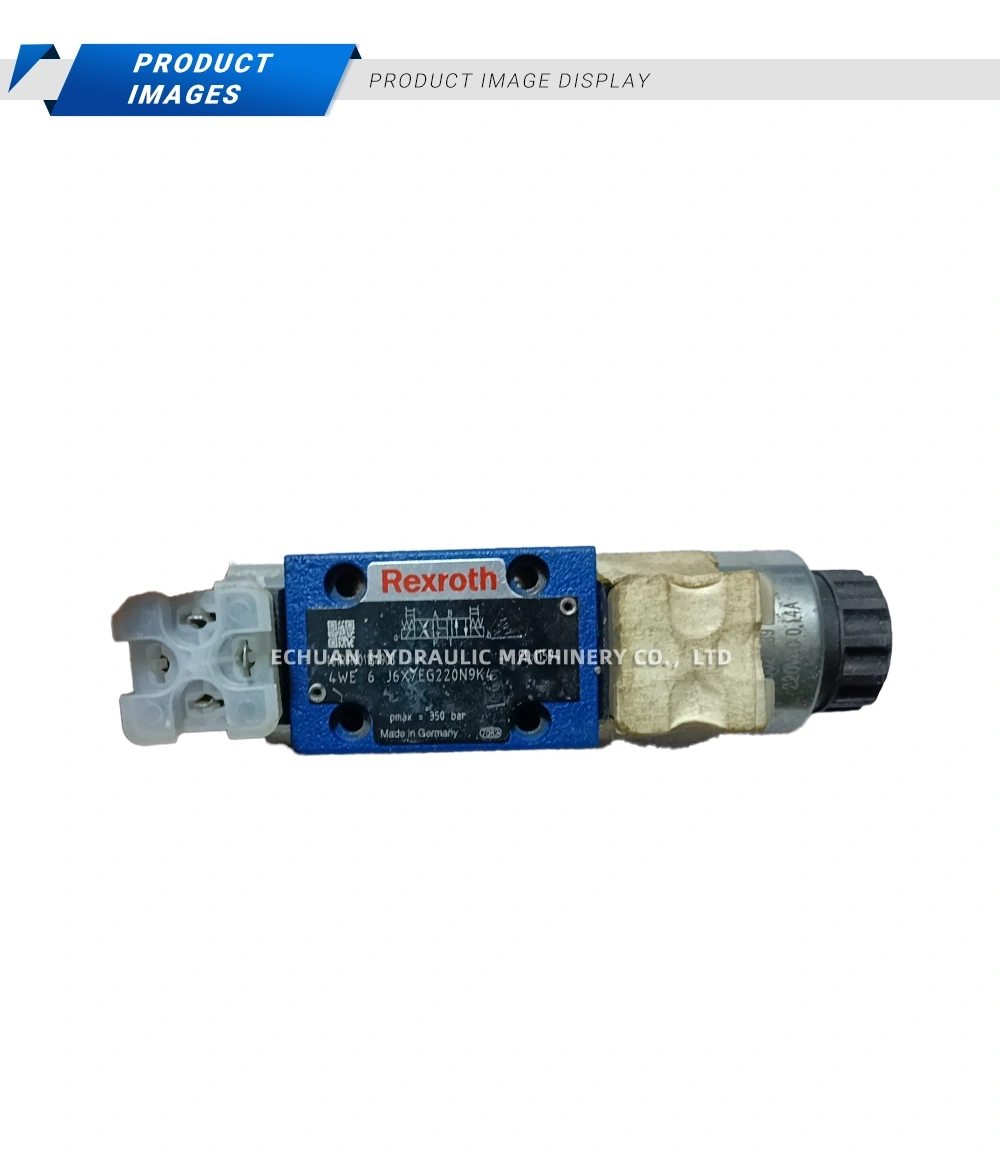

Rexroth R901154908 4WE6J6X/EG220N9K4
The Rexroth R901154908, model 4WE6J6X/EG220N9K4, is a high-performance, direct-operated directional spool valve with solenoid actuation. It is engineered to reliably control the start, stop, and direction of fluid flow in a hydraulic circuit. This valve features a standard NG6 (CETOP 3) mounting interface according to ISO 4401, ensuring easy integration and interchangeability. The ‘J’ spool configuration provides a closed-center neutral position, blocking all ports when de-energized. Equipped with a 220V AC wet-pin solenoid, this valve delivers fast and consistent switching performance, making it a staple in industrial machinery, manufacturing equipment, and mobile hydraulic applications.
Technical Specifications:
- Component Series: 6X
- Valve Type: 4/3-way Directional Spool Valve
- Size: 6 (NG6 / CETOP 3)
- Spool Symbol: J (P, A, B, T blocked in mid-position)
- Actuation: Solenoid Operated
- Solenoid Voltage: 220V AC, 50/60 Hz
- Maximum Operating Pressure: 350 bar (5075 psi)
- Maximum Flow Rate: 80 l/min (21 GPM)
Rexroth R901154908 4WE6J6X/EG220N9K4
Shop the Rexroth R901154908 4WE6J6X/EG220N9K4, a direct-operated directional control valve. This NG6, 4/3-way hydraulic valve features a closed-center ‘J’ spool and is actuated by a 220V AC solenoid.
