Product Description

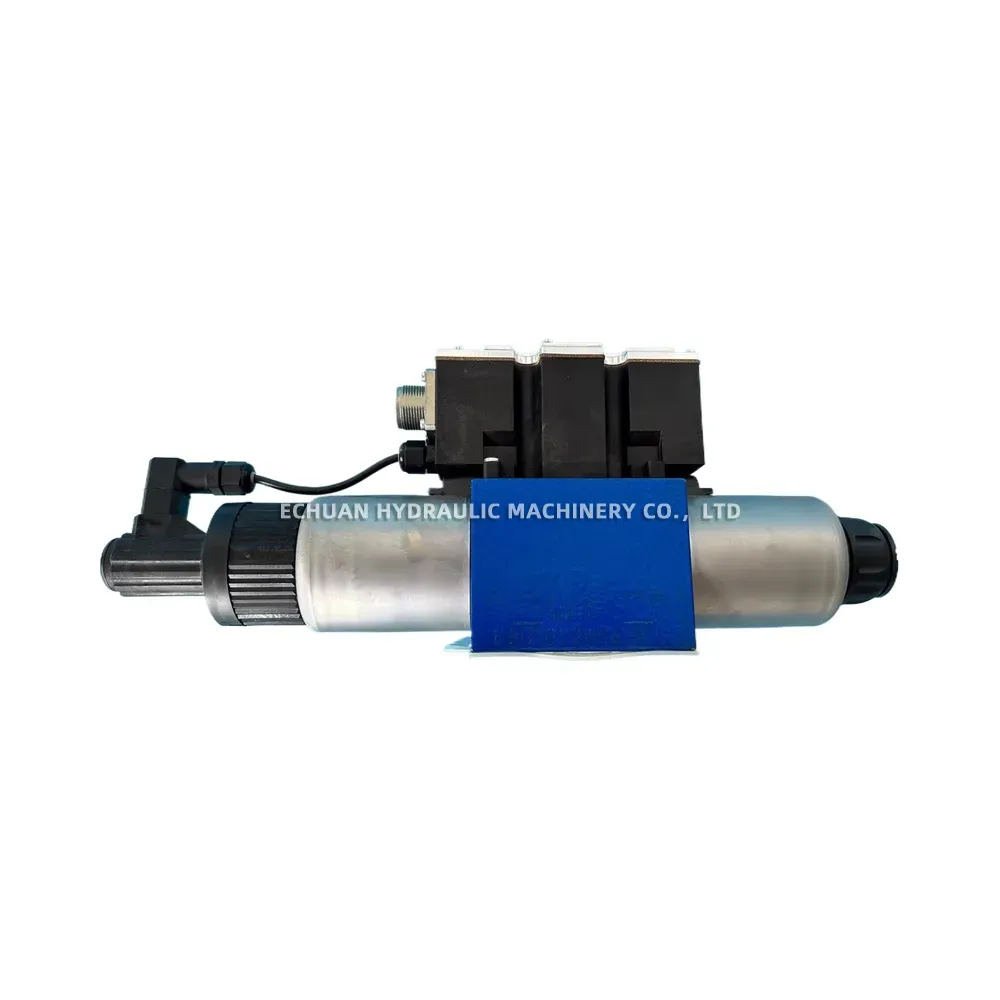

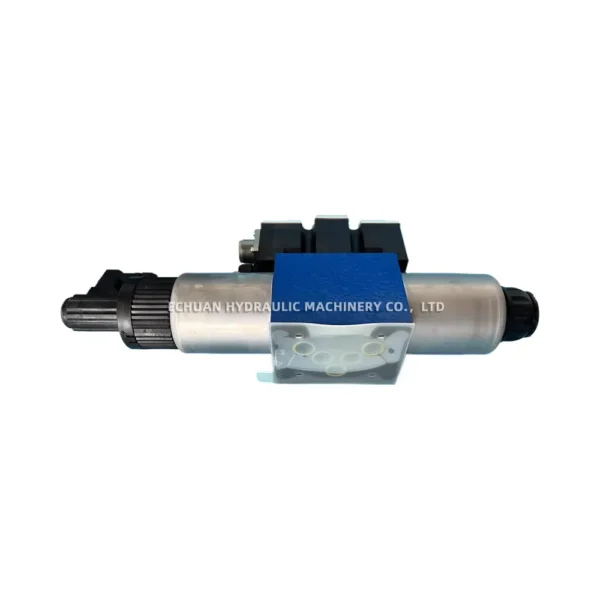

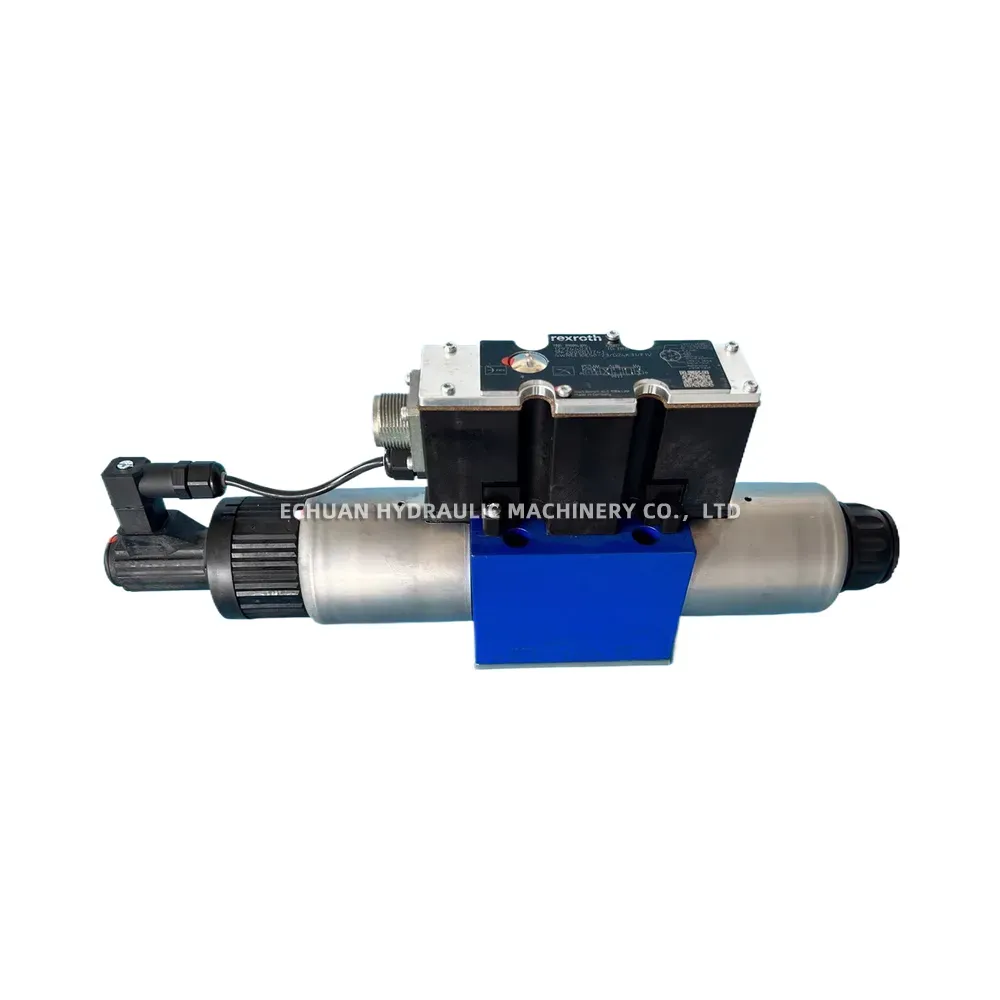

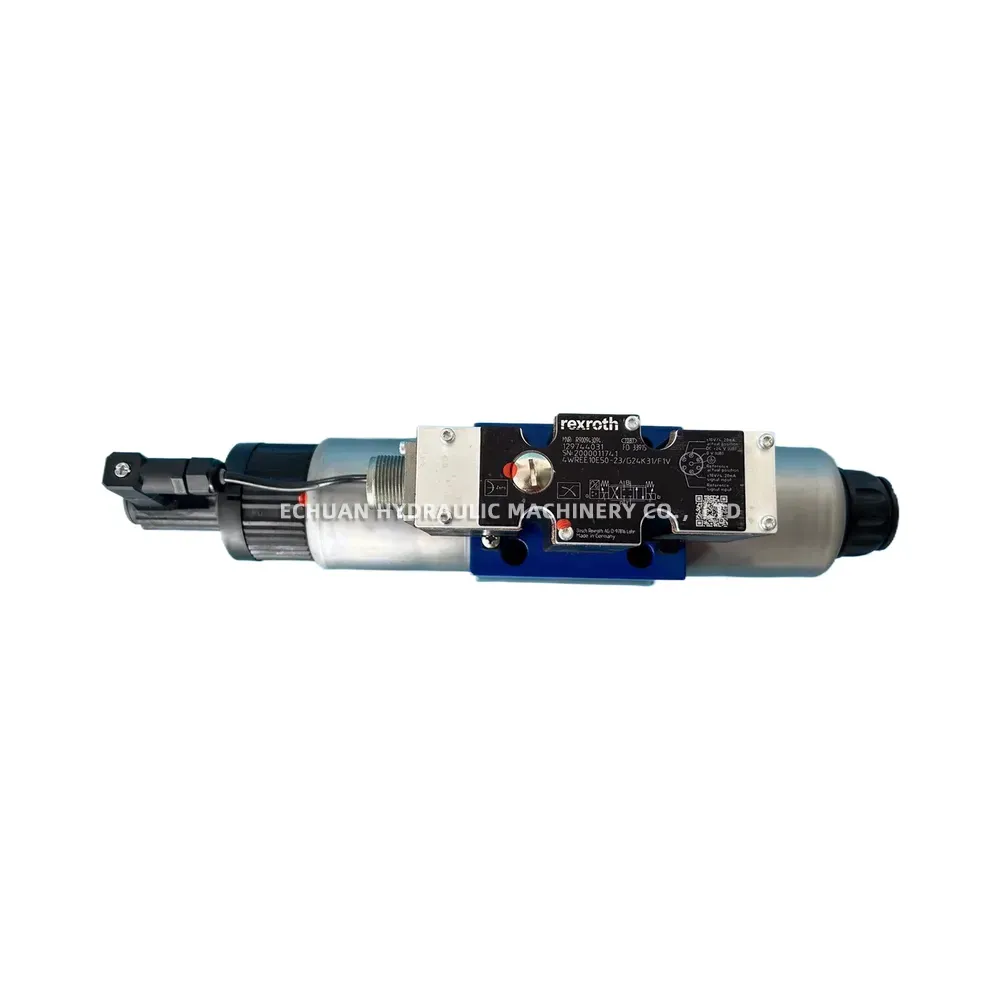

Rexroth 4WREE10E50-23/G24K31/F1V R900943094
The Rexroth 4WREE10E50-23/G24K31/F1V is a direct-operated proportional directional control valve with integrated electronics (OBE) and electrical position feedback. Designed for subplate mounting according to ISO 4401-05 standards, this size 10 valve controls the direction and magnitude of hydraulic fluid flow. It features spring-centered control spool actuation via proportional solenoids with position feedback, ensuring precise control. The integrated electronics simplify installation and setup, accepting a 4…20 mA command signal. This valve is suitable for various industrial hydraulic applications requiring accurate flow control.

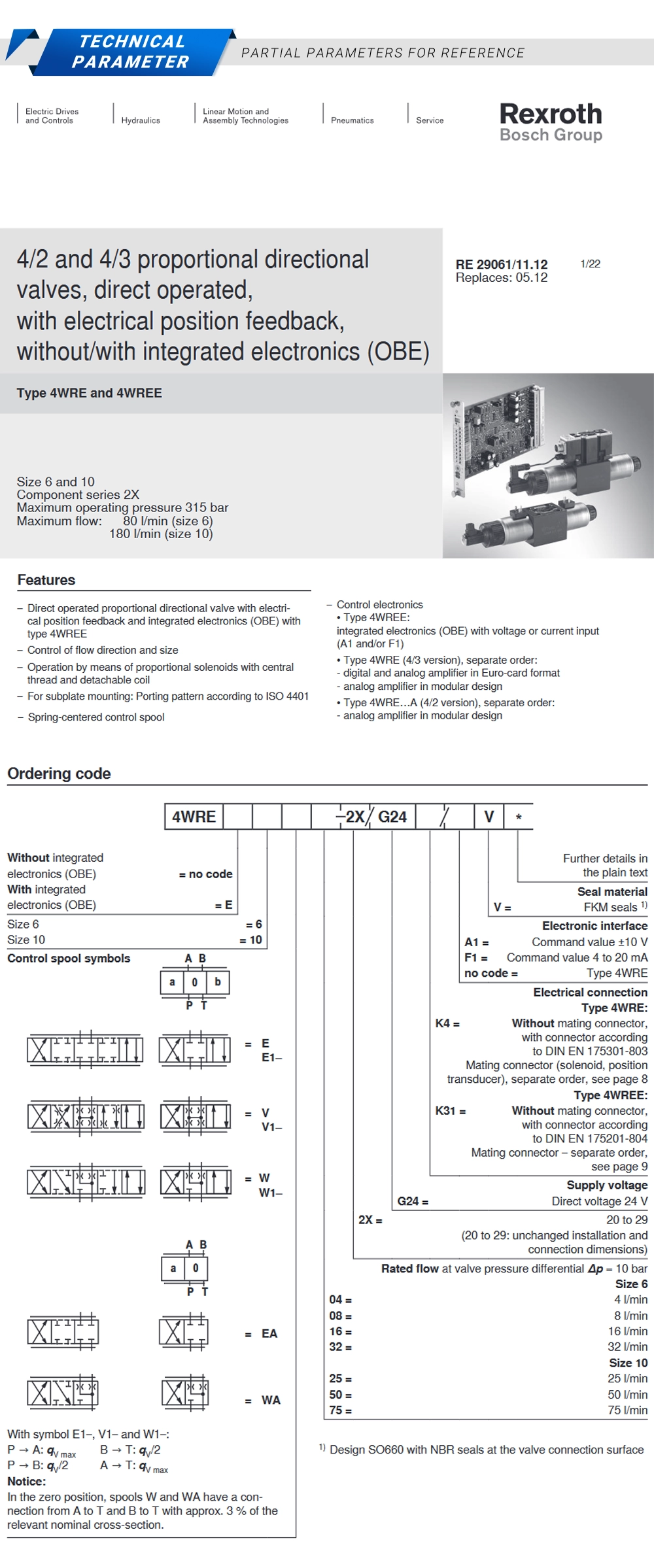

Technical Specifications:
- Valve Type: Direct Operated Proportional Directional Valve
- Series: 4WREE
- Size: NG10 (CETOP 5)
- Mounting Interface: ISO 4401-05-04-0-05
- Spool Symbol: E (Nominal flow 50 L/min)
- Maximum Operating Pressure (Ports P, A, B): 315 bar
- Maximum Operating Pressure (Port T): 210 bar
- Control: Proportional Solenoids with Integrated Electronics (OBE)
- Position Feedback: Electrical
- Supply Voltage: 24V DC
- Command Signal Input: 4…20 mA (F1)
- Electrical Connection: Connector DIN EN 175201-804, 6 + PE (K31)
- Seal Material: FKM (V)
- Hydraulic Fluid Temperature Range: -20°C to +80°C
- Component Series: 2X (23)
- Part Number: R900943094
Rexroth 4WREE10E50-23/G24K31/F1V R900943094
Model:Rexroth 4WREE10E50-23/G24K31/F1V R900943094
| Brand | Rexroth |
|---|---|
| Model | 4WREE10E50-23/G24K31/F1V R900943094 |
| Part No. | Rexroth 4WREE10E50-23/G24K31/F1V R900943094 |
| Category | Hydraulic valves |
