Product Description

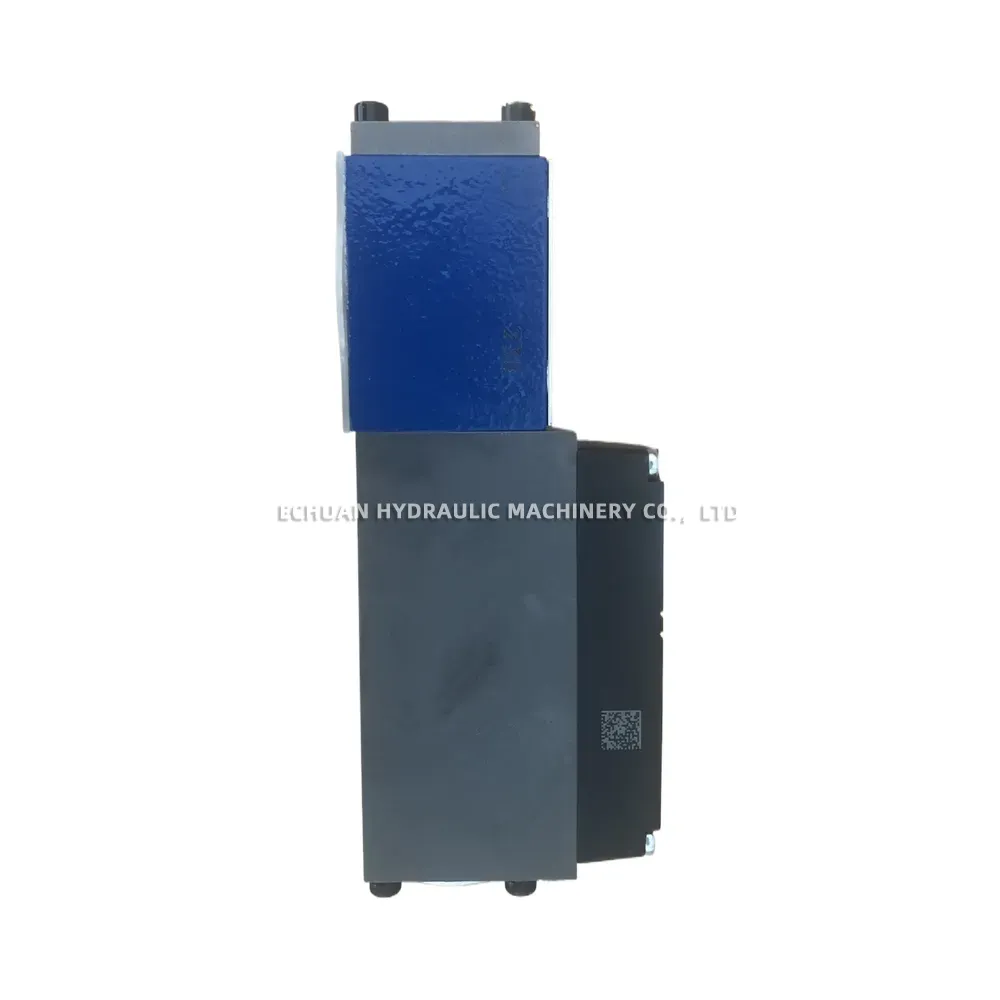

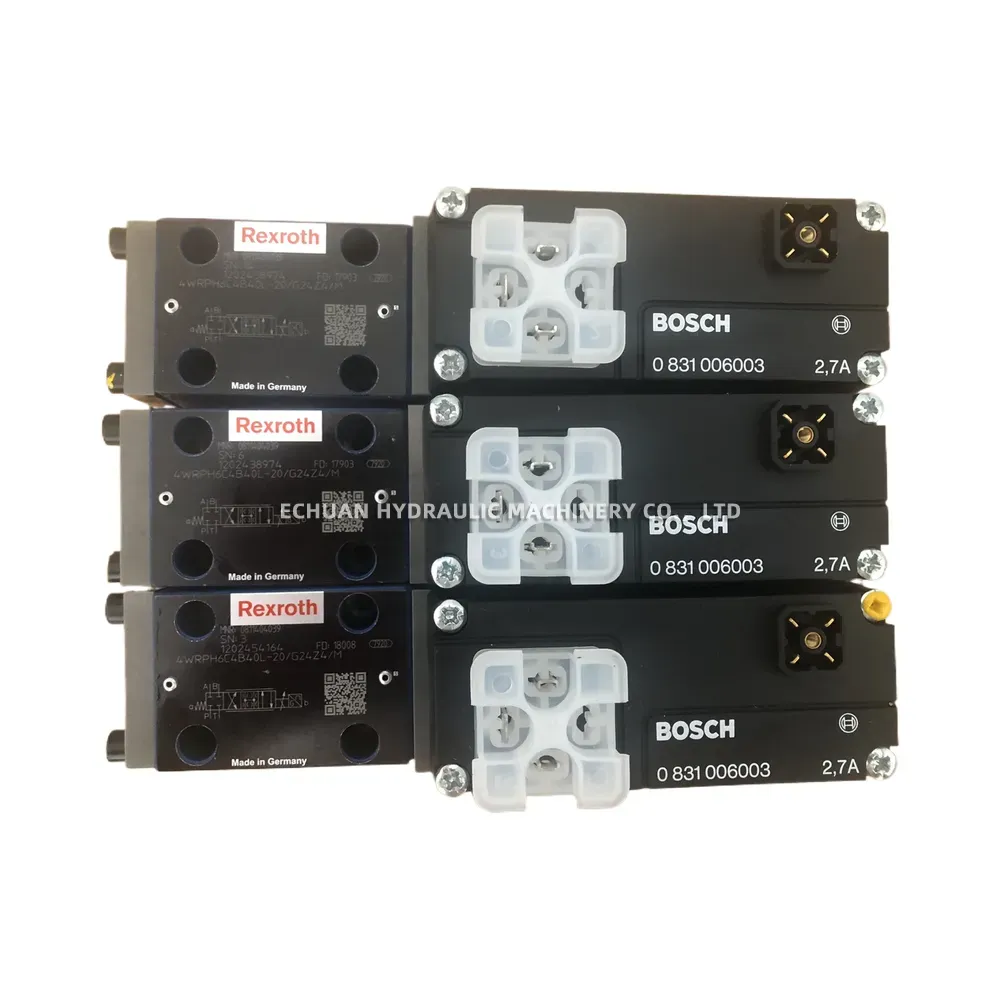

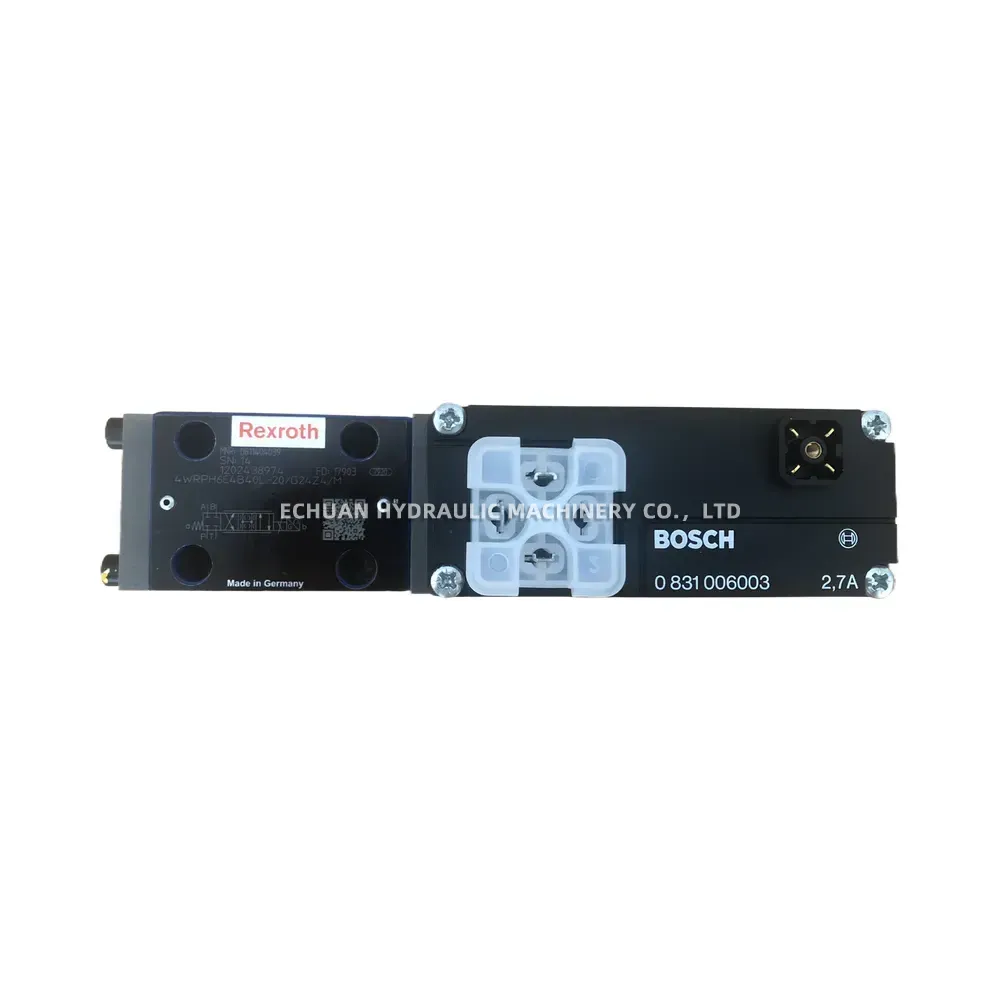

Rexroth 4WRPH6C4B40L-20/G24Z4/M Proportional Directional Valve 0811404039
The Rexroth 4WRPH6C4B40L-20/G24Z4/M is a high-response, direct operated proportional directional control valve with electrical position feedback (LVDT). It is designed for precise control of flow direction and magnitude in electrohydraulic systems. This valve features a size 6 (NG6 / CETOP 03) mounting interface, ensuring compatibility with standard subplates. Its robust construction and integrated electronics make it suitable for demanding industrial applications requiring high dynamics and accuracy. The valve operates via proportional solenoids with a 24V DC supply voltage and utilizes FKM seals for compatibility with various hydraulic fluids.
Technical Specifications:
- Manufacturer: Bosch Rexroth
- Valve Type: Direct Operated Proportional Directional Valve
- Series: 4WRPH
- Size: 6 (NG6 / CETOP 03)
- Spool Symbol: C4
- Maximum Flow: 40 L/min
- Maximum Operating Pressure (Ports P, A, B): 315 bar
- Maximum Operating Pressure (Port T): 210 bar
- Control: Proportional Solenoid with Electrical Position Feedback (LVDT)
- Supply Voltage: 24V DC
- Electrical Connection: Connector EN 175201-804 (4-pole without indicator light)
- Seal Material: FKM (Viton)
- Mounting Interface: ISO 4401-03-02-0-05
- Hydraulic Fluid Temperature Range: -20°C to +80°C (with FKM seals)
- Part Number: 0811404039 / R900912688 (Material Number)
Rexroth 4WRPH6C4B40L-20/G24Z4/M 0811404039
Model:Rexroth 4WRPH6C4B40L-20/G24Z4/M 0811404039
| Brand | Rexroth |
|---|---|
| Model | 4WRPH6C4B40L-20/G24Z4/M 0811404039 |
| Part No. | Rexroth 4WRPH6C4B40L-20/G24Z4/M 0811404039 |
| Category | Hydraulic valves |
