Product Description

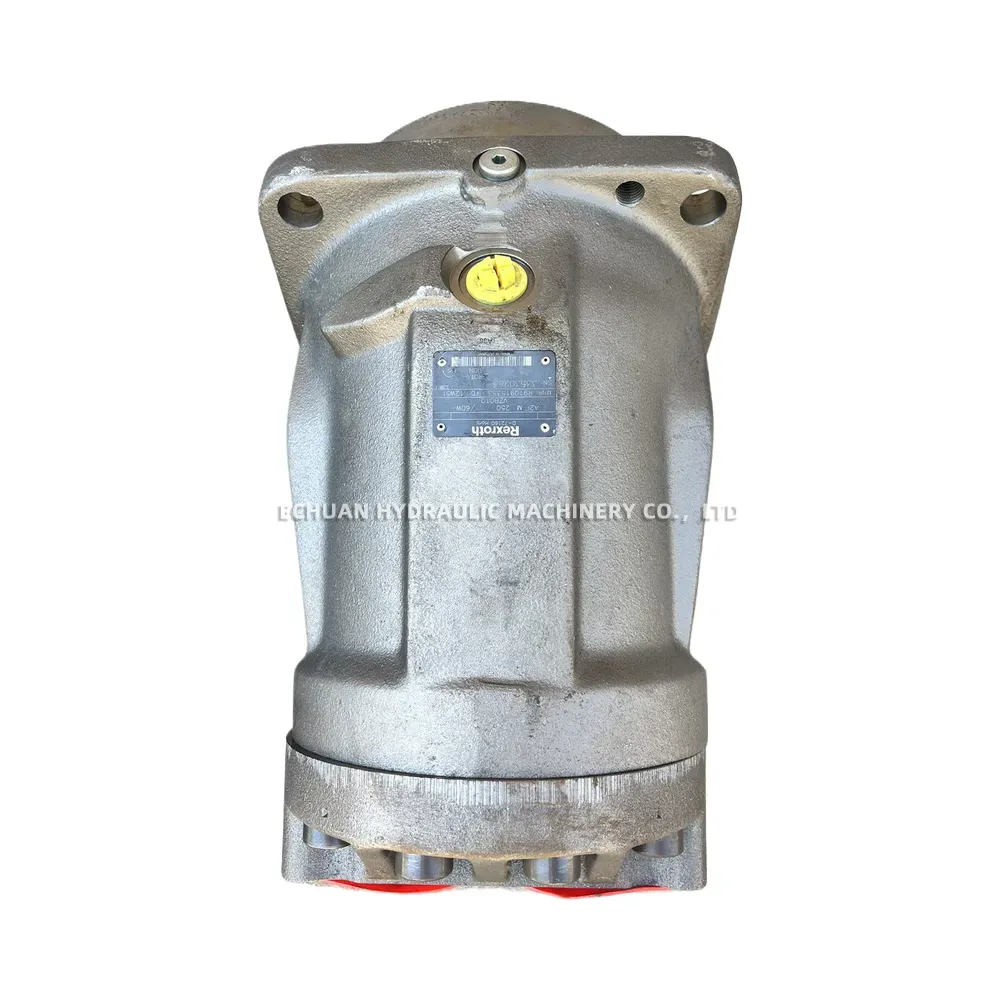

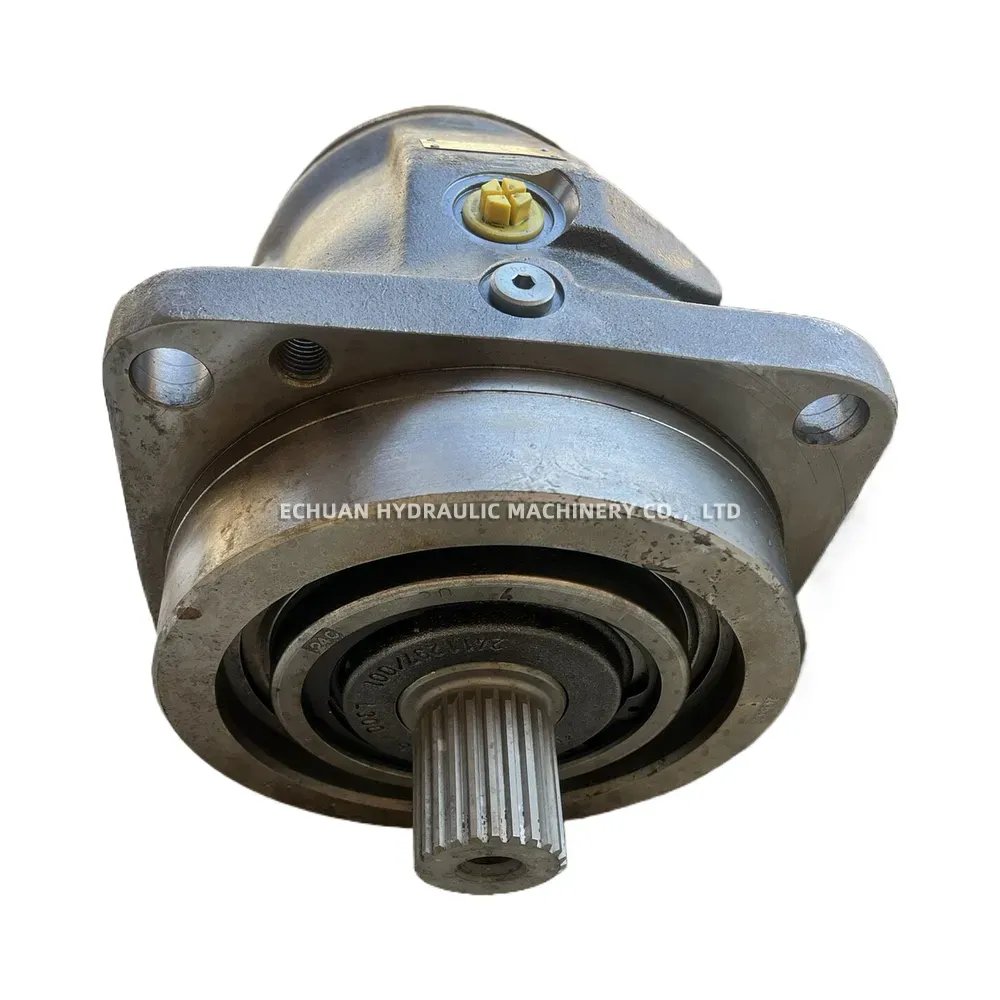

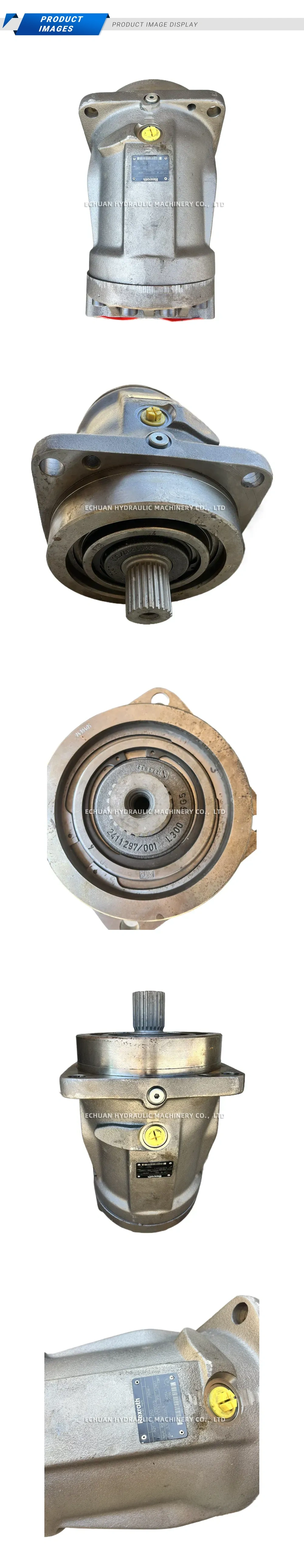

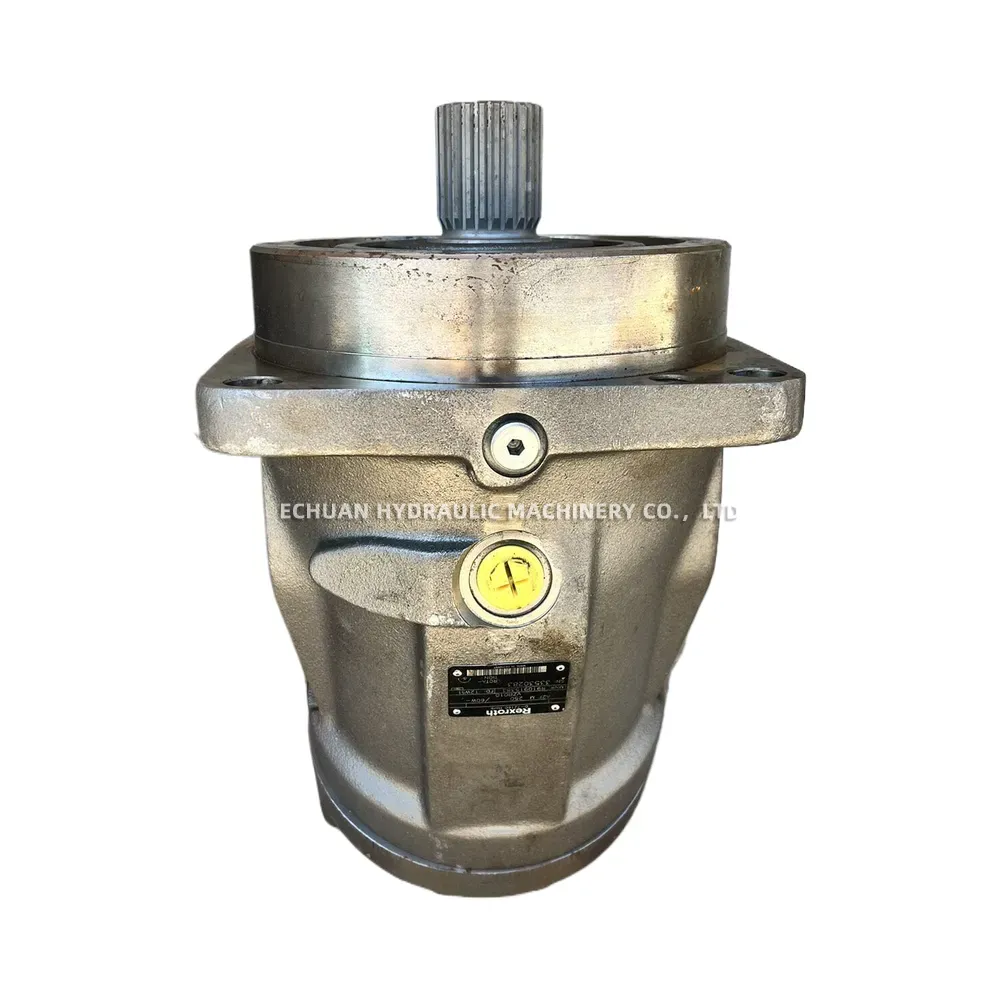

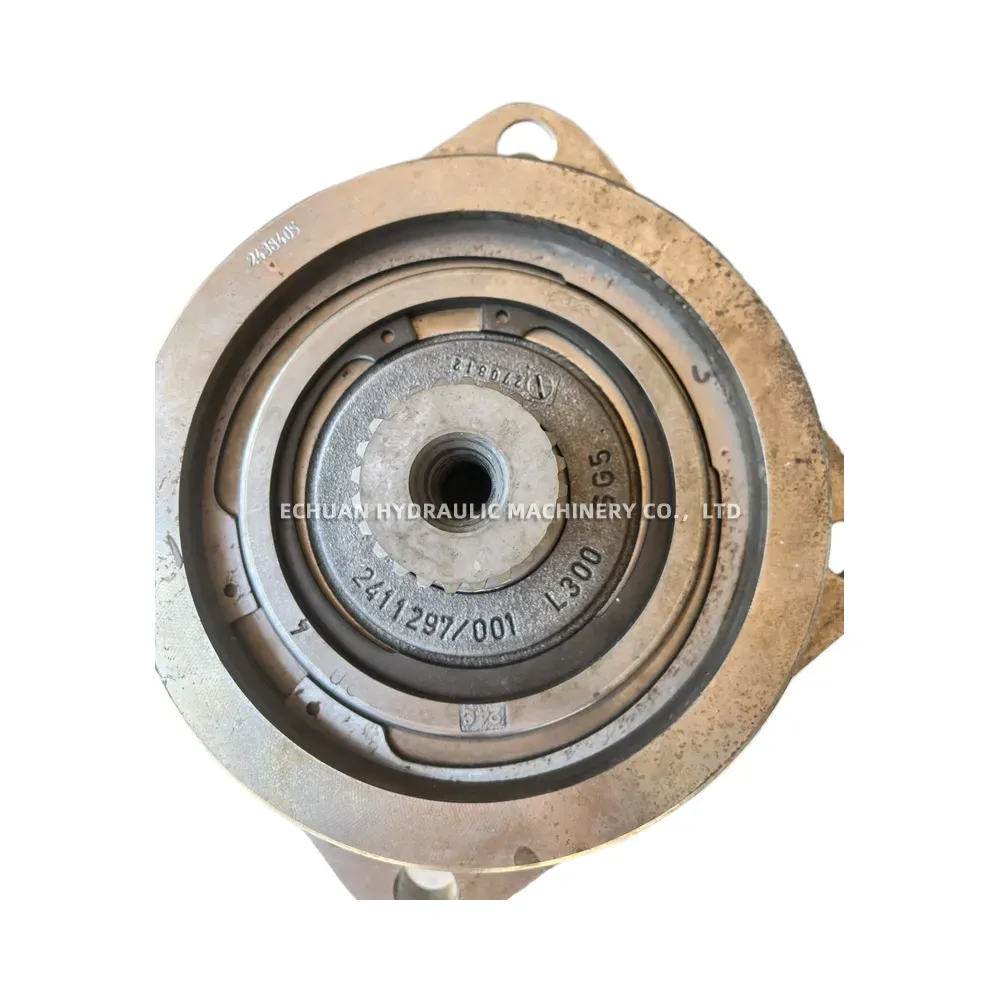

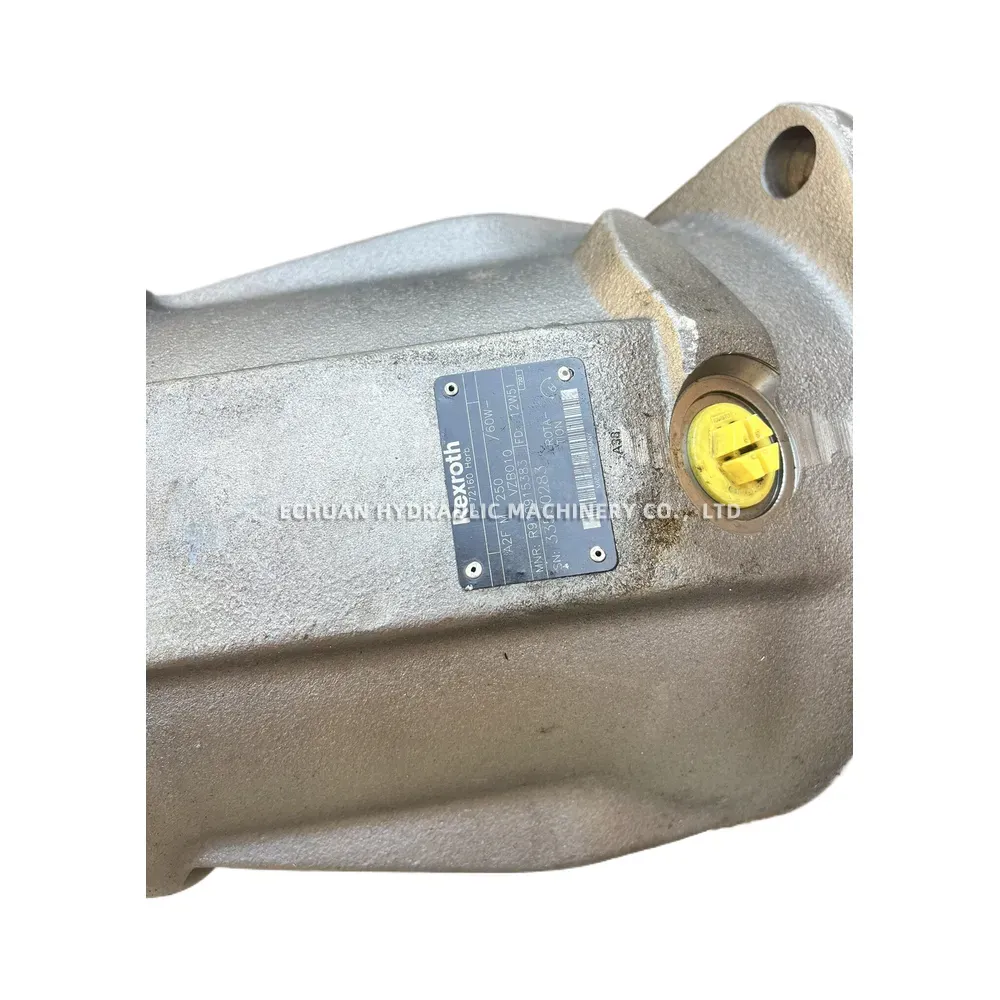

Rexroth A2FM 250/60W-VZB Axial Piston Fixed Motor
The Rexroth A2FM 250/60W-VZB is a high-performance axial piston fixed motor featuring a robust bent-axis design. Engineered for reliability and high efficiency, this motor is suitable for a wide range of demanding applications in both open and closed-circuit hydrostatic drives. Its fixed displacement design provides consistent output torque and speed, making it an ideal component for industrial machinery and mobile equipment. The unit’s compact construction and high power density allow for seamless integration into various hydraulic systems, delivering exceptional performance even under high operating pressures.
Technical Specifications:
- Model: A2FM 250/60W-VZB
- Displacement: 250 cm³/rev
- Nominal Pressure: 400 bar (5800 psi)
- Maximum Pressure (Peak): 450 bar (6500 psi)
- Max. Permissible Speed: 2200 rpm
- Design: Bent-axis with fixed displacement
- Shaft Type: Splined shaft DIN 5480
- Mounting Flange: SAE J744 4-bolt flange
Rexroth A2FM 250/60W-VZB Axial Piston Fixed Motor
Shop the genuine Rexroth A2FM 250/60W-VZB axial piston fixed motor. This high-pressure hydraulic motor offers a 250 cm³ displacement, 400 bar nominal pressure, and a durable bent-axis design for open and closed-circuit systems.
