Product Description

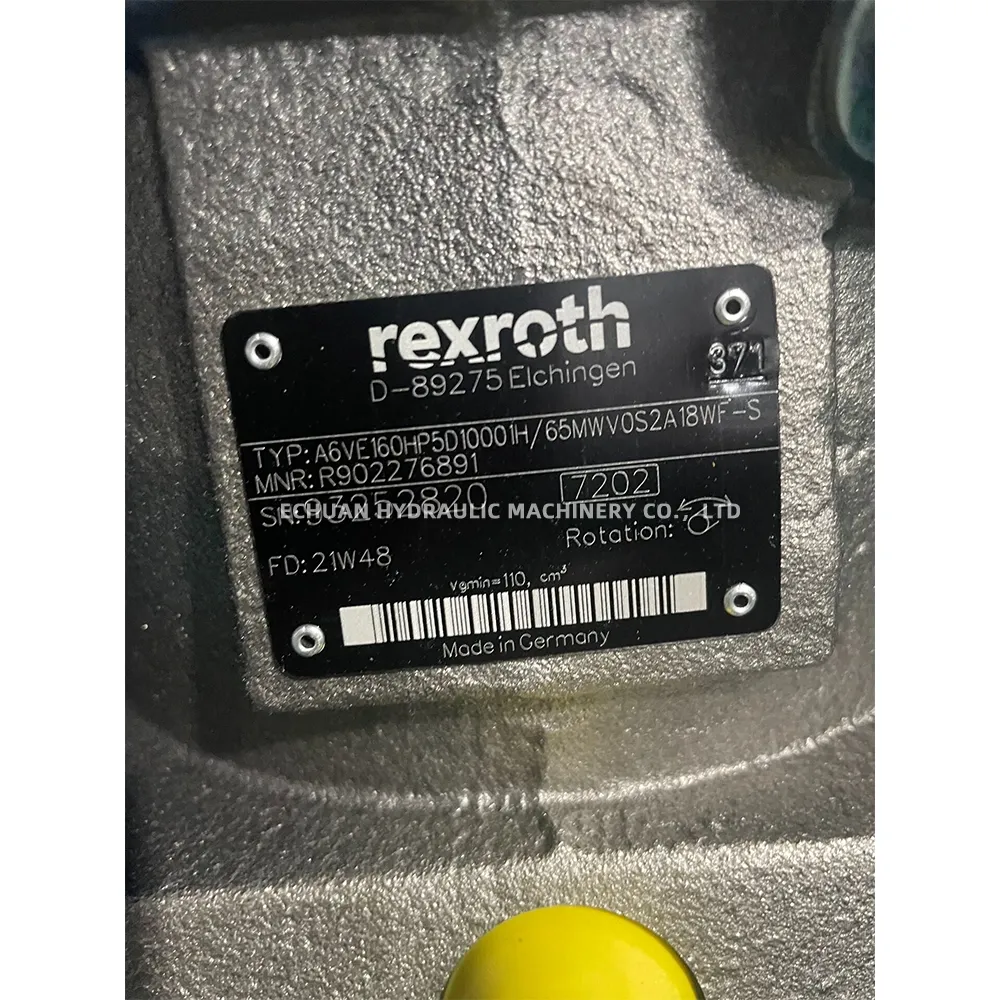

Rexroth R902276891 A6VE160HP5D10001H/65MWV0S2A18WF-S

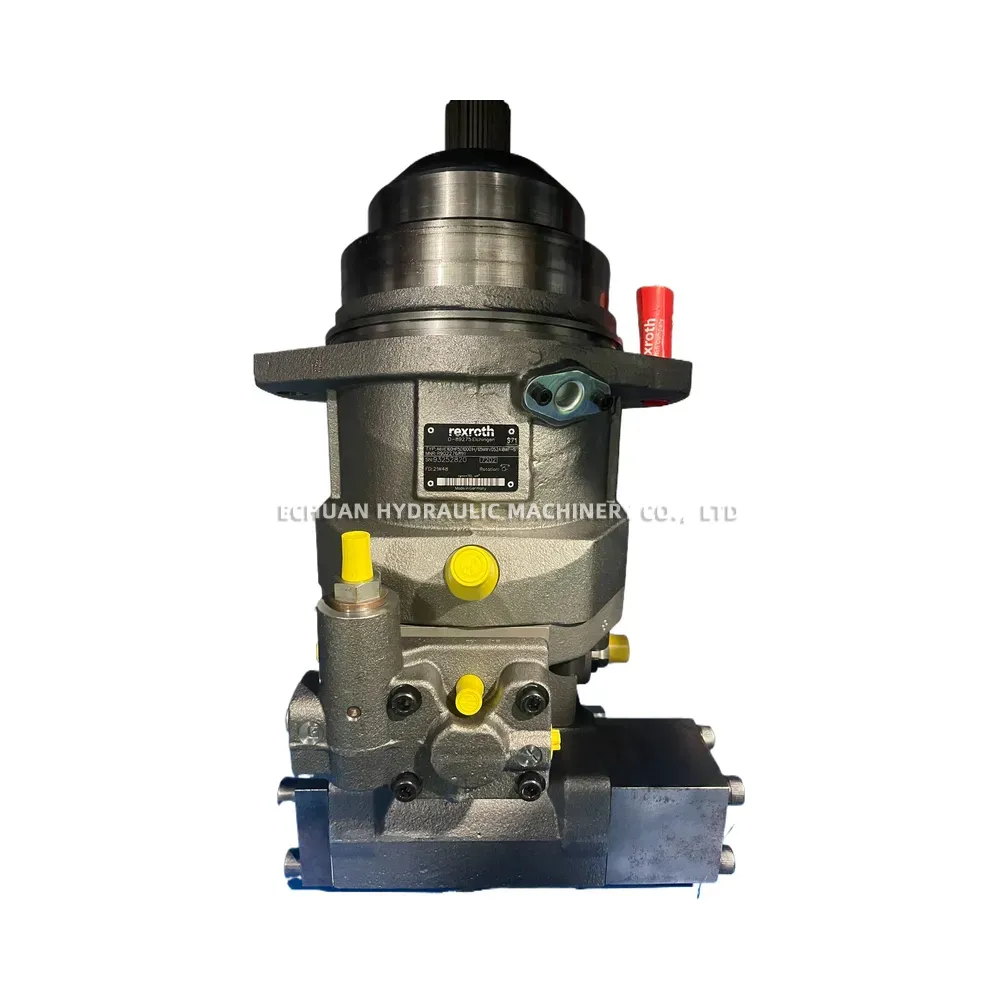

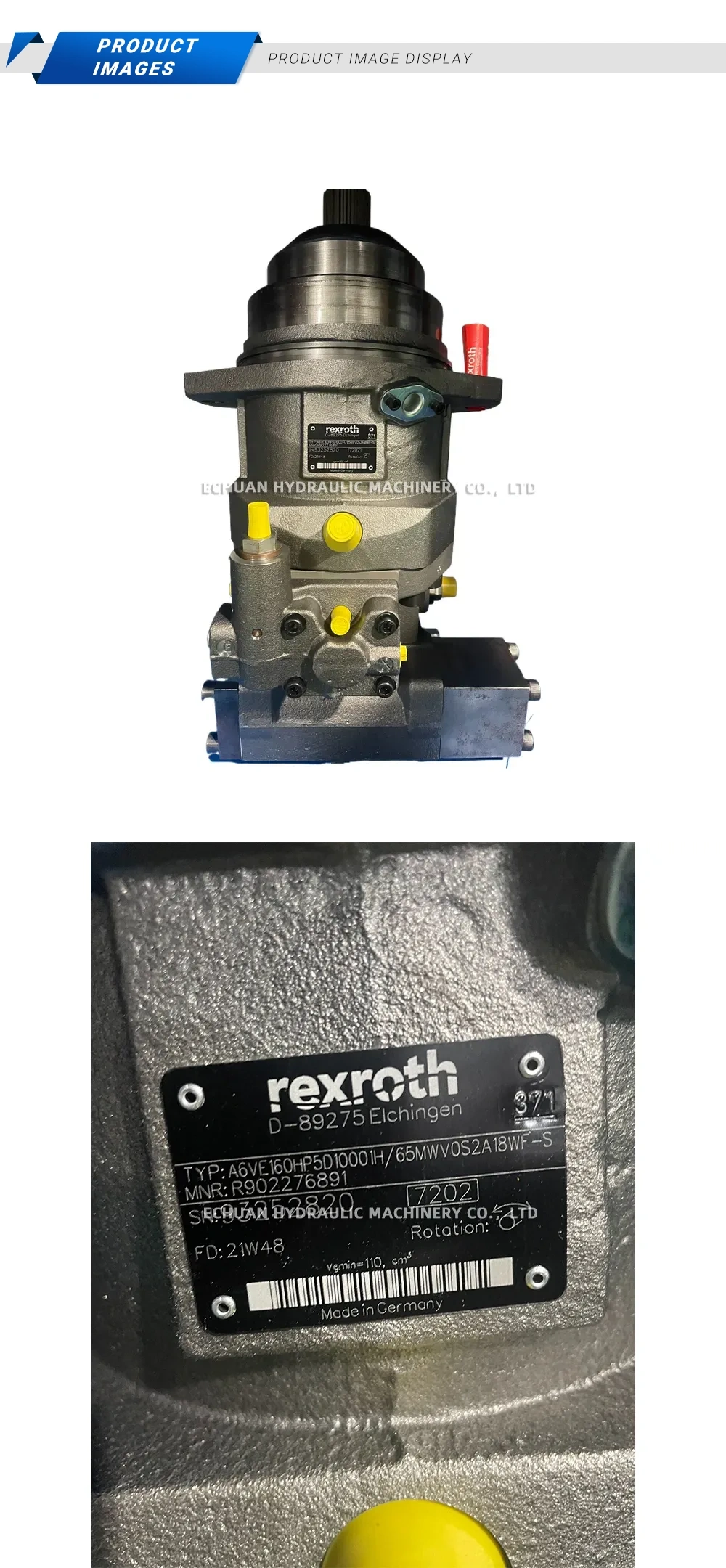

The Rexroth R902276891 A6VE160HP5D10001H/65MWV0S2A18WF-S is a high-performance variable plug-in motor featuring an axial piston, bent-axis design. Engineered for both open and closed-circuit applications, this motor is particularly well-suited for integration into mechanical gearboxes, such as track drive gearboxes. Its robust construction and high power density ensure reliability and efficiency in demanding mobile and industrial environments. This specific model is equipped with a proportional hydraulic control (HP5D) for precise pressure-related adjustments, along with integrated pressure relief and pressure cut-off valves for enhanced system safety and control.
Technical Specifications:
- Component: Axial piston variable motor
- Design: Bent-axis, plug-in design
- Size (Displacement): 160 cm³
- Control Type: HP5D – Hydraulic control, proportional, pressure-related
- Series: 65
- Shaft Type: Splined shaft DIN 5480 (W)
- Additional Features: Includes pressure relief valves (W), pressure cut-off (V), and shuttle valve (S)
Rexroth R902276891 A6VE160HP5D10001H/65MWV0S2A18WF-S
Discover the reliable Rexroth A6VE160HP5D10001H/65MWV0S2A18WF-S (R902276891), a 160cc axial piston variable plug-in motor. Ideal for mobile hydraulics, this motor features a bent-axis design and proportional hydraulic control for superior performance.
