Product Description

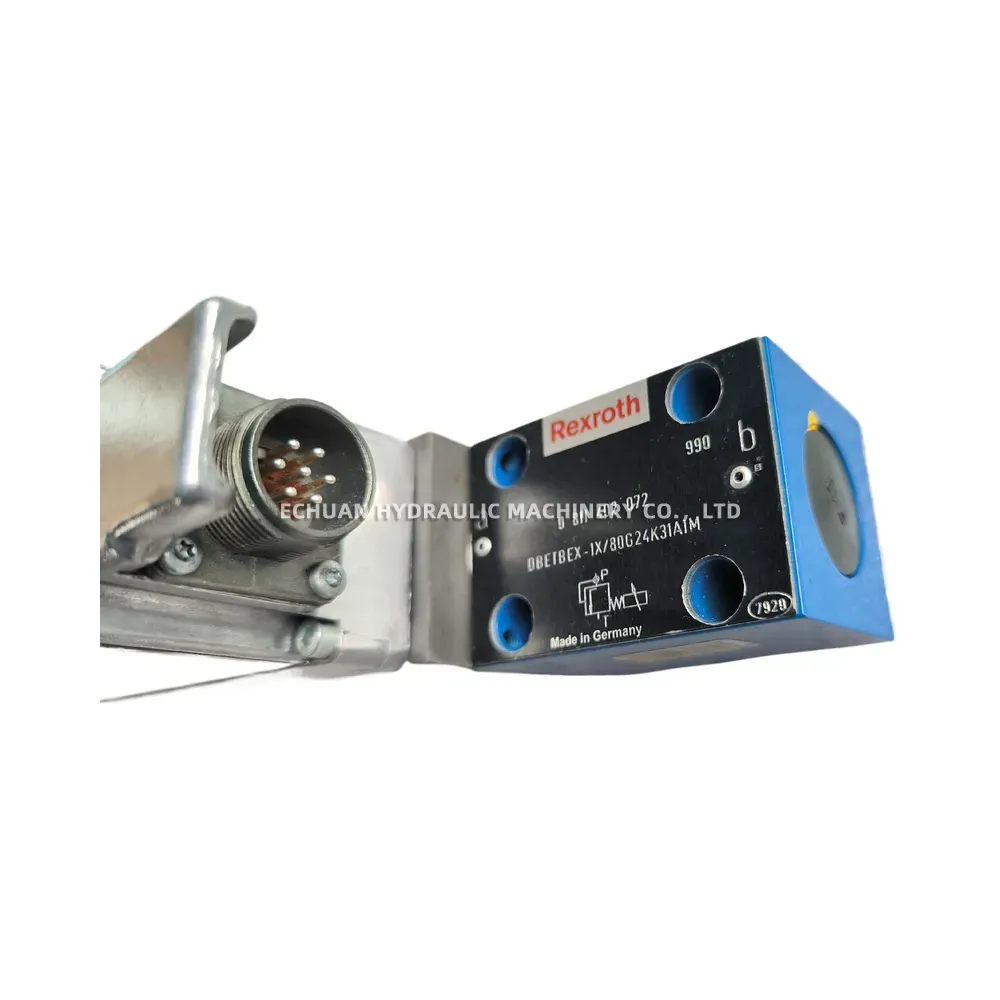

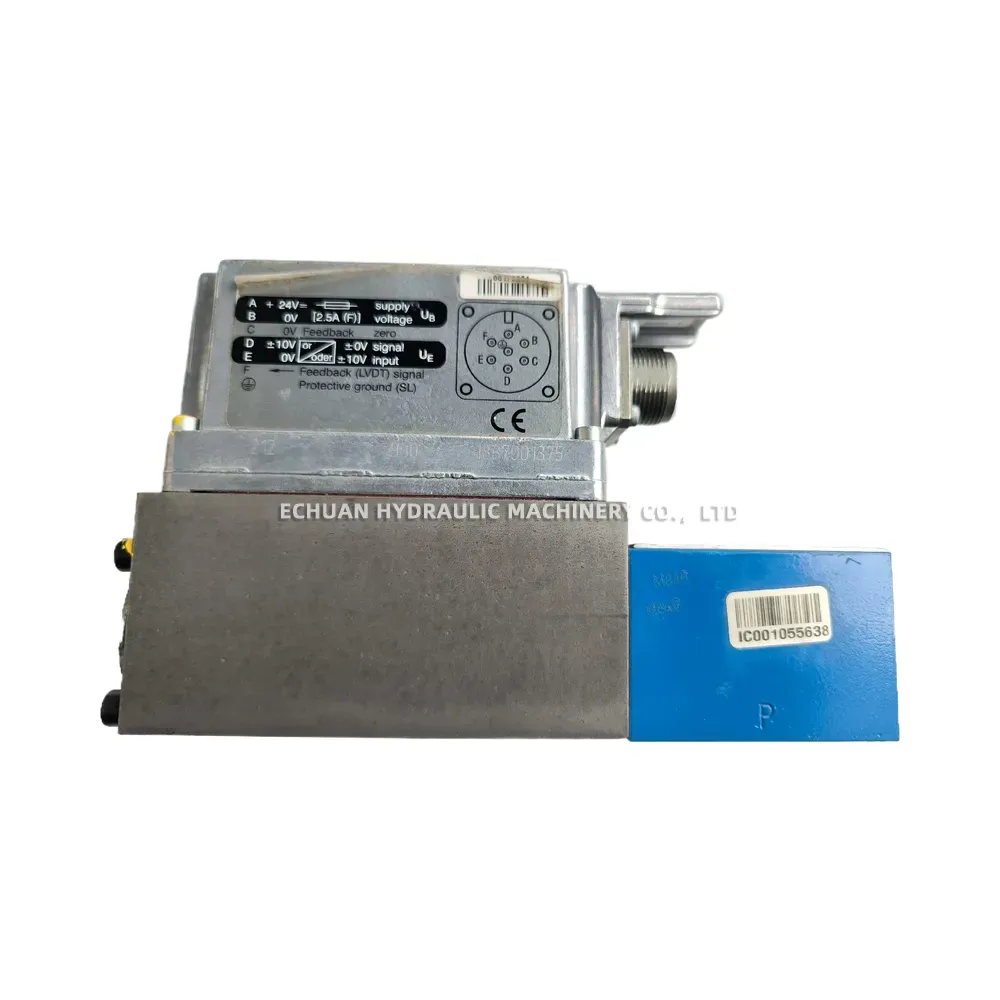

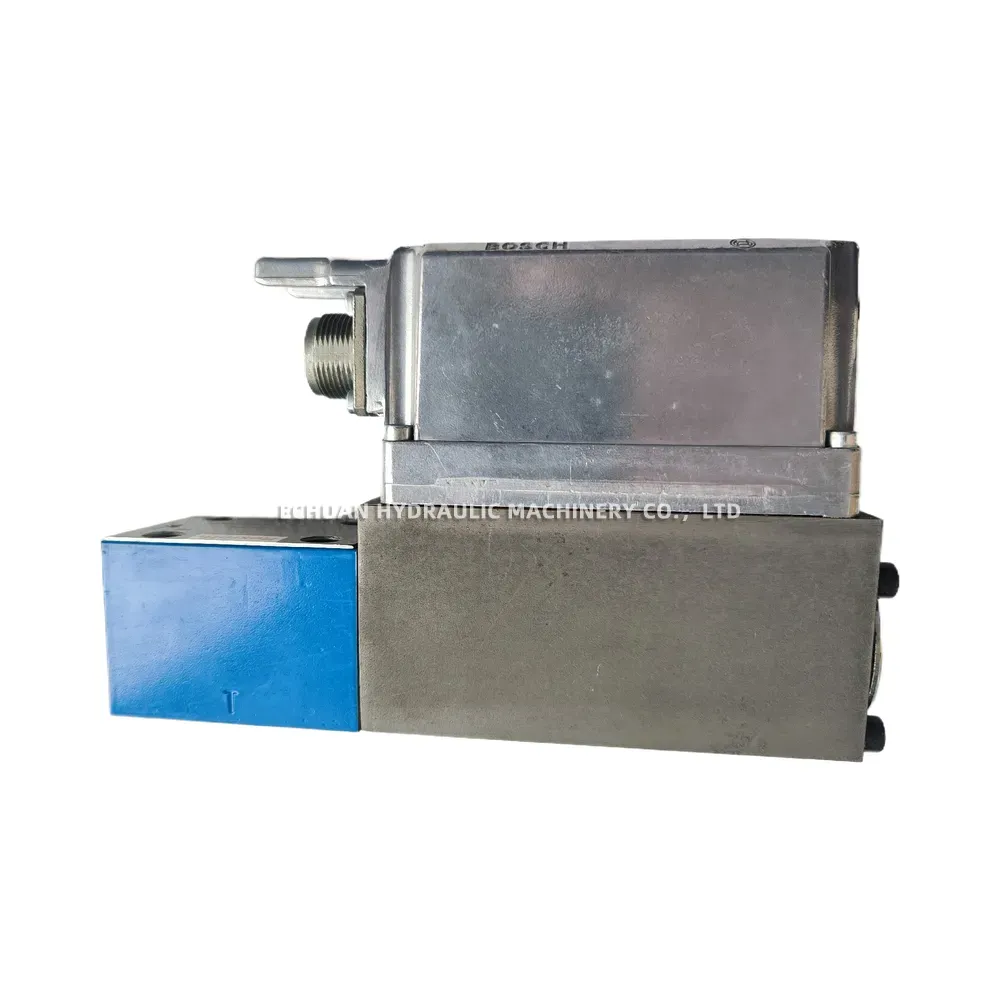

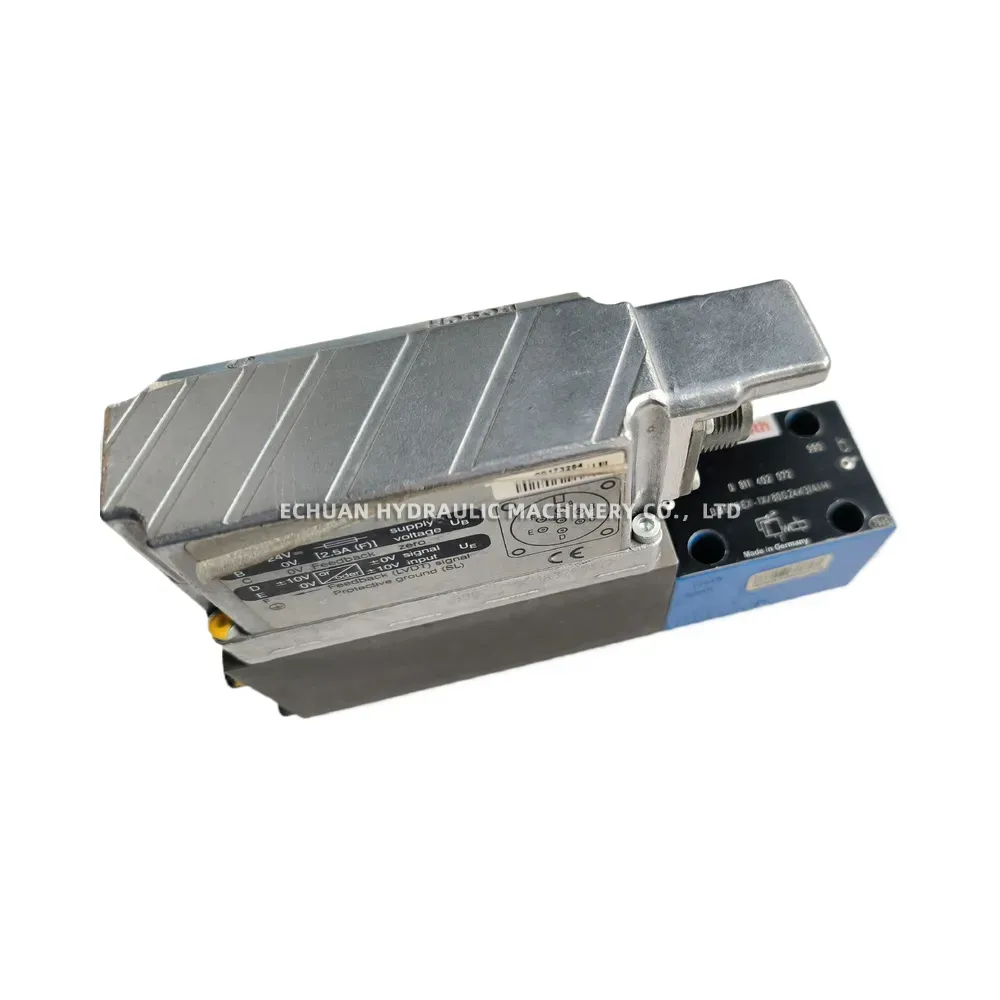

Rexroth DBETBEX-1X/80G24K31A1M Proportional Pressure Relief Valve 0811402072
The Rexroth DBETBEX is a direct operated proportional pressure relief valve equipped with integrated electronics (OBE – On-Board Electronics). It serves to limit the system pressure by adjusting proportionally to the electrical command value signal. This valve is designed for subplate mounting and features a maximum pressure setting capability of 80 bar. It operates on a 24V DC supply, utilizes an M12 connector for electrical interface, accepts a 4-20mA command signal, and is fitted with NBR seals suitable for standard hydraulic fluids.
Technical Specifications:
- Type: Proportional pressure relief valve, direct operated
- Series: 1X
- Integrated Electronics: Yes (OBE)
- Maximum Pressure Setting: 80 bar
- Nominal Size: NG6 (CETOP 3)
- Mounting Interface: ISO 4401-03-02-0-05
- Solenoid Voltage: 24V DC (G24)
- Electrical Connection: M12x1 connector, 4-pin, A-coded (K31)
- Command Signal Input: 4 to 20 mA (A1)
- Seal Material: NBR (M)
- Hydraulic Connection: Subplate mounting
- Part Number: 0811402072
Rexroth DBETBEX-1X/80G24K31A1M 0811402072
Model:Rexroth DBETBEX-1X/80G24K31A1M 0811402072
| Brand | Rexroth |
|---|---|
| Model | DBETBEX-1X/80G24K31A1M 0811402072 |
| Part No. | Rexroth DBETBEX-1X/80G24K31A1M 0811402072 |
| Category | Hydraulic valves |
