Product Description

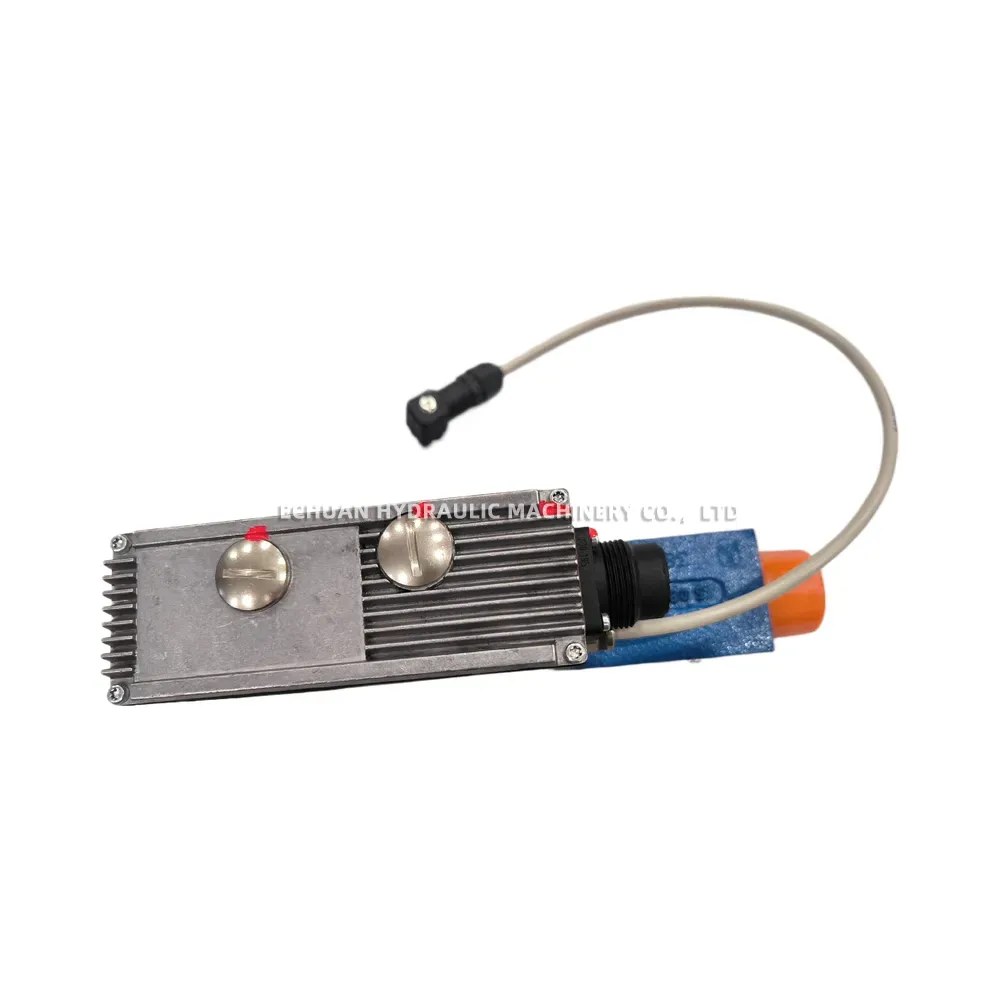

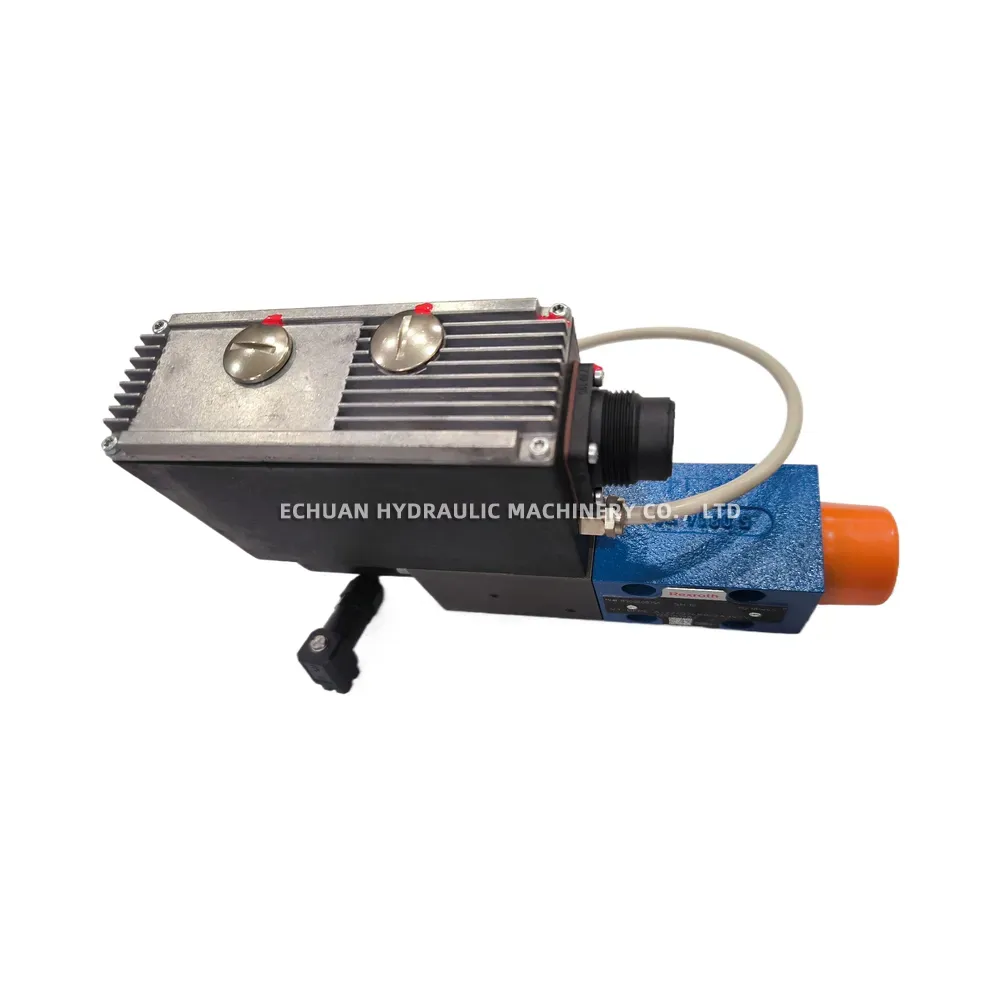

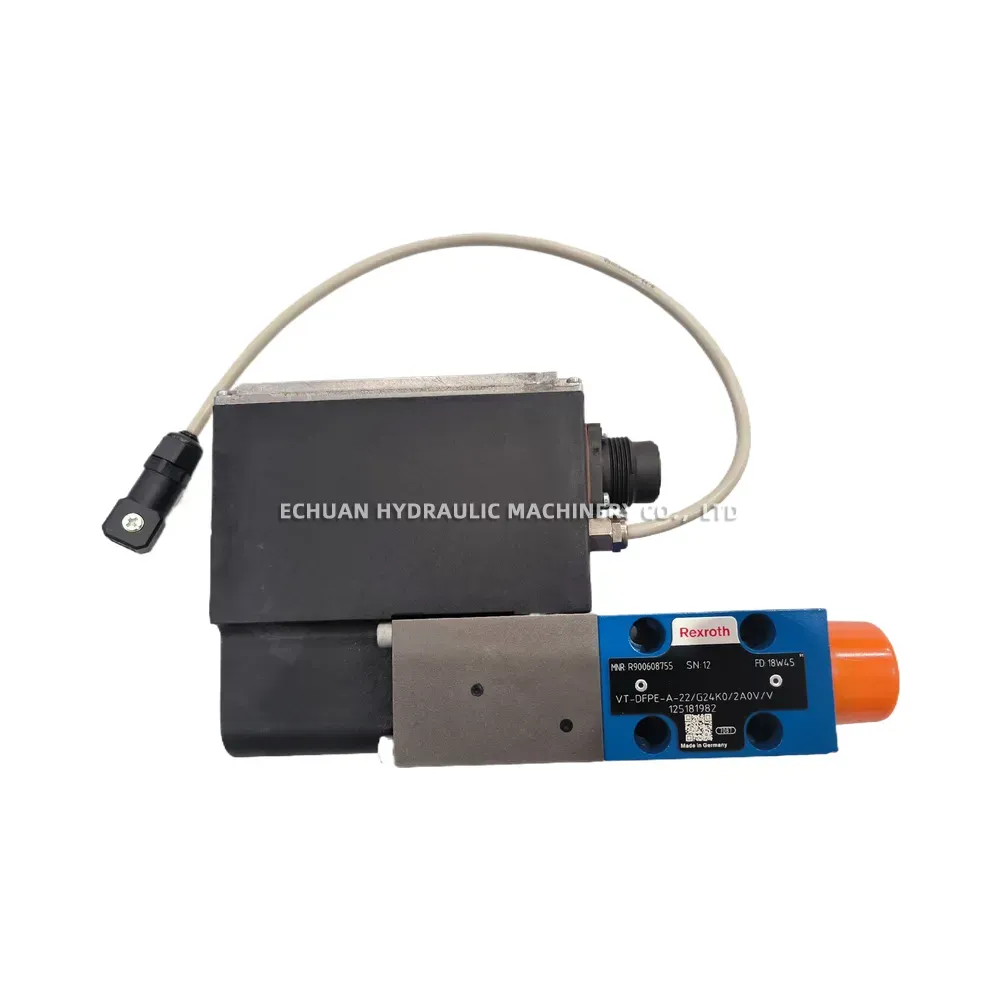

Rexroth VT-DFPE-A-22/G24K0/2A0V/V R900608755
The Rexroth VT-DFPE-A is a direct operated proportional pressure reducing valve with integrated onboard electronics (OBE). This 3-way valve is designed for subplate mounting and provides precise electrohydraulic pressure control. It reduces system pressure in port P to a lower, adjustable pressure in port A, while also providing a relief function from port A to T. The integrated electronics simplify system design and installation, allowing direct control via a standard analog command signal. This valve is suitable for applications requiring accurate and dynamic pressure regulation.
Technical Specifications:
- Type: Proportional pressure reducing valve
- Actuation: Direct operated with proportional solenoid
- Control Electronics: Integrated Onboard Electronics (OBE)
- Function: 3-way (P to A reducing, A to T relieving)
- Mounting: Subplate mounting
- Porting Pattern: ISO 4401-03-02-0-05 (NG6)
- Supply Voltage: 24 V DC
- Command Signal: 4…20 mA
- Maximum Operating Pressure (Port P): 315 bar
- Seals: FKM
- Fluid Temperature Range: -20 to +80°C (with FKM seals)
- Connection: Requires separate order of electrical connector according to EN 175201-804
- Manufacturer Part Number: R900608755
Rexroth VT-DFPE-A-22/G24K0/2A0V/V R900608755
Model:Rexroth VT-DFPE-A-22/G24K0/2A0V/V R900608755
| Brand | Rexroth |
|---|---|
| Model | VT-DFPE-A-22/G24K0/2A0V/V R900608755 |
| Part No. | Rexroth VT-DFPE-A-22/G24K0/2A0V/V R900608755 |
| Category | Hydraulic valves |
| Link | https://www.echuan-hydraulic.com/product/rexroth-vt-dfpe-a-22-g24k0-2a0v-v-r900608755 |
