Product Description

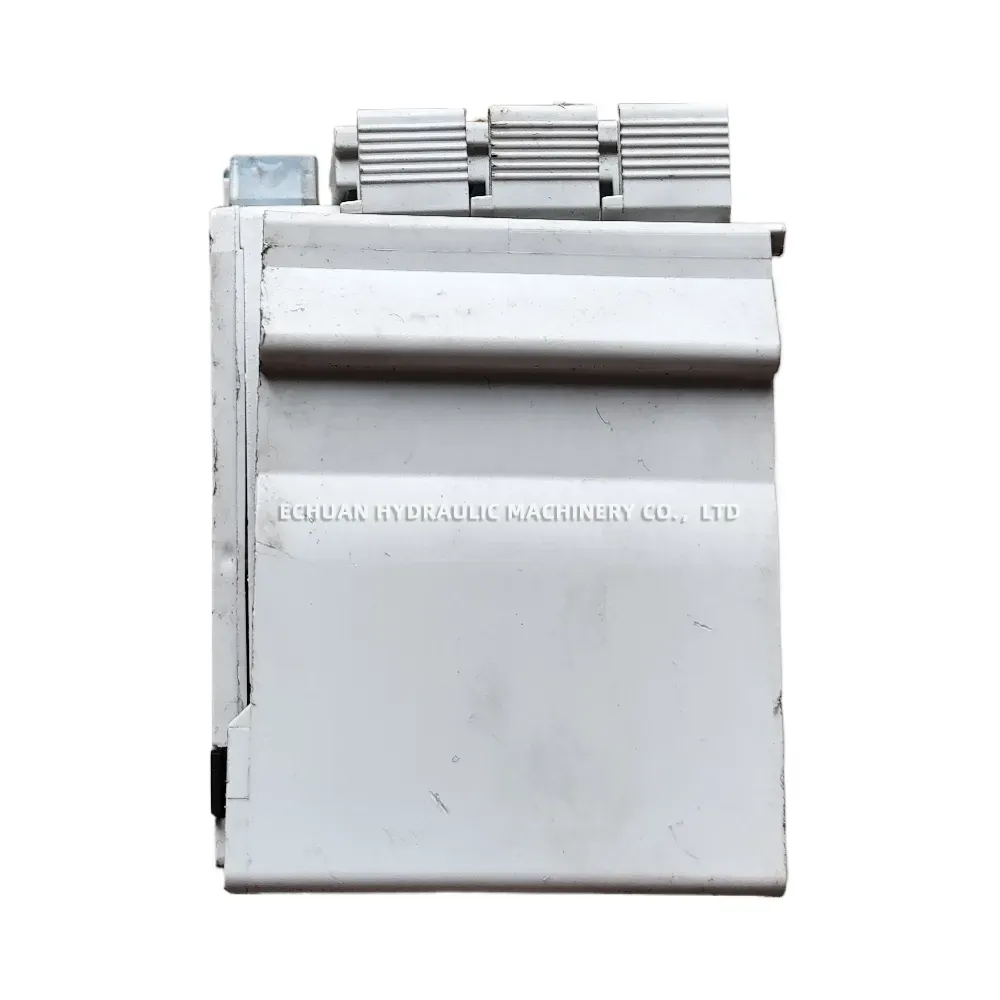

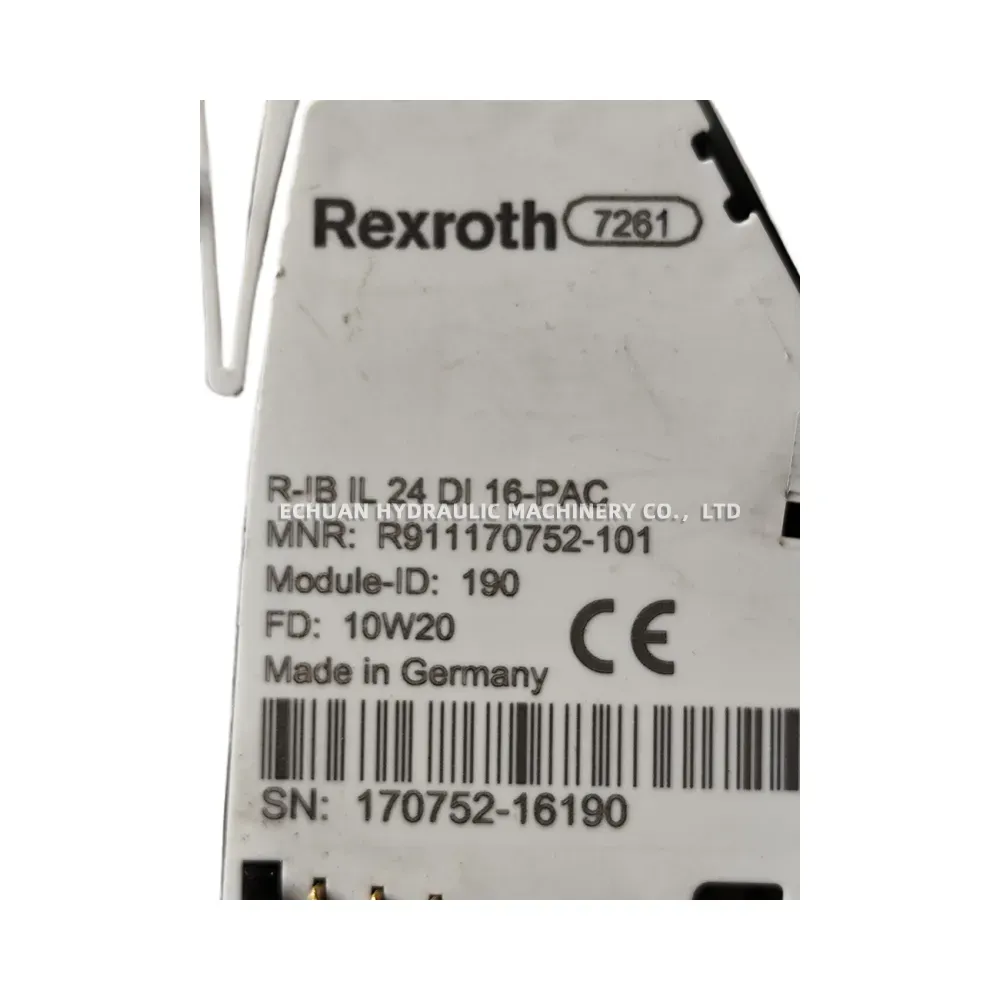

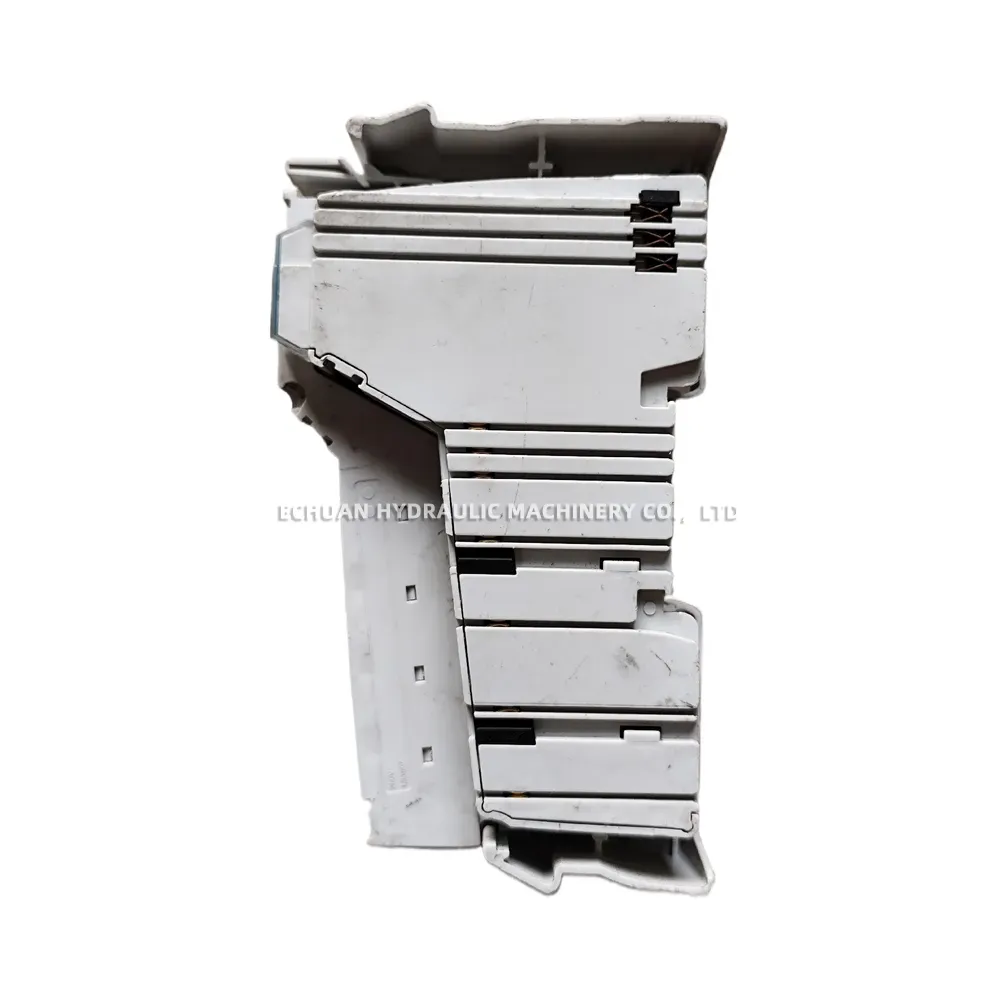

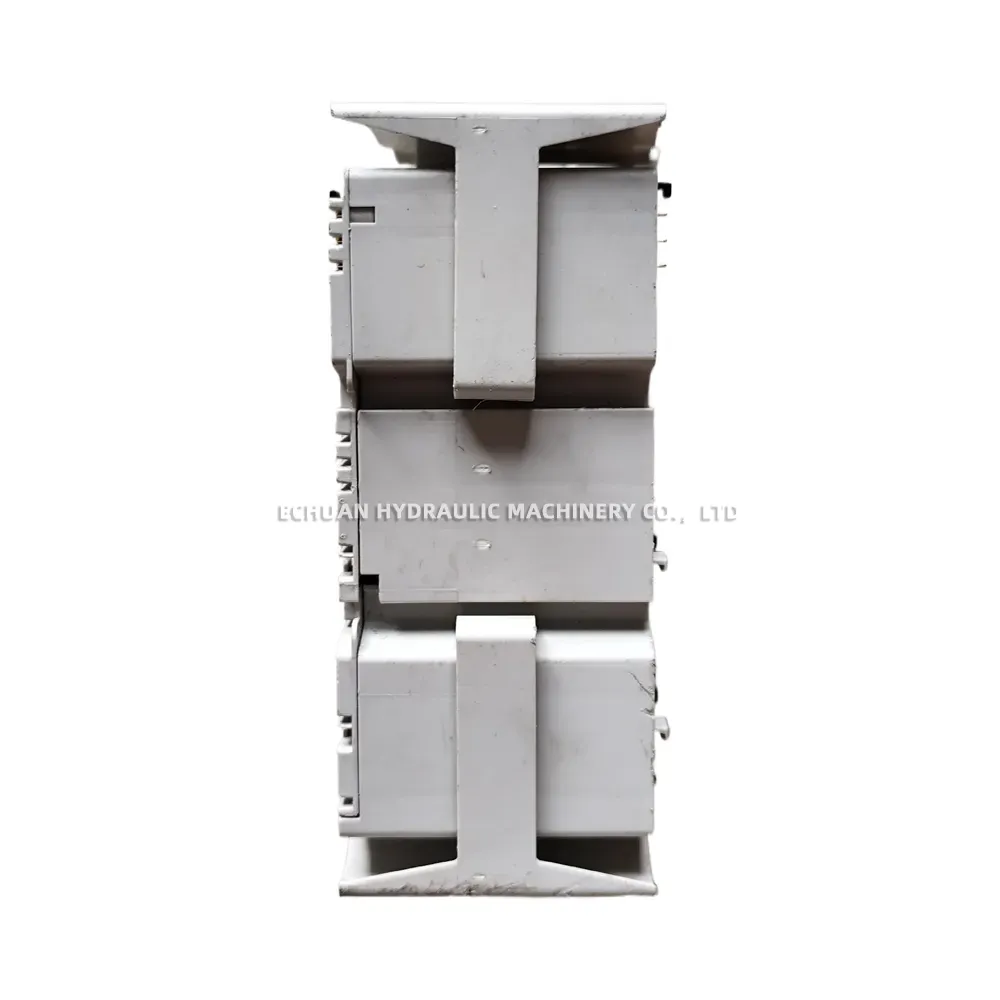

Rexroth R-B IL 24 DI 16-PAC R911170752-101
The Rexroth R-B IL 24 DI 16-PAC (Bosch Rexroth Part Number: R911170752-101) is a digital input module designed for the robust Inline I/O system. This module provides 16 digital input channels, suitable for connecting various sensors and switches operating at a nominal voltage of 24V DC. It supports flexible wiring with both 2-wire and 3-wire connection methods. Engineered for industrial environments, this module facilitates the reliable acquisition of digital signals within an automated system, integrating seamlessly with PLCs and other control devices via the Inline bus system.
Technical Specifications:
- Product Type: Inline Digital Input Module
- Model: R-B IL 24 DI 16-PAC
- Part Number: R911170752-101
- Number of Inputs: 16
- Nominal Input Voltage (UN): 24 V DC
- Signal Type: Digital Input
- Connection Method: 2-wire, 3-wire
- Typical Current Consumption (from logic supply UL): approx. 45 mA
- Input Filter Time: Typically 3 ms (can be parameterized)
- Diagnostics: Per-channel status LEDs, module status LEDs
- Operating Temperature Range: -25 °C to +60 °C (-13 °F to +140 °F)
- Storage Temperature Range: -25 °C to +85 °C (-13 °F to +185 °F)
- Degree of Protection: IP20
- Housing Material: Polyamide (PA), non-reinforced
- Mounting: DIN rail
- System: Bosch Rexroth Inline I/O
Rexroth R-B IL 24 D1 16-PAC R911170752-101
Model:Rexroth R-B IL 24 D1 16-PAC R911170752-101
