Product Description

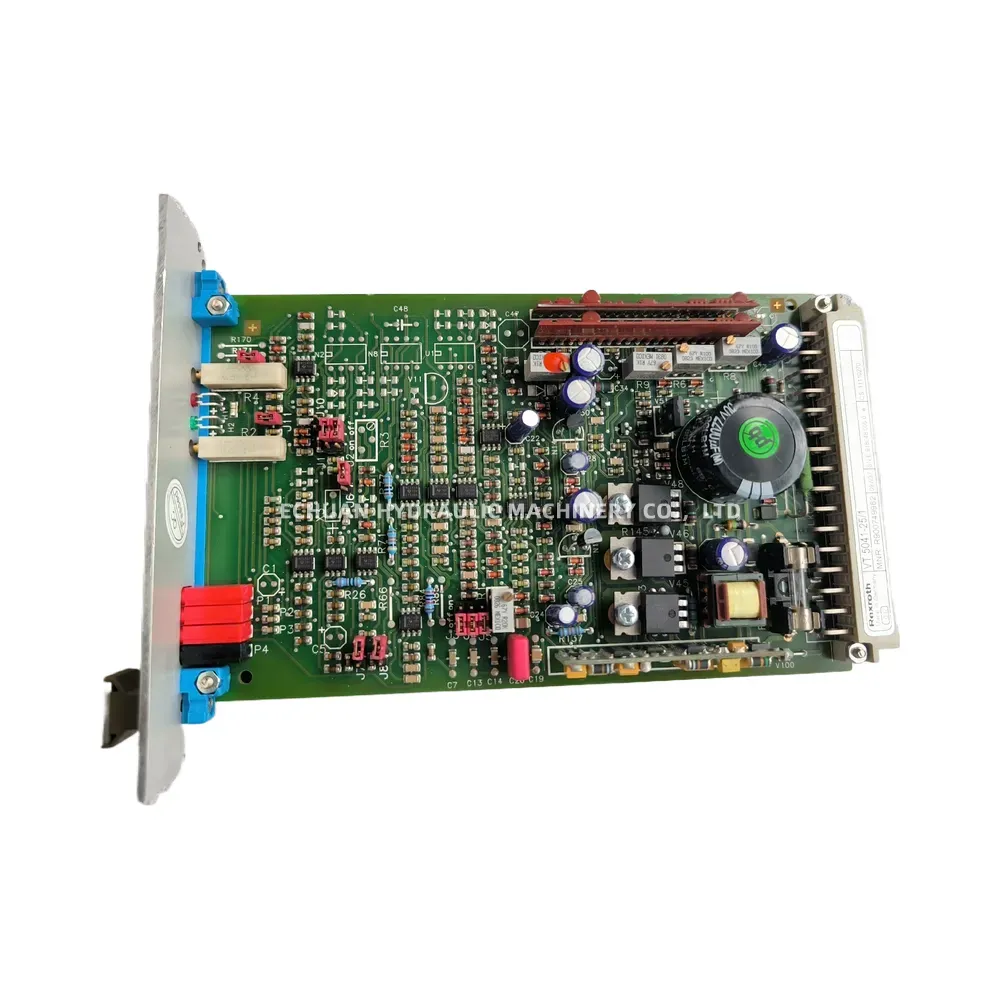

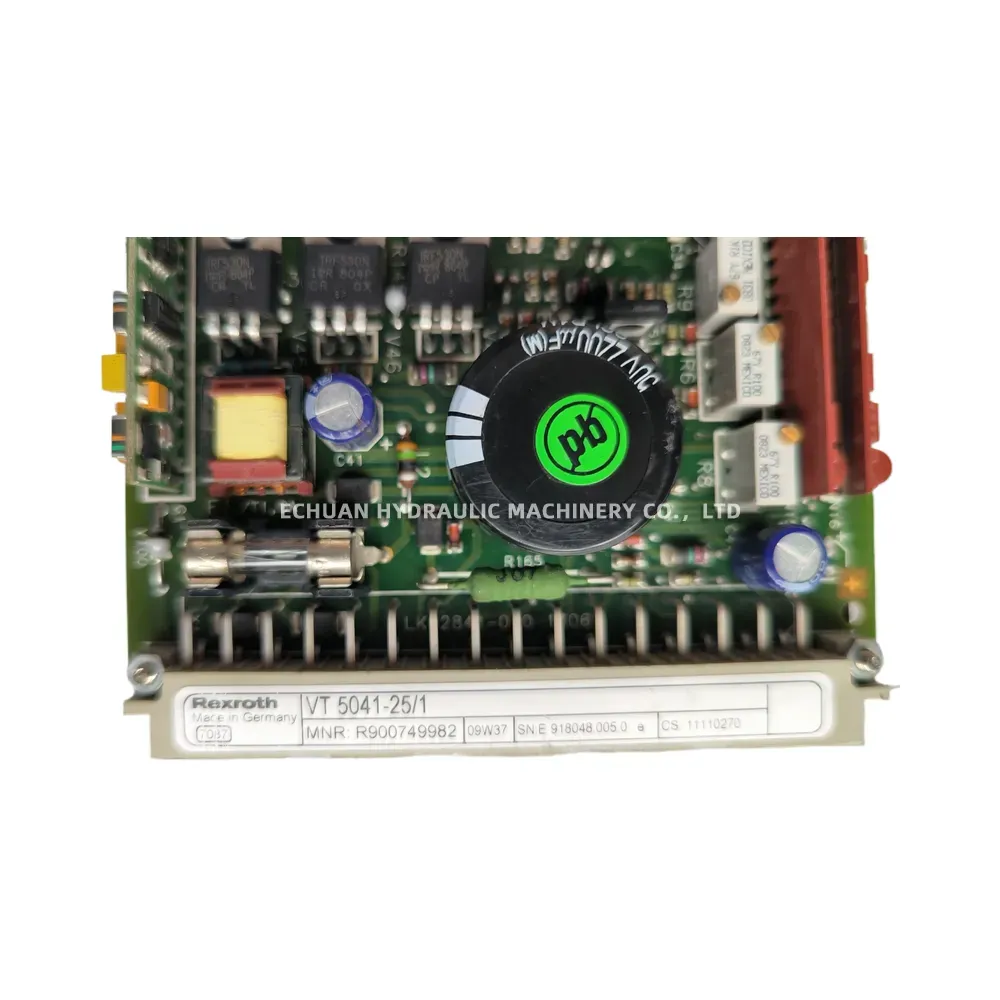

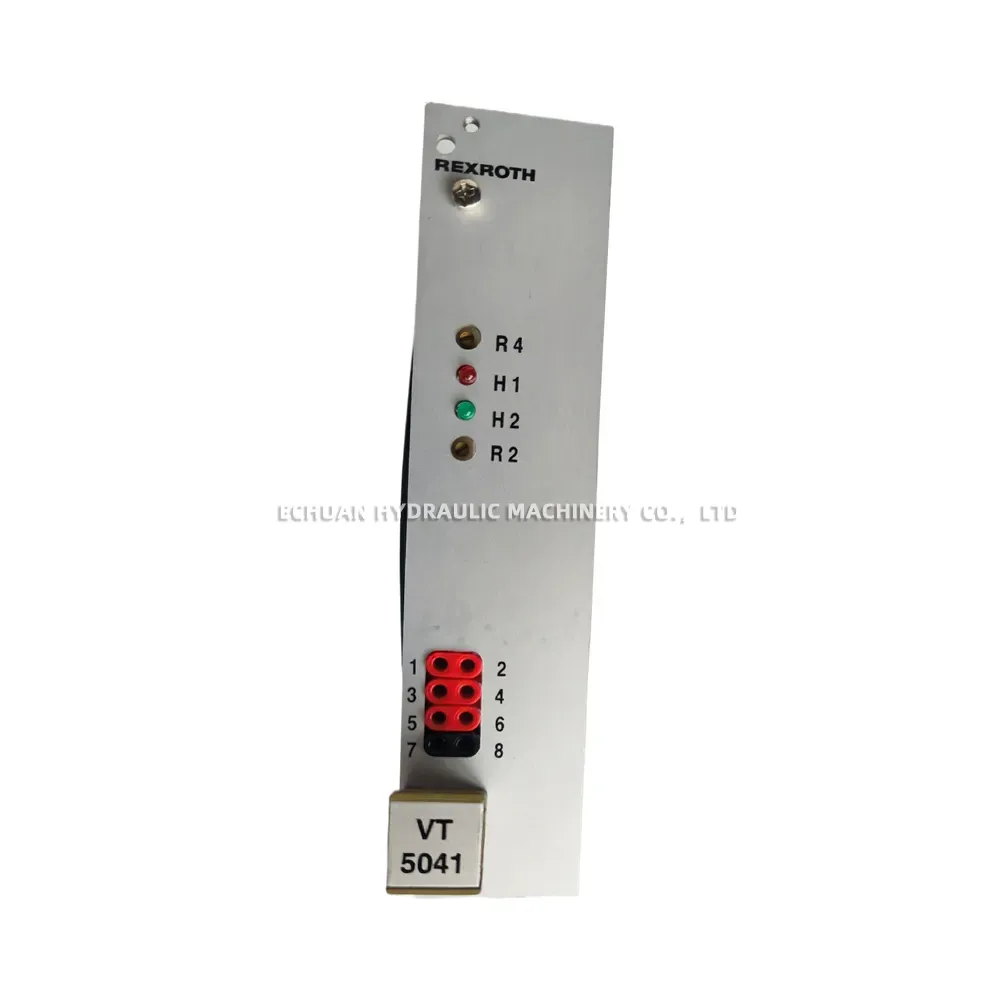

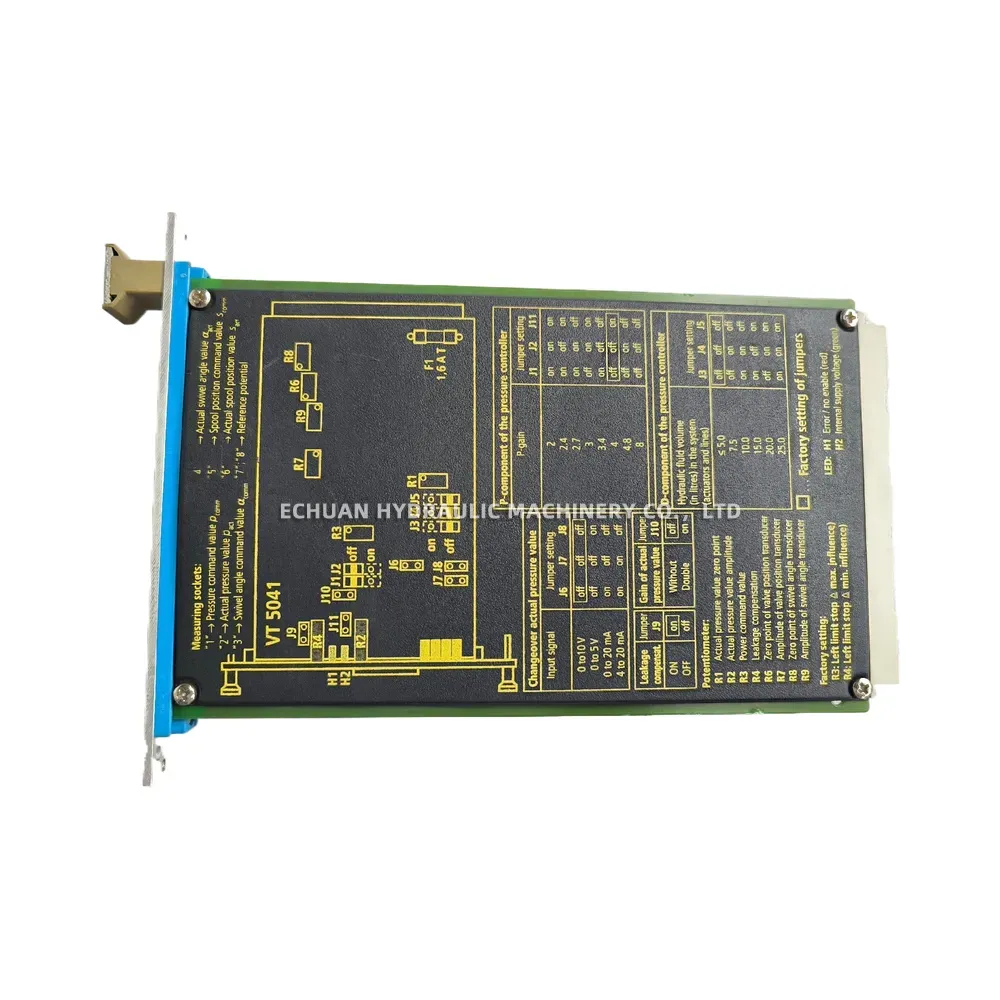

Rexroth VT5041 VT-5041-25/1 R900749982 Proportional Amplifier Card
The Rexroth VT-5041-25/1 is an analog amplifier card designed in Eurocard format. It is specifically engineered to control pilot-operated proportional pressure valves that do not feature electrical position feedback. This amplifier provides precise control with features like adjustable ramp times (separately for up and down), adjustable sensitivity, and bias. It includes a differential amplifier input stage and short-circuit proof outputs, ensuring reliable operation in industrial hydraulic systems. Designed for easy integration, it utilizes a standard DIN 41612 connector.
Technical Specifications:
- Component series: 2X (25 refers to specific configuration)
- Type: Analog Amplifier Card
- Format: Eurocard (100 x 160 mm)
- Supply Voltage: 24 V DC (+40% / -5%)
- Application: For proportional pressure valves without electrical position feedback (e.g., DBE, DRE, ZDRE series)
- Command Value Input: Differential input 0 to +10 V / 0 to -10 V / -10 V to +10 V
- Maximum Output Current: 1.6 A
- Ramp Time: Adjustable (0.02 s to 5 s)
- Operating Temperature Range: 0 °C to +50 °C
- Connector: 32-pin male connector, DIN 41612, form D
- Protection: Reverse polarity protection for supply voltage, short-circuit proof outputs
- Part Number: R900749982
Rexroth VT5041 VT-5041-25/1 R900749982
Model:Rexroth VT5041 VT-5041-25/1 R900749982
| Brand | Rexroth |
|---|---|
| Model | VT5041 VT-5041-25/1 R900749982 |
| Part No. | Rexroth VT5041 VT-5041-25/1 R900749982 |
| Category | Other products |
