Product Description

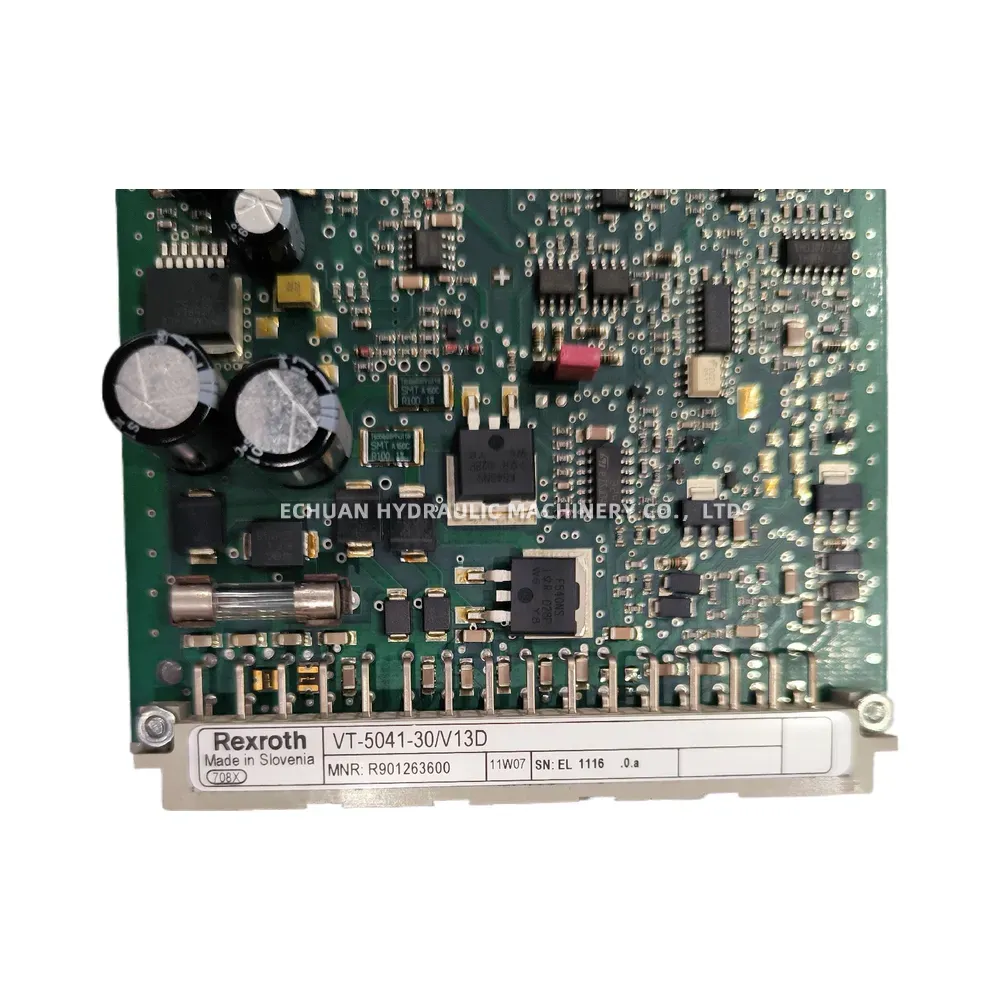

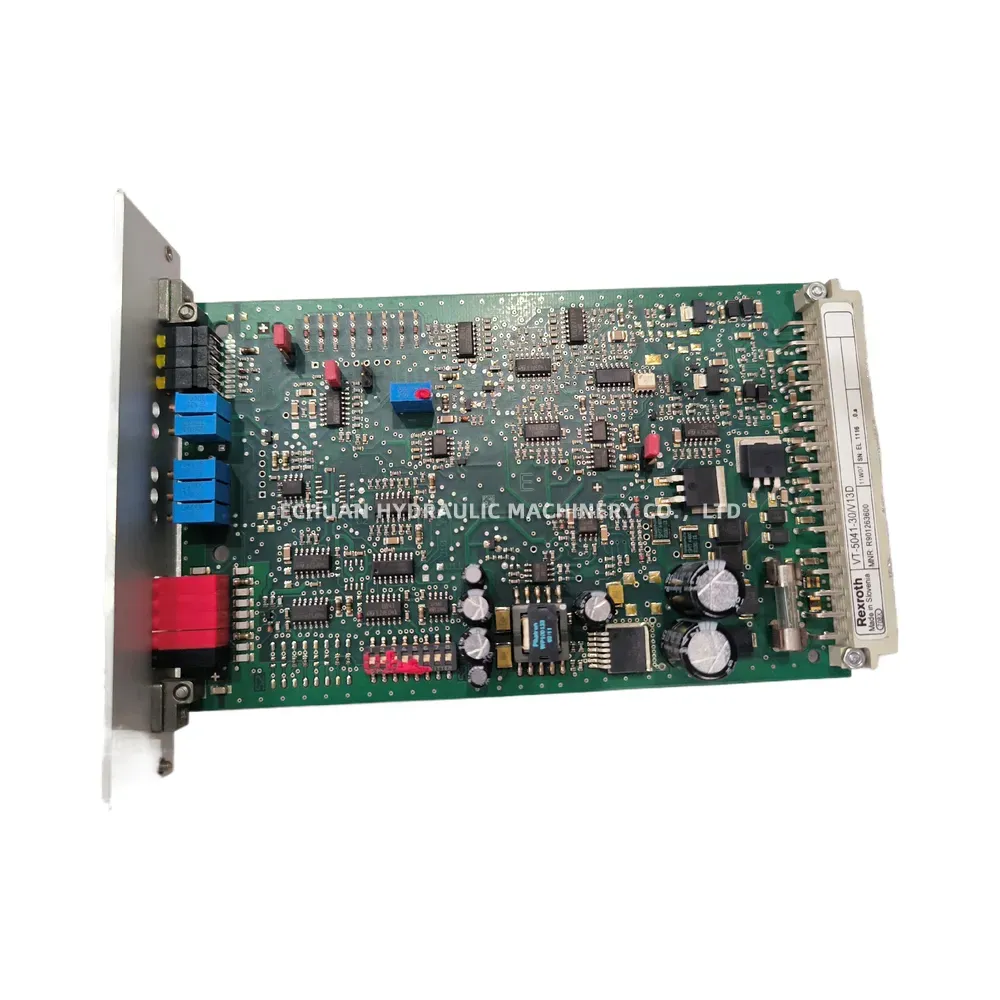

Rexroth VT-5041-30/V13D R901263600 Proportional Amplifier Card
The Rexroth VT-5041 is an analog proportional amplifier card designed in Eurocard format. It is intended for controlling pilot-operated proportional directional valves (like type WDFA05) or proportional pressure valves (such as DBEP6, 3DREP6) without electrical position feedback. This amplifier features a differential input, adjustable ramp times (up/down), and a current-controlled output stage to precisely manage valve operation based on the command signal.
Technical Specifications:
- Type: Analog Proportional Amplifier
- Series: VT 5041, Series 3X (30)
- Format: Eurocard (100 x 160 mm)
- Supply Voltage: 24 V DC (+/- 10%)
- Input Signal (Command Value): Differential input +/- 10 V (default); configurable for 0 to +10 V or 4 to 20 mA
- Output Current: Controlled PWM output, max. 2.6 A (typical for this series, confirm specific variant if critical)
- Ramp Generator: Separately adjustable up/down ramp times (approx. 0.02 s to 5 s)
- Valve Compatibility: Controls proportional valves without position feedback (e.g., pilot directional, pressure valves)
- Connection: 32-pin male connector, DIN 41612, style F
- Operating Temperature: 0 °C to +50 °C (32 °F to 122 °F)
- Part Number: R901263600
Rexroth VT-5041-30/V13D R901263600
Model:Rexroth VT-5041-30/V13D R901263600
| Brand | Rexroth |
|---|---|
| Model | VT-5041-30/V13D R901263600 |
| Part No. | Rexroth VT-5041-30/V13D R901263600 |
| Category | Other products |
| Link | https://www.echuan-hydraulic.com/product/rexroth-vt-5041-30-v13d-r901263600 |
