Product Description

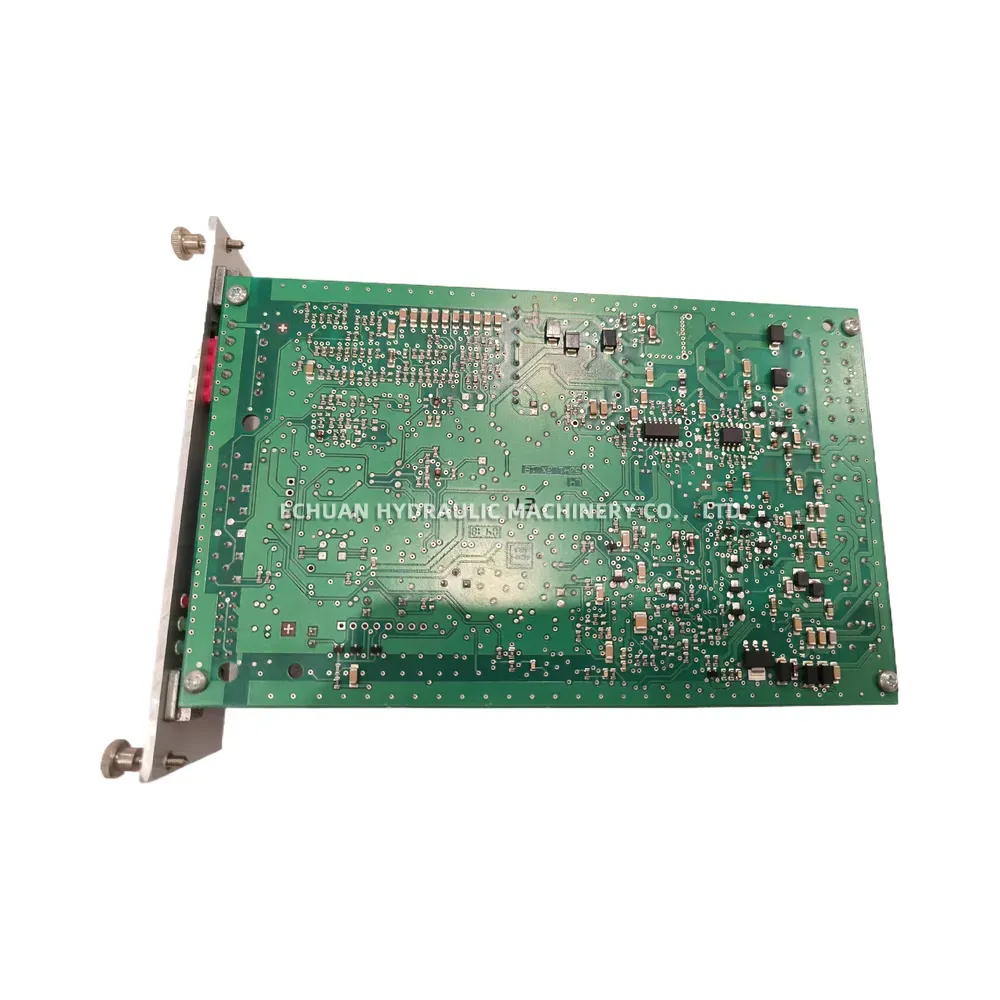

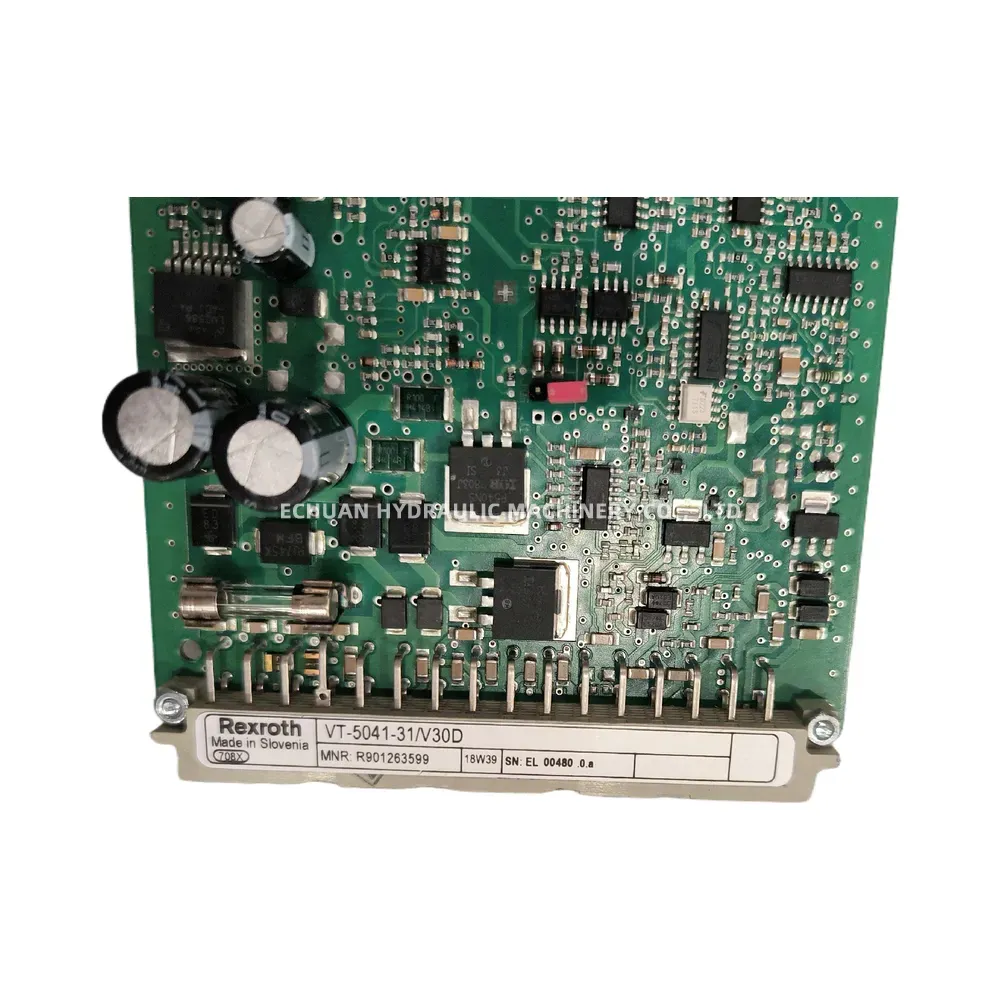

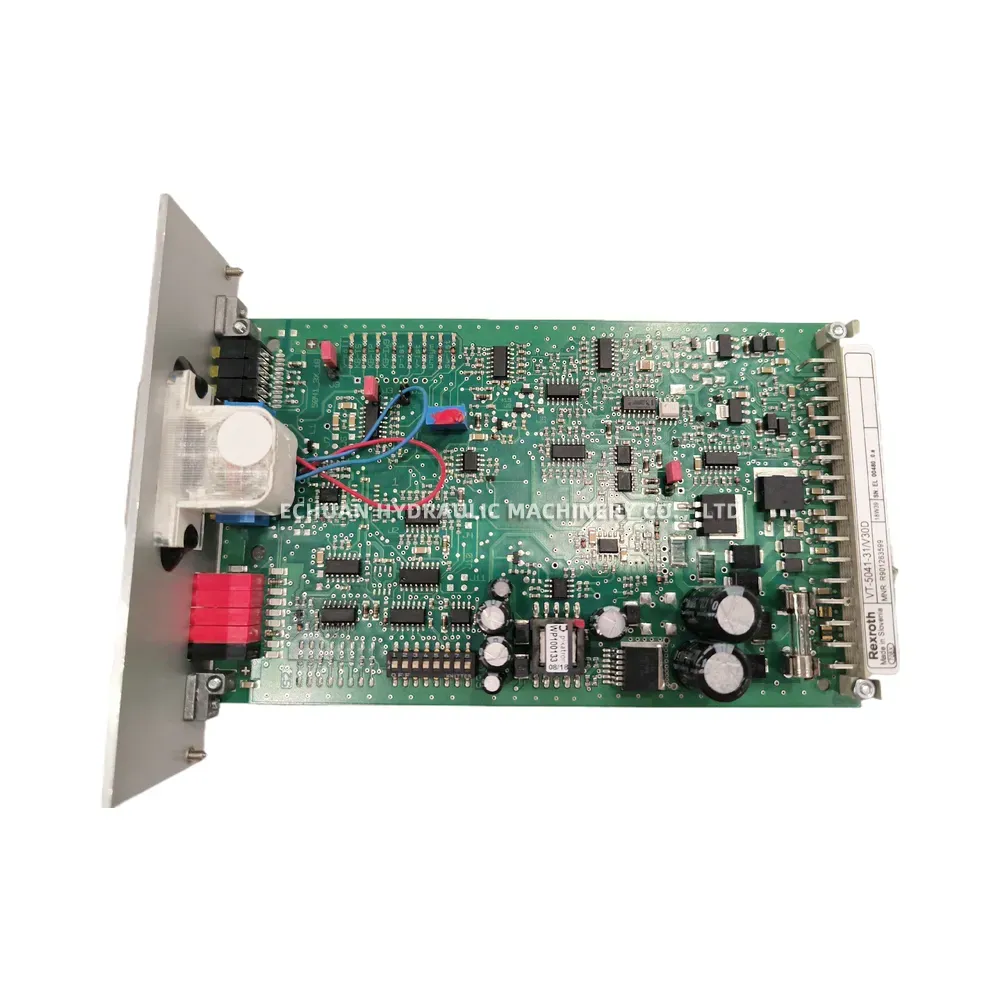

Rexroth VT-5041-3X/V30D Servo Valve Amplifier Card R901263599
The Rexroth VT-5041 is an analog amplifier card designed in the standard Eurocard format (plug-in module) for controlling pilot-operated proportional directional valves without electrical position feedback. It provides precise control signals for reliable operation of various Rexroth valve series (like 4WRA, 4WRE, 4WRZ). The card features adjustable parameters via potentiometers, allowing for fine-tuning of zero point, sensitivity, and ramp times (up/down) to match specific application requirements. This amplifier is suitable for integration into standard rack systems.
Technical Specifications:
- Manufacturer: Bosch Rexroth
- Product Type: Analog Amplifier Card
- Series: VT 5041
- Version: 3X (Design 30)
- Format: Eurocard (Plug-in module)
- Function: Controls proportional directional valves without electrical position feedback
- Compatible Valves (Examples): 4WRA, 4WRE, 4WRZ, 4WRH, 4WRL, 5WRZ, 5WRE
- Supply Voltage: 24 V DC (Nominal)
- Inputs: Differential amplifier inputs (Voltage or Current, jumper selectable)
- Adjustments: Potentiometers for Zero point, Sensitivity (Gain), Ramp time up, Ramp time down
- Connection: Via 32-pin connector strip type F according to DIN 41612
- Part Number: R901263599
Rexroth VT-5041-30/V30D R901263599
Model:Rexroth VT-5041-30/V30D R901263599
| Brand | Rexroth |
|---|---|
| Model | VT-5041-30/V30D R901263599 |
| Part No. | Rexroth VT-5041-30/V30D R901263599 |
| Category | Other products |
