Product Description
Rexroth VT5041-25/3 R900749983

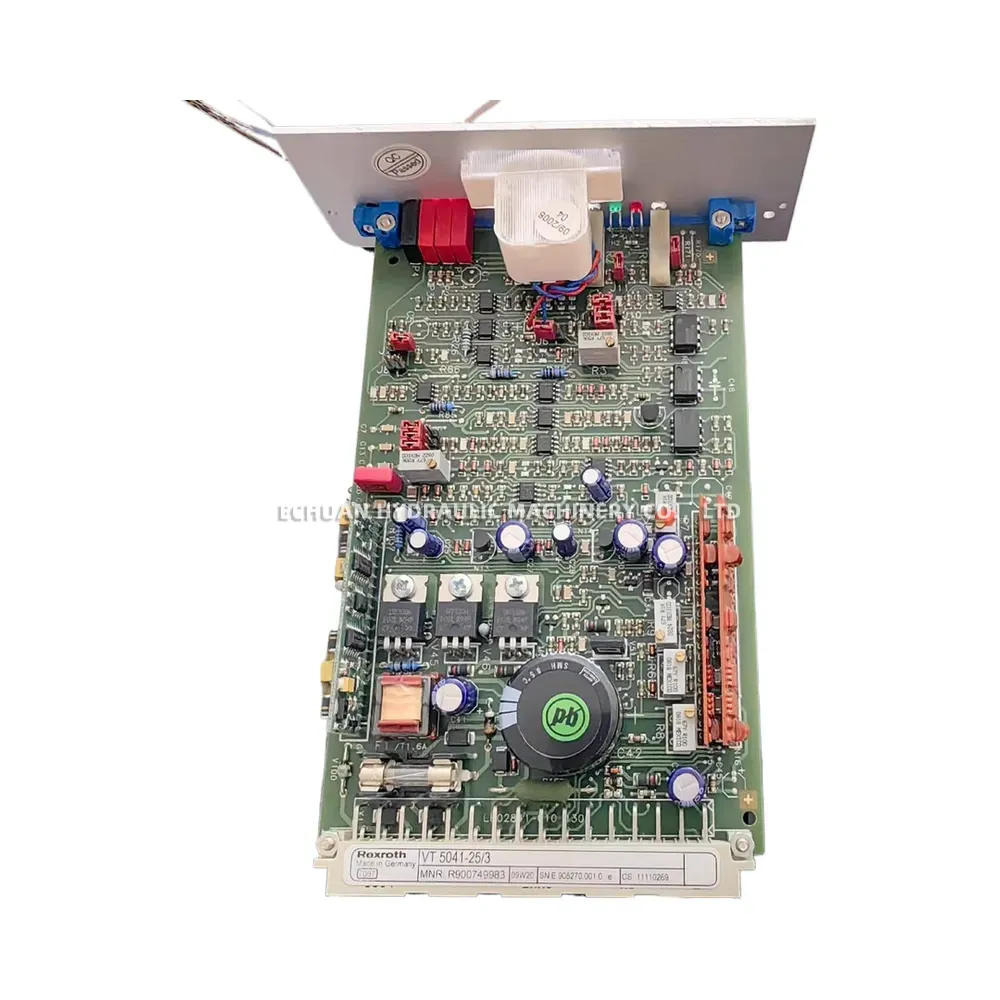

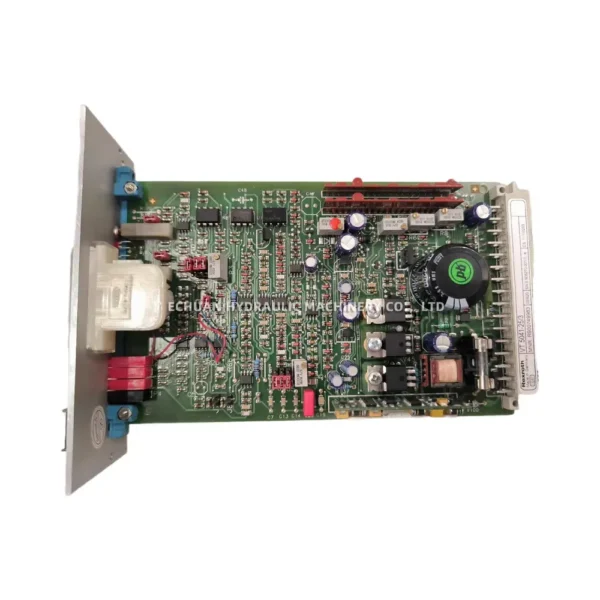

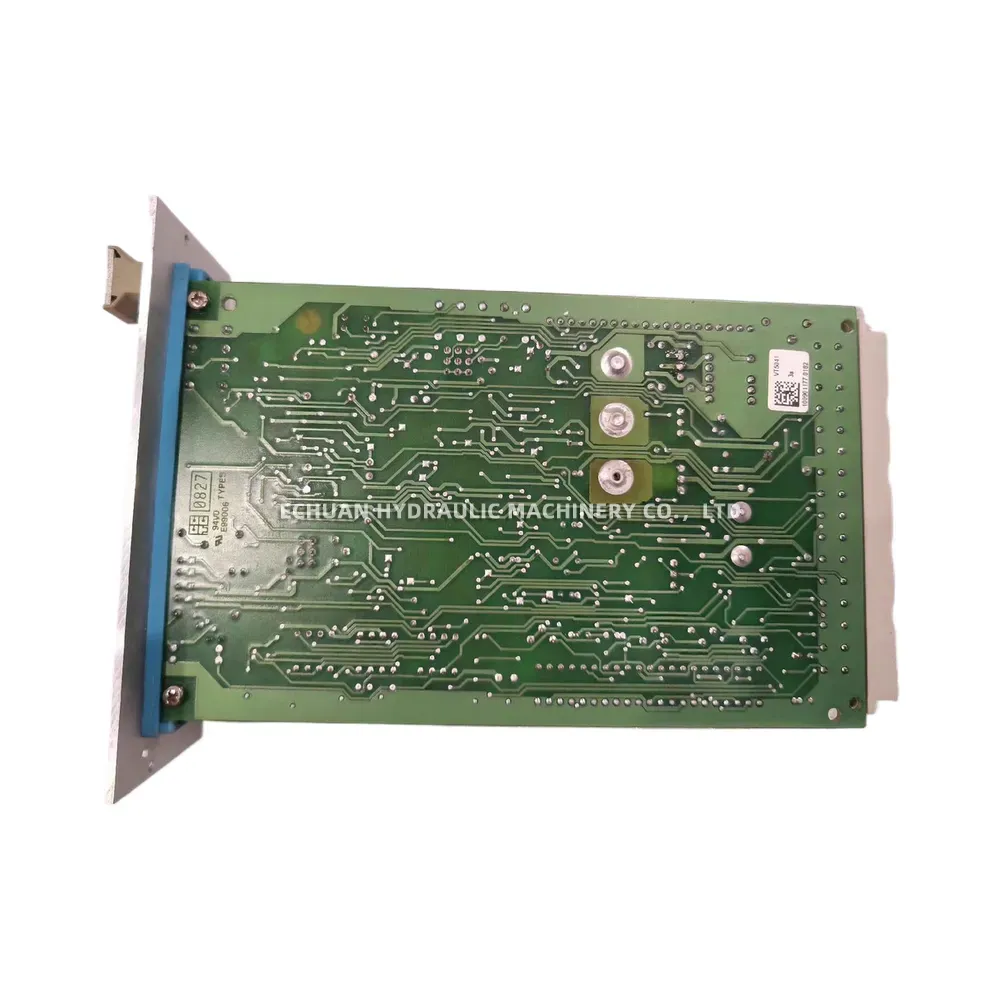

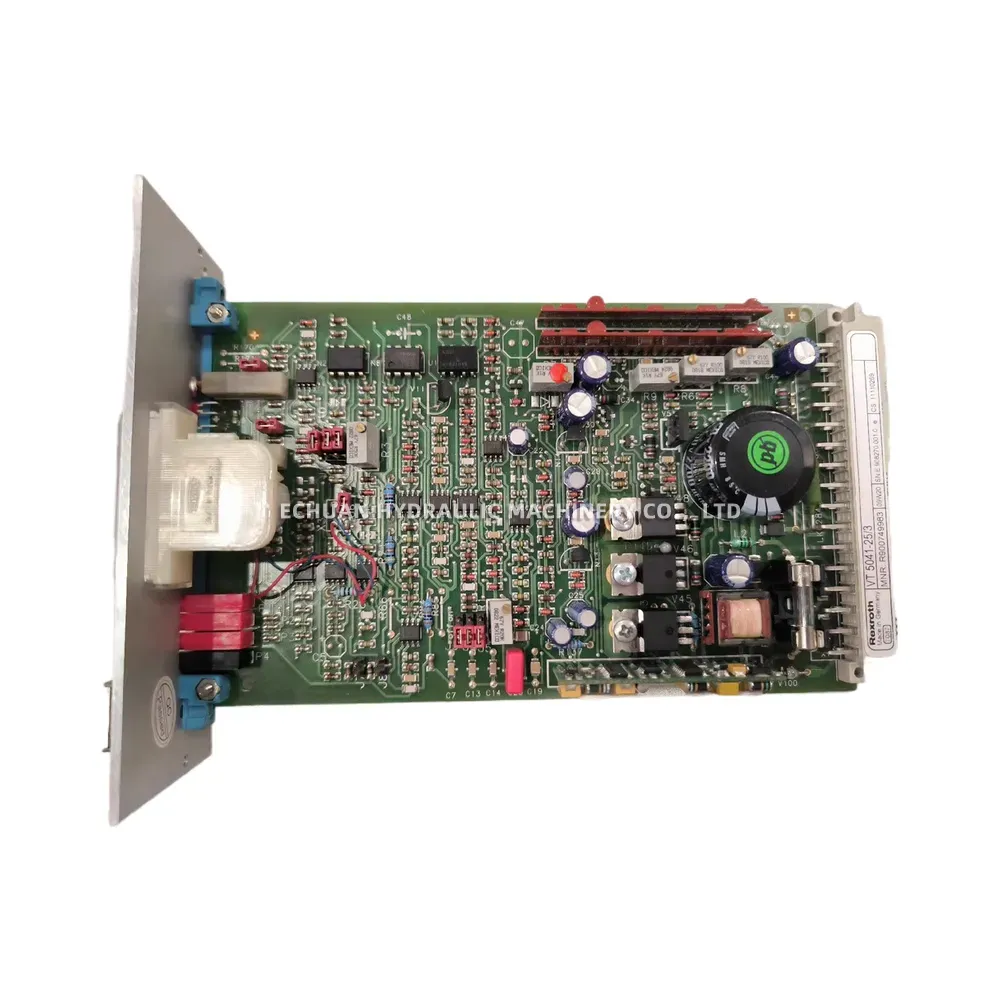

The Rexroth VT5041-25/3 is an analog amplifier card designed in Eurocard format for controlling proportional pressure valves without electrical position feedback. It is suitable for various Rexroth valve series such as DBE, ZDBE, DBEM, ZDBEM, DBET, DBETE, and 3DREP. This amplifier card provides precise control by converting an input voltage signal into a corresponding output current for the valve solenoid. It features adjustable ramp times (up/down), gain, and bias via potentiometers located on the front panel, allowing for fine-tuning to specific application requirements. The card includes a differential input stage and operates with a standard 24V DC supply voltage.
Technical Specifications:
- Type: Analog amplifier card
- Format: Eurocard (100 x 160 mm)
- Supply Voltage: 24 V DC (+/- 10%)
- Input Signal: Differential amplifier input +/- 10 V
- Output Signal: PWM Current Output
- Maximum Output Current: 1.6 A
- Compatible Valves: Proportional pressure valves without electrical position feedback (e.g., DBE, ZDBE, DBEM, ZDBEM, DBET, DBETE, 3DREP)
- Ramp Function: Adjustable up/down ramps (0.02 s to 5 s)
- Connection: 32-pin male connector, form D according to DIN 41612
- Operating Temperature Range: 0 °C to +50 °C
- Part Number: R900749983
Rexroth VT5041-25/3 R900749983
Model:Rexroth VT5041-25/3 R900749983
