Product Description
Rexroth R901108808 4WEH 16 J72/6HG24N9ETK4/B10

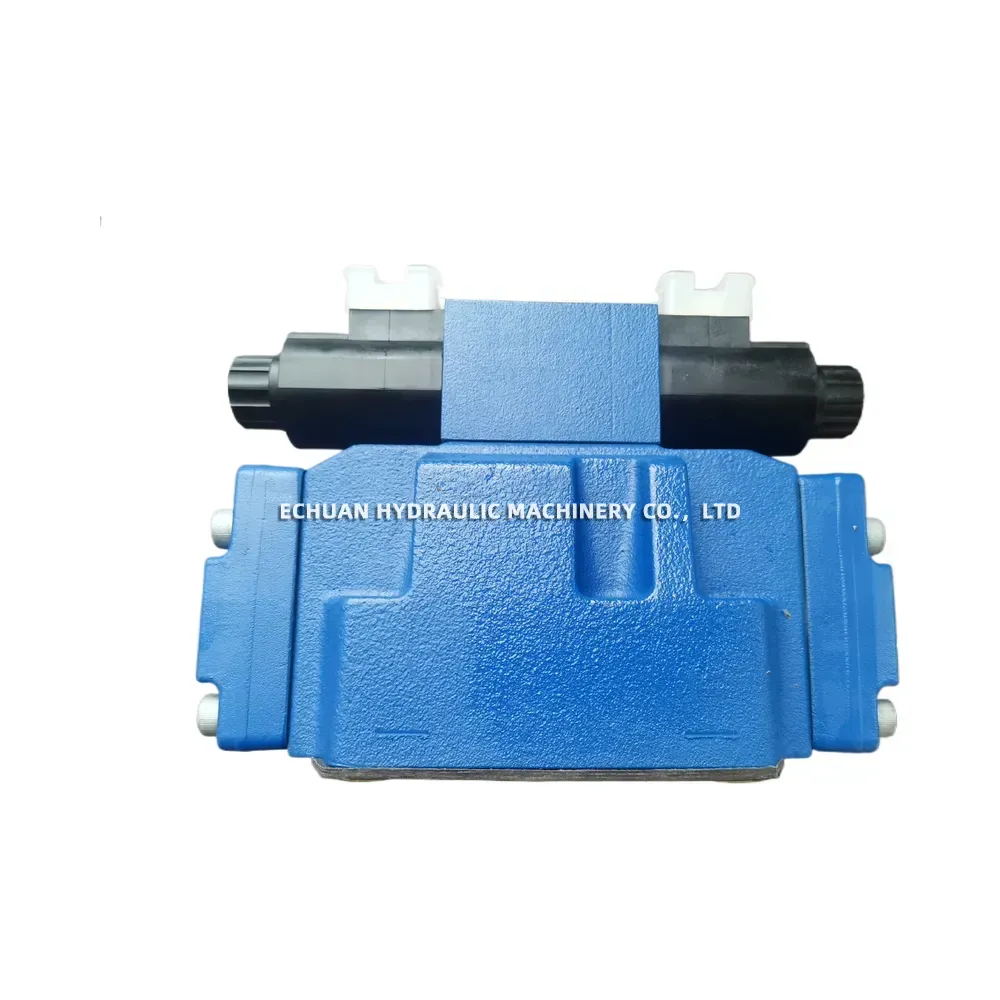

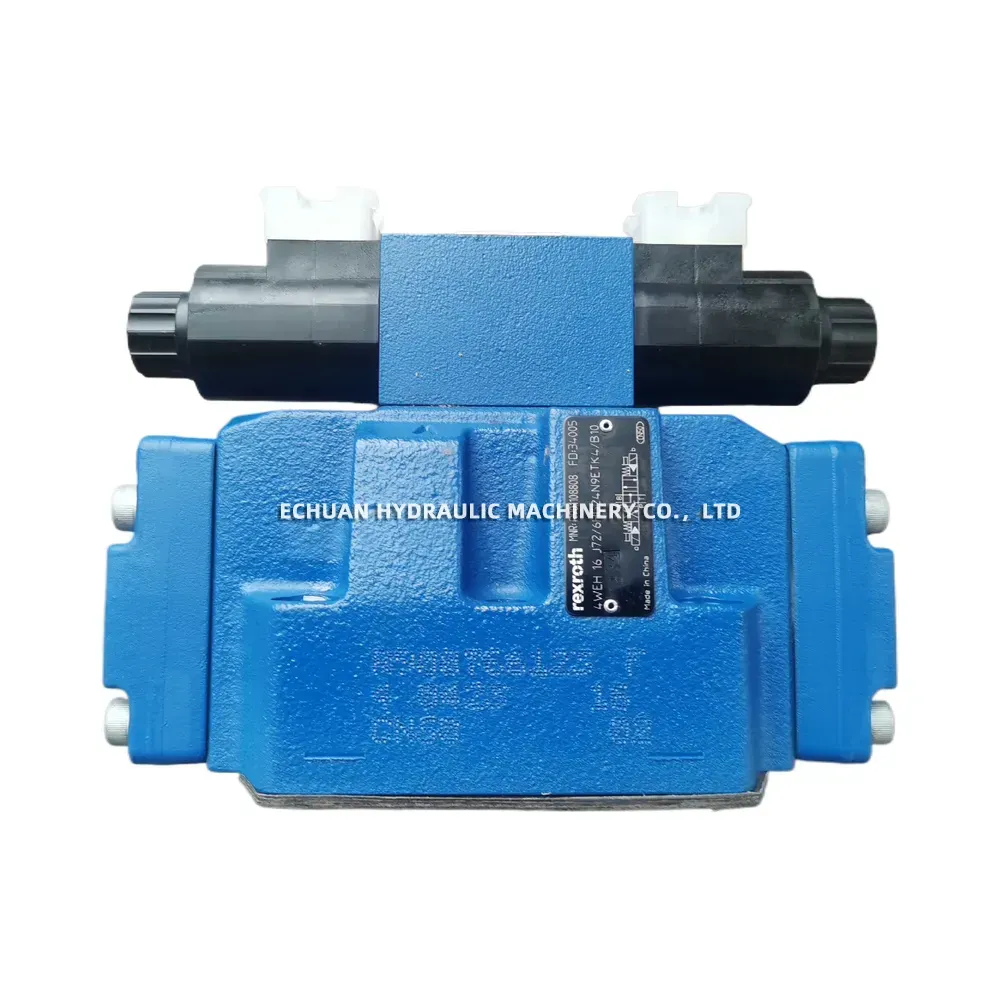

The Rexroth R901108808 (4WEH 16 J72/6HG24N9ETK4/B10) is a high-performance, solenoid-piloted directional spool valve designed for reliable control in industrial hydraulic systems. This valve is used to control the start, stop, and direction of fluid flow, ensuring precise operation of hydraulic actuators. It features electro-hydraulic actuation for high flow rates with low pressure drop. The valve is designed for subplate mounting according to ISO 4401 standards, facilitating easy installation and maintenance. The inclusion of a throttle insert (B10) in port P allows for the control of pilot flow switching times.
Technical Specifications:
- Component Series: 6X
- Valve Type: 4WEH (Solenoid-piloted directional spool valve)
- Nominal Size: 16
- Spool Symbol: J72
- Actuation Type: Electro-hydraulic
- Solenoid Voltage: 24V DC
- Electrical Connection: K4 (Connector to DIN EN 175301-803)
- Manual Override: Concealed manual override (ET)
- Maximum Operating Pressure: 350 bar (5075 psi)
- Maximum Flow Rate: 300 l/min (79 GPM)
- Mounting Interface: ISO 4401-07-07-0-94
- Seals: NBR (Nitrile rubber)
- Special Feature: B10 – Throttle insert, Ø 1.0 mm in port P
Rexroth R901108808 4WEH 16 J72/6HG24N9ETK4/B10

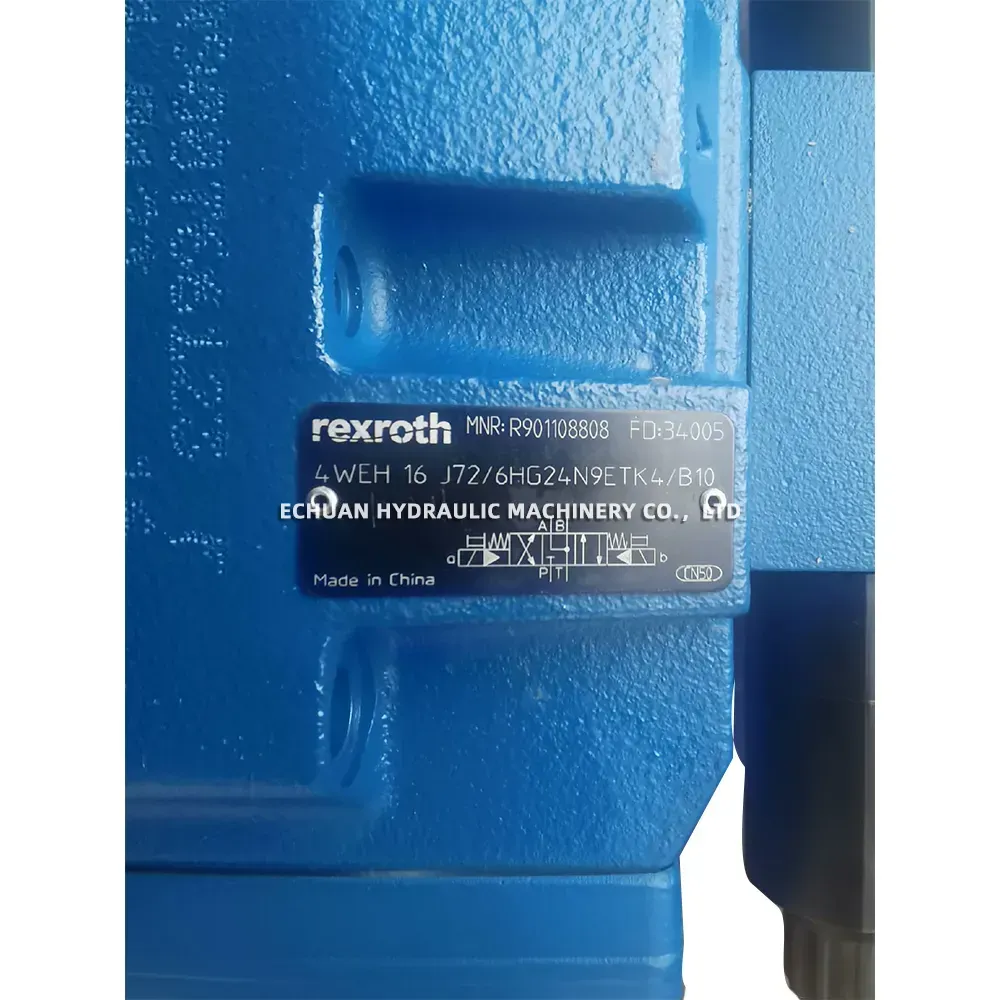

Model：Rexroth R901108808 4WEH 16 J72/6HG24N9ETK4/B10
| Brand | Rexroth |
|---|---|
| Model | R901108808 4WEH 16 J72/6HG24N9ETK4/B10 |
| Part No. | Rexroth R901108808 4WEH 16 J72/6HG24N9ETK4/B10 |
| Category | Hydraulic valves |
| Link | https://www.echuan-hydraulic.com/product/rexroth-r901108808-4weh-16-j72-6hg24n9etk4-b10 |
