Product Description

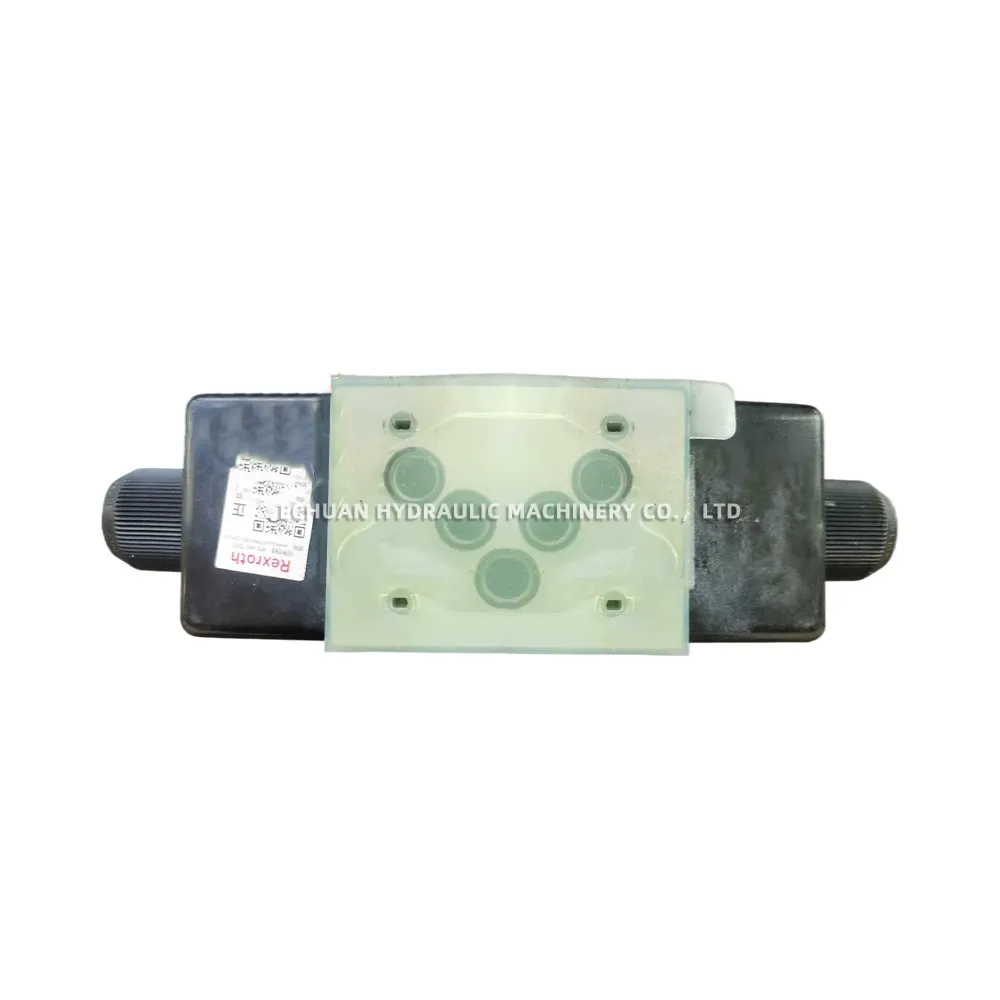

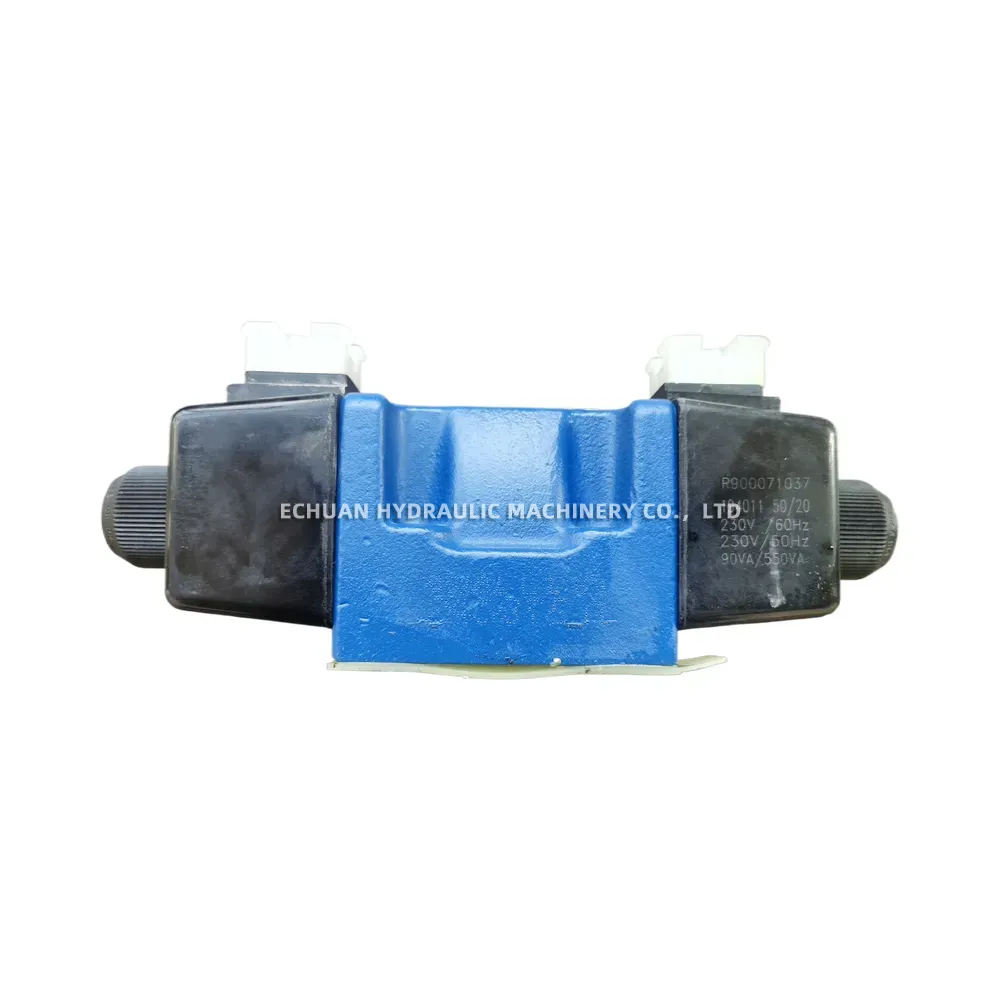

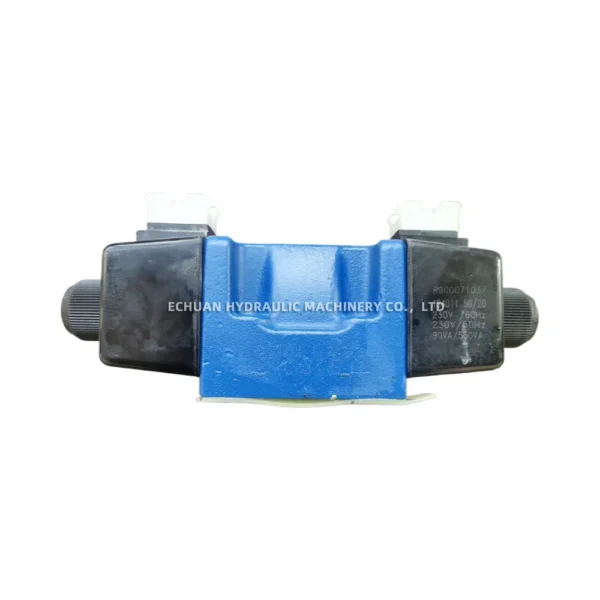

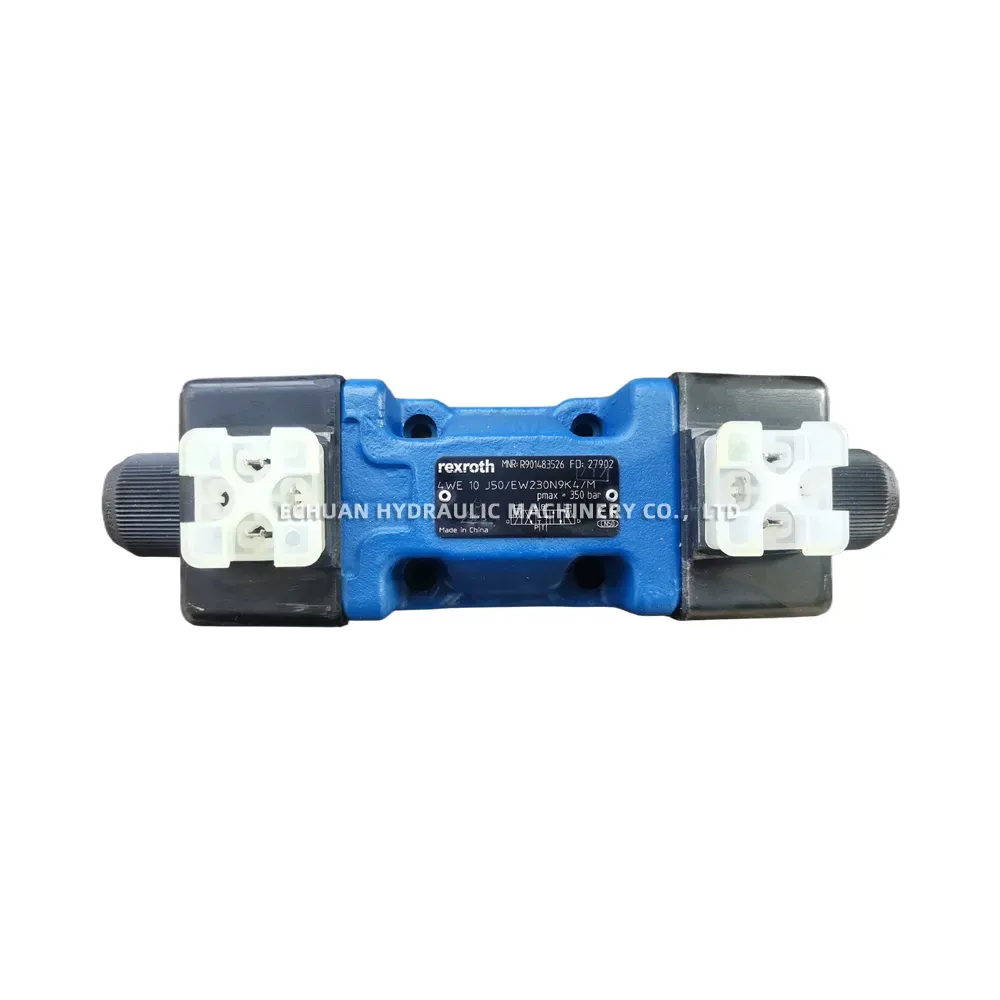

Rexroth R901483526 4WE10J50/EW230N9K4/M
The Rexroth 4WE10J50/EW230N9K4/M is a direct-operated directional spool valve with solenoid actuation. This high-performance valve is designed to control the start, stop, and direction of fluid flow in a hydraulic system. It features a size 10 (NG10) body with a mounting pattern according to ISO 4401 standards, ensuring interchangeability. The ‘J’ spool configuration blocks all ports (P, A, B, T) in the neutral, spring-centered position. This model is equipped with wet-pin AC solenoids for reliable switching and a long service life, operating on a 230V AC power supply. It also includes a concealed manual override (/M) for emergency actuation or system setup without electrical power.
Technical Specifications:
- Component Series: 5X
- Valve Type: Direct operated directional spool valve
- Size: 10 (NG10)
- Mounting Pattern: ISO 4401-05-04-0-05
- Spool Symbol: J (all ports blocked in neutral position)
- Actuation Type: Solenoid operated, spring return
- Solenoid Voltage: 230V AC (50/60 Hz)
- Electrical Connection: Connector per DIN EN 175301-803 with K4 individual connection
- Maximum Operating Pressure (Ports A, B, P): 315 bar (4568 psi)
- Maximum Operating Pressure (Port T): 210 bar (3045 psi)
- Maximum Flow Rate: 120 l/min (31.7 GPM)
- Manual Override: Yes, concealed (/M)
- Hydraulic Fluid Temperature Range: -30°C to +80°C (-22°F to +176°F)
- Seals: NBR (Nitrile rubber)
Rexroth R901483526 4WE10J50/EW230N9K4/M
Model：Rexroth R901483526 4WE10J50/EW230N9K4/M
