Product Description
SAUTER 1200074-02 Terminal Board Module

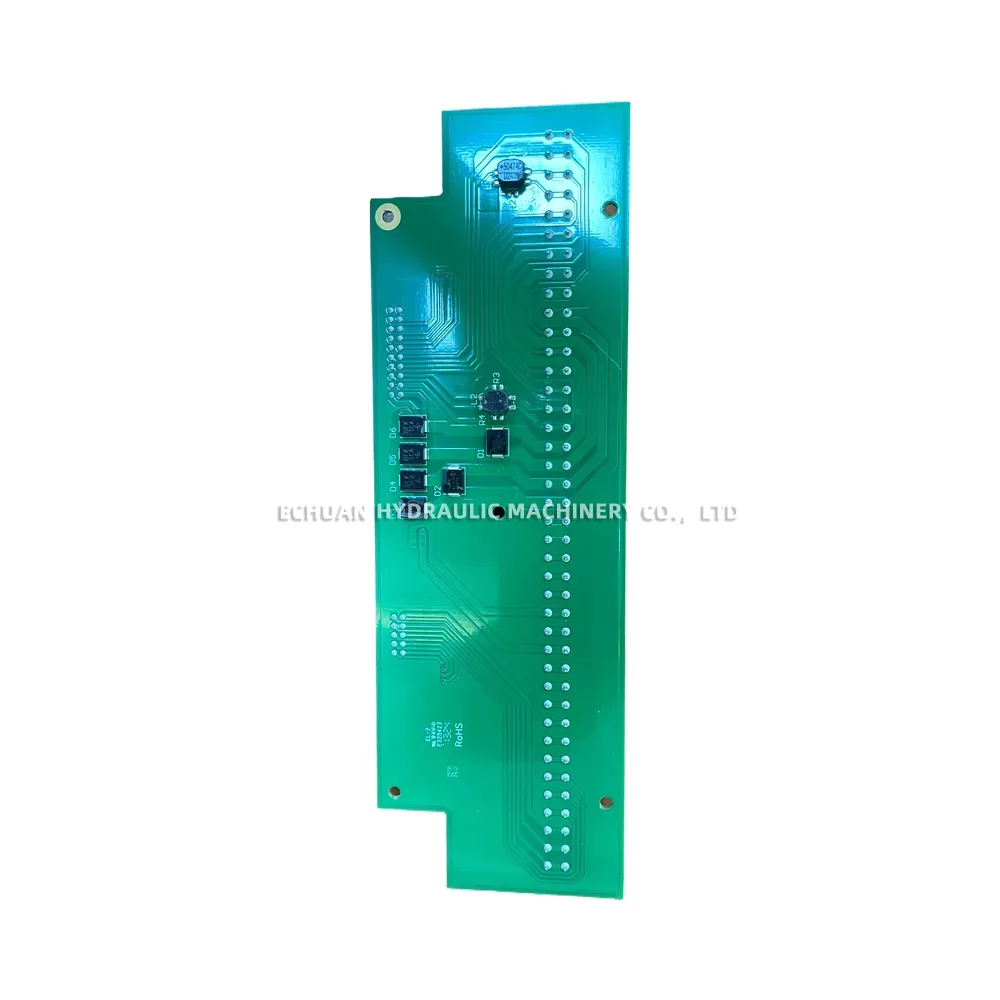

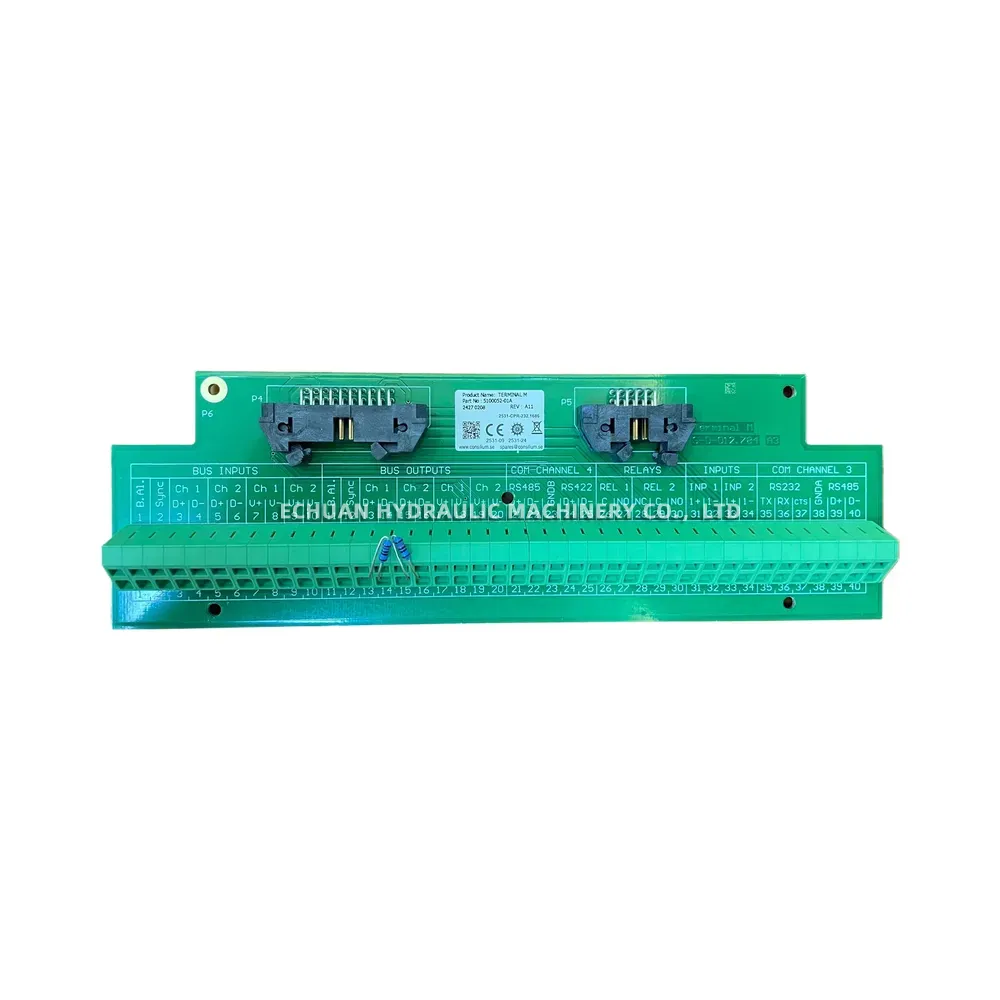

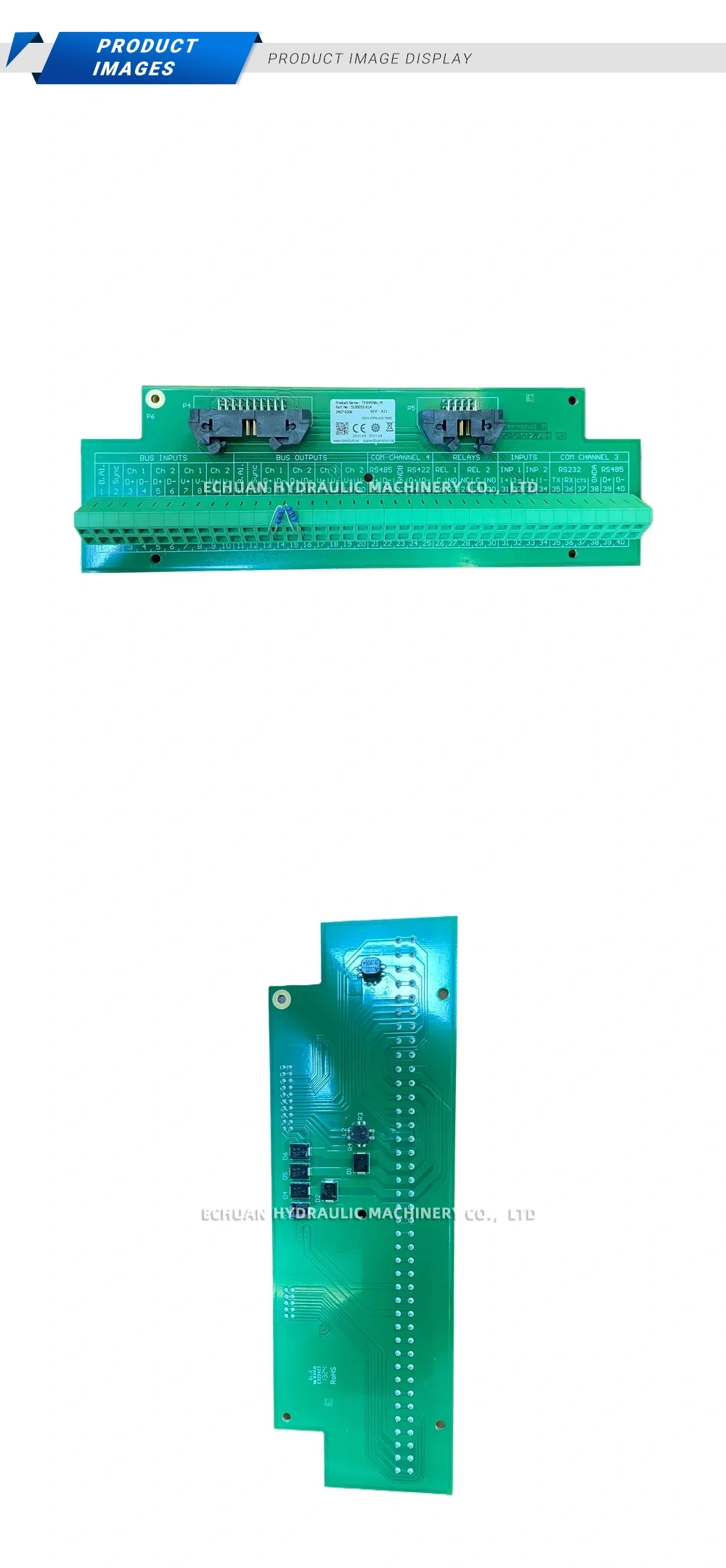

The SAUTER 1200074-02, also known as TERMINAL M, is a versatile terminal board module designed for seamless integration into SAUTER automation systems. This green PCB module provides a centralized and organized wiring point for various inputs, outputs, and communication channels. It features a robust 40-position screw terminal block, simplifying the connection of field devices. With dedicated connections for bus inputs/outputs, two relay channels, two standard inputs, and multiple COM channels (including RS485, RS422, and RS232), it offers flexible connectivity options. Internal communication with the main controller is handled via two ribbon cable connectors (P4, P5), ensuring reliable data exchange within the system.
Technical Specifications:
- Brand: SAUTER
- Model / Part No: 1200074-02 / TERMINAL M
- Product Type: Terminal Board Module
- Terminal Block: 40-position screw terminal
- I/O Connections: BUS INPUTS, BUS OUTPUTS, 2x Relay Channels, 2x Input Channels
- Communication Ports: COM-CHANNEL 4 (RS485/RS422), COM CHANNEL 3 (RS232/RS485)
- Internal Connectors: P4, P5 (Ribbon Cable)
- Revision: A13
SAUTER 1200074-02 Terminal Board Module
Shop the genuine SAUTER 1200074-02 TERMINAL M Terminal Board Module. This 40-position screw terminal board facilitates easy wiring for I/O and RS485/RS232 communication in building automation systems.
