Product Description

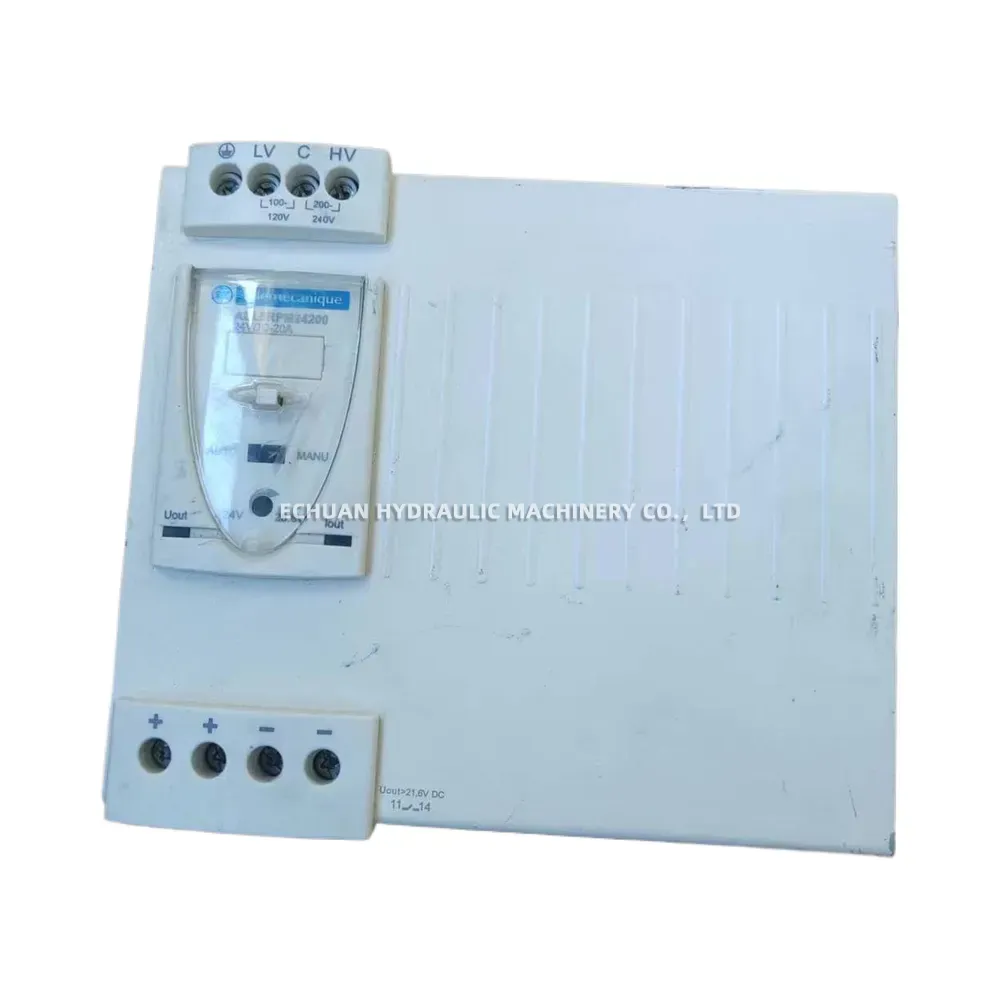

Schneider ABL8 RPM24200

The Schneider ABL8 RPM24200 is a Phaseo regulated switch mode power supply (SMPS) designed to deliver reliable direct current voltage for industrial applications. It accepts a wide input voltage range from 100V to 240V AC (single or two-phase) or 120V to 250V DC, providing a stable 24V DC output with a current of 20A and a total power of 480W. This robust unit is engineered for DIN rail mounting and features built-in protection against overloads and short circuits, ensuring the safety and longevity of connected automation equipment. An LED diagnostics indicator on the front panel allows for easy troubleshooting and status monitoring. Its design prioritizes output voltage stability, making it an ideal choice for demanding industrial environments.

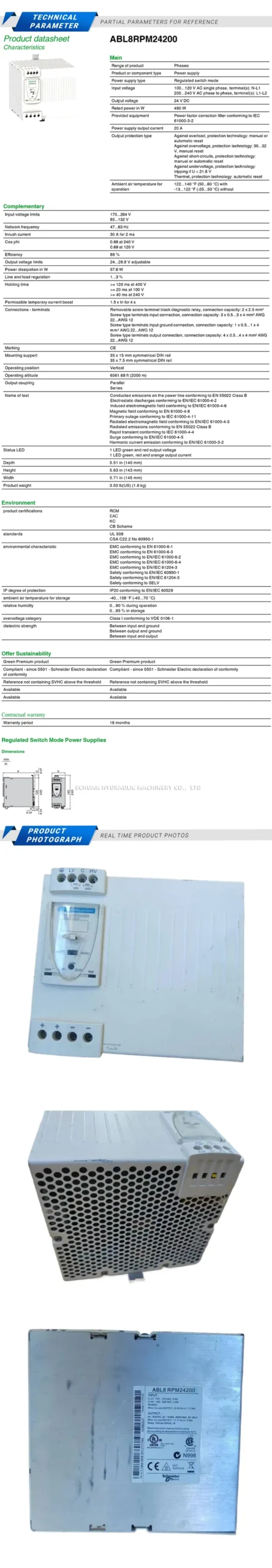

Technical Specifications:

Product Range: Phaseo Rectified
Product Type: Power supply
Power Supply Type: Regulated switch mode
Input Voltage: 100-240 V AC (single phase/phase to phase), 120-250 V DC
Output Voltage: 24 V DC
Rated Power: 480 W
Output Current: 20 A
Efficiency: 88%
Input Protection Type: Integrated fuse (not interchangeable)
Operating Ambient Air Temperature: -25°C to 55°C (without derating), 55°C to 70°C (with derating)
Mounting Support: DIN rail (35×7.5mm or 35x15mm)
IP Degree of Protection: IP20 conforming to EN/IEC 60529
Standards: UL 508, CSA C22.2 No 60950-1
Certifications: CE, cULus, EAC, RCM, KC, TUV (60950-1)
Dimensions (WxHxD): 85 mm x 143 mm x 143 mm
Net Weight: 1.4 kg
