Product Description

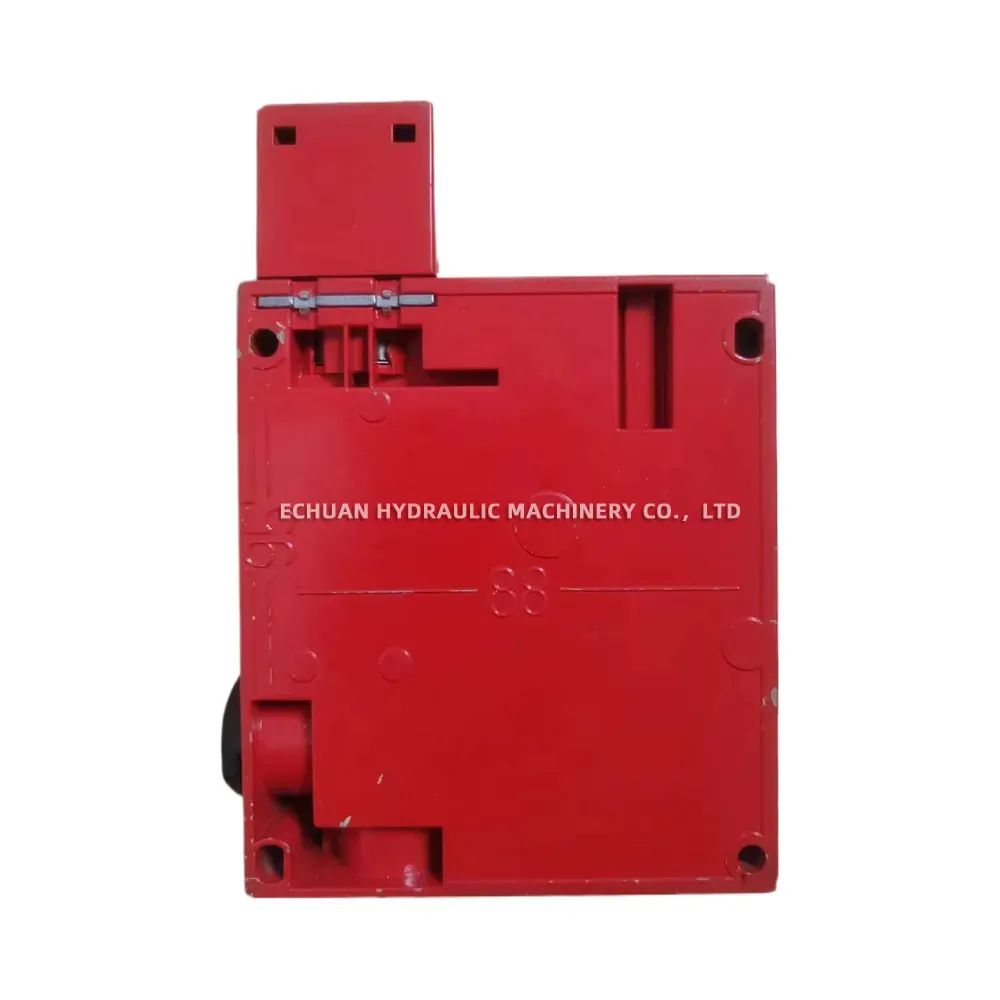

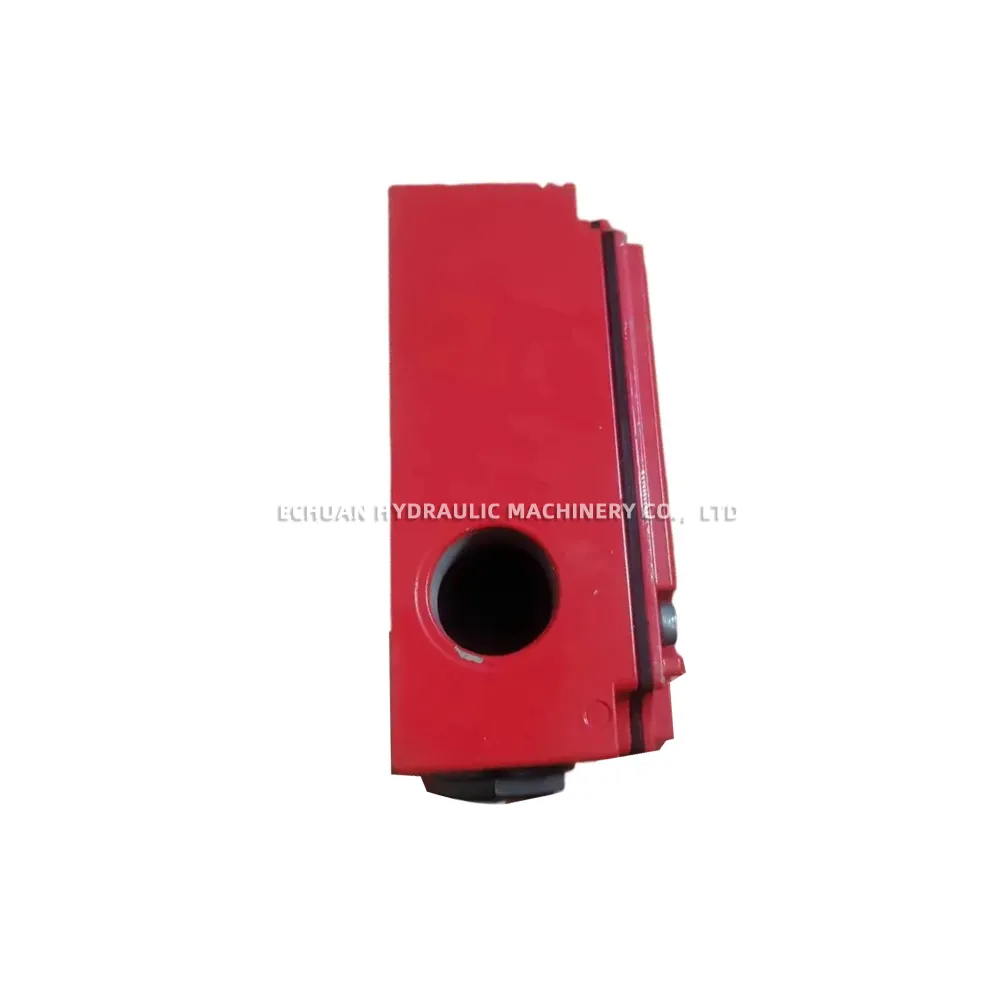

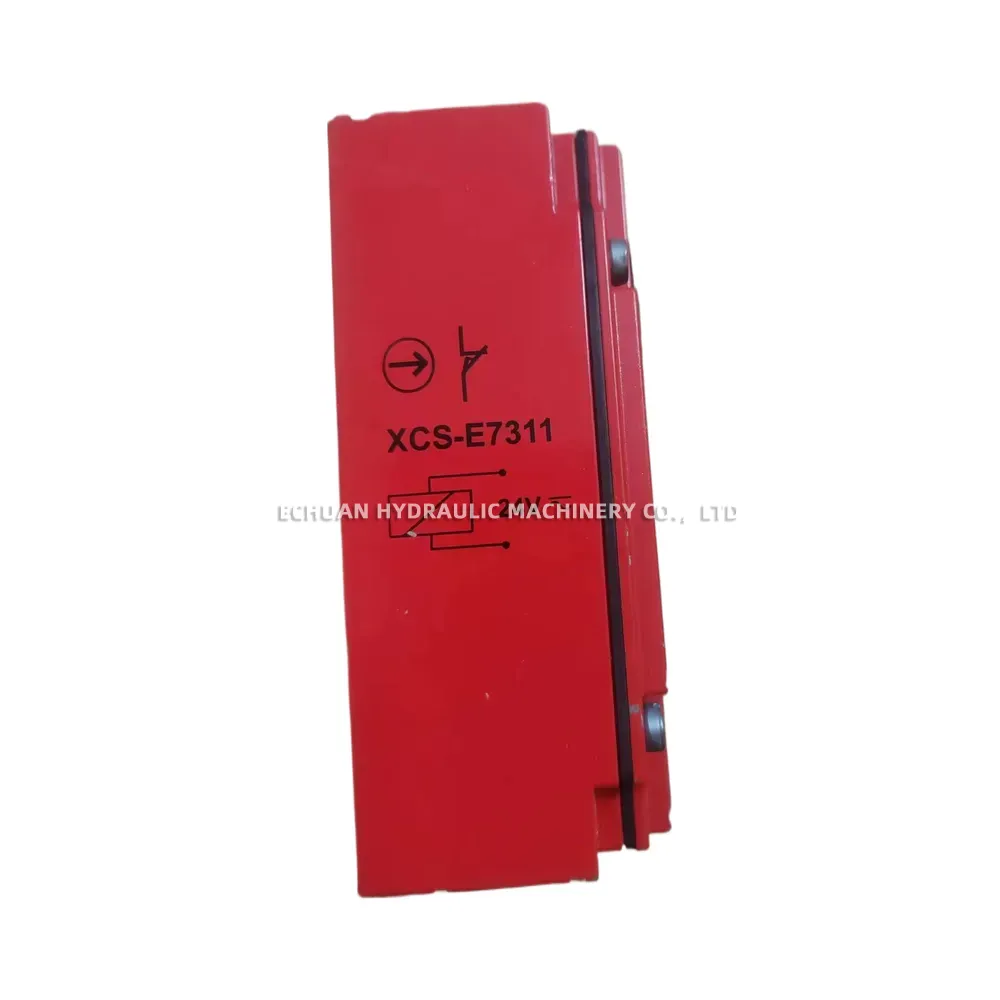

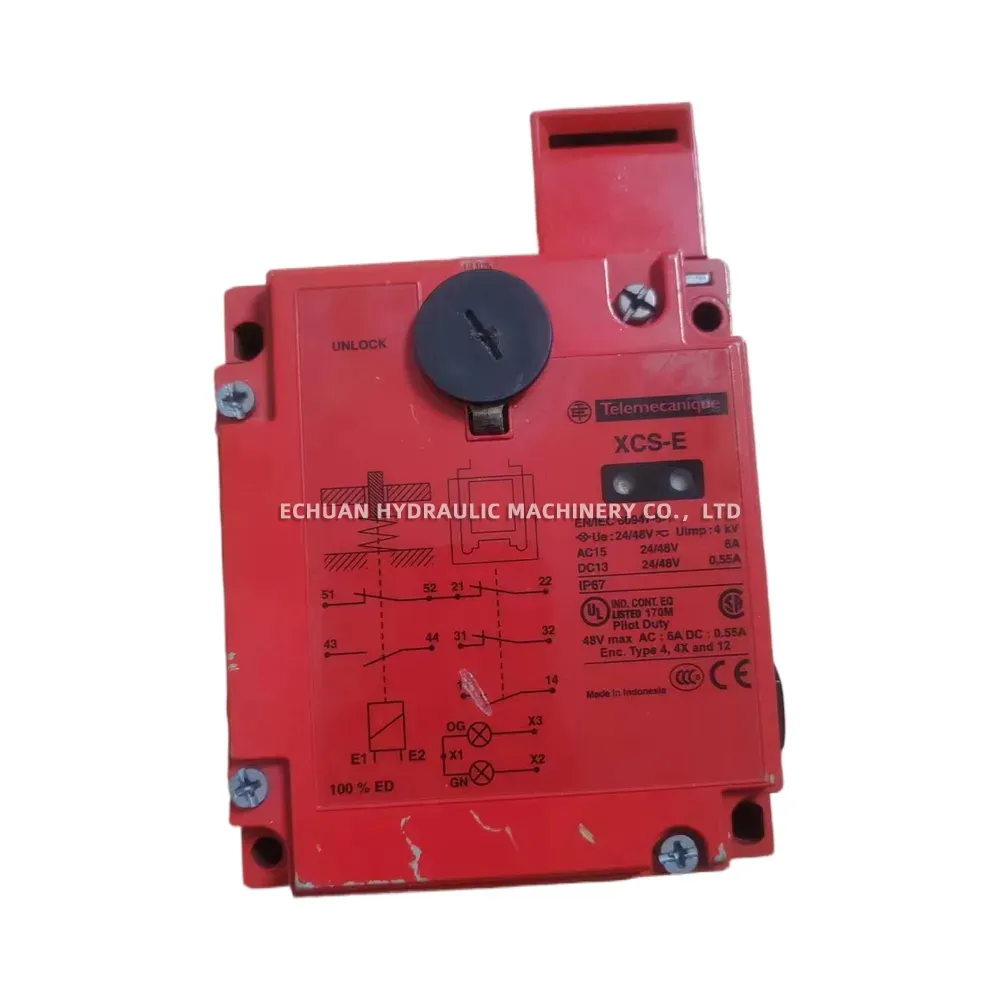

Schneider XCS-E7311

The Schneider Electric XCS-E7311 is a robust safety interlock switch designed for machine guarding applications. Part of the Preventa XCS safety range, this metal-enclosed switch features a solenoid locking mechanism that ensures machine guards remain closed and locked until hazardous operations have safely ceased. It is typically used to protect operators by preventing access to dangerous areas until the machine is in a safe state. The XCS-E7311 offers a high level of safety integrity, suitable for demanding industrial environments.

Technical Specifications:

Range of product: Preventa Safety detection
Product or component type: Safety switch
Component name: XCSE
Design: Rectangular
Material: Metal (Zamak body and head)
Head type: Key operated turret head
Contacts type and composition (Switch): 1 NC + 2 NO
Contact operation: Slow-break, break before make
Solenoid contacts type and composition: 1 NC + 1 NO (for solenoid monitoring)
Solenoid locking type: Locking by solenoid, unlocking by key
[Us] rated supply voltage (Solenoid): 24 V AC/DC (- 20…10 %)
Cable entry: 2 entries tapped for M20 x 1.5
Electrical connection: Terminal, clamping capacity: 1 x 0.5…2 x 1.5 mm² with or without cable end
Number of poles: 3
Local signalling: 2 LEDs (green or orange for guard open/guard closed and locked)
Safety level: Can reach PL e/category 4 conforming to EN/ISO 13849-1, Can reach SIL 3 conforming to EN/IEC 61508
Mechanical durability: 1,000,000 cycles
[Ithe] conventional enclosed thermal current: 6 A
[Ui] rated insulation voltage: 300 V (UL 508), 300 V (CSA C22.2 No 14), 500 V (EN/IEC 60947-1)
IP degree of protection: IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
