Product Description

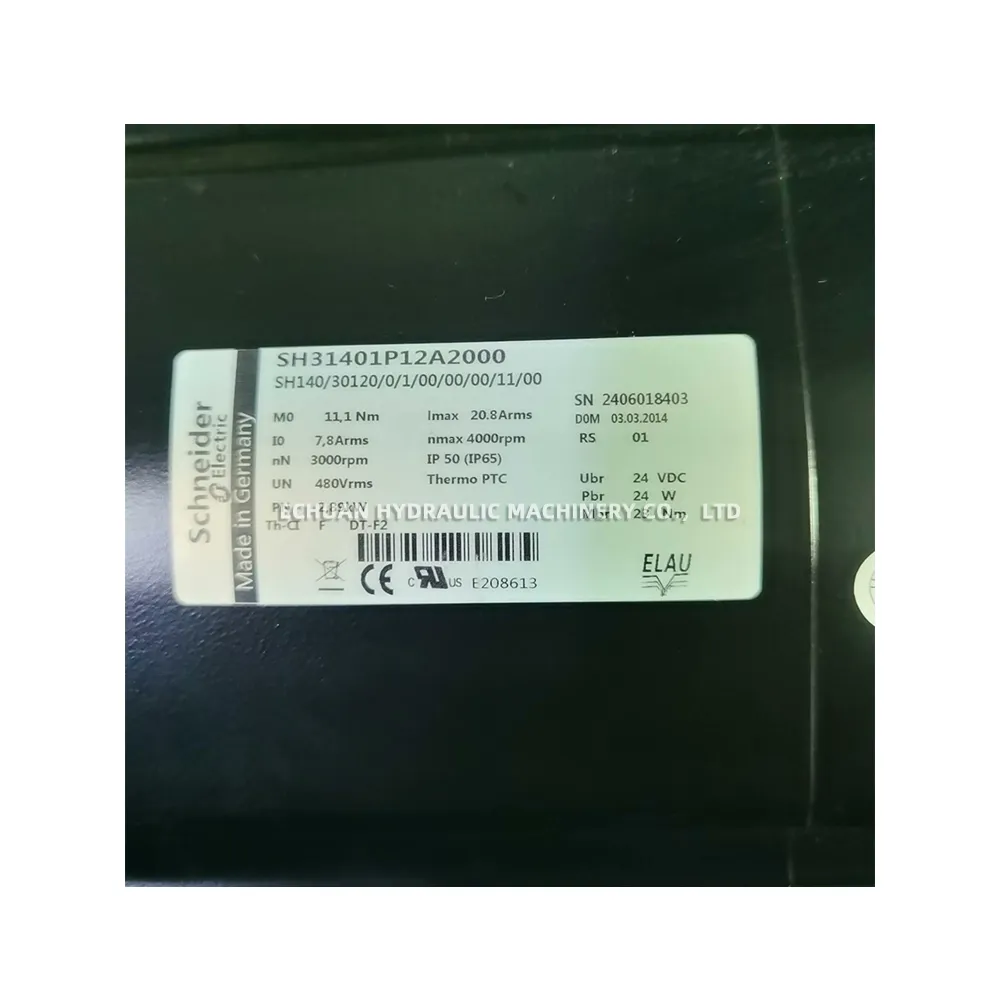

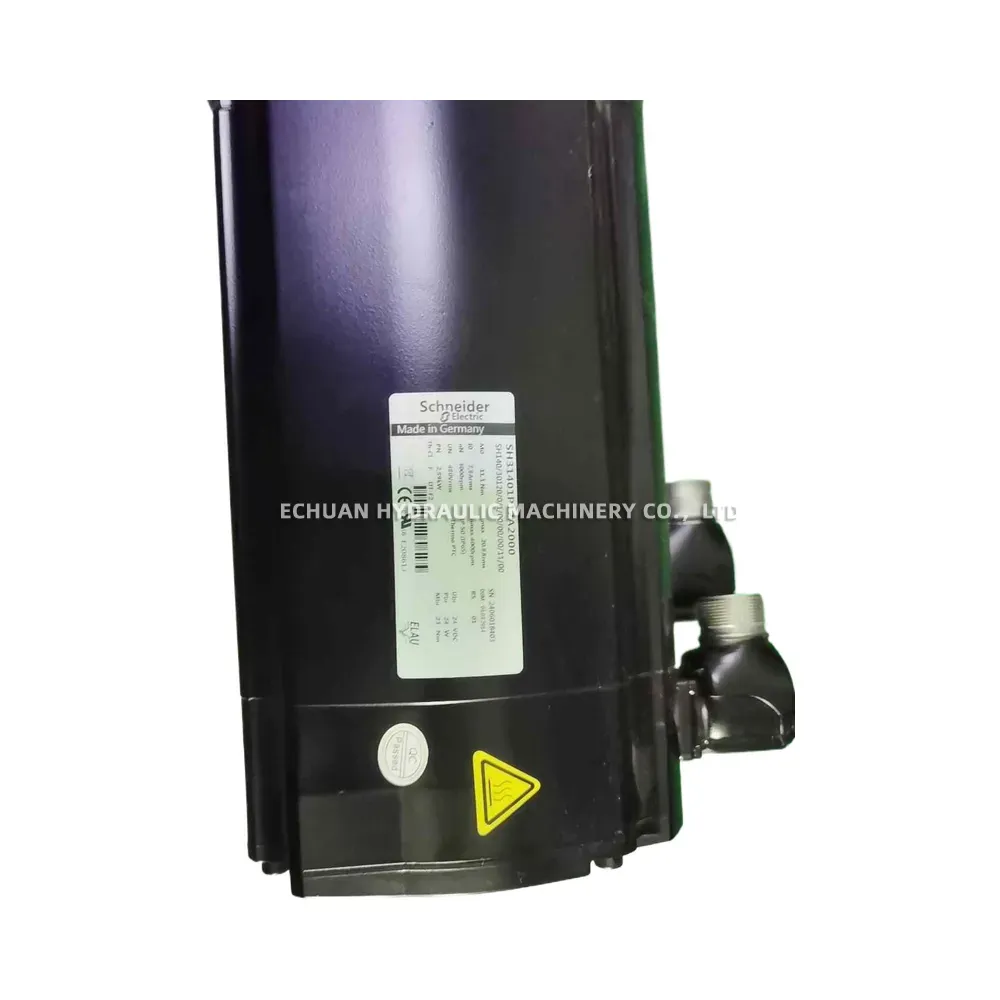

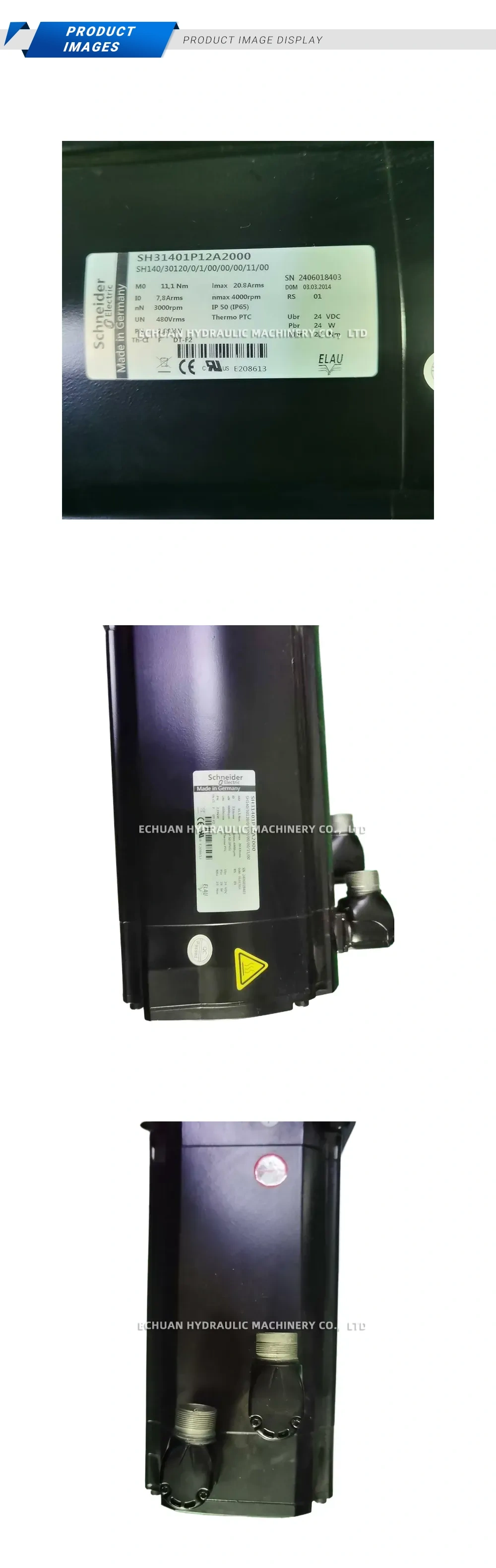

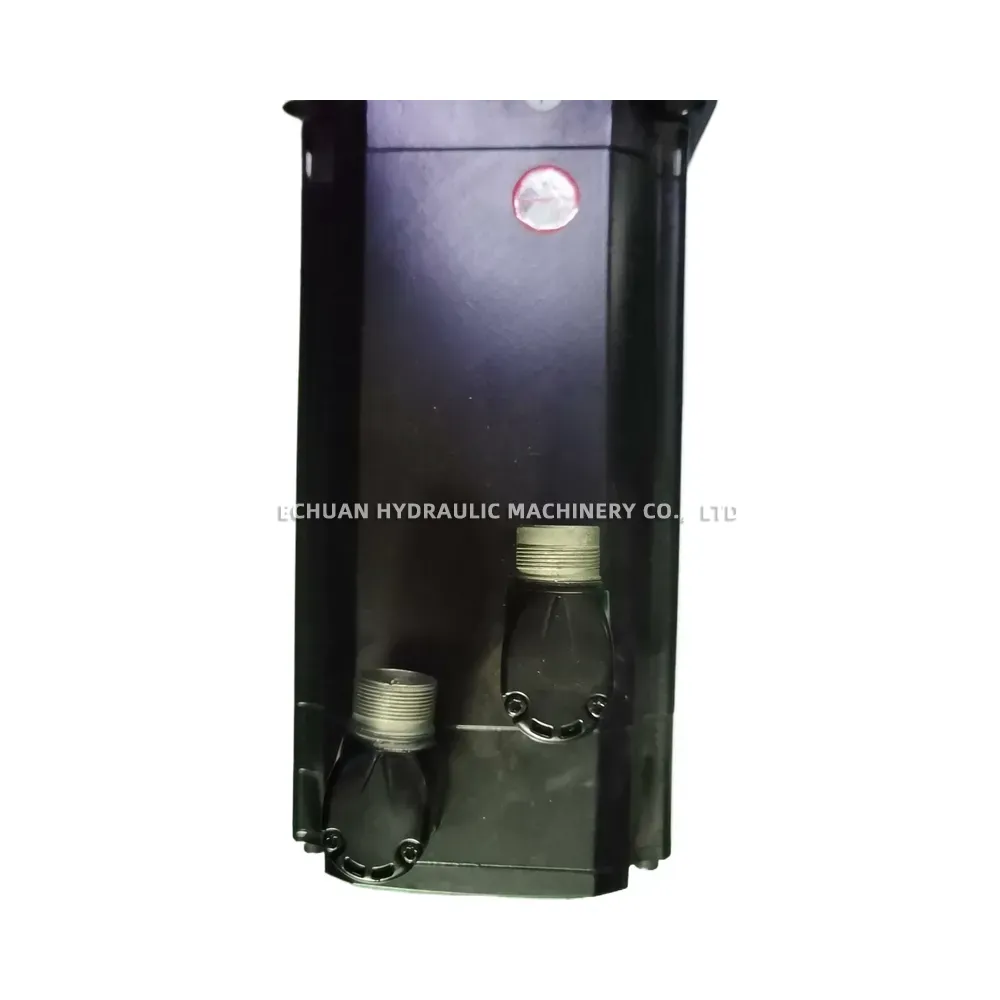

Schneider Electric SH31401P12A2000 Servo Motor
The Schneider Electric SH31401P12A2000 is a high-performance AC servo motor engineered for demanding industrial automation and motion control applications. Manufactured in Germany, this motor delivers exceptional precision, power, and reliability. It operates at a rated speed of 3000 rpm with a substantial power output of 2.89 kW and a stall torque of 11.1 Nm, making it suitable for tasks requiring dynamic response and high torque. A key feature is the integrated 24VDC holding brake, providing 23 Nm of torque to securely hold loads in position when power is removed. Built with Thermo PTC thermal protection and a robust IP50/IP65 rating, the SH31401P12A2000 ensures long-lasting performance in challenging industrial environments.
Technical Specifications:
- Model: SH31401P12A2000
- Rated Power (PN): 2.89 kW
- Rated Voltage (UN): 480Vrms
- Rated Speed (nN): 3000 rpm
- Maximum Speed (nmax): 4000 rpm
- Stall Torque (M0): 11.1 Nm
- Brake: Integrated 24VDC, 24W, 23 Nm Holding Torque
- Protection Rating: IP50 (IP65 at shaft)
- Thermal Protection: Thermo PTC
- Country of Origin: Germany
Schneider Electric SH31401P12A2000 Servo Motor
Shop the Schneider Electric SH31401P12A2000, a powerful 2.89 kW AC servo motor with an integrated 24VDC brake. This German-made motor offers 3000 rpm rated speed and 11.1 Nm stall torque, perfect for high-performance industrial automation systems.
