Product Description

Sewon Yuken MSW-03-X-40 Hydraulic Throttle & Check Modular Valve

The Sewon Yuken MSW-03-X-40 is a high-performance modular throttle and check valve designed for precise bidirectional flow control in advanced hydraulic systems. Featuring a double-type sandwich-plate design, this valve integrates adjustable throttles and integral check valves in both the A and B port lines. It is equipped with two graduated rotary adjusting knobs, allowing for independent and accurate metering of each work port to efficiently control the speed of hydraulic actuators. Built to the 03 series (NG10 / 10 mm nominal size) standard, it ensures seamless stacking mounting in compliance with the ISO 4401 modular pattern. Manufactured by Sewon E&T Corp. in Korea, this robust valve delivers reliable and consistent performance in demanding industrial applications.

Technical Specifications:

  • Brand: Sewon Yuken (Sewon E&T Corp. Korea)

  • Model: MSW-03-X-40

  • Valve Type: Modular Throttle and Check Valve (Double Type / Sandwich-Plate)

  • Nominal Size: 03 Series (NG10 / 10 mm)

  • Mounting Standard: ISO 4401 modular stacking pattern

  • Control Lines: A and B ports (Bidirectional flow control)

  • Adjustment Method: Two graduated rotary adjusting knobs for independent metering

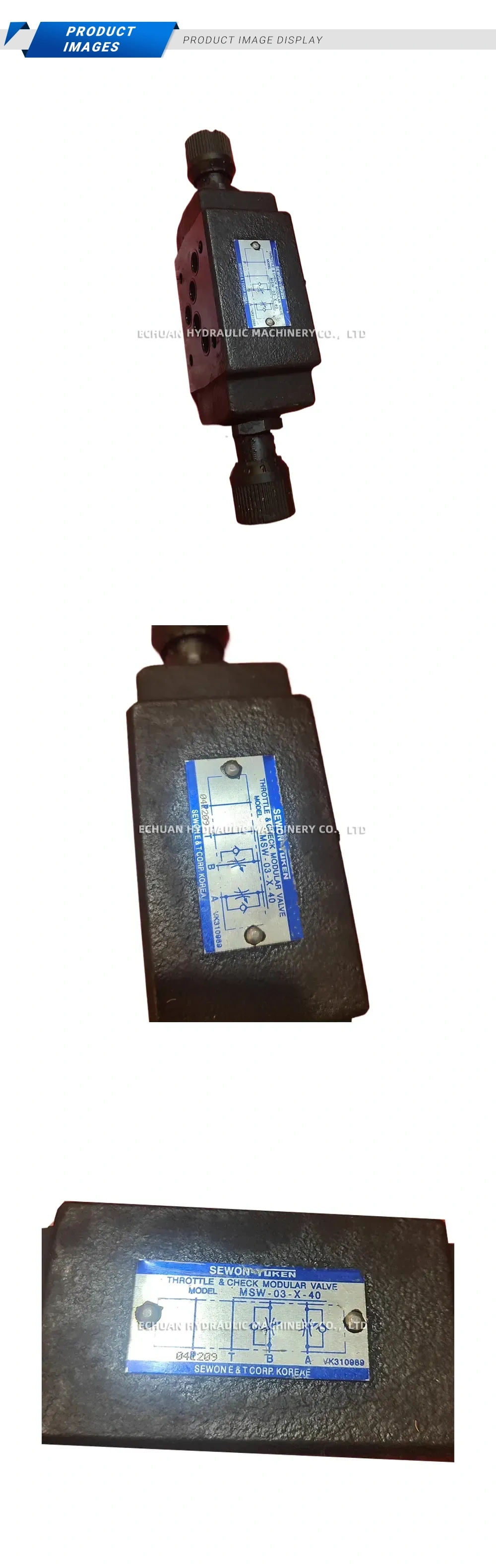

Sewon Yuken MSW-03-X-40 Hydraulic Throttle & Check Modular Valve Description

Sewon Yuken MSW-03-X-40 Hydraulic Throttle & Check Modular Valve

Optimize your hydraulic actuator speed with the Sewon Yuken MSW-03-X-40 Throttle & Check Modular Valve. This NG10 (03 series) double-type sandwich valve features independent rotary knob adjustments for A and B ports, offering precise bidirectional flow control and standard ISO 4401 mounting.

BrandSewon Yuken
ModelMSW-03-X-40
Part No.967427226890
CategoryHydraulic valves
Linkhttps://www.echuan-hydraulic.com/product/sewon-yuken-msw-03-x-40-hydraulic-throttle-check-modular-valve
